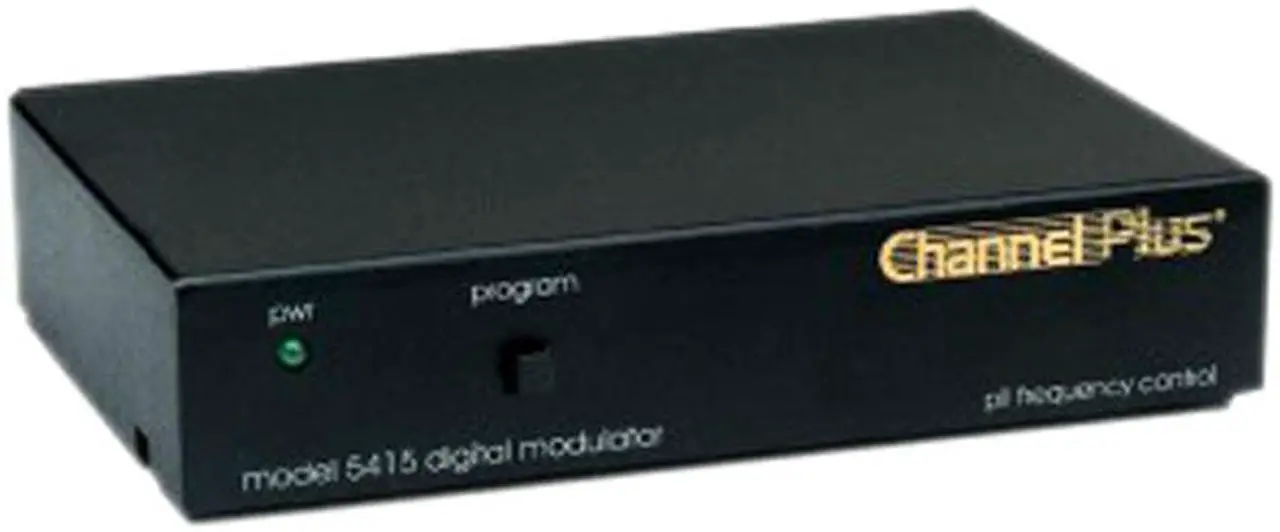

CHANNEL PLUS 5415 One-Channel Video Modulator
- One modulated TV channel
- Creates a TV channel for a camera or other video source
- Channel range: CATV 65-125 (excluding 95-99) and UHF 14-64
- Pushbutton digital programming of modulated channel
Overview
Specs
Reviews (1)
The CHANNEL PLUS 5415 One-Channel Video Modulator converts audio/video signal from your VCR, DVD player, satellite, or security camera into user-selected channel (UHF or CATV), and then output it through standard F-Type coaxial connector. This modulator is designed for economical distribution of audio/video contents from various media sources. Select the output frequency (channel) using the "program" button on the front panel, and you can receive the signal by tuning the TV to the modulated channel.
The Model 5415 modulator offers video loop-through. A jumper on the Model 5415 terminates the video input at 75 ohms. When the jumper is removed, the input can be looped using a "Y" adapter to feed the video to a local monitor or VCR.
Digital ModulatorThis model features an internal quartz crystal reference oscillator and PLL circuitry for drift-free performance.
Pushbutton ProgrammingThis model supports output frequency of UHF 14–64 and CATV 65–125 (excluding 95–99). The channel can be selected using the front panel "program" pushbutton.
Standard F-Type Coax OutputThis allows you to take advantage of the most commonly available and cost effective media distribution cabling used. Ideal for both retrofit as well as new installations.
Digital ModulatorThis model features an internal quartz crystal reference oscillator and PLL circuitry for drift-free performance.
Pushbutton ProgrammingThis model supports output frequency of UHF 14–64 and CATV 65–125 (excluding 95–99). The channel can be selected using the front panel "program" pushbutton.
Standard F-Type Coax OutputThis allows you to take advantage of the most commonly available and cost effective media distribution cabling used. Ideal for both retrofit as well as new installations.Warranty & Returns
