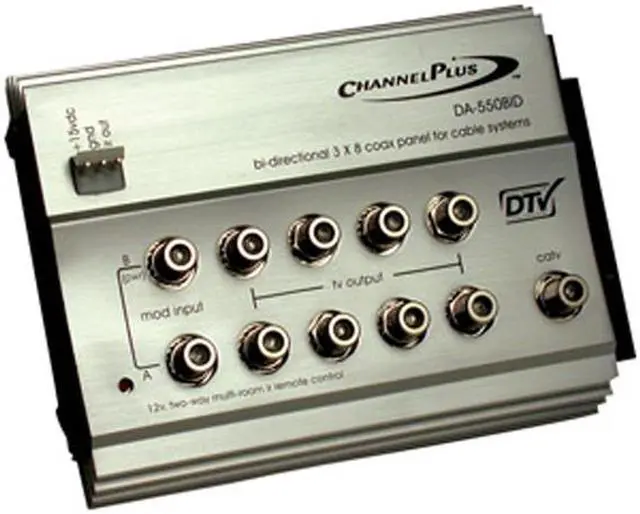

Channel Plus - Bi-Directional RF Distribution Amplifier w/ 12-Volt IR (DA-550BID)
- Max input level 20 dBmv
- Can be powered remotely
- 3 dB nominal gain on TV outputs
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
With three inputs including one from CATV and two from Channel Plus 5400, 5500, or SVM series modulators in combination with outputs to eight televisions, the Channel Plus DA-550BID RF distribution amplifier is the heart of a multi-room distribution system. The Channel Plus DA-550BID amplifier can handle an extremely wide range of input signals from NTSC and digital TV and offers a 5-42MHz back channel for cable modem or interactive set-top boxes.
With three inputs including one from CATV and two from Channel Plus 5400, 5500, or SVM series modulators in combination with outputs to eight televisions, the Channel Plus DA-550BID RF distribution amplifier is the heart of a multi-room distribution system. The Channel Plus DA-550BID amplifier can handle an extremely wide range of input signals from NTSC and digital TV and offers a 5-42MHz back channel for cable modem or interactive set-top boxes.
Bi-Directional DesignThe Channel Plus DA-550BID amplifier features a bi-directional design including a 54MHz to 1GHz forward bandwidth and a 5MHz to 42MHz reverse bandwidth.
Diverse Power Supply MethodThe Channel Plus DA-550BID amplifier can be powered locally with its included power supply or remotely from up to 75 feet away by using an in-wall power injector wall plate Model 2010 or any 5500 series or SVM series modulator.
Scalable ComponentThe Channel Plus DA-550BID amplifier provides optional IR control of connected video sources and whole house IR integration with a built-in 12-volt IR engine.
Bi-Directional DesignThe Channel Plus DA-550BID amplifier features a bi-directional design including a 54MHz to 1GHz forward bandwidth and a 5MHz to 42MHz reverse bandwidth.
Diverse Power Supply MethodThe Channel Plus DA-550BID amplifier can be powered locally with its included power supply or remotely from up to 75 feet away by using an in-wall power injector wall plate Model 2010 or any 5500 series or SVM series modulator.
Scalable ComponentThe Channel Plus DA-550BID amplifier provides optional IR control of connected video sources and whole house IR integration with a built-in 12-volt IR engine.Warranty & Returns
