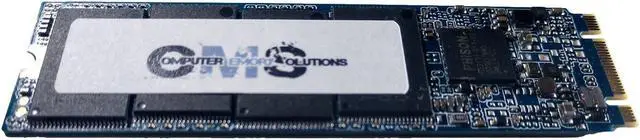

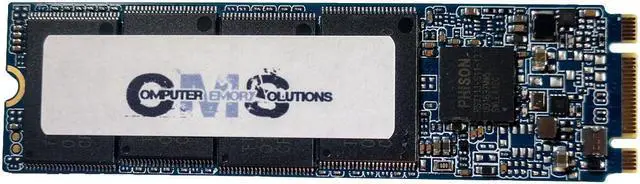

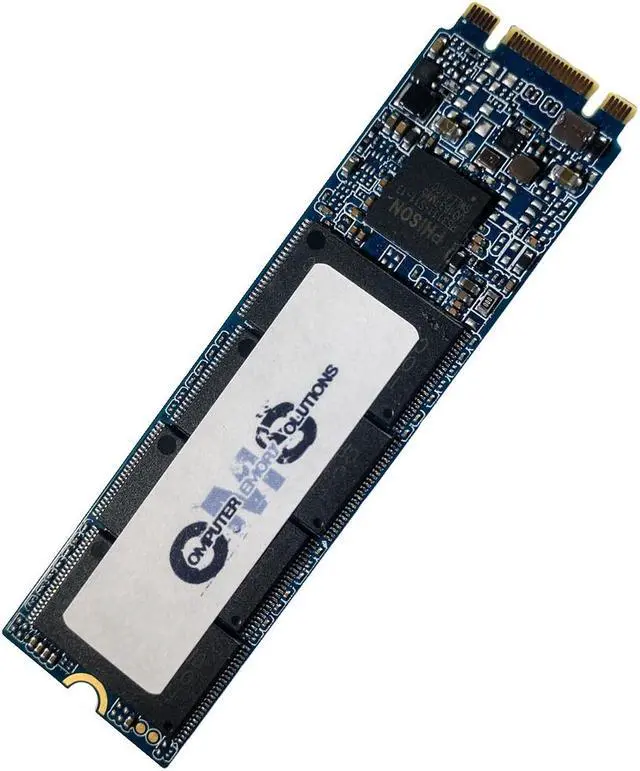

1TB SSDNow M.2 2280 SATA 6GB by CMS d68

1TB SSD
Now M. 2 SATA 6Gbps (Single Side) M. 2 Form Factor — Multi-purpose SFF connector replaces small mSATA and mini-PCIe slots Single-sided design (120GB/240GB) — Integrates easily into designs with M. 2 connectors; ideal for thin-and-light systems Form factor M. 2 2280 Interface SATA Rev. 3.0 (6Gb/s) – with backward compatibility to SATA Rev. 2.0 Capacities 120GB, 240GB Sequential Read/Write SATA Rev. 3.0 120GB - Up to 550/200MB/s 240GB - Up to 550/330MB/s 480GB - Up to 550/520MB/s Max 4k Read/Write IOPS 128GB - up to 100, 000/80, 000 IOPS Random 4k Read/Write 120GB - up to 80, 000/48, 000 IOPS 240GB - up to 79, 000/79, 000 IOPS 480GB - up to 80, 000/80, 000
IOPS Endurance4 120GB: 150TB and 0.56
DWPD 240GB: 300TB and 0.70
DWPD 480GB: 800TB and 0.93 DWPD Power consumption
Max Read: 1.56W
Max Write: 3.01W
Idle: 0.06W Storage temperature -40°C~85°C Operating temperature 0°C~70°C Dimensions 80mm x 22mm x 3.5 mm
Weight: 256GB - 5.99 (g) Vibration operating 2.17G Peak (7–800Hz) Vibration non-operating 20G Peak (10–2000Hz) Life expectancy 1 million hours MTBF

Max Capacity: None

Sockets: 1

Compatible with:

Limited Lifetime exchange or repair warranty against manufacturing defects by Computer Memory Solutions. Manufactured by Computer Memory Solutions. We don't use OEM or Generic Modules to avoid incompatibility. In most cases, you can mix manufacturer parts, however, all memory in the system will run at the slowest performance of the installed modules or CPU/processor capability.
