Does this unit have Over-voltage protection, under-voltage protection, short circuit protection, over power protection, OR over temperature protection? -THANKS !

All Corsair power supplies have OVP, UVP, SCP, OPP and OTP.

Does the PSU come with more than just 2 PCIe / CPU ports for cable hook up?

There are a total of 4 PCIe/ CPU ports on the PSU. Each CPU cable has one single 4 or 8-pin connector on it. Each PCIe cable has 2 6 or 8-pin connectors for graphics cards. So max would be 4 8-pin connections. I have the ASUS X570 AMD board and a Zotac 1080 Ti, so I am using 1 x CPU = 8-pin to motherboard 1 x CPU = 4-pin to motherboard 1 x PCIe = 2 8-pin to GPU Leaving 1 PCIe port + cable completely unused.

Does this PSU have an additional 4-pin ATX power connector? My motherboard needs it.

This PSU has two 4+4 pin power connectors that can be used for either 8-pin or 4-pin motherboard power headers.

Does this unit have Over-voltage protection, under-voltage protection, short circuit protection, over power protection, or over temperature protection?? -thanks

All Corsair power supplies have OVP, UVP, SCP, OPP and OTP.

Does this unit have any Over-voltage protection, under-voltage protection, short circuit protection, over power protection, or over temperature protection? -thanks

All Corsair power supplies have OVP, UVP, SCP, OPP and OTP.

$289^.00

Free 30-day Returns

Limit 99999 per customer.

Ships from Taiwan.

Price alert

Add to wish list

Sold by BOJUNTANG

Top Rated

4 (5 seller ratings)

Shipped by BOJUNTANG

Meet Your Seller

BOJUNTANG

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

Main image of CORSAIR CX-F RGB Series CX750F RGB White 750W 80 PLUS Bronze Fully Modular ATX Power Supply, CP-9020227-NA

Alt view image 2 of 7 - CORSAIR CX-F RGB Series CX750F RGB White 750W 80 PLUS Bronze Fully Modular ATX Power Supply, CP-9020227-NA

Alt view image 3 of 7 - CORSAIR CX-F RGB Series CX750F RGB White 750W 80 PLUS Bronze Fully Modular ATX Power Supply, CP-9020227-NA

Alt view image 4 of 7 - CORSAIR CX-F RGB Series CX750F RGB White 750W 80 PLUS Bronze Fully Modular ATX Power Supply, CP-9020227-NA

Alt view image 5 of 7 - CORSAIR CX-F RGB Series CX750F RGB White 750W 80 PLUS Bronze Fully Modular ATX Power Supply, CP-9020227-NA

Alt view image 6 of 7 - CORSAIR CX-F RGB Series CX750F RGB White 750W 80 PLUS Bronze Fully Modular ATX Power Supply, CP-9020227-NA

Alt view image 7 of 7 - CORSAIR CX-F RGB Series CX750F RGB White 750W 80 PLUS Bronze Fully Modular ATX Power Supply, CP-9020227-NA

Customer images

Shop All Corsair Products | Visit BOJUNTANG Store

CORSAIR CX-F RGB Series CX750F RGB White 750W 80 PLUS Bronze Fully Modular ATX Power Supply, CP-9020227-NA

(1,984)(32) Write a Review

Options: CX-F RGB Series (750W)

VS Series (600W)
VS Series (500W)
CX-M Series (750W)
CX-M Series (650W)
CX-F RGB Series (750W)
CX Series (650W)
CX Series (550W)
CV Series (750W)
CV Series (650W)
CV Series (550W)

80 PLUS Bronze Certified: Provides up to 88% operational efficiency, generating less heat and lowering your energy costs.
120mm RGB Fan: Control eight individually addressable RGB LEDs at the push of a button, with ten preset lighting modes.
Brilliant White Housing and Cables: Matches the clean, refined look of other white CORSAIR products in your setup.
iCUE and Motherboard RGB Compatible: Connect to a CORSAIR iCUE RGB Lighting Controller (sold separately) or motherboard via the included 5V ARGB adapter for advanced RGB lighting control.
Optimized for Low Noise: A dedicated fan curve is specially calculated to keep noise levels down.
105°C Rated Japanese Primary Capacitors: For consistent, reliable power and superb electrical performance.
Microsoft Modern Standby Support: Enables extremely fast wake-from-sleep times and better low-load efficiency.

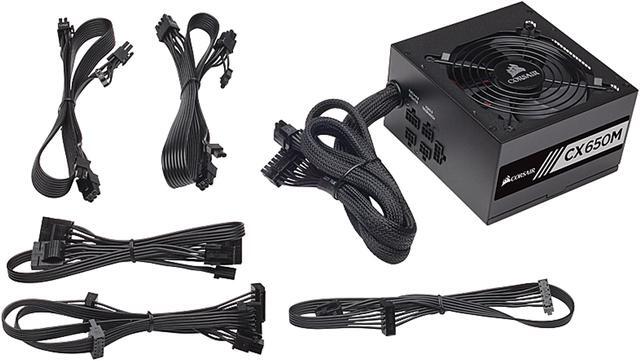

Fully Modular: Reduce cable clutter by only connecting the cables that your system needs.
Five-Year Warranty

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (1,984)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

General
Brand	CORSAIR
Series	CX750F RGB White
Model	CP-9020227-NA

Details
Color	White
Type	ATX12V / EPS12V
Maximum Power	750 W
Fans	1 x 120mm RGB Fan
Fan LED	ARGB
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	4 x 6+2-Pin
SATA Power Connector	8
Max PSU Length	140 mm
Modular	Full Modular
Energy-Efficient	80 PLUS BRONZE Certified
Input Voltage	100 - 240 V
Input Frequency Range	47 - 63 Hz
Input Current	10 - 5 A
Output	+3.3V@20A, +5V@20A, [email protected], [email protected], +5VSB@3A

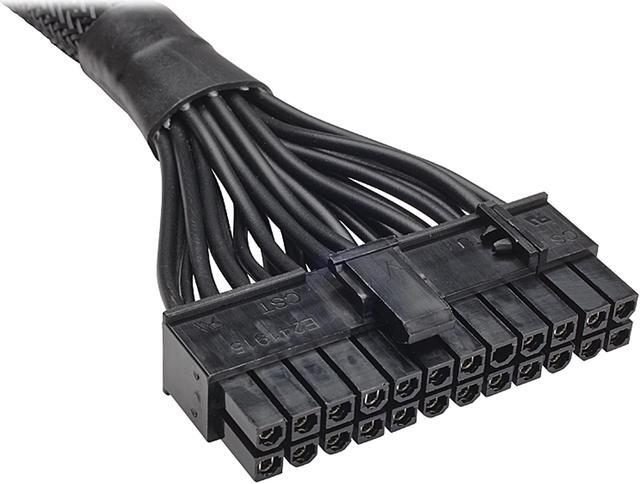

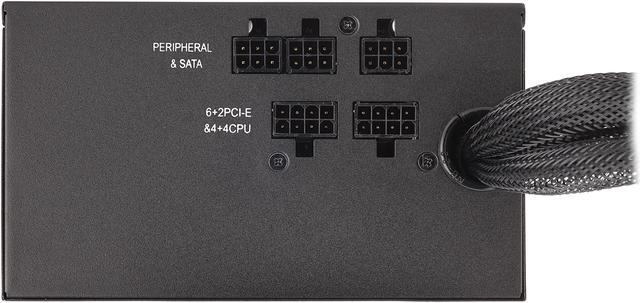

Connectors	1 x 24-pin ATX (24-pin) Connector 2 x ATX 12V/EPS12V (4+4-pin) Connector 4 x PCIe (6+2) Connectors 8 x SATA Connectors 4 x PATA Connectors

Features
Features	80 PLUS Bronze Certified: Provides up to 88% operational efficiency, generating less heat and lowering your energy costs. 120mm RGB Fan: Control eight individually addressable RGB LEDs at the push of a button, with ten preset lighting modes. Brilliant White Housing and Cables: Matches the clean, refined look of other white CORSAIR products in your setup. iCUE and Motherboard RGB Compatible: Connect to a CORSAIR iCUE RGB Lighting Controller (sold separately) or motherboard via the included 5V ARGB adapter for advanced RGB lighting control. Optimized for Low Noise: A dedicated fan curve is specially calculated to keep noise levels down. 105°C Rated Japanese Primary Capacitors: For consistent, reliable power and superb electrical performance. Microsoft Modern Standby Support: Enables extremely fast wake-from-sleep times and better low-load efficiency. Fully Modular: Reduce cable clutter by only connecting the cables that your system needs. Compact 140mm-Long Casing: Ensures an easy fit in almost all modern enthusiast PC cases. Five-Year Warranty: For complete peace of mind.

Dimension & Weight

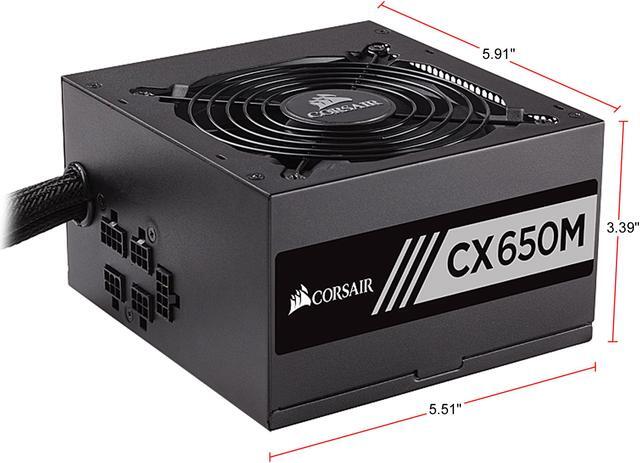

Dimensions	3.39" x 5.91" x 5.51"
Weight	3.09 lbs.

Details
PFC	No
SLI	No
CrossFire	No

Connectors
SATA Power Connector	8

Additional Information
First Listed on Newegg	November 16, 2025
