how can I mount this in a standard equipment rack?

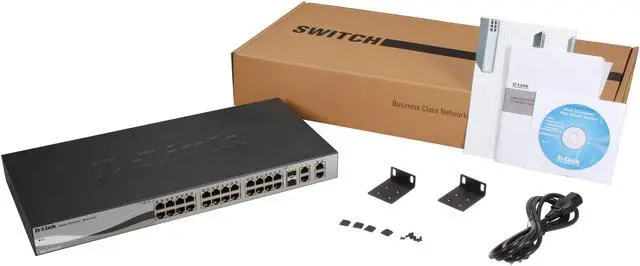

It comes with mounting brackets that makes it the right size to mount it in the standard size rack

$151^.90

Free 30-day Returns

Limit 99999 per customer.

Make an offer

Ships from Israel.

Price alert

Add to wish list

Sold by Slava computers

Top Rated

2.8 (234 seller ratings)

Shipped by Slava computers

Meet Your Seller

Slava computers

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

Main image of D-Link WebSmart DES-1210-28 Smart Switch

Alt view image 2 of 5 - D-Link WebSmart DES-1210-28 Smart Switch

Alt view image 3 of 5 - D-Link WebSmart DES-1210-28 Smart Switch

Alt view image 4 of 5 - D-Link WebSmart DES-1210-28 Smart Switch

Alt view image 5 of 5 - D-Link WebSmart DES-1210-28 Smart Switch

Shop All D-Link Products | Visit Slava computers Store

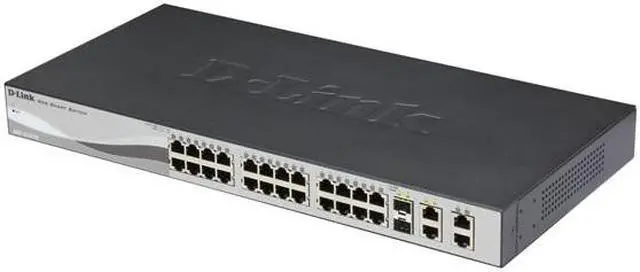

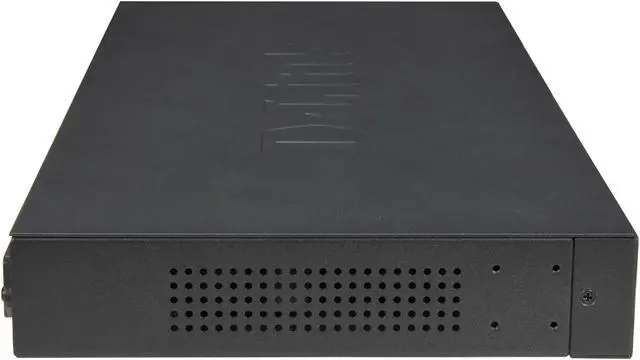

D-Link WebSmart DES-1210-28 Smart Switch

(1) Write a Review

8K MAC Address Table
512KB Buffer Memory
Smart

Overview

Specs

Reviews (1)

Any questions? Our AI beta will help you find out quickly.

Try me now

WebSmart Fast Ethernet Switch. 24-Port 10/100 switch, 2 Combo SFP, 2 Gigabit Por

Model
Brand	D-Link
Series	WebSmart
Model	DES-1210-28

Format & Standards
Format	Rackmount
Standards	IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper) IEEE 802.3z Gigabit Ethernet (fiber) ANSI/IEEE 802.3 Auto-negotiation IEEE 802.3x Flow Control
Network Management Type	Smart

Ports & Interface
Primary Ports	26 x RJ45 + 2 x SFP
Primary Port Speed	10/100Mbps + 1000Mbps

Data Transmission
MAC Address Table	8K
Switching Method	Store and Forward
VLAN Support	Yes

Details
Buffer Memory	512KB
Protocols	TCP/IP
Security	802.1X Port-based Access Control: Default 802.1X forwarding Port Security: Supports up to 64 MAC addresses per port Traffic Control: Broadcast / Multicast / Unicast Storm Control Static MAC: Supports 256 Static MAC entries D-Link Safeguard Engine: Yes
SNMP	Yes
QoS	Yes
Layer	2
Port Mirroring	Yes
LEDs	Power (per device) Link / Activity / Speed (per 10/100/1000Mbps port, per 10/100Mbps port, per SFP port)
Power	AC Input: 100 to 240 VAC 50/60 internal universal power supply Maximum Power Consumption: 17.6W Standby Power Consumption: 7.6W/110V, 7.9W/240V

Features
Features	Fanless Design: Provides Continuous, Reliable, Silent and Eco-Friendly Operation Security Features: Access Control List, D-Link Safeguard Engine and Port Security Intuitive Management: SmartConsole or Web-Based GUI, Built-in MIB Browser for SNMP, D-View 6.0 Module Support and Compact CLI through Telnet Supports Auto Voice VLAN and DSCP QoS for VoIP Application Number of Ports: 24 10/100Mbps 2 10/100/1000BASE-T 2 combo 10/100/1000BASE-T/SFP Network Cables: UTP Cat.5, Cat.5e (100m max) EIA/TIA-568 100-ohm STP (100m max) Switching Capacity: 12.8Gbps Heat Dissipation: 60.05 BTU/hr Emission (EMI): FCC Class A, CE Class A, VCCI Class A, C-Tick MTBF: 419,467 hours Safety: cUL, LVD VLAN: 802.1Q: 2003 Edition VLAN Group: Max 256 static VLAN groups, max 4094 VID Management VLAN: Supports 1 Management VLAN Asymmetric VLAN: Yes Auto Voice VLAN: Max. 10 user defined OUI, Max. 8 default OUI QoS (Quality of Service): 802.1p Quality of Service: 4 Queues per port Queue Handling: Strict, Weighted Round Robin (WRR) CoS based on: 802.1p Priority Queues, DSCP Bandwidth Control: Port-based (Ingress/Egress, min. granularity 64 Kb/s) Management: Web-based GUI: Supports IPv4 Compact CLI through Telnet: Yes Telnet Server: Maximum connection is 4, Supports IPv4 TFTP Client: Supports IPv4 SNMP: Supports v1/v2c SNMP Trap: Yes Trap for SmartConsole Utility: Yes System Log: Max. 500 log entries, supports IPv4 log server BootP/DHCP Client: Yes Time Setting: SNTP

Dimensions & Weight
Dimensions	17.3" x 8.3" x 1.7"
Weight	5.73 lbs.

Environmental
Temperature	Operating: 32° to 104°F (0° to 40°C) Storage: 14° to 158° F (-10° to 70° C)
Humidity	Operating: 10% to 95% Non-condensing Storage: 5% to 95% Non-condensing
