Question 1

Where is the IPMI management port? I see it has DUAL LAN, is one for IPMI function?

If you are using hardware raid, which card are you using? While you are at it, share your specs (Memory, cpu, case and what are you using the mobo for, etc.)

thanks

Accepted Answer

My setup is as follows:

RAID Card:
LSI MegaRAID SATA/SAS 9260-8i RAID card. With two arrays. One RAID-10 and another RAID-1.

RAM 24GB:
Kingston 8GB 240-Pin DDR3 SDRAM ECC Unbuffered DDR3 1600 Server Memory w/TS Intel Model KVR16E11/8I

CPU:
Intel Xeon E3-1231V3 Haswell 3.4GHz 8MB L3 Cache LGA 1150 80W BX80646E31231V3 Server Processor

SSD in RAID-10:
4x SAMSUNG 850 PRO MZ-7KE256BW

HDD in RAID-1
2x Seagate Constellation ES.3 ST2000NM0033 2TB 7200 RPM 128MB Cache SATA 6.0Gb/s 3.5 (GREAT Drive BTW! Super fast for a 2TB)

Case/PSUs:
SUPERMICRO SuperChassis CSE-745TQ-R800B Black 4U Rackmount Server Chassis (Amazing case! Love these. I've purchased 3 in the past 6 months)

As for the IPMI function, I couldn't tell you. Haven't used it yet.

This board is being used because it is compatible with VMware ESXI 5.5. I'm running all sorts of servers on top of the ESXI host. Domain controllers, terminal services, file servers, etc. So far it's a great board.

Question 2

Will this card fully support an Intel SSD 750 series, the 1.2 GB PCIe 3.0 hard drives? http://www.newegg.com/Product/Product.aspx?Item=N82E16820167297 I want to know if I will get the advertised read/write speeds, or will this MB limit me. Thanks.

Accepted Answer

I have not tested this myself.  I can verify that though the motherboard was produced earlier, the PCIe 3.0 port is fully compatible with the PCIe 3.0 SSD connector.  Keep in mind the motherboard is for a server build and the Intel 750 SSD is not exactly a consumer product.  Your network will more likely be your limiting factor.  For a storage server for a company of 50 to 500 employees, I use an SSD with V-NAND, usually Samsung, for the primary drive with a RAID controller and WD Red drives at RAID 5.

Question 3

Does it have hardware RAID?

Accepted Answer

Software RAID only, optional hardware RAID module available. Full details available on the Intel site.

Question 4

Is there an audio hook-up on the motherboard?

Accepted Answer

No that I can tell. Looks like you may need a sound card.

Question 5

Is anybody using this without a separate graphics card? It has integrated graphics, and I intend to use it with a Xeon E3-1265L V3 processor.

Accepted Answer

I'm am currently using this board without a separate graphics card. I'm using it with a Xeon E3-1231V3 though. It's my understanding that some new Xeons don't have the GPU on them, so you should check your flavor of Xeon to make sure that it does.

Question 6

Will this server board support the I7 4790K CPU?

Accepted Answer

I don't see that CPU listed on Intel's compatibility list for this Motherboard. I tried posting the link to Intel's compatibility page for this board but NewEgg doesn't allow that. Google the motherboards model number and find Intel's compatibility list for this product.

Question 7

Does the native software RAID support RAID 5?

Accepted Answer

Yes it does. Please search for model & add ARK to search criteria to review summary spec at Intel.

Question 8

Will this motherboard work with non-ecc memory (ie, desktop memory)?

Accepted Answer

I've never tried that. I only use ECC on a Server.

Compatible Product Series	Intel® Xeon® processor E3-1200 v3 Product Family
Chassis Form Factor	4U Rack or Pedestal
Integrated BMC with IPMI	IPMI 2.0
Board Form Factor	uATX
Graphics Output	VGA
Socket	LGA1150
# of Memory Channels	2
Memory Types	DDR3L ECC UDIMM 1333, 1600
Max Memory Size (dependent on memory type)	32 GB
PCI Express Revision	3.0
Max # of PCI Express Lanes	16
# of USB Ports	4
Total # of SATA Ports	6
# of Serial Ports	1
# of LAN Ports	2
Warranty	Standard 3 year warranty

Product Name	# of Cores	TDP	Processor Graphics
Intel® Xeon® Processor E3-1220 v3 (8M Cache, 3.10 GHz)	4	80 W	None
Intel® Xeon® Processor E3-1226 v3 (8M Cache, 3.30 GHz)	4	84 W	Intel® HD Graphics P4600
Intel® Xeon® Processor E3-1230 v3 (8M Cache, 3.30 GHz)	4	80 W	None
Intel® Xeon® Processor E3-1231 v3 (8M Cache, 3.40 GHz)	4	80 W	None
Intel® Xeon® Processor E3-1241 v3 (8M Cache, 3.50 GHz)	4	80 W	None
Intel® Xeon® Processor E3-1245 v3 (8M Cache, 3.40 GHz)	4	84 W	Intel® HD Graphics P4600
Intel® Xeon® Processor E3-1246 v3 (8M Cache, 3.50 GHz)	4	84 W	Intel® HD Graphics P4600
Intel® Xeon® Processor E3-1270 v3 (8M Cache, 3.50 GHz)	4	80 W	None
Intel® Xeon® Processor E3-1271 v3 (8M Cache, 3.60 GHz)	4	80 W	None
Intel® Xeon® Processor E3-1275 v3 (8M Cache, 3.50 GHz)	4	84 W	Intel® HD Graphics P4600
Intel® Xeon® Processor E3-1276 v3 (8M Cache, 3.60 GHz)	4	84 W	Intel® HD Graphics P4600

CPU Socket Type	LGA 1150
CPU Type	Intel Xeon E3-1200 V3

Number of DDR3 Slots	4 x 240pin
DDR3 Standard	DDR3L 1333 / 1600 ECC UDIMM
Maximum Memory Supported	32GB
Channel Supported	Dual Channel
ECC Supported	Yes

PCI Express 3.0 x16	1 PCI-E Gen3 x16 slot w/ x16 connector for 1U rack in Slot 6 position (muxed with Slot 5 and SAS module)
PCI Express x8	1 PCIe G3 x8 w/ x8 connector in Slot 5 position (turned off if x16 is used in Slot 6, or SAS module installed) 1 PCIe G2 x4 w/ x8 connector in slot 4 position 1 PCIe G2 x1 w/ x8 connector in Slot 7 position

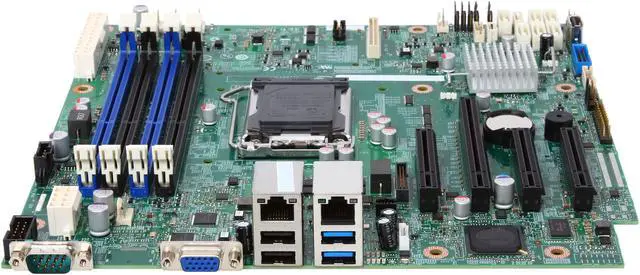

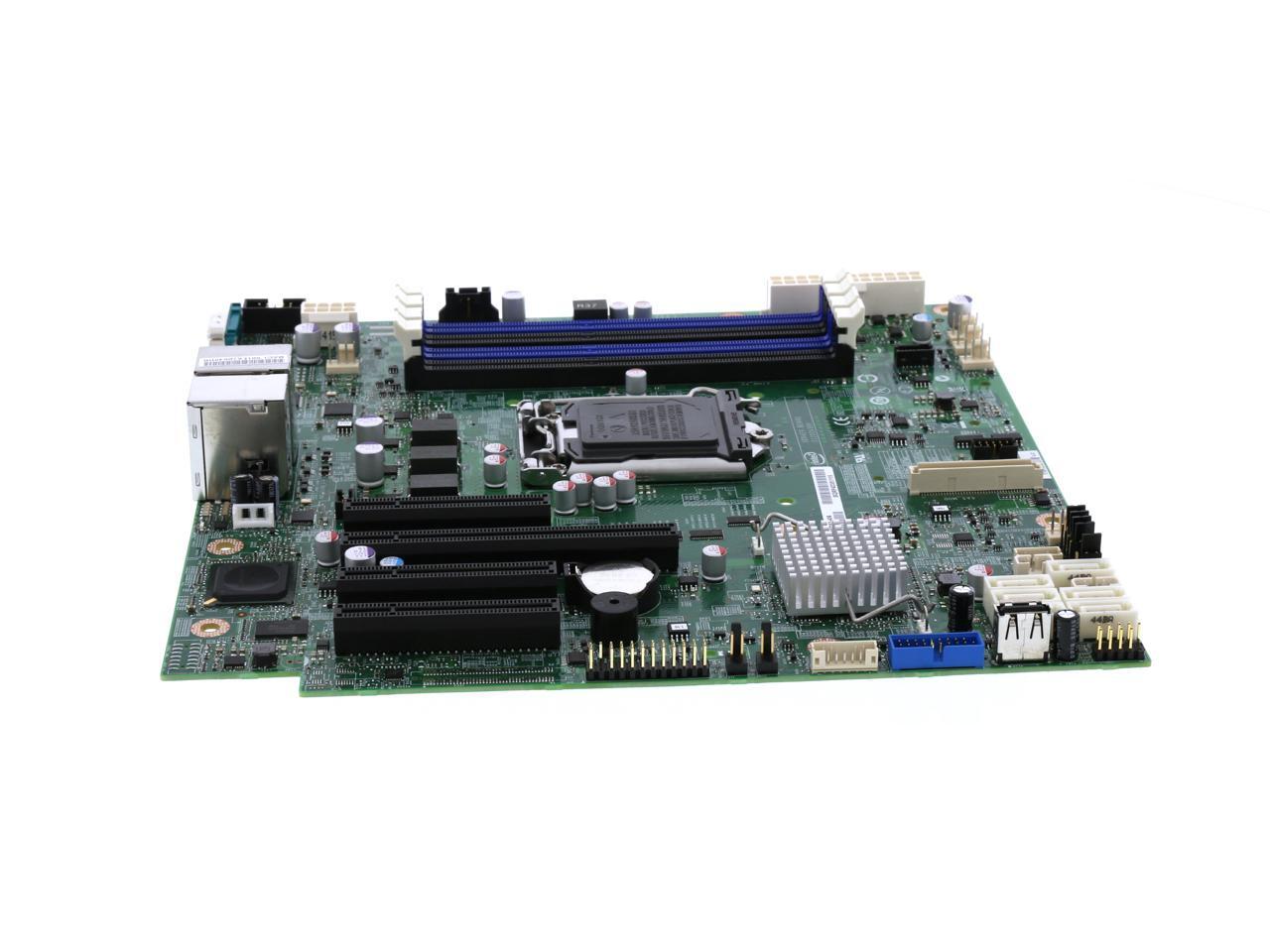

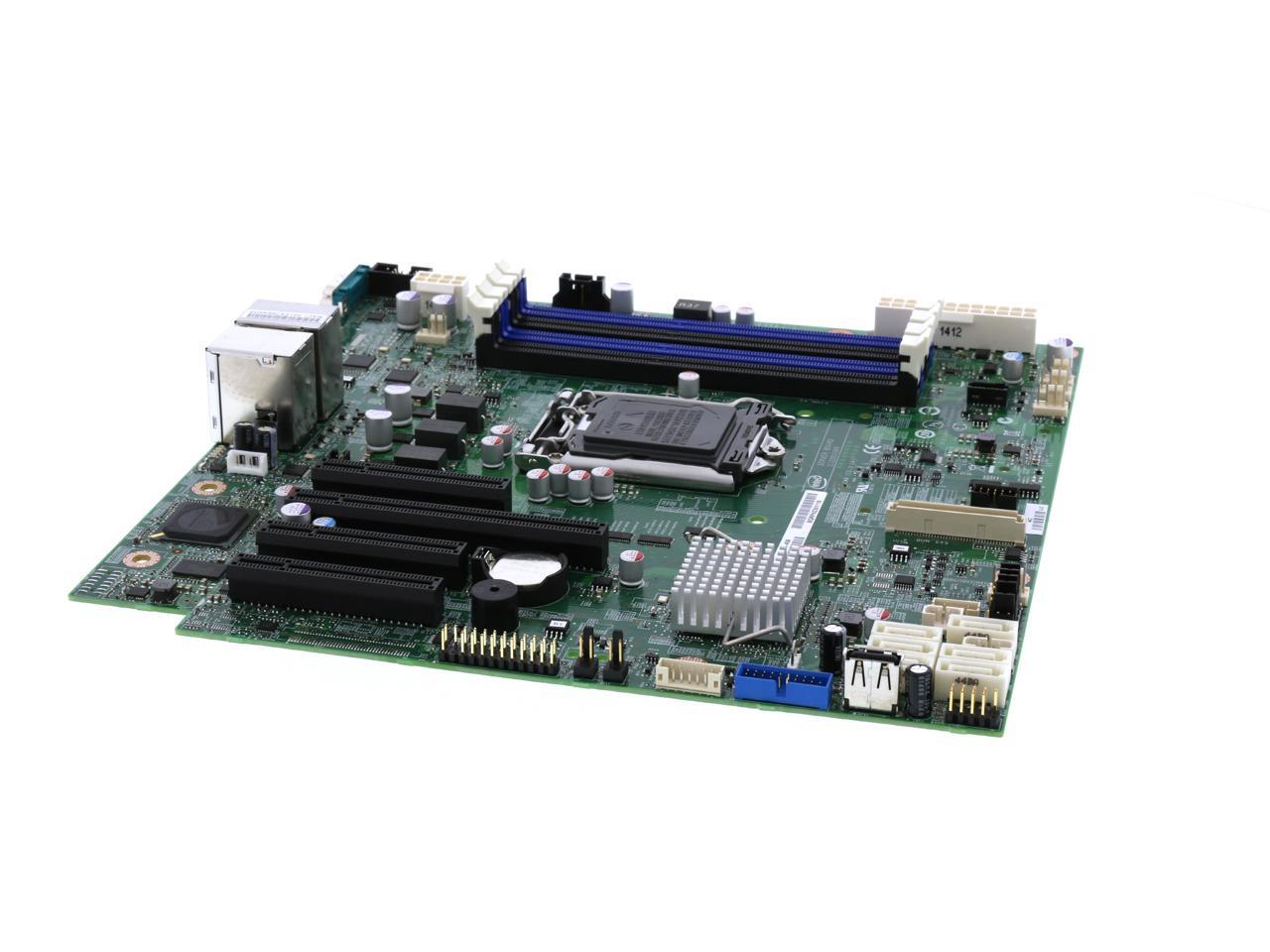

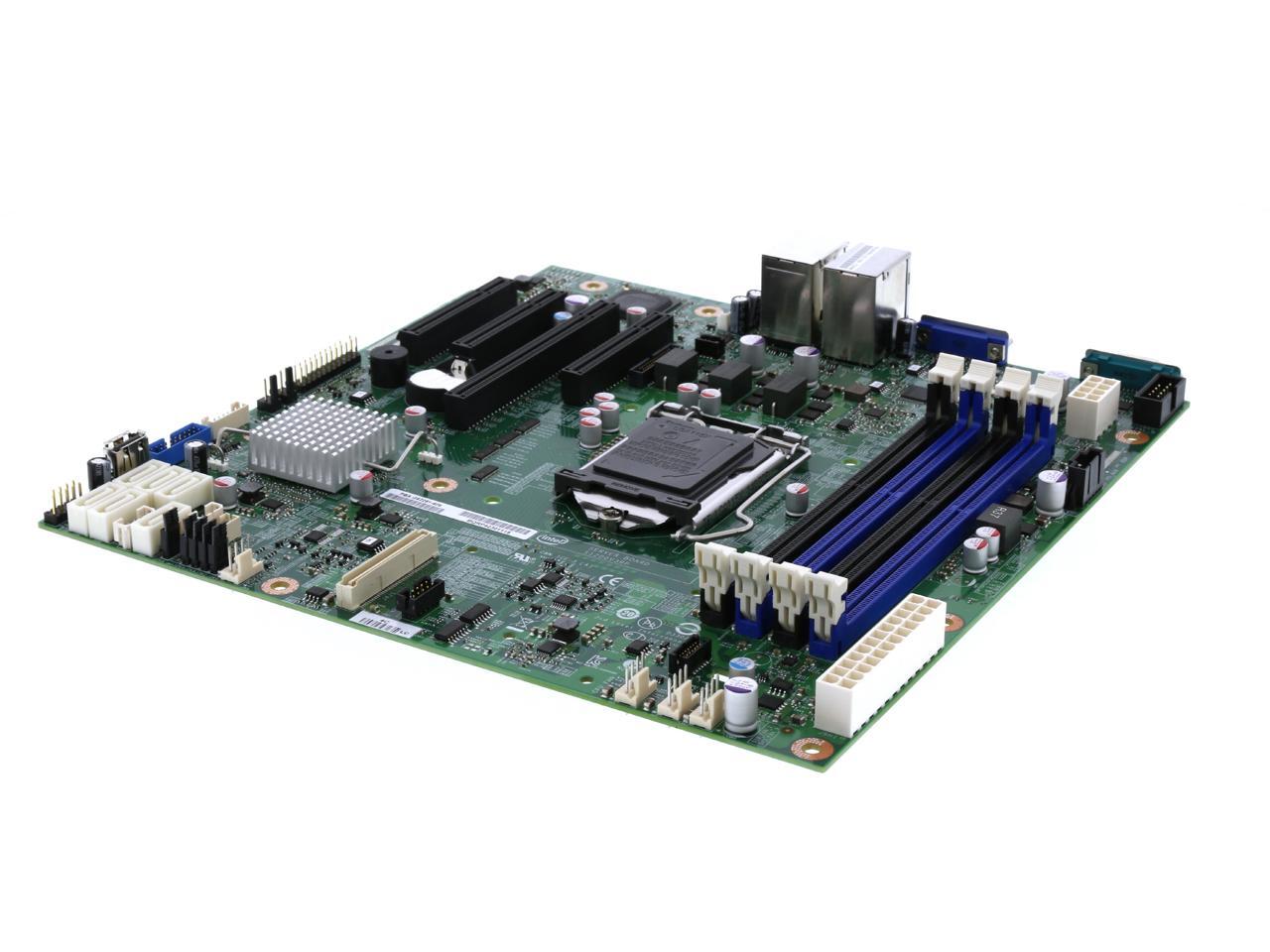

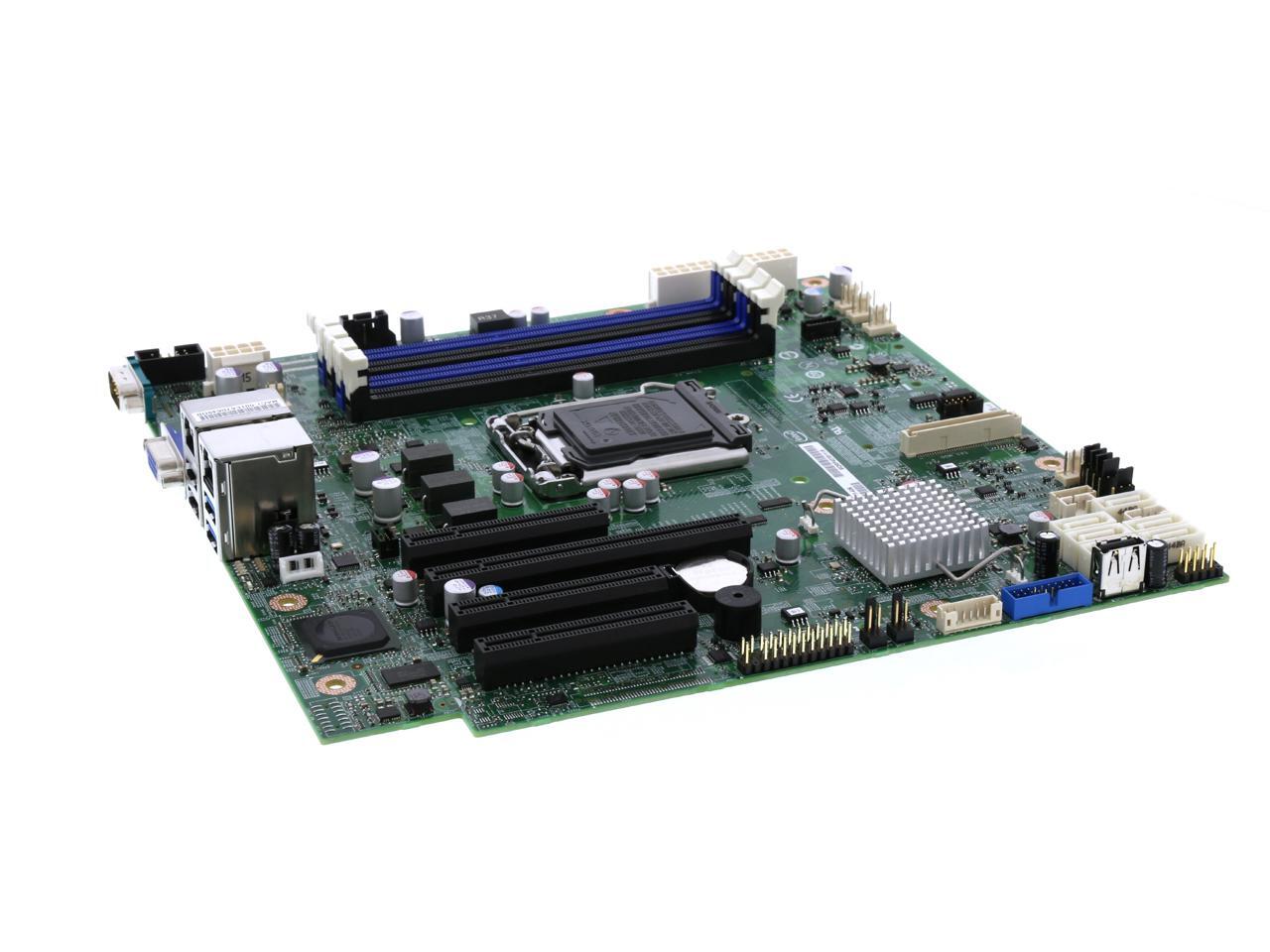

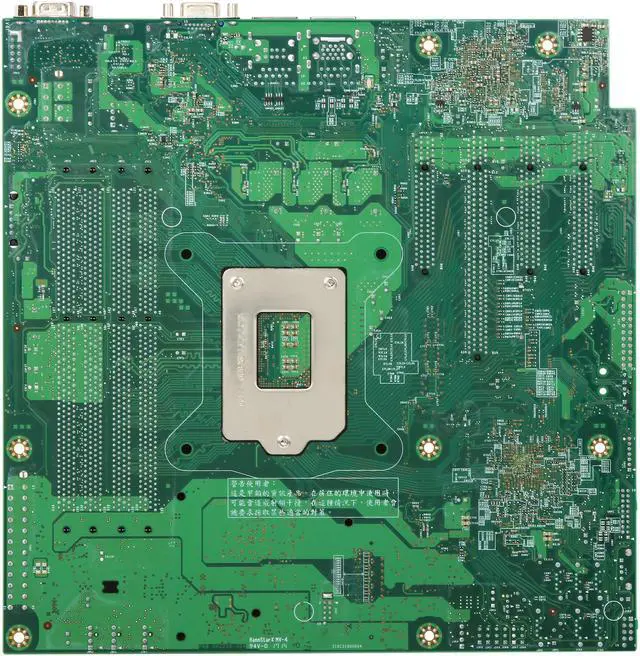

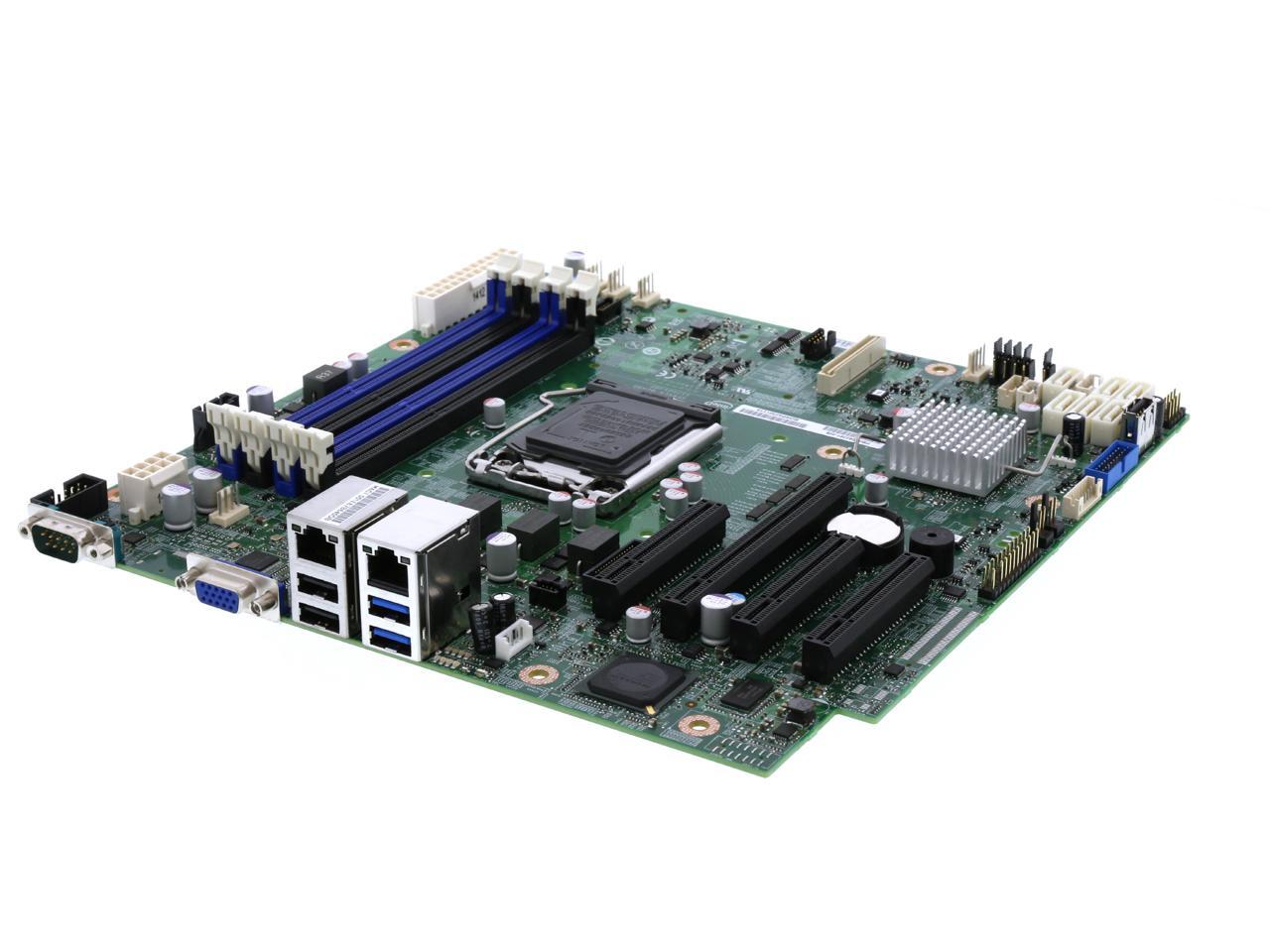

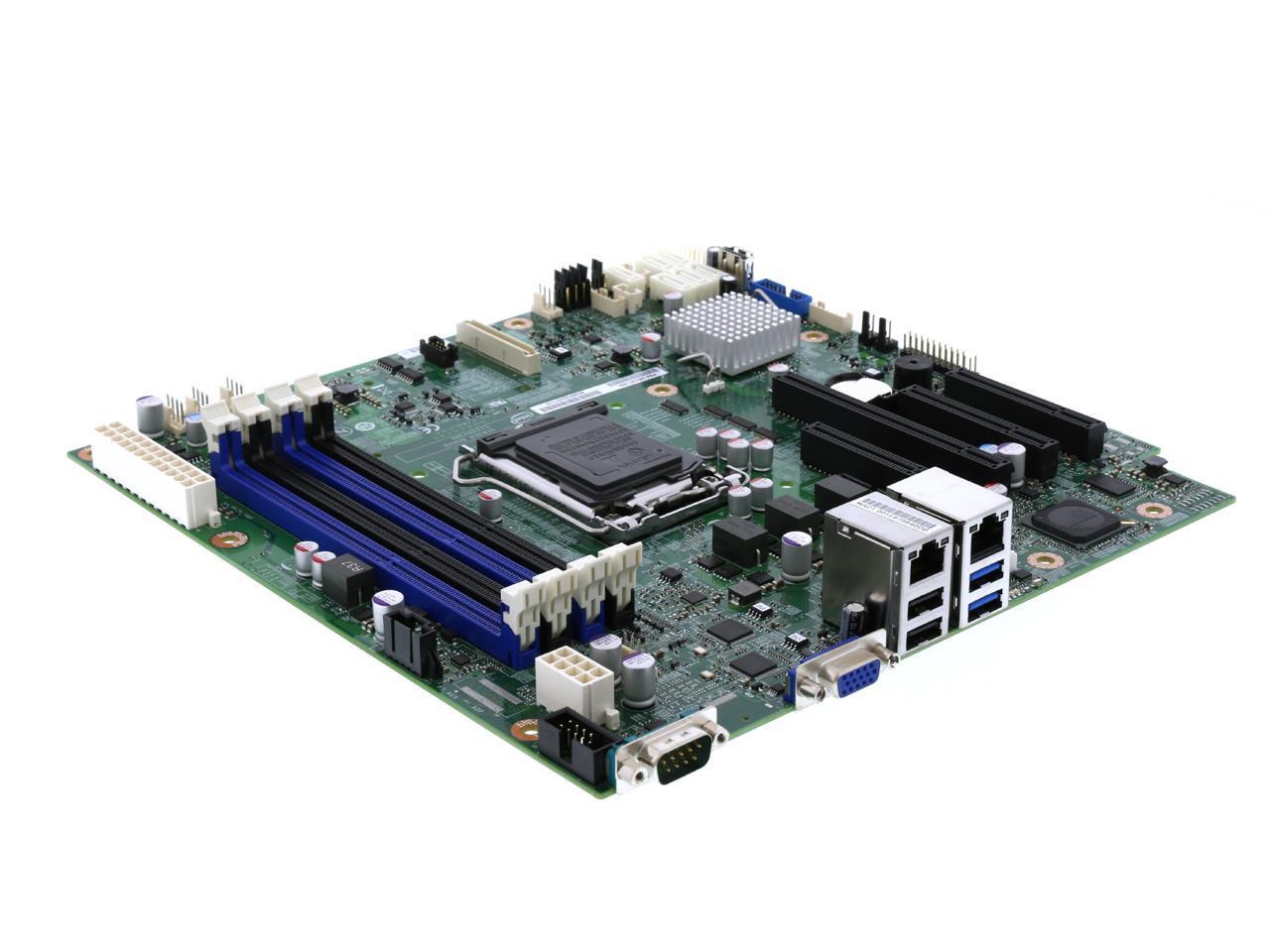

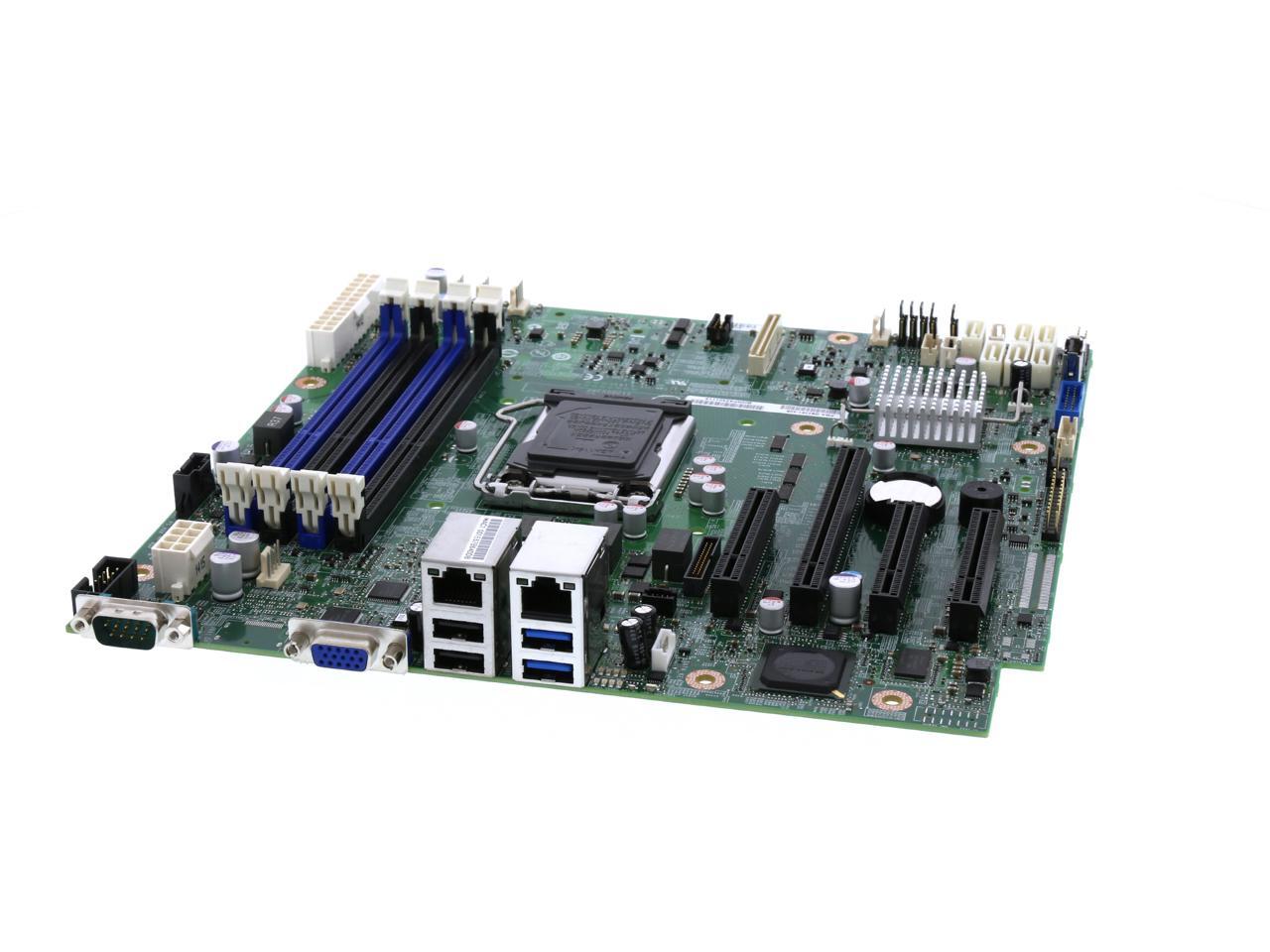

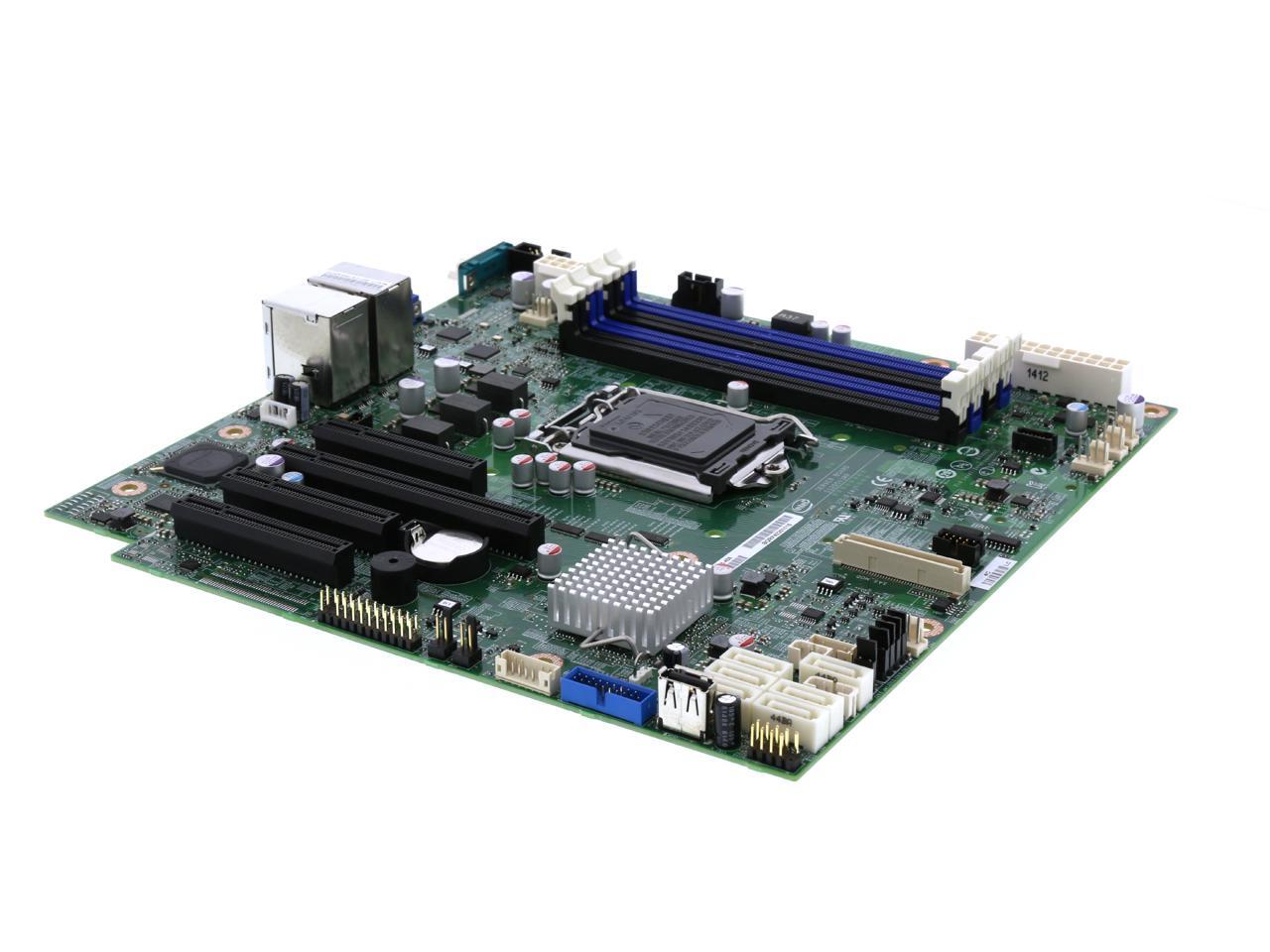

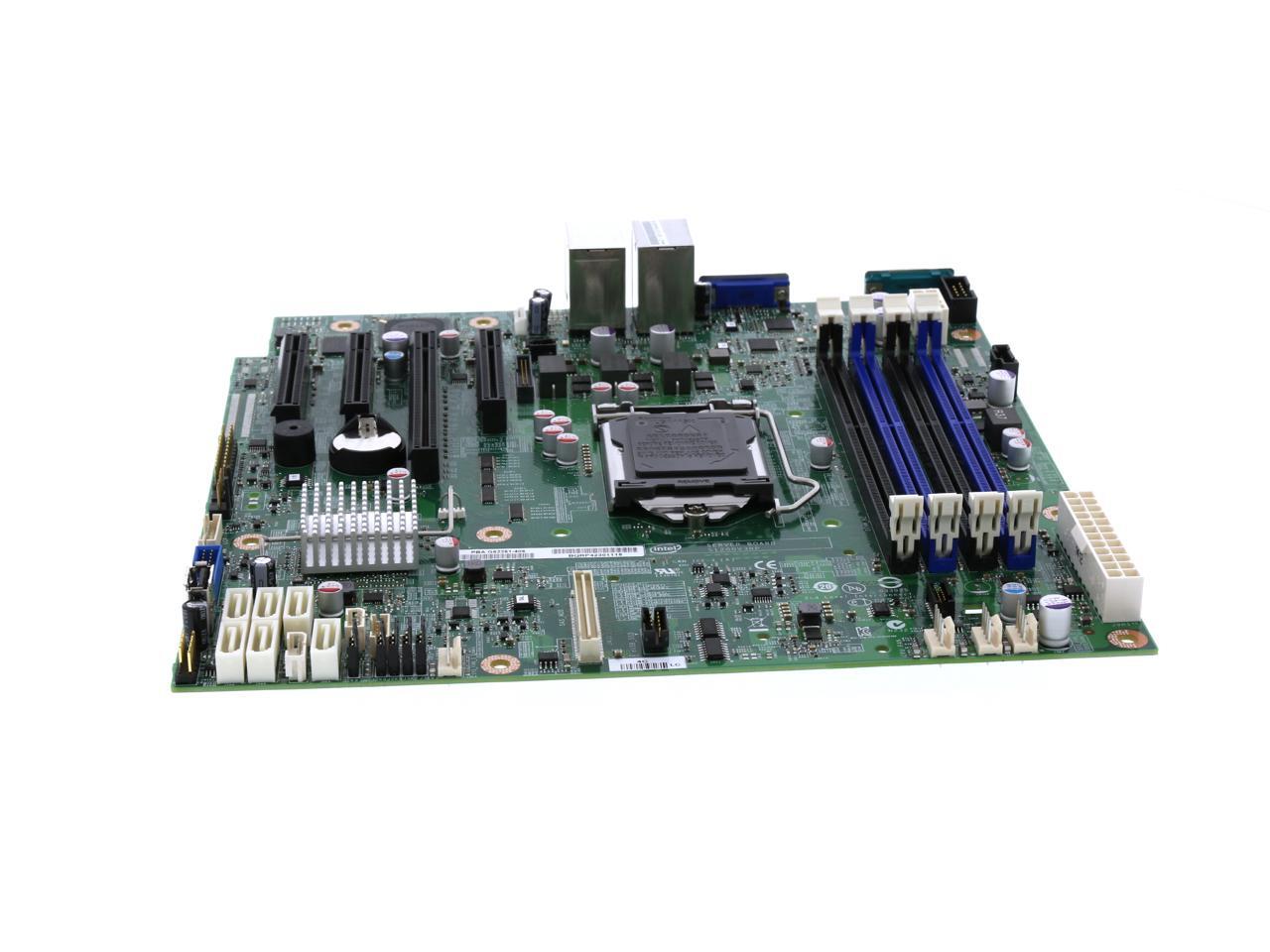

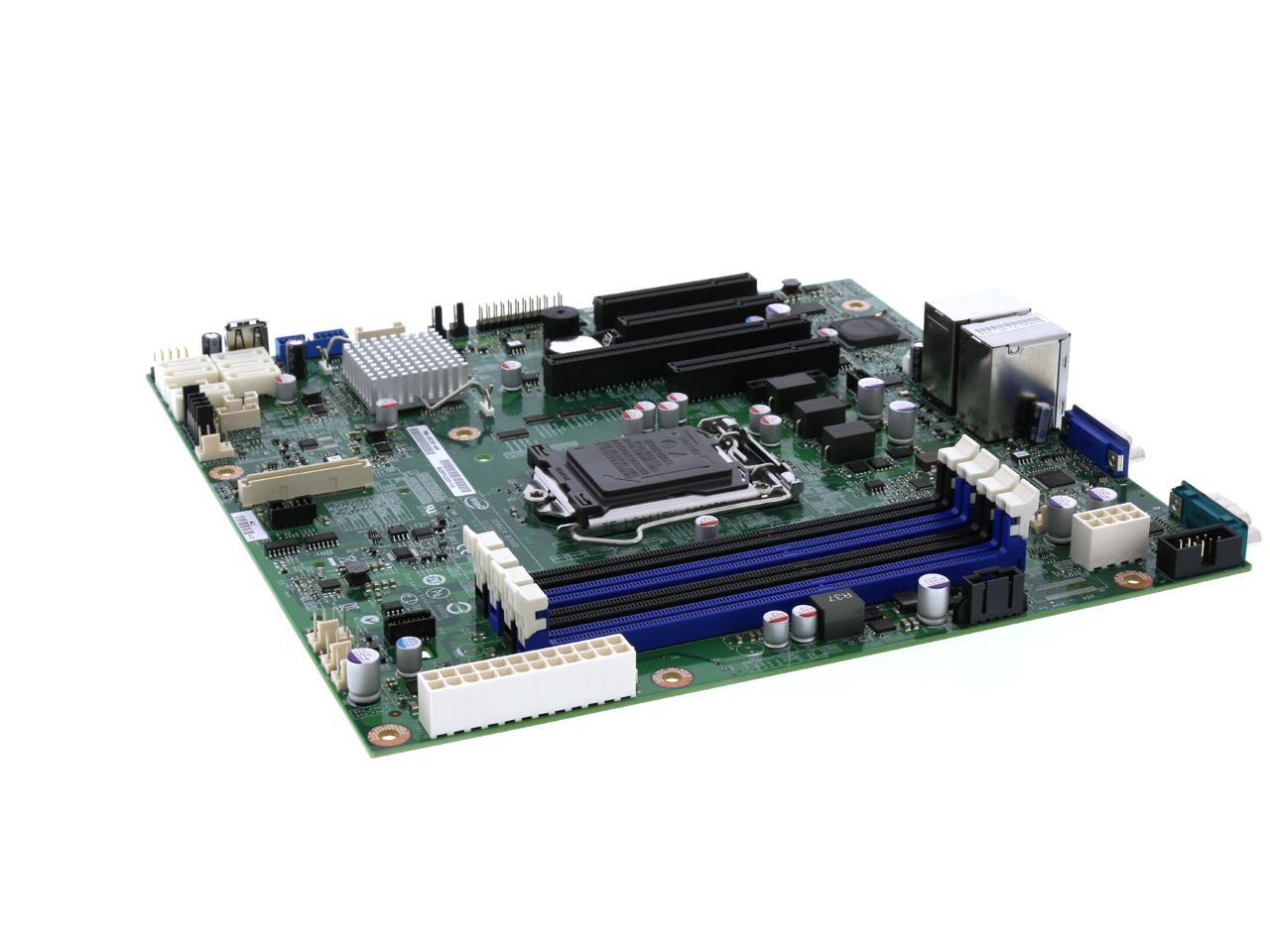

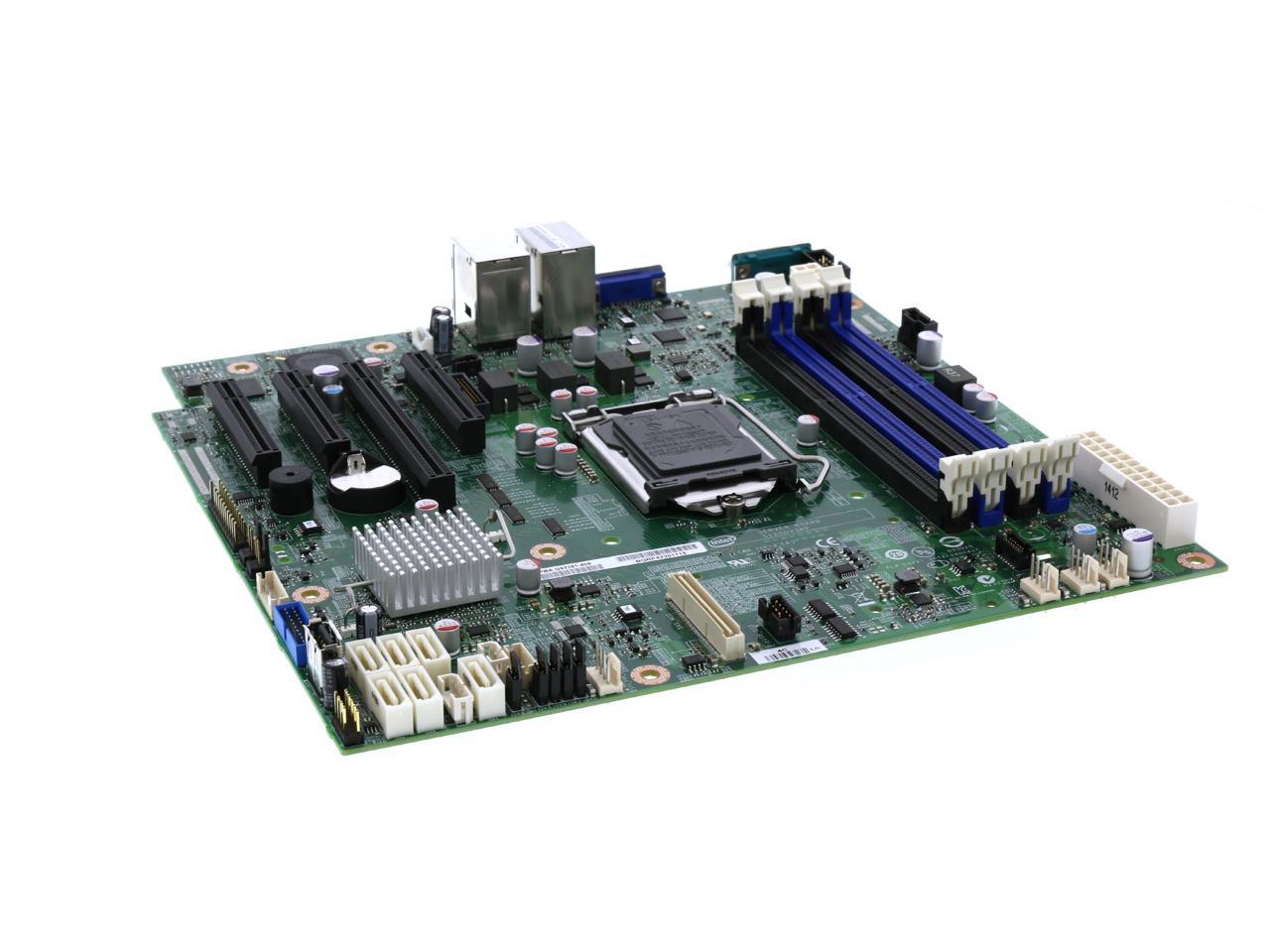

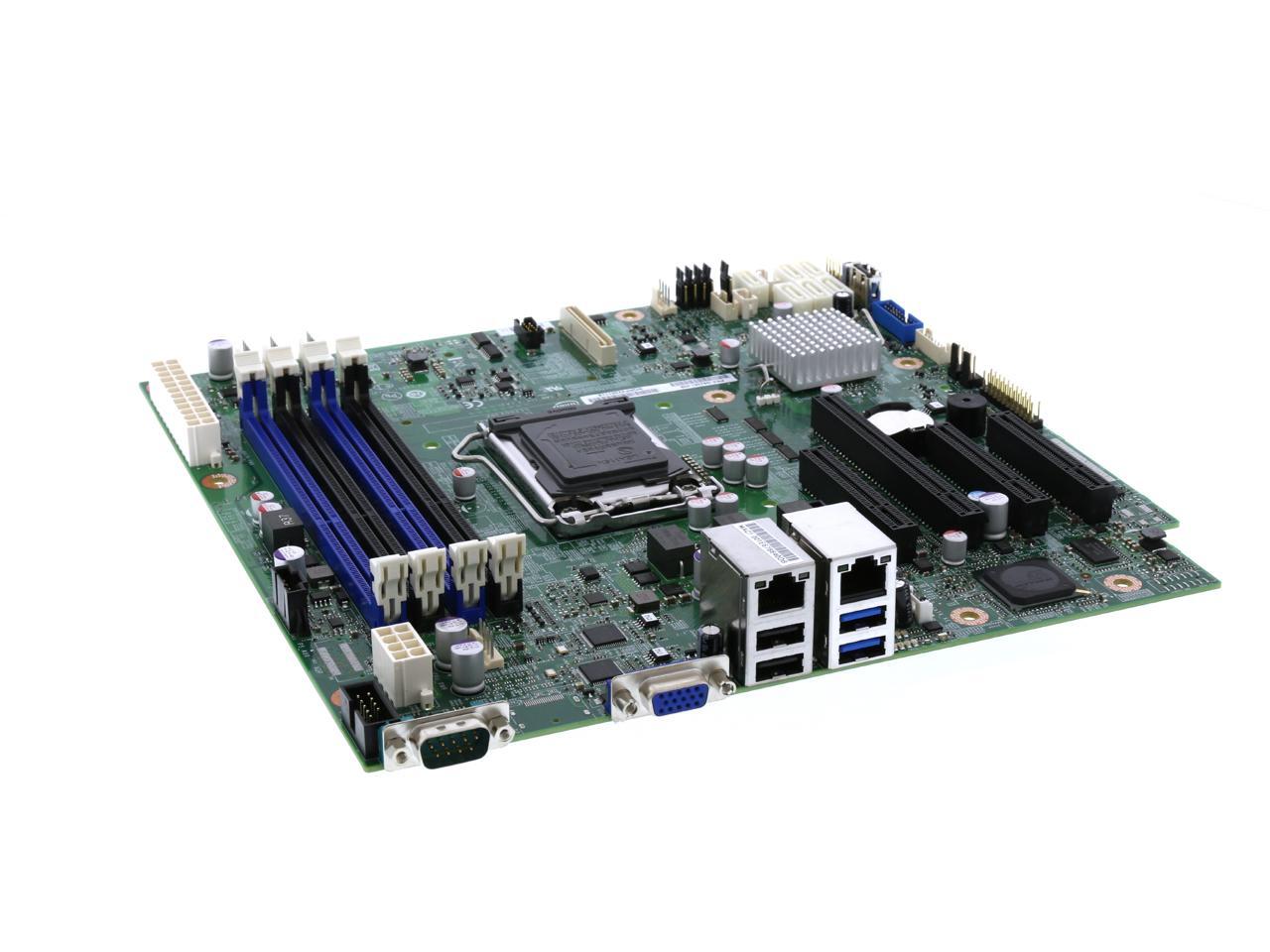

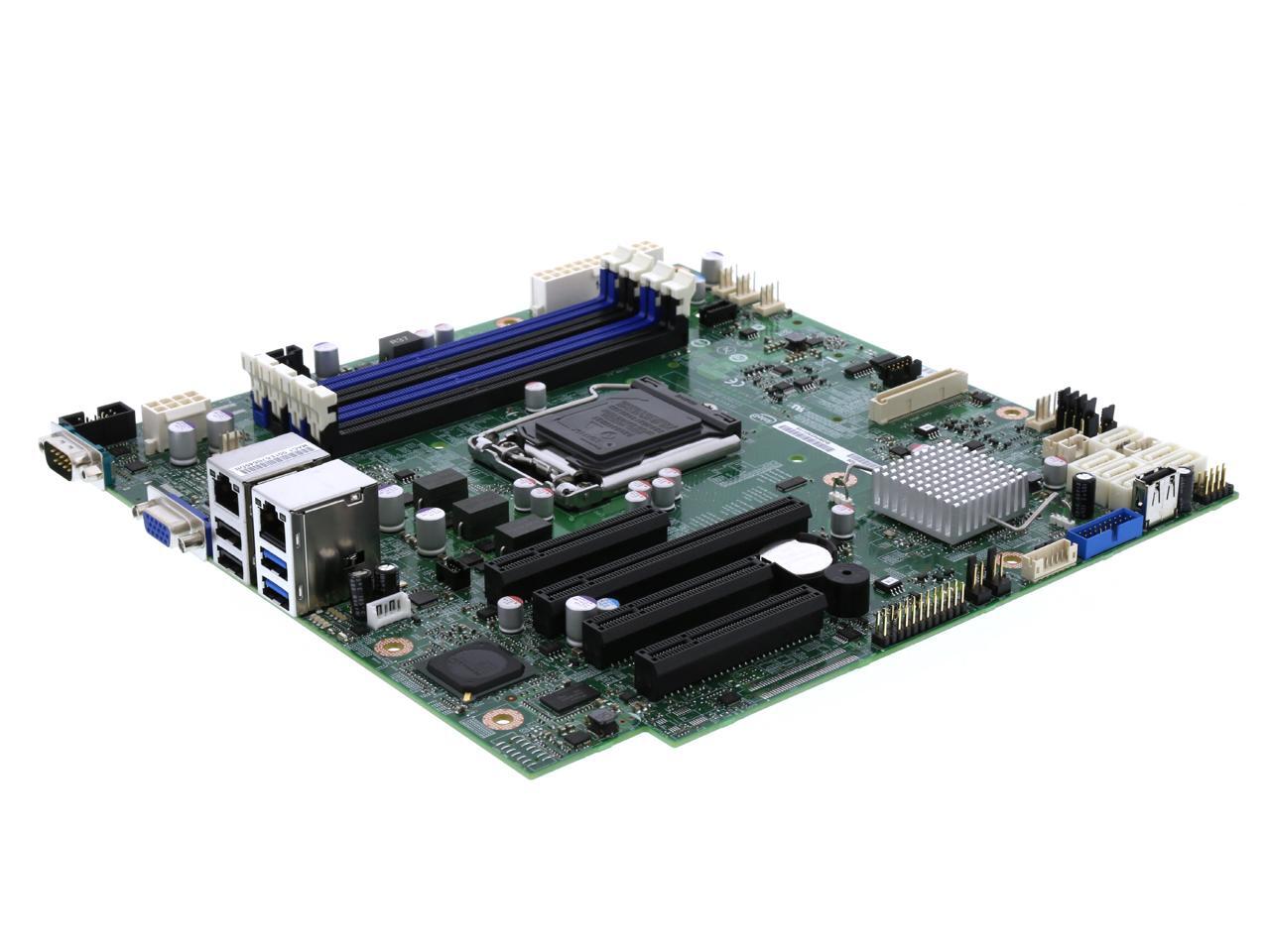

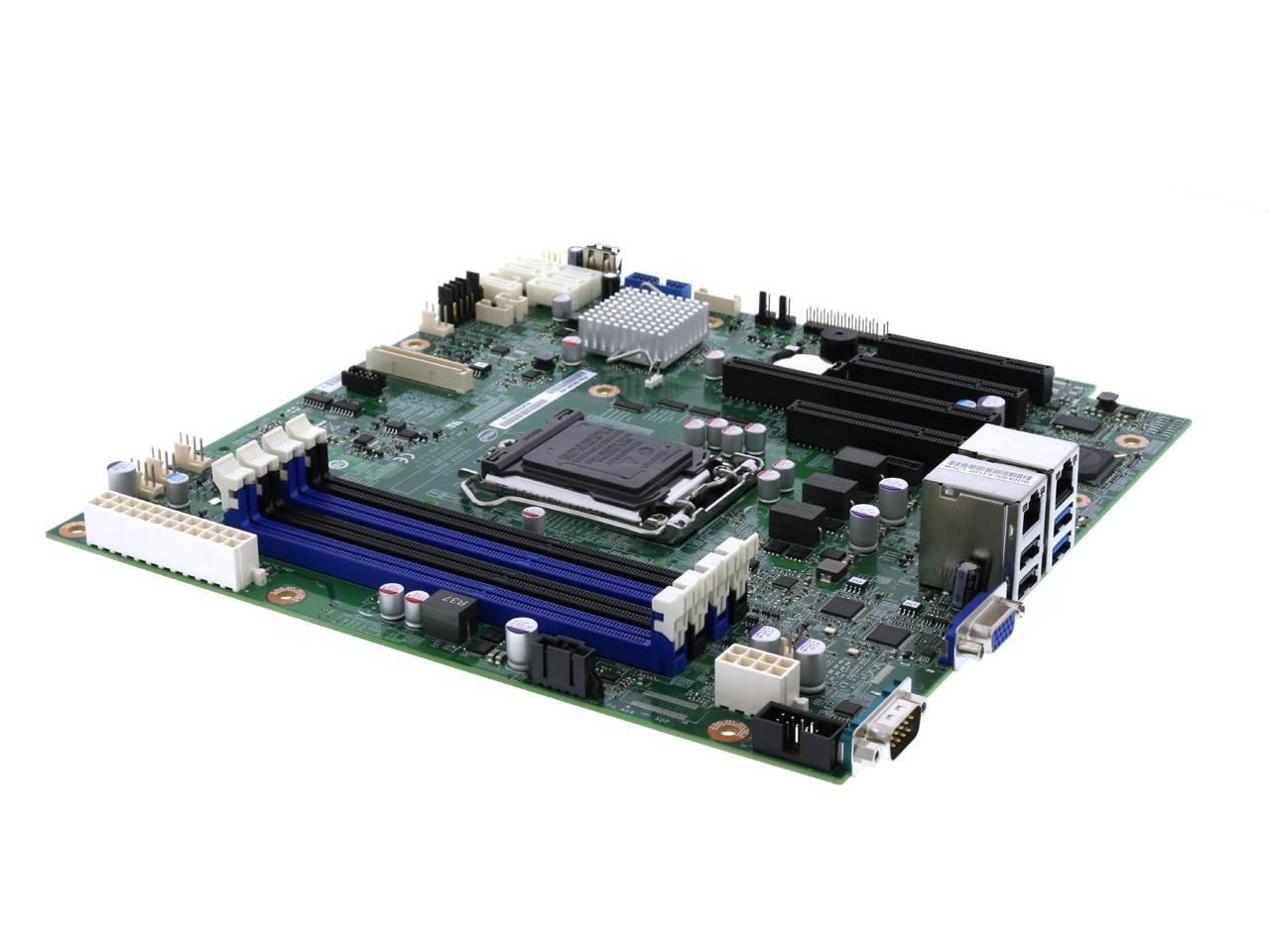

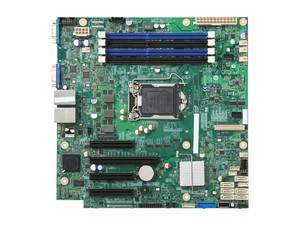

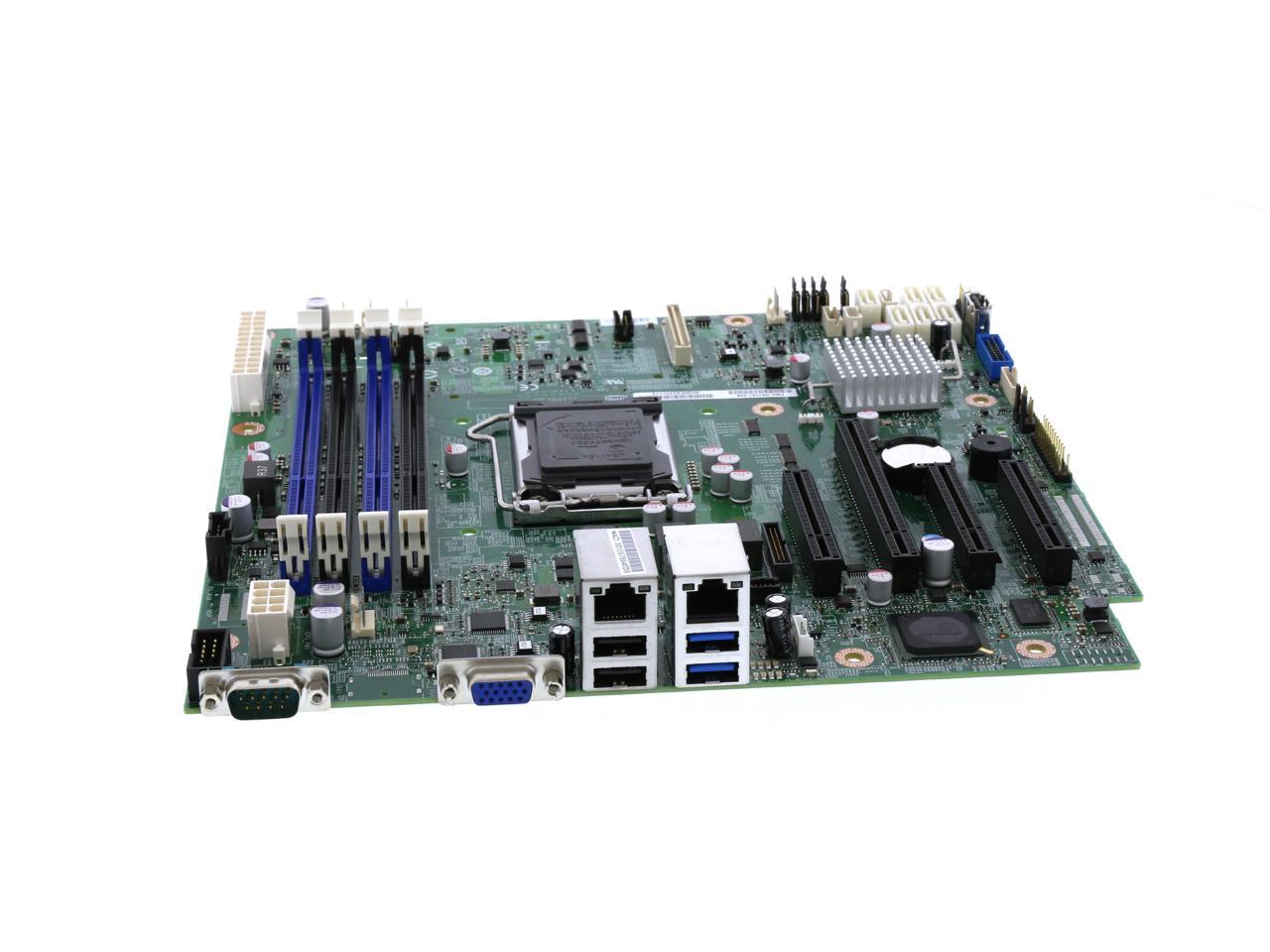

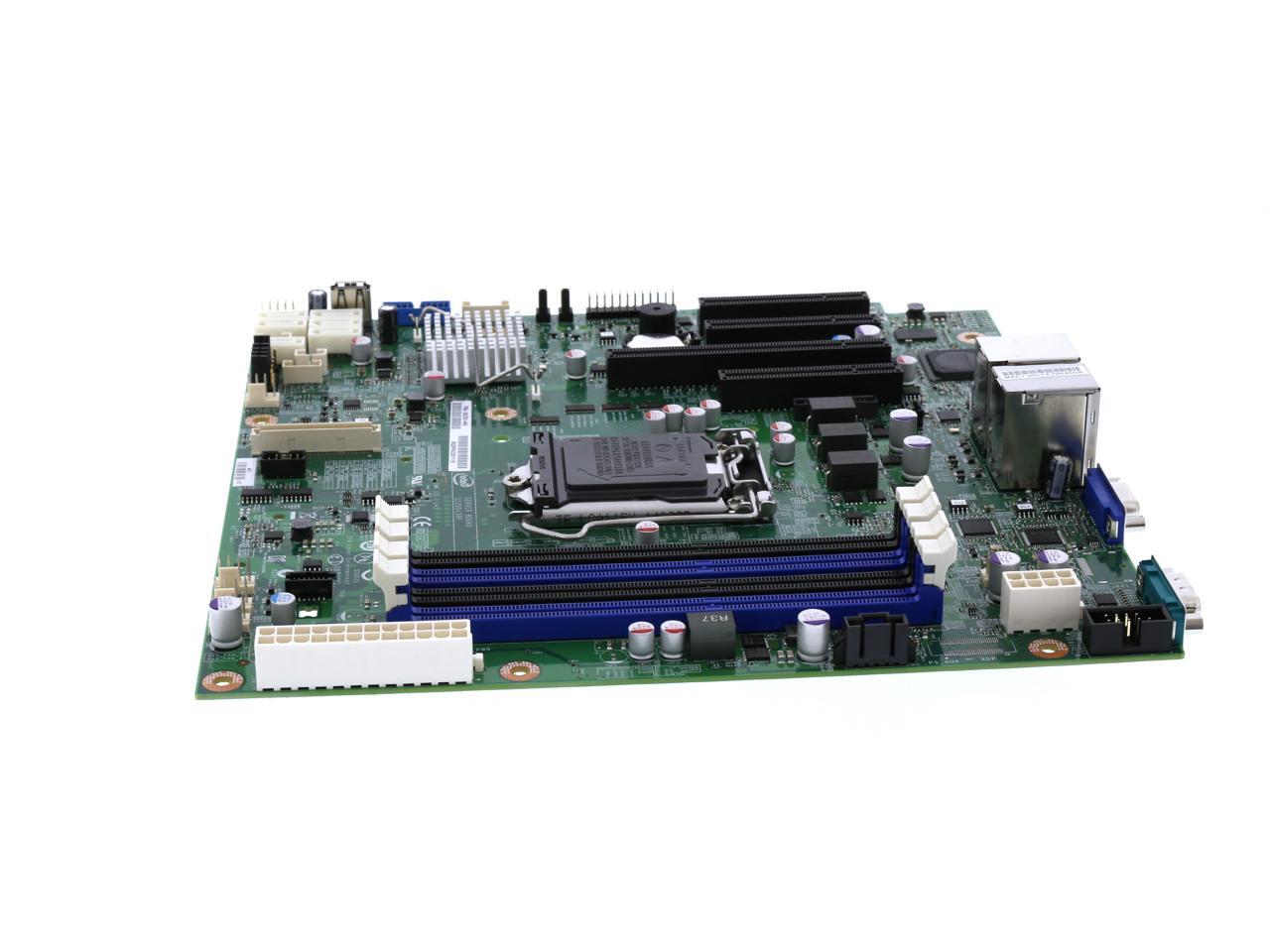

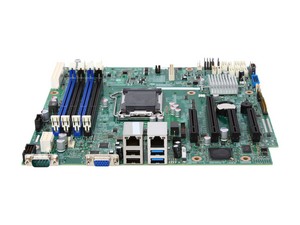

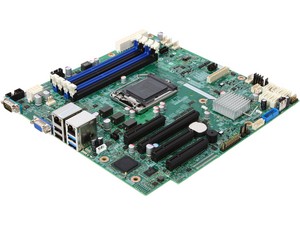

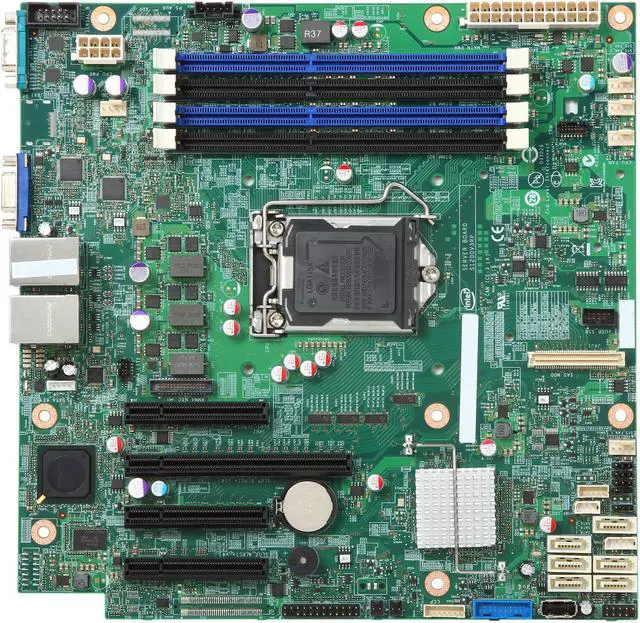

Intel Server Motherboard S1200V3RPL LGA 1150 DDR3 1600

Intel Server Motherboard

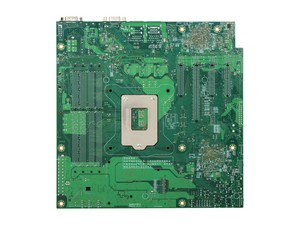

Model: S1200V3RPL

Overview

Technical Specifications

Compatible-CPU List

Gallery

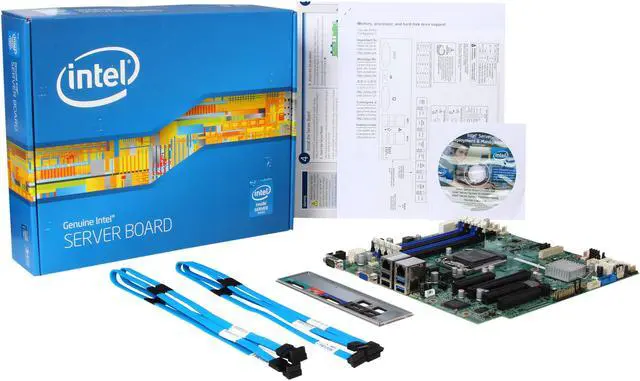

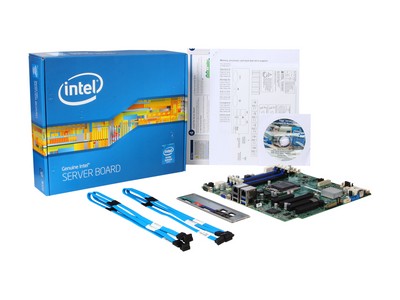

What's In The Box

Learn more about the Intel DBS1200V3RPL

Customer Reviews of the Intel DBS1200V3RPL

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies

Manufacturer Contact Info

Number of LAN	2
LAN Speed	10/100/1000Mbps
Second LAN Speed	10/100/1000Mbps
Max LAN Speed	2 x 1Gbps

Dimensions
Form Factor	uATX
Dimensions (W x L)	9.6" x 9.6"

Item#: N82E16813121781
