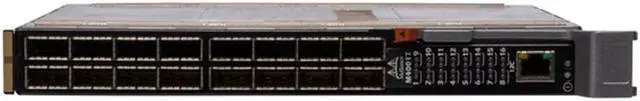

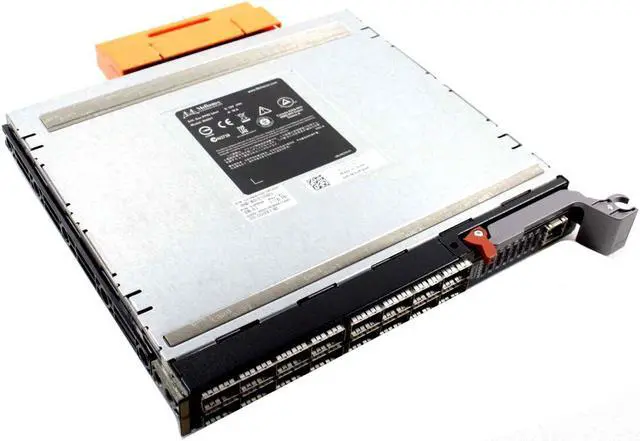

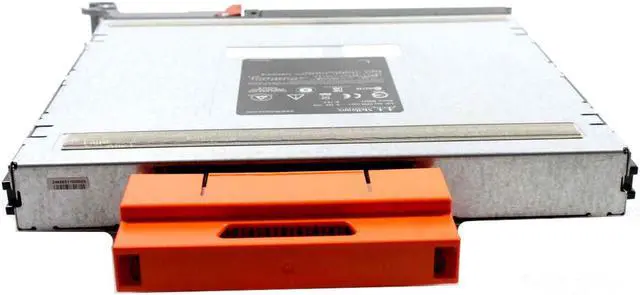

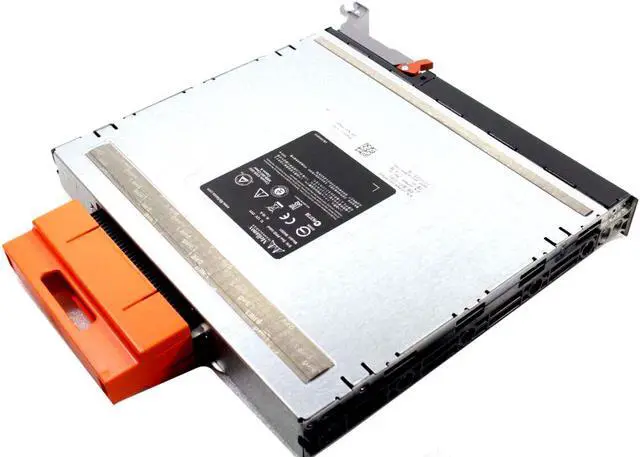

New Dell Mellanox M4001 16-port 40 and 56Gb/s InfiniBand Blade Switches JP9G6 CN-0JP9G6

New Dell Mellanox M4001 16-port 40 and 56Gb/s InfiniBand Blade Switches JP9G6 CN-0JP9G6

Brand: Dell
Part Number: JP9G6
MPN: 0JP9G6, CN-0JP9G6
Model: M4001
Type: Blade Switches

SWITCH SPECIFICATIONS:

– IBTA 1.21 and 1.3 compliant
– 32 non-blocking ports (16 internal, 16
external)
– Up to 56Gb/s (FDR) per port
– Port-to-port latency 170ns
– Congestion control*
– Adaptive Routing*
– QoS
– Port mirroring
– 9 virtual lanes: 8 data + 1 management
– 256 to 4Kbyte MTU

MANAGEMENT:
– I2C interface RJ45 connector
– Supports OpenSM or third party subnet
managers

CONNECTORS AND CABLING:
– 16 QSFP+ connectors
– Passive/Active copper or fi ber cables

INDICATORS:
– Per port status LEDs: Link, Activity
– System status LEDs
DIMENSIONS (H x W x D)

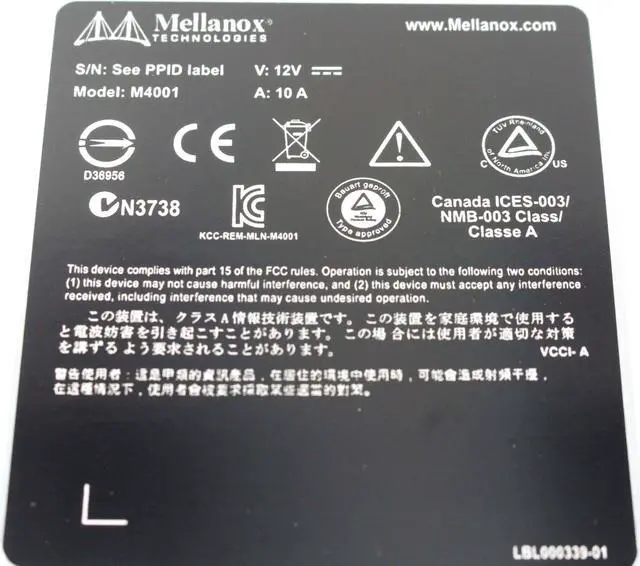

SAFETY:
– US/Canada: cTUVus
– EU: IEC60950
– International: CB

EMC (EMISSIONS):
– USA: FCC, Class A
– Canada: ICES, Class A
– EU: CE Mark (EN55022 Class A, EN55024,
EN61000-3-2, EN61000-3-3)
– Japan: VCCI, Class A
– Korea: RRL (MIC), Class A
– Australia/New Zealand: C-Tick Class A

ENVIRONMENTAL:
– EU: IEC 60068-2-64: Random Vibration
– EU: IEC 60068-2-29: Shocks, Type I / II
– EU: IEC 60068-2-32: Fall Test

Condition: New

This item will be Shipped exactly as shown in the picture
