does it come with a power supply?

No, But im Sure it fits a standard size power supply just fine, plenty of room in the Basement of this case.

What's that small circular button on the top of the case (between the power button and an USB port)?

That button is to restart the computer, when pressed it turns off then boots up the computer again

Is it possible to take the case apart and paint the blue or red stripe down the middle?

He front grill comes off. This allows you to install or adjust the front fans. Didn't try to remove the blue piece of plastic. Unfortunately I used that case in a build for a customer so I wouldn't be able to check on that for you. I think some masking tape and spray paint would do the trick.

Does lighting shine through the plastic pieces on this case like some of DIY's other white cases?

No, The plastic is matte, the side panel is glossy clear and the blue striped plastic is matte aswell

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

Main image of DIYPC DIY-M6-W White SECC Micro ATX Mid Tower Computer Case

100%

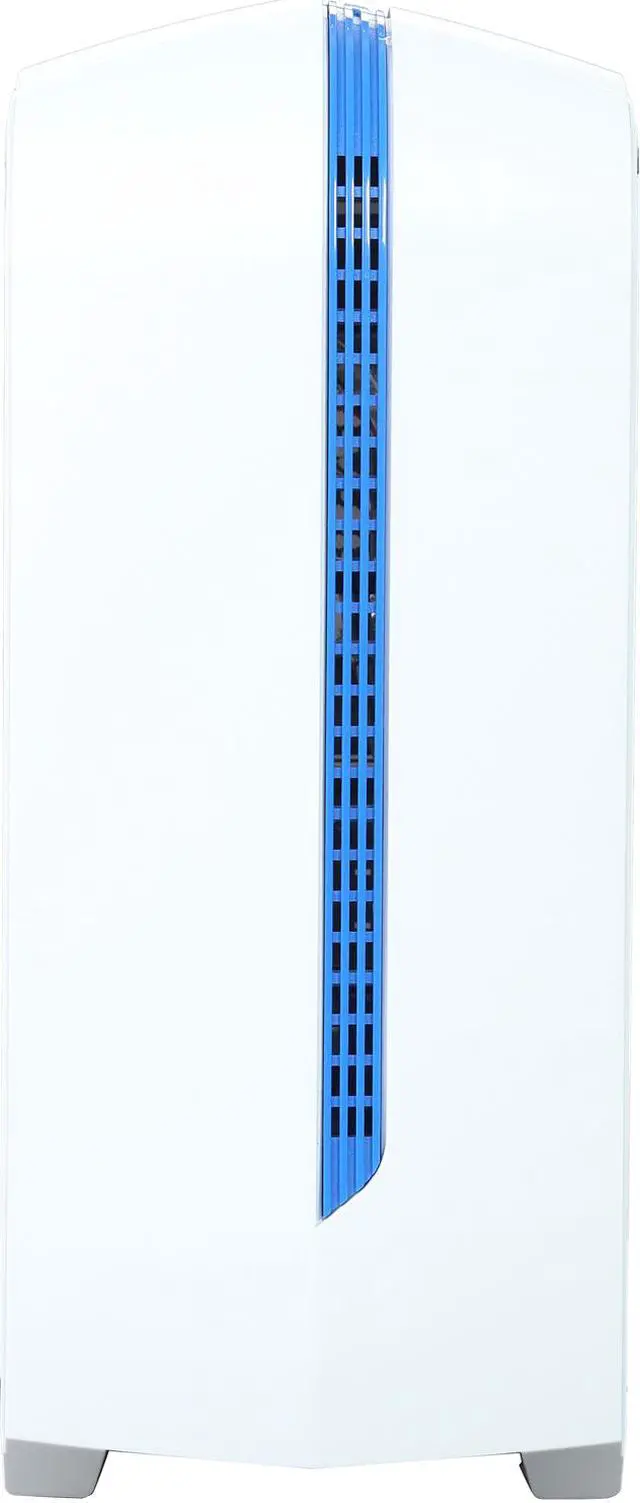

Alt view image 2 of 9 - DIYPC DIY-M6-W White SECC Micro ATX Mid Tower Computer Case

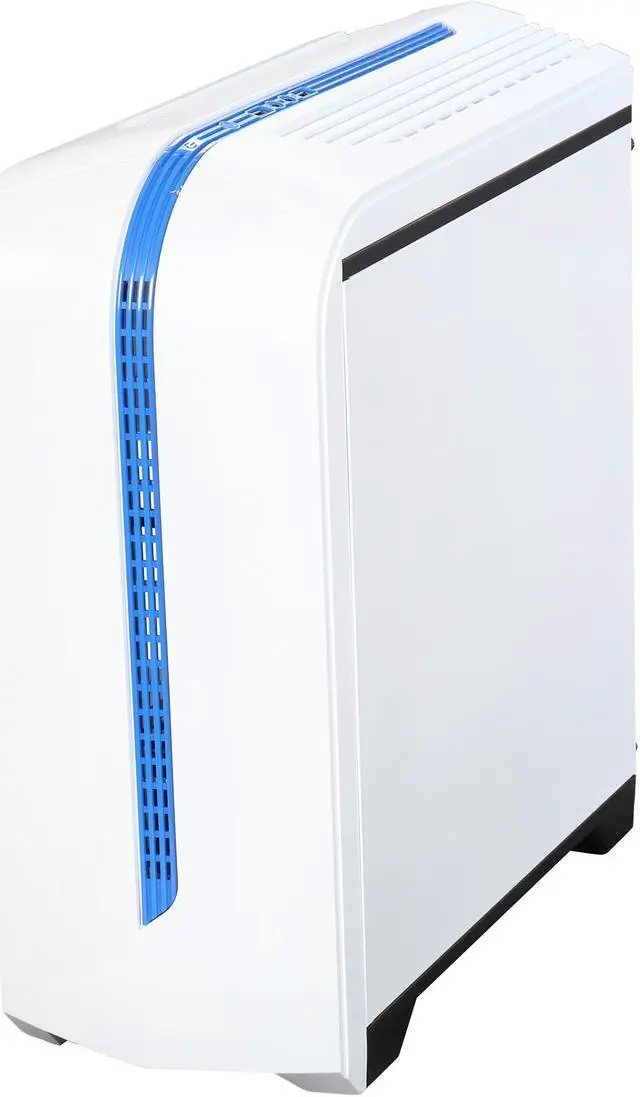

Alt view image 3 of 9 - DIYPC DIY-M6-W White SECC Micro ATX Mid Tower Computer Case

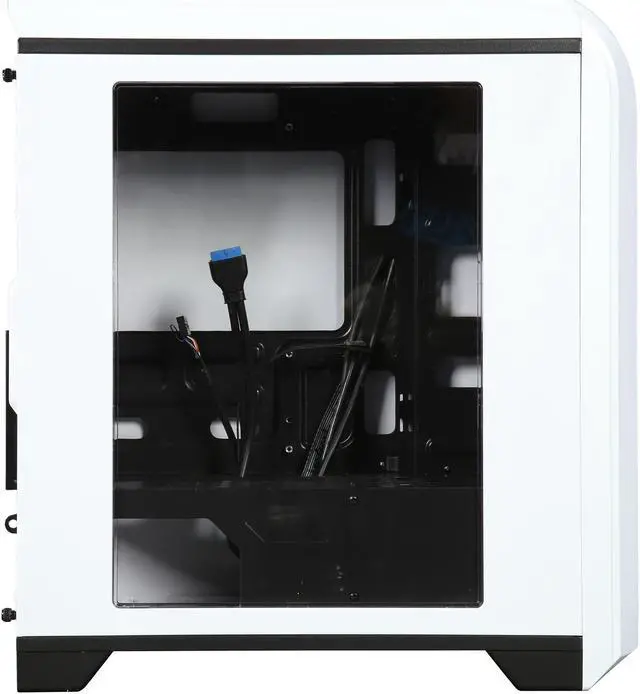

Alt view image 4 of 9 - DIYPC DIY-M6-W White SECC Micro ATX Mid Tower Computer Case

Alt view image 5 of 9 - DIYPC DIY-M6-W White SECC Micro ATX Mid Tower Computer Case

Alt view image 6 of 9 - DIYPC DIY-M6-W White SECC Micro ATX Mid Tower Computer Case

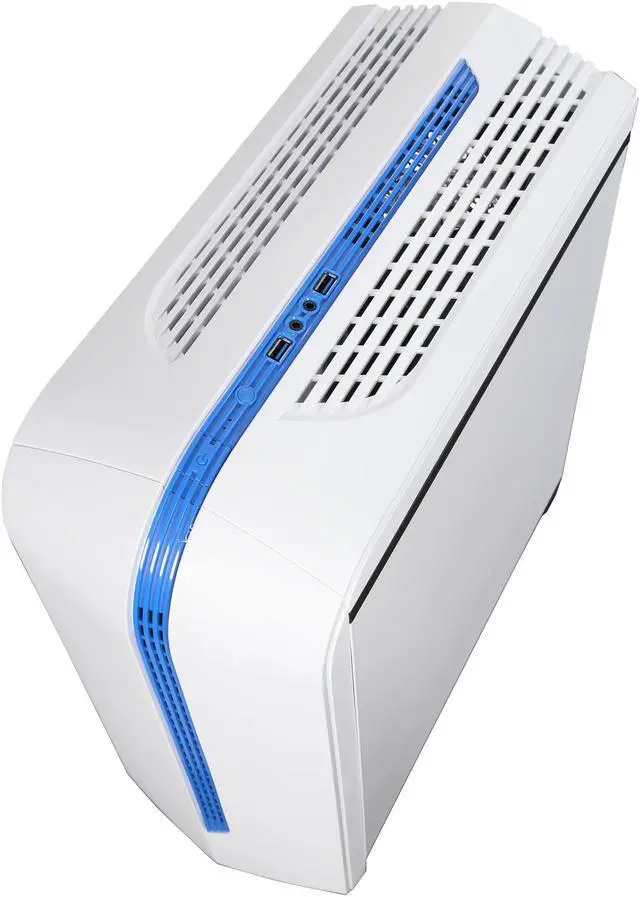

Alt view image 7 of 9 - DIYPC DIY-M6-W White SECC Micro ATX Mid Tower Computer Case

Alt view image 8 of 9 - DIYPC DIY-M6-W White SECC Micro ATX Mid Tower Computer Case

Alt view image 9 of 9 - DIYPC DIY-M6-W White SECC Micro ATX Mid Tower Computer Case

360^°

Shop All DIYPC Products

DIYPC DIY-M6-W White SECC Micro ATX Mid Tower Computer Case

(7) Write a Review

SECC Micro ATX Mid Tower
2 x USB 3.0 / Audio In/Out Front Ports
2 Internal 3.5" Drive Bays

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (7)

Any questions? Our AI beta will help you find out quickly.

Try me now

Clear side window

power on/off
USB 3.0 x 2
HD audio ports

2 x 120mm fan x top (optional)

(ODD free)
2.5'' × 2 SSD

Support up to 345mm VGA
and 155mm CPU cooler

3.5'' × 2 HDD
(tool-free design)

200mm
Bottom-mounted power supply (ATX PSII)

Support up to 240mm water cooling × front

1 x 120mm fan x front(pre-installed)

1 x 120mm LED fan x rear(pre-installed)

Model
Brand	DIYPC
Model	DIY-M6-W

Details
Type	Micro ATX Mid Tower
Color	White
Case Material	SECC
With Power Supply	No
Power Supply Mounted	Bottom
Motherboard Compatibility	Micro ATX
Side Panel Window	Yes

Expansion
External 5.25" Drive Bays	No
Internal 3.5" Drive Bays	2
Internal 2.5" Drive Bays	2 ( SSD )
Expansion Slots	4

Front Panel Ports
Front Ports	2 x USB 3.0 / Audio In/Out

Cooling System
120mm Fans	3 x 120mm fan x front (1 x blue fan pre-installed) 1 x 120mm LED blue fan x rear (pre-installed) 2 x 120mm fan x top (Optional, sold separately)

Dimensions & Weight
Max GPU Length	340mm
Dimensions	14.00" x 7.52" x 15.20"
Weight	9.00 lbs.

Additional Info
Features	Full black interior, Intel TAC 2.0 ODD free design - the removal of the front 5.25" bays provides spacious interior and fits up to 240mm water cooling x front Top mounted IO ports - USB 3.0 for up-to-date high speed data transfer 6 fans capabilities (build in 2 x 120mm fans) provide great cooling performance 4 PCI slots provide flexibility for multiple graphics cards solutions Advanced cable management design Support up to 155mm CPU cooler Support up to 340mm VGA card

Additional Information
First Listed on Newegg	April 06, 2016

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
