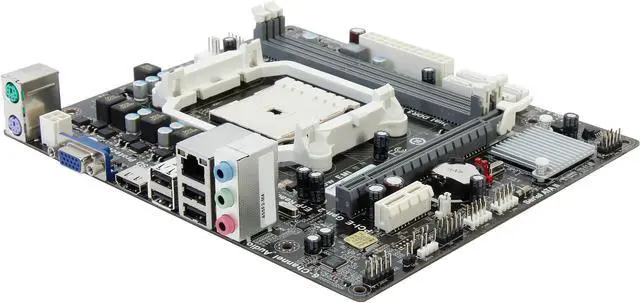

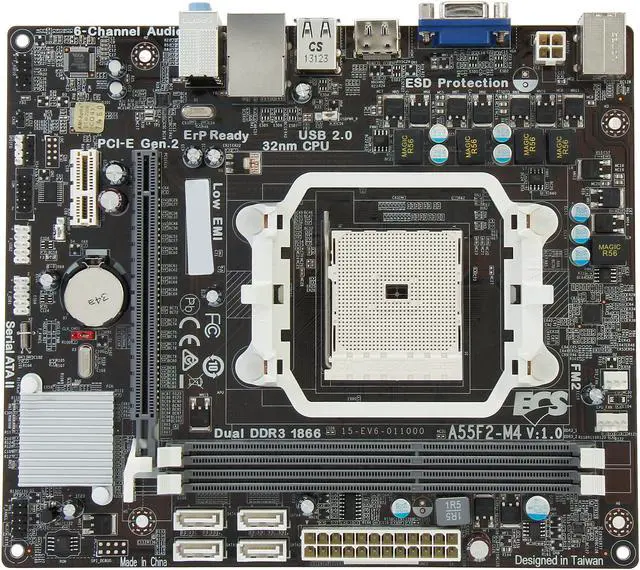

ECS A55F2-M4(1.0) FM2 AMD A55 (Hudson D2) Micro ATX AMD Motherboard
- AMD A55 (Hudson D2)
- APU (FM2 Socket)
- DDR3 1866/1800
Specs
Reviews (22)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ECS (EliteGroup) A55F2-M4(1.0)
| Brand | ECS |
|---|---|
| Model | A55F2-M4(1.0) |
| CPU Socket Type | FM2 |
|---|---|
| CPU Type | APU (FM2 Socket) |
| Chipset | AMD A55 (Hudson D2) |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 1866/1800/1600/1333/1066 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| SATA RAID | 0/1/10 |
|---|
| Onboard Video Chipset | None |
|---|
| Audio Chipset | VIA VT1705 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8111G |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x D-Sub / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Other Connectors | 1 X 24-pin ATX Power Supply connector 1 X 4-pin 12V Power connector 1 X 4-pin CPU_FAN connector 1 X 3-pin SYS_FAN connector 1 X Front panel audio header 1 X Speaker header 1 X Serial port header (COM) 1 X ME_UNLOCK header 1 X Chassis intrusion header |
| Form Factor | Micro ATX |
|---|
| Features | 5 Phase Power Design Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system Supports EZ BIOS for tweaking BIOS in Graphical interface within a multi language environment ECS MIB III - A friendly interface for overclocking Microsoft Windows 8 Certified Supports DirectX 11 to enhance graphical performance Supports AMD UVD 3.0 Engine Supports AMD Turbo Core Technology Supports AMD FM2 APU Supports AMP (AMD Memory Profile) ECS Intelligent EZ Utility : eBLU, eDLU, eSF Free Bundle: Norton Internet Security ,CyberLink PowerDVD, CyberLink PowerDirector 9, Muzee with trial version |
|---|
| First Listed on Newegg | June 11, 2013 |
|---|
