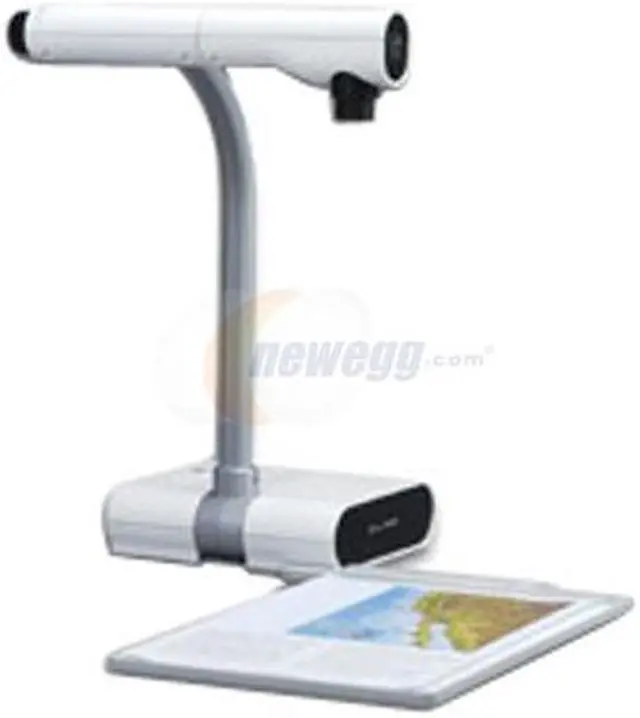

ELMO TT-02 Teacher's Tool Visual Presenter

(1) Write a Review
  • Visual Presenter
Specs
Reviews (1)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ELMO TT-02

Model
Brand ELMO
Model TT-02
Details
Type Visual Presenter
Specifications Camera Image pick-up device 1/3" progressive scan CCD, 850,000 pixels
Effective pixels 1,024 (H) x 768 (V)
Frame rate 20 frames/sec.
Resolution RGB output 600 (H) x 600 (V) TV lines
Optics Zoom Powered (with double speed function), 5.3X optical
Lens F2.0 to 4.4, f=4.0 to 21.2 mm
Shooting area
Max. 16.88" x 12.5"
Min. 3.63" x 2.75" for 17-inch document
Focus Auto/Manual (powered)
Auto brightness control Auto/Manual (powered)
Functions White balance Auto/Push set/Manual
Negative/positive conversion Provided
Color/B&W selection Provided
Gamma adjustment Provided
Pause mode Provided
Digital zoom Provided (8X)
Image rotation Provided (0, 180)
OSD (on-screen display) Provided
Text mode Provided
State presetting Up to 4 user settings
Free-stop arm Provided
Microscope viewing mode Provided
Input/output Internal selection Int./RGB
Analog RGB output XGA (1,024 x 768 @60 Hz)
Video output Composite
RGB input Provided
Dimensions
Set up 13.5" x 14.5" x 16.25"
Folded 7.75" x 14.5" x 17.5"
Weight 6.6 lbs.
Power consumption 9W
Power source DC 12V (AC adapter)
Features
Features A revolutionary document camera that's all about sharing, comprehension and student retention
Simple control panel for easy, intuitive operation
Capture vivid, live images with smooth 20 fps frame rate
42.4x zoom with Auto-Focus (5.3x Optical, 8.0x Digital)
'Stroke of the pen' easy annotation on removable stage
Versatile input/output connections to PC, video monitor, or projector for large screen presentation
Camera auto-adjusts to changing levels of room brightness, ensuring easy to view, clear presentations
Microscope slides are easily displayed in microscope viewing mode
Ultra flexible design easily handles 11" x 17" documents
