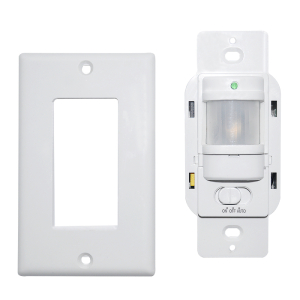

BS033C 110v Motion Sensor Light Switch, 180 Degree View Occupancy Sensor Switch, Wall Sensor Switch Light Sensor,Single Pole (Neutral Wire Required), White

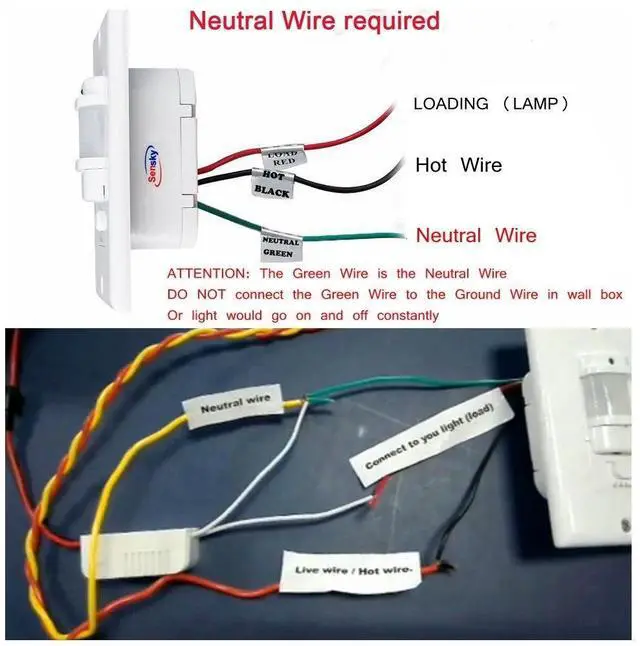

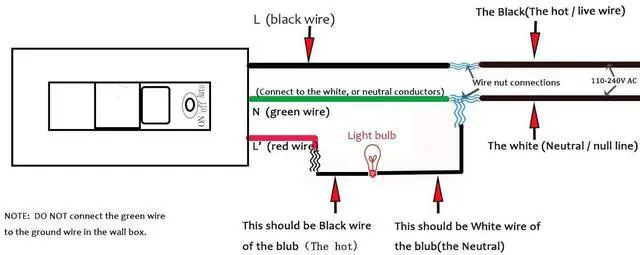

Neutral Wire Required Installation: Three wires (Black, Green and Red). Black wire goes to Hot; Green wire goes to Neutral; Red wire goes to the hot end of your light (the load). Then the other end of the light and the green wire of the switch go to the Neutral. Please also see pictures carefully before you install to avoid causing any false alarm.
Motion Sensor & Light Sensor Switch: Automatically turn on/off lights based on room occupancy when detect hear source and environment brightness. Detection motion speed is 0.6~1.5m/s.
Time Delay: Adjustable Time-Delay for customizing: Min: 10sec±3sec ; Max:7min±2min (The load will stay on for the time you set, then go out).

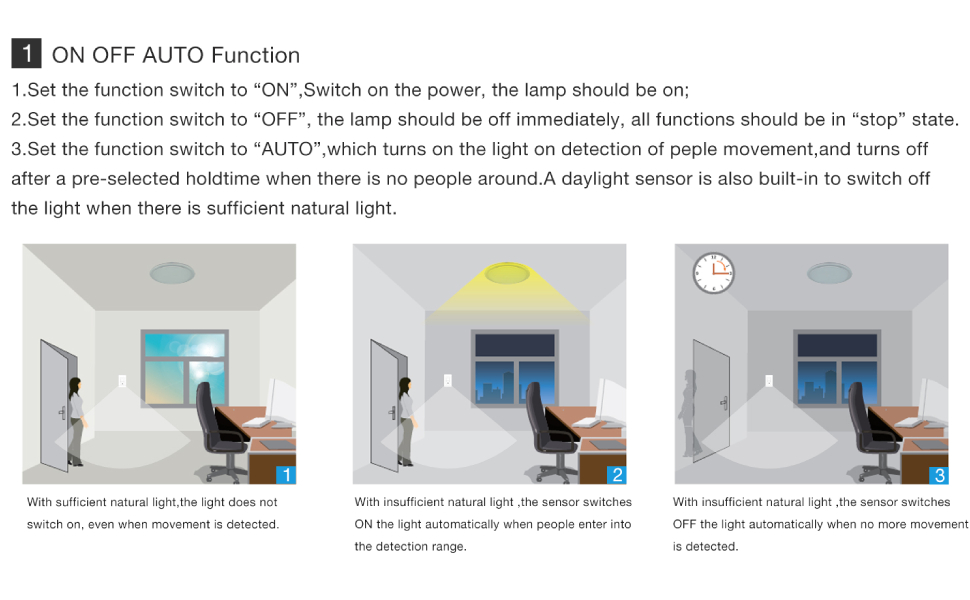

Three Mode: AUTO mode works as an occupancy sensor (Auto ON, Auto OFF). ON and OFF modes allow you to override the sensor and use the sensor switch as a regular light switch.
Energy-saving: Motion sensor switch uses a passive infrared (PIR) sensor to energy-saving and lower bills.

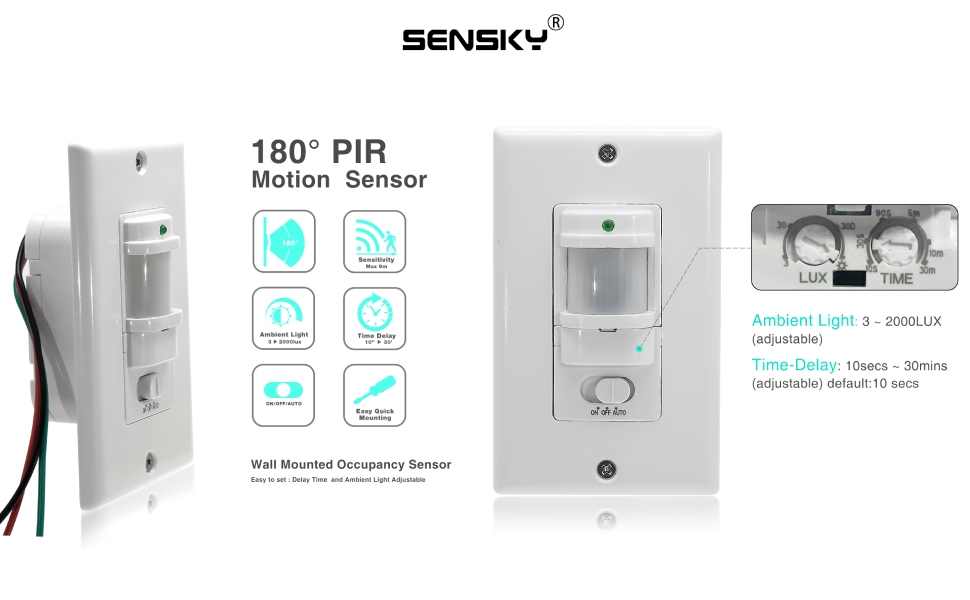

With a 180° field of view, the Motion Sensor Light Switch pick up the motion of human through a passive infrared sensor, as soon as someone walks in the room and it will automatically turn the light off after a pre-set amount of time. Perfect for porch, closet, garage, hallway, stairs, basement, pantry and laundry room, etc.

sensor

Rated Load

1200W/220v (incandescent lamp)

300W/220V (energy-saving lamp)

800W/110V (incandescent lamp)

200W/110V (incandescent lamp)

Power Consumption :

0.45W(work) 0.1W (static)

Detection Motion Speed :0.6~1.5m/s

Size :70mm*115mm*35mm

sensor

Specification

Input Voltage :110V/AC-240V/AC

Power Frequency:50/60Hz

Detection Range:180 degree

Detection Distance:9m max(less than 24 Celsius)

Time-Delay

Min:10sec(more or less)

Max:30min

Working temperature:20~40 Celsius

Working Humidity: higher than 93% RH

sensor

Widely Application

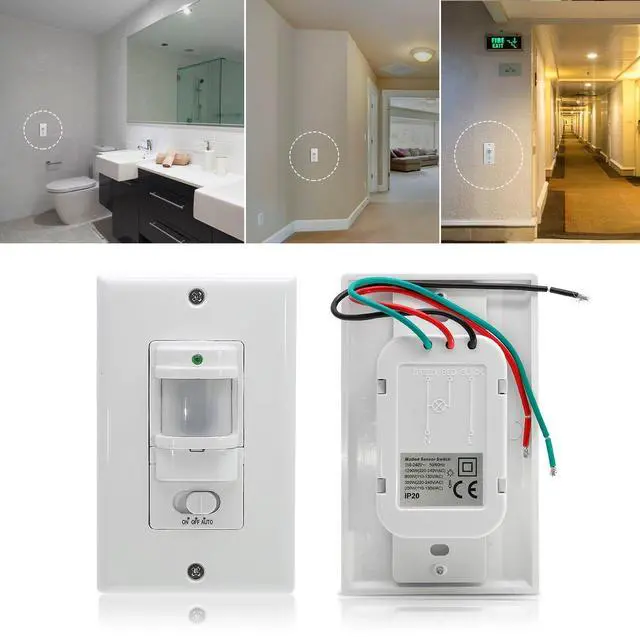

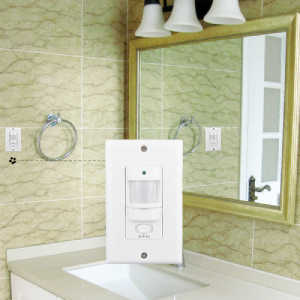

Motion Sensor Switch automatically turns lights on and off according to the motion detected in the room to save money on your energy bill. The PIR sensor switch has broad compatibility making it a good choice for you to upgrade your home. Perfect for pantry closet, garage, Laundry Room LED lights, never worry bout ON or OFF again.

Note

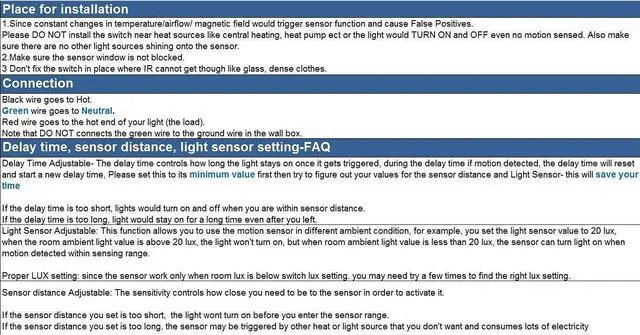

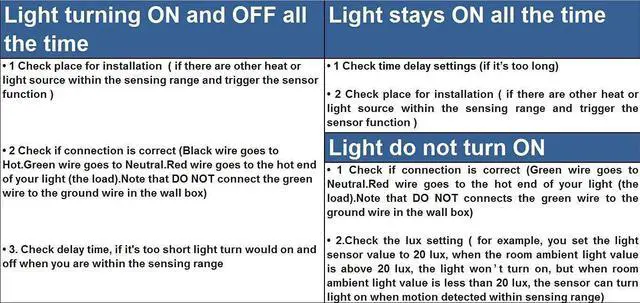

Time -delay is added continually: When it receives the second induction signal after the first induction, it will compute time once more on the rest of the first time-delay basic (set time). Currently, the temperature becomes lower, the sensitivity of the sensor would become higher, so the probability of false triggering the sensor turning on increases. We recommend reducing the Lux value appropriately to reduce the triggering motion sensors.

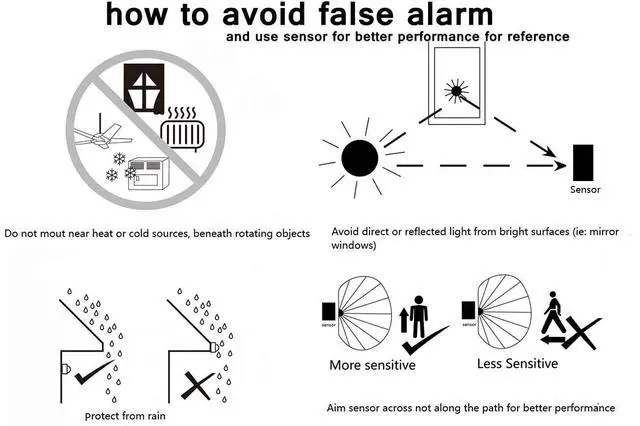

TIPS

1. Don't expose to direct sunlight or lighting, big wind, near a heater or air condition.

2. Don't fix it at a place where there is obstructing material (e.g. Glass, dense clothes) that IR cannot get through.

3. Don't fix it in a strong shock or vibration environment.
