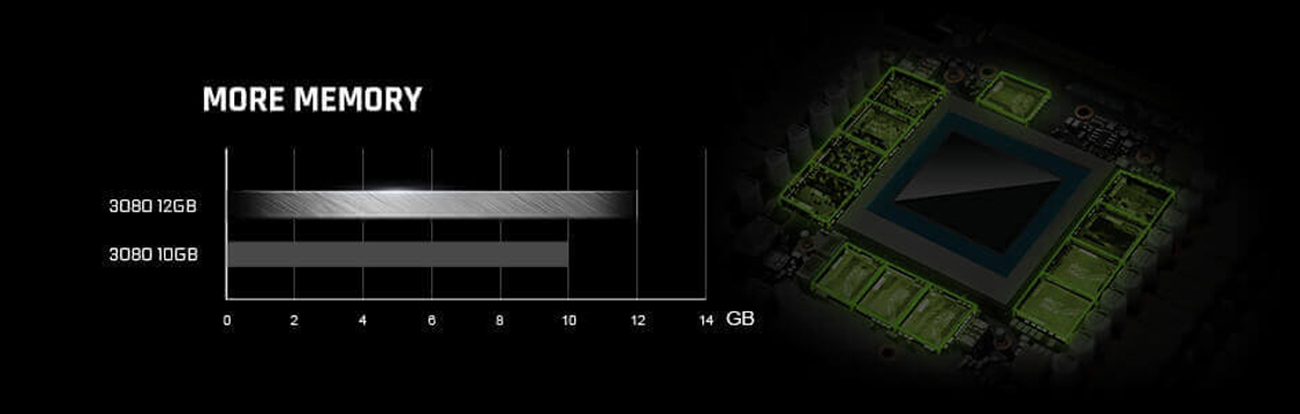

Introducing the EVGA GeForce RTX™ 3080 12GB graphics cards — Built for and designed for gamers. The new GeForce RTX™ 3080 12GB features 20% more VRAM compared to the GeForce RTX™ 3080, more CUDA cores, and faster memory bandwidth to provide more performance headroom for high-resolution gaming and more demanding visual quality settings.
Geforce RTX 3080 12GB

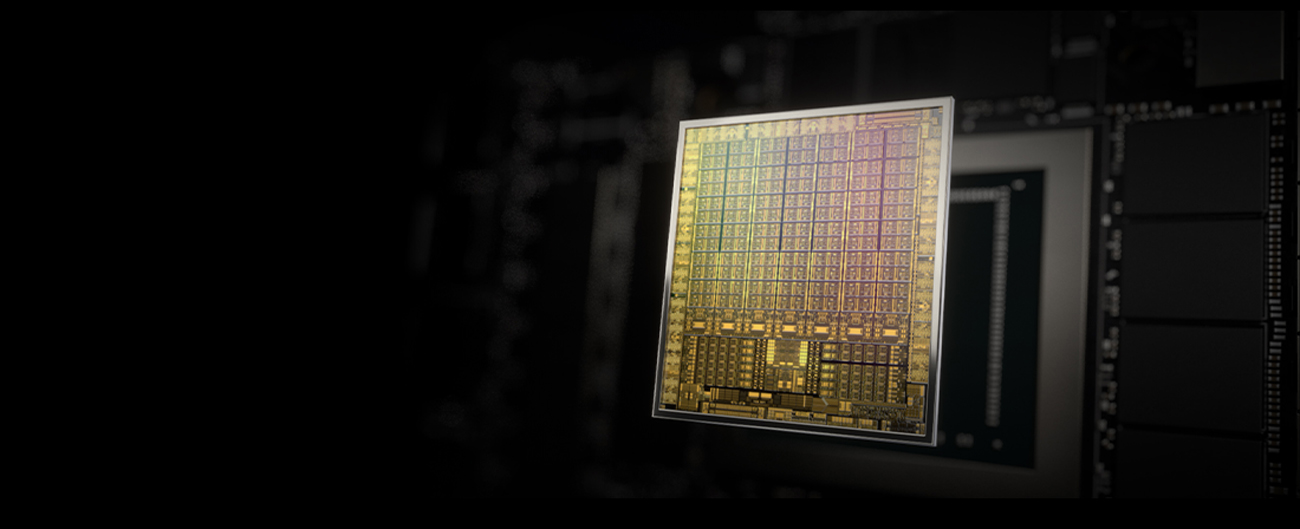

NVIDIA AMPERE ARCHITECTURE
2ND GENERATION
RT CORES
2X THROUGHPUT
3RD GENERATION
TENSOR CORES
UP TO 2X THROUGHPUT
NEW
SM
2X FP32 THROUGHPUT
DLSS AI ACCELERATION MAX FPS. MAX QUALITY. POWERED BY AI.
NVIDIA DLSS is groundbreaking AI rendering that boosts frame rates with uncompromised image quality using the dedicated AI processing Tensor Cores on GeForce RTX™. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The AI revolution has arrived to gaming.
RAY TRACING
Ray tracing is the holy grail of gaming graphics, simulating the physical behavior of light to bring real-time, cinematic-quality rendering to even the most visually intense games.
VICTORY MEASURED IN MILLISECONDS
NVIDIA Reflex delivers the ultimate competitive advantage. The lowest latency. The best responsiveness. Powered by GeForce RTX 30 Series GPUs and NVIDIA® G-SYNC monitors. Acquire targets faster, react quicker and increase aim precision through a revolutionary suite of technologies to measure and optimize system latency for competitive games.
UP YOUR CREATIVE GAME
Take your creative projects to a new level with GeForce RTX™ 30 Series GPUs. Delivering AI-acceleration in top creative apps. Backed by the NVIDIA Studio platform of dedicated drivers and exclusive tools. And built to perform in record time. Whether rendering complex 3D scenes, editing 8K video, or livestreaming with the best encoding and image quality, GeForce RTX GPUs give you the performance to create your best.
STREAM LIKE A BOSS
Steal the show with incredible graphics and smooth, stutter-free live streaming. Next-generation hardware encoding and decoding combine to show off all your best moments in exquisite detail. And the all-new NVIDIA Broadcast app takes your livestreams to the next level with powerful AI capabilities like noise removal, virtual background, and more. GeForce RTX 30 Series GPUs deliver the performance and image quality necessary to give your audience your best—every time.
Maximize the thermal contact surface area on graphics card components
Airflow pockets allow air to move more freely through the heatsink to remove more heat.
Patented copper base is 25% larger to cover both GPU and RAM area to improve thermal transfer and GPU/RAM cooling.
New 180° heatpipe design with selectively positioned heatpipes increases fin contact area by 65% and optimal heat dissipation.
Triple fans are installed on all air-cooled EVGA GeForce RTX 30 Series graphics card to optimize airflow, increase cooling performance, and reduce fan noise
EVGA graphics card features asynchronous fan mode, and a special upraised "E" pattern that further reduces turbulent noise.
EVGA's iCX3 fans turn off below 55°C, generating 0dB of noise.
FTW3 center fans are offset by 10mm to increase the direct airflow area by 16%.
Smart cut-outs in the PCB and backplate improve airflow and reduce exhaust recovery
KEY FEATURES
- EVGA iCX3 Technology
- Adjustable ARGB LED
- All-Metal Backplate, Pre-Installed
- Built for EVGA Precision X1
- 2nd Gen Ray Tracing Cores
- 3rd Gen Tensor Cores
- PCI Express Gen 4
- Microsoft DirectX 12 Ultimate
- GDDR6X Graphics Memory
- NVIDIA DLSS
- NVIDIA GeForce Experience
- NVIDIA G-SYNC
- NVIDIA GPU Boost
- Game Ready Drivers
- Vulkan RT API, OpenGL 4.6
- DisplayPort 1.4a
- 7th Gen NVIDIA Encoder
- 5th Gen NVIDIA Decoder
- HDCP 2.3
- VR Ready
- Supports 4K 120Hz HDR,
8K 60Hz HDR and Variable Refresh
Rate as specified in HDMI 2.1 - LHR 52 MH/s ETH hash rate (est.)
SPECIFICATIONS
Boost Clock: 1800 MHz
Memory Clock: 19000 MHz Effective
CUDA Cores: 8960
Bus Type: PCIe 4.0
Memory Detail: 12288MB GDDR6X
Memory Bit Width: 384 Bit
Memory Bandwidth: 912.4 GB/s
DIMENSIONS
Height: 5.38 in - 136.75mm
Length: 11.81 in - 300mm
Width: 2.75 Slots
