An undeniable force is here. The planets align as the next evolution of the ultimate gaming experience has emerged.
The EVGA GeForce RTX 30 Series Graphics Cards have arrived.
These new cards are colossally powerful in every way, giving you a whole new tier of performance. They are powered by the NVIDIA Ampere architecture, which doubles down on ray tracing and AI performance with enhanced RT Cores, Tensor Cores, and new streaming multiprocessors.
The EVGA GeForce RTX 30 Series is the absolute definition of ultimate performance.
NVIDIA AMPERE ARCHITECTURE

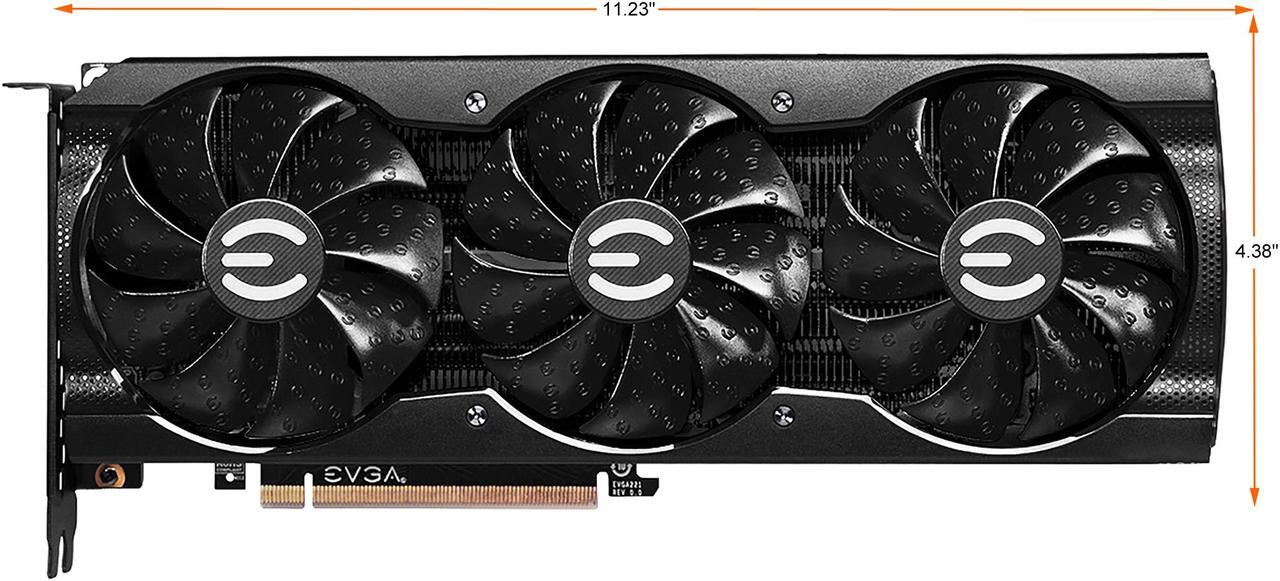

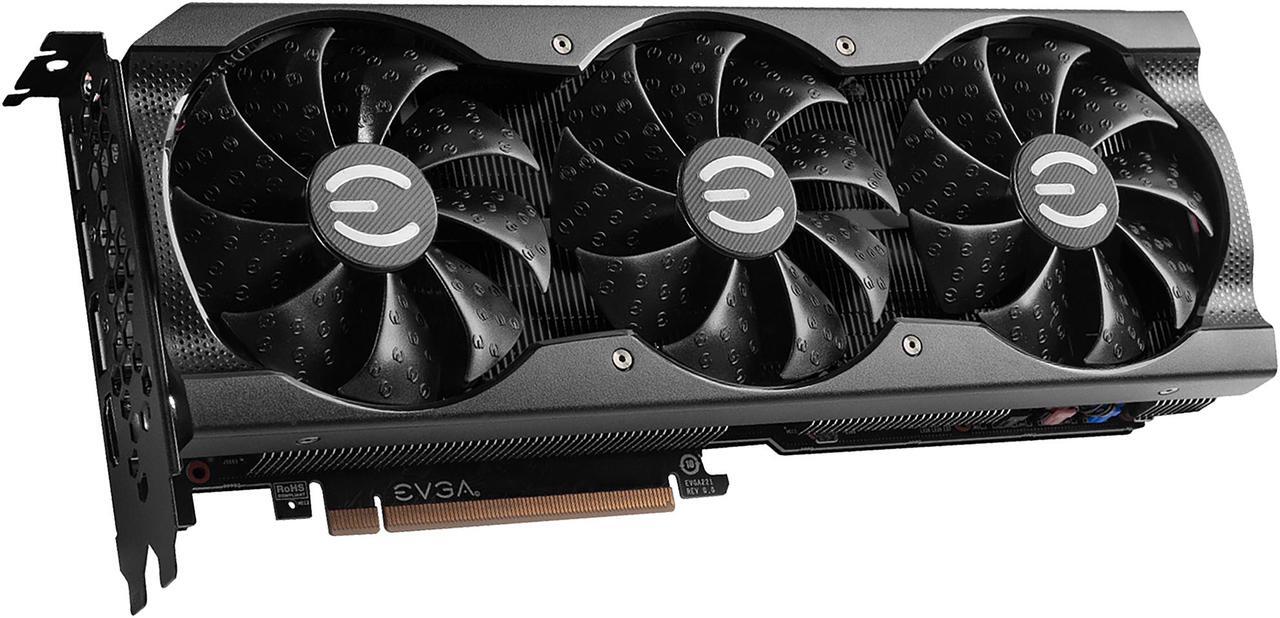

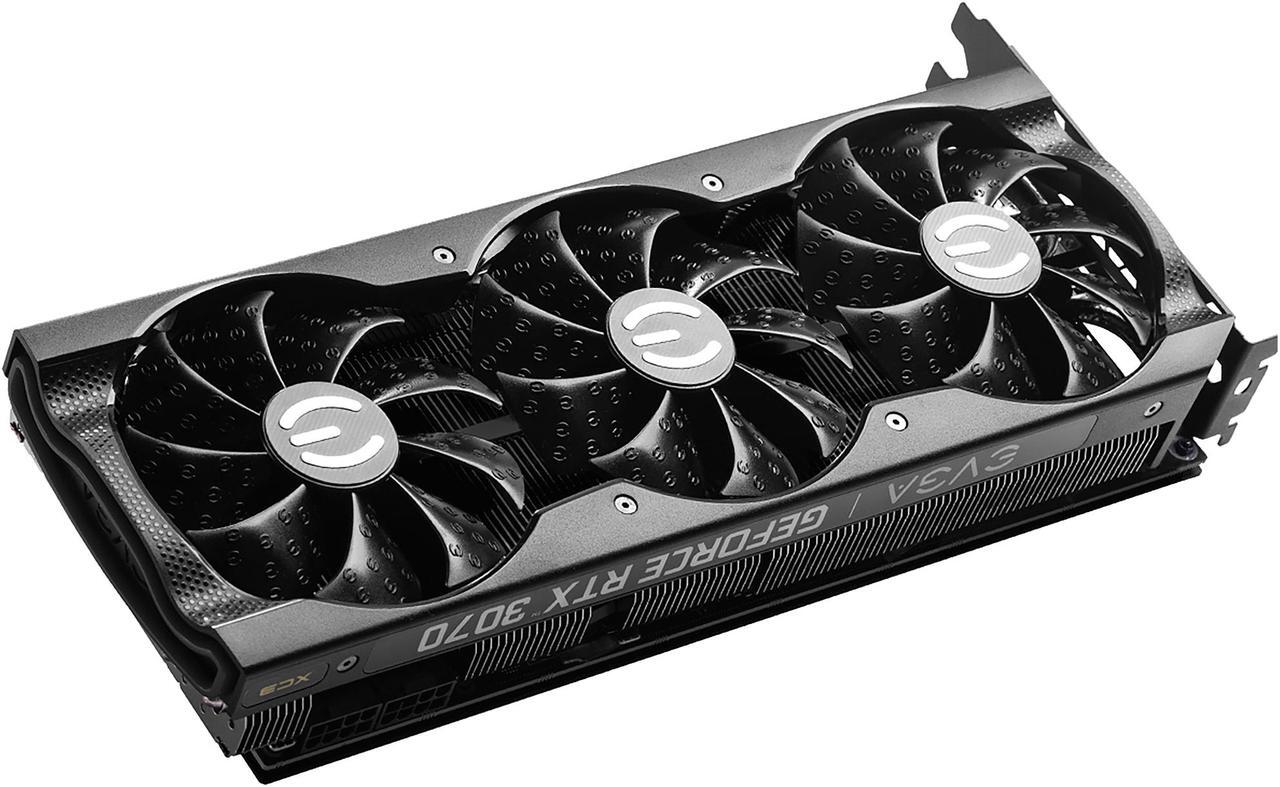

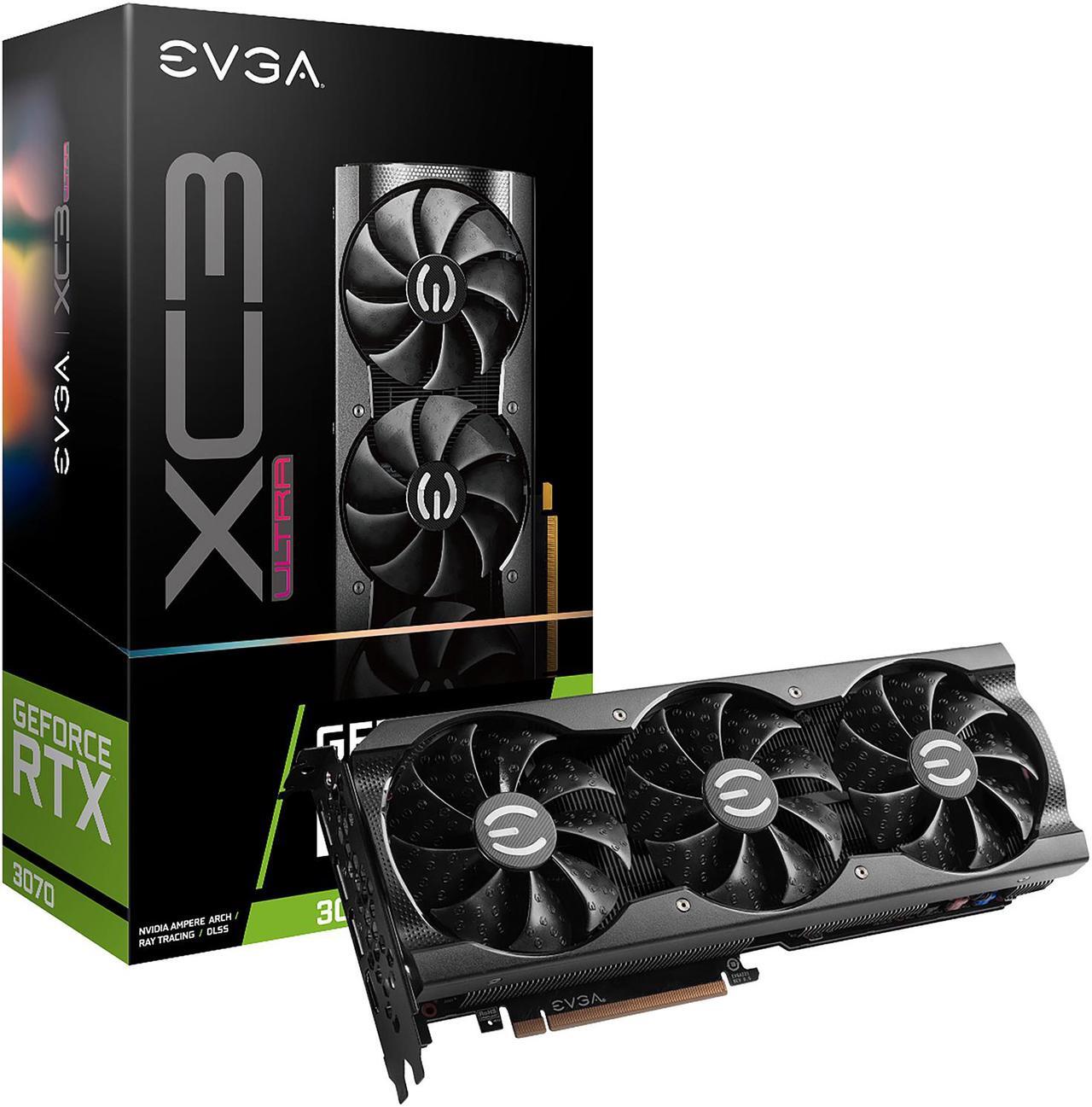

EVGA GeForce RTX 3070
The EVGA GeForce RTXTM 3070 is powered by the NVIDIA Ampere architecture. Built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and high-speed G6 memory, it gives you the power you need to rip through the most demanding games at 1440p resolution. Combined with the next generation of design, cooling, and overclocking with EVGA Precision X1, the EVGA GeForce RTX™ 3070 Series creates a definition for ultimate performance.
GOALS OF iCX3
Maximize the thermal contact surface area on graphics card components
Airflow pockets allow air to move more freely through the heatsink to remove more heat.
Patented copper base is 25% larger to cover both GPU and RAM area to improve thermal transfer and GPU/RAM cooling.
New 180° heatpipe design with selectively positioned heatpipes increases fin contact area by 65% and optimal heat dissipation.

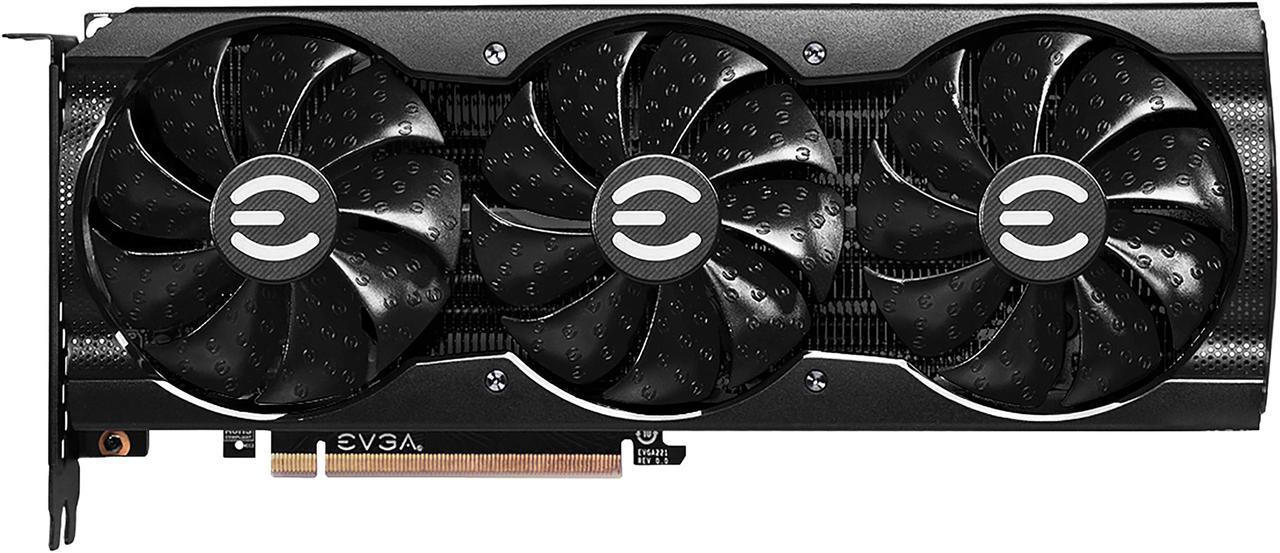

Triple fans are installed on all air-cooled EVGA GeForce RTX 30 Series graphics cards to optimize airflow, increase cooling performance, and reduce fan noise.
EVGA's iCX3 fans feature asyncronous fan mode, and a special upraised "E" pattern that further reduces noise.
EVGA’s iCX3 fans turn off below 55°C, generating 0dB of noise.
Smart cut-outs in the PCB improve airflow and reduce exhaust recovery
Features
EVGA iCX3 Cooling
Adjustable ARGB LED

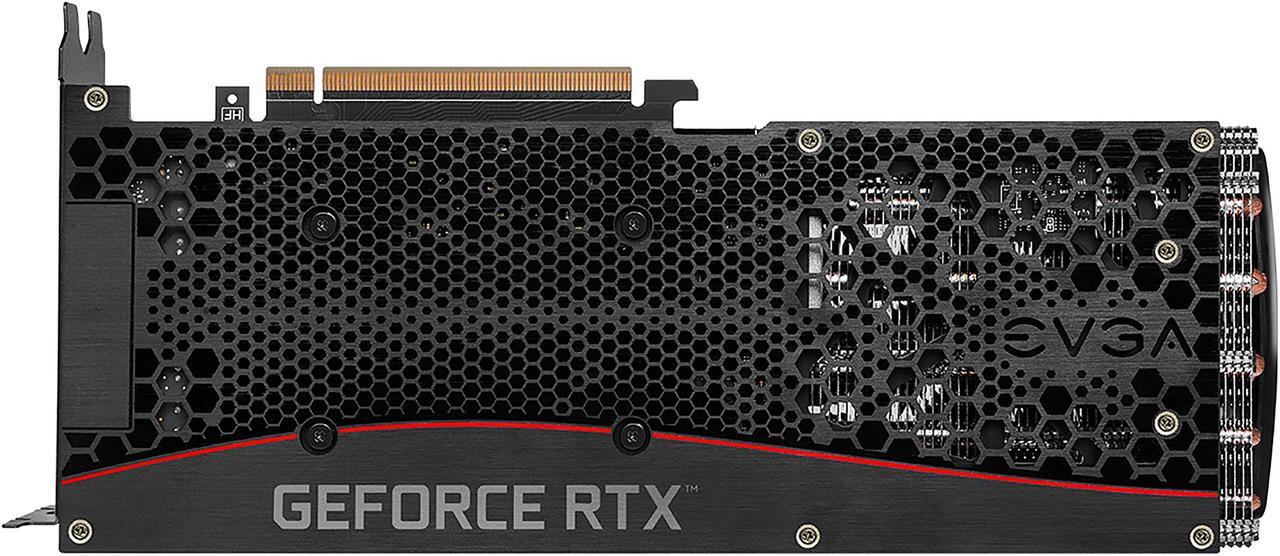

All-Metal Backplate, Pre-Installed
Built for EVGA Precision X1
2nd Gen Ray Tracing Cores
3rd Gen Tensor Cores
PCI Express Gen 4
Microsoft DirectX 12 Ultimate
GDDR6 Graphics Memory
NVIDIA DLSS
NVIDIA GeForce Experience
NVIDIA G-SYNC
NVIDIA GPU Boost
Game Ready Drivers
Vulkan RT API, OpenGL 4.6

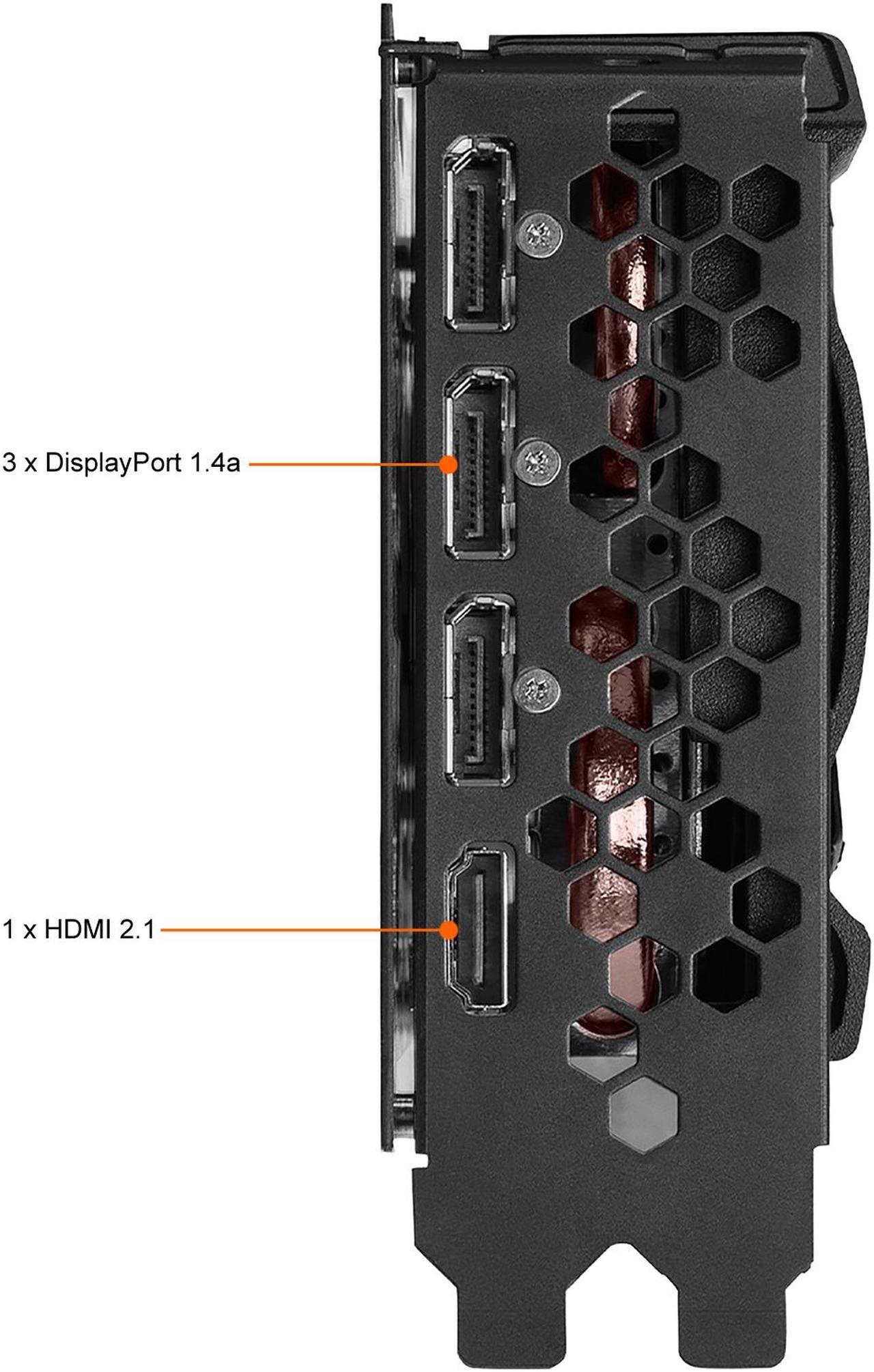

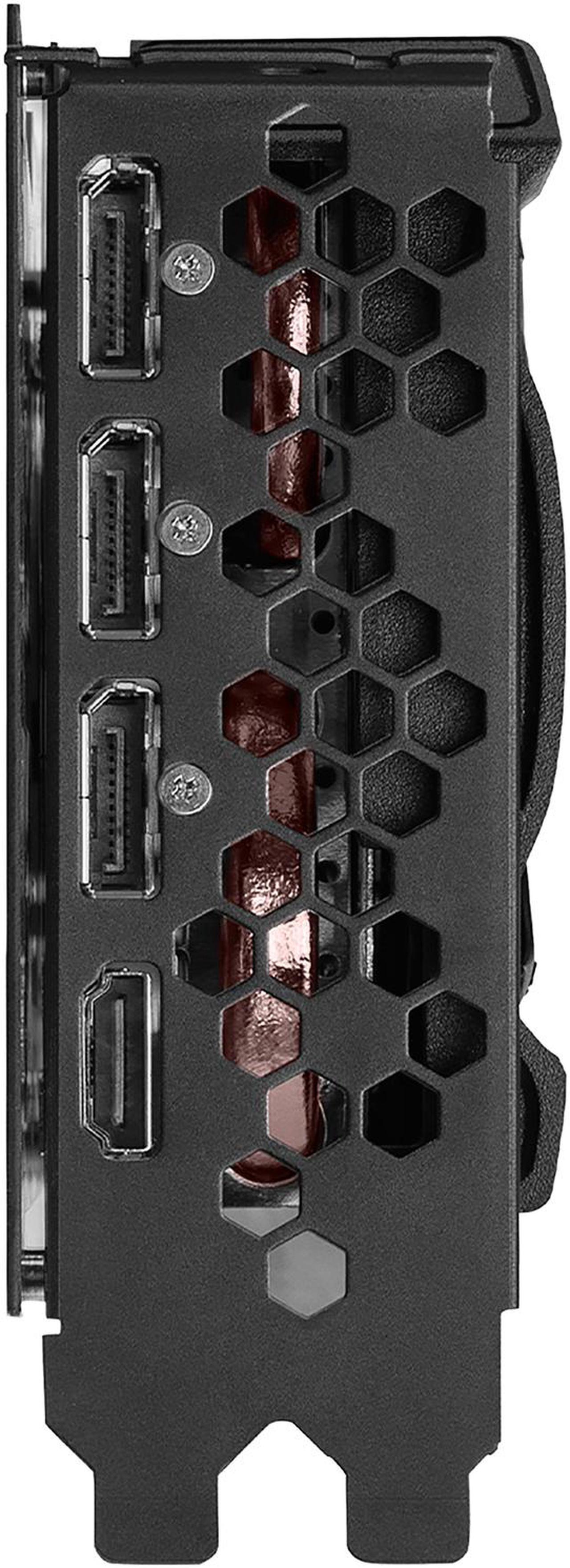

DisplayPort 1.4a, HDMI 2.1
7th Gen NVIDIA Encoder
5th Gen NVIDIA Decoder
HDCP 2.3
VR Ready
LHR 25 MH/s ETH hash rate (est.)
Core
CUDA Cores: 5888
Boost Clock: 1770 MHz
Bus Type: PCIe 4.0
Memory
Memory Clock: 14000 MHz Effective
Memory Detail: 8192MB GDDR6
Memory Bit Width: 256 Bit
Memory Bandwidth: 448 GB/s
