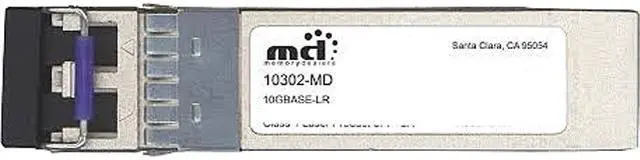

Extreme Networks 10G LR SFP+, LC, 10km, Singlemode Fiber | 10302
- Hot-swappable input/output device that plugs into a 10 Gigabit Ethernet Extreme platform
- Interoperable with other IEEE-compliant 10GBASE interfaces where applicable
- Certified and tested on Extreme platforms for superior performance, quality, and reliability
- High-speed electrical interface compliant to IEEE 802.3ae
- SFP Form factor, 2-wire I2C communication interface and other low-speed electrical interface compliant to SFF-8472, SFF-8432, SFF-8431 and SFP Multisource Agreement (MSA)
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Technical Information
- Application/Usage: Data Networking
- Interfaces/Ports Details: 1 x LC 10GBase-LR
- Media Type Supported: Optical Fiber
- Fiber Mode Supported: Single-mode
- Ethernet Technology: 10 Gigabit Ethernet
- Network Technology: 10GBase-LR
- Maximum Data Transfer Rate: 10
- Additional Information:
- Distance Supported : 10 km
- Optical Wavelength: 1310 nm
- Compatibility:
- Summit X350-24t Switch
- Summit X350-48t Switch
- Limited Warranty: Lifetime
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Website
- Support Phone: 1-888-257-3000
- Support Email: support@extremenetworks.com
- Support Website
- View other products from Extreme Networks
LOADING...
The Extreme Networks 10302 is a 10Gbps SFP+ optical transceiver for network teams connecting compatible Extreme platforms over singlemode fiber, with 10GBASE-LR support for links up to 10km.
Recommended For
- Network teams connecting Extreme switches over single-mode fiber between buildings, campus locations, or other sites within a link’s supported optical budget; the module is designed for 10GBASE-LR links up to 10 km.
- Administrators adding 10GbE fiber uplinks to a compatible Extreme platform when the installed cabling is single-mode fiber with duplex LC connectors.
- IT teams replacing or adding a hot-swappable 10G LR optic in an Extreme network, provided the exact switch or line card is listed as compatible.
- Network operators who want digital optical monitoring to help inspect link conditions while troubleshooting a supported 10G fiber connection.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | 10Gbps 10GBASE-LR Ethernet links over single-mode fiber up to 10 km |
| Optical Interface And Data Rate | 10Gbps SFP+ transceiver with a duplex LC connector |
| Optical Link Specifications | 1310 nm wavelength for 10GBASE-LR single-mode fiber links up to 10 km |
| Monitoring And Operating Conditions | Digital Optical Monitoring (DOM); operating temperature from 0°C to 70°C |
| Model Identifiers | Extreme Networks model 10302 |
