Maximize the power of GeForce 5000 series cards with Gen5 NVMe SSD.
+
+
Overview
Specs
Reviews (6)
Any questions? Our AI beta will help you find out quickly.
Try me now

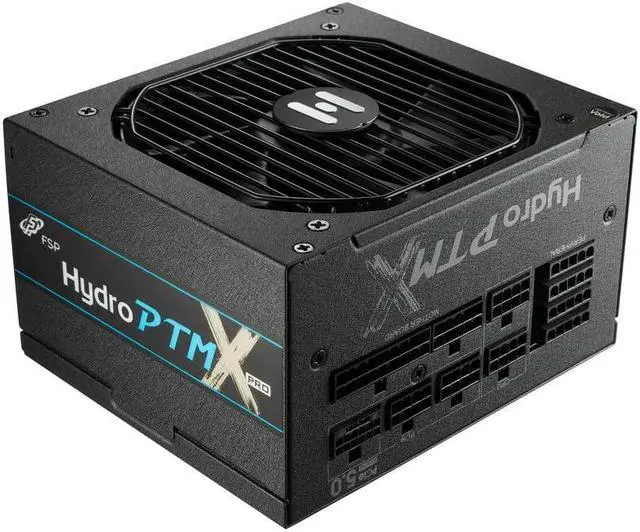

FSP HYDRO PTM X PRO series features 12VHPWR Connector and complies ATX 3.0 with PCIe 5.0 is a fully modular low-noise power supply with 130mm length to deliver up to 1200W and high efficiency 80 Plus® Platinum power to your PC built. With the full-bridge LLC topology circuit design and 450V, 105°C Japanese main bulk capacitors, PC parts receive premium power input from HYDRO PTM X PRO series power supplies. Besides, for demanding PC upgrades, you can have all the connections needed from HYDRO PTM X PRO series power supplies.

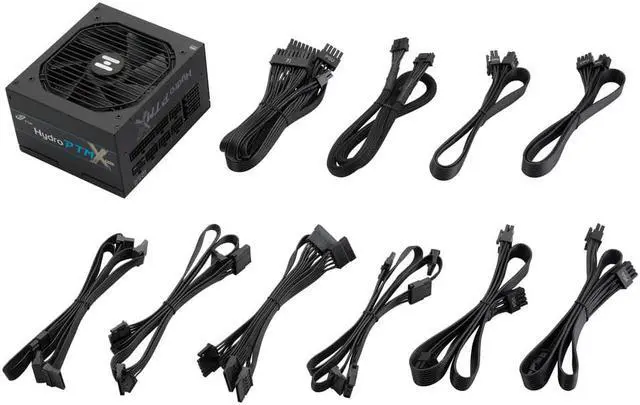

Complies with ATX 12V V 3.0 & EPS 12V V 2.92 Efficiency 92% @ typical load Active PFC 0.9 450V, 105°C Japanese bulk capacitors Japanese electrolytic capacitors +12V single-rail design +5V & 3.3V DC to DC module design Eco semi-fanless fan control switch 120mm fluid dynamic bearing (FDB) fan Fully modular cabling design Black flat cables Changeable side stickers for DIY enthusiasts and gamers Complete protection: OCP/OVP/OPP/SCP/OTPComplies with ATX 12V V 3.0 & EPS 12V V 2.92 Efficiency 92% @ typical load Active PFC 0.9 450V, 105°C Japanese bulk capacitors Japanese electrolytic capacitors +12V single-rail design +5V & 3.3V DC to DC module design Eco semi-fanless fan control switch 120mm fluid dynamic bearing (FDB) fan Fully modular cabling design Black flat cables Changeable side stickers for DIY enthusiasts and gamers Complete protection: OCP/OVP/OPP/SCP/OTP
Exclusive Conformal Coating
Covered with exclusive conformal coating protects it from dust, and stains.

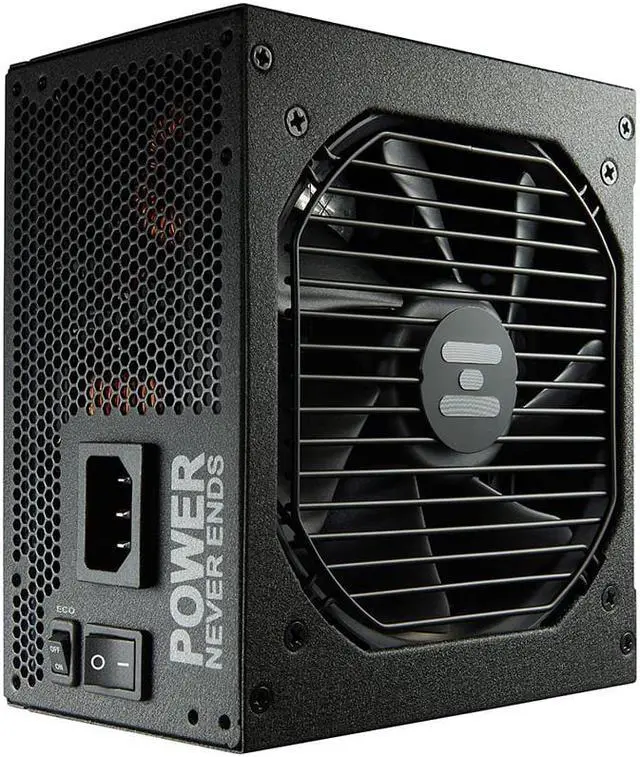

ECO Switch, Quieter and Longer Lasting Fan
Under 30% loading, you will enjoy a 0 dBA experience when the eco semi-fanless fan control switch is on.
80 Plus Platinum Certification
HYDRO PTM X PRO series is a power supply with 80 PLUS Platinum that provides over 92% efficiency at a load of 50 % and reduces electricity costs.
AC/DC
AC Input
100-240Vac~ 13-6A 50-60Hz (Not for China)/200-240Vac~ 6A 50-60Hz (Only for China)
DC Output
+3.3V/+5V/+12V/-12V/+5Vsb
Max Output Current
20A/20A/83.33A/0.3A/3A
Max Combined Power
120W/1200W/18.6W
Total Power
1200W
SPECIFICATIONS
Model
HPT3-1200M,Gen5
Rated Output Power
1200W
Form Factor
ATX
80 PLUS Certification
Platinum
Input Voltage
100-240V
Input Current
10-5A
Input Frequency
50-60Hz
PFC
Active PFC
Efficiency
92%
Fan Type
FDB fan, 120mm
Dimensions(L x W x H)
130×150×86 mm
Operation Temp.
100,000 Hrs
Protection
OCP,OVP OPP, SCP, OTP
Learn more about the Detailed Specifications
General
Brand
FSP Group
Series
80 Plus
Part Number
PPA8503607
Details
Color
Black
Type
ATX 3.0 Compatible
Maximum Power
1200 W
Fans
1
PFC
Active
Main Connector
20+4Pin
+12V Rails
Single
PCI-Express Connector
4 x 6+2-Pin
SATA Power Connector
12
Max PSU Length
130 mm
Modular
Full Modular
Efficiency
> 90%
Energy-Efficient
80 PLUS PLATINUM Certified
PSU Noise Level
Cybenetics Standard +
Features
Features
Independent 5V/12V/3.3V feedback
Details
Modular
Yes
Additional Information
Date First Available
February 06, 2023
