CMT520 Plus
CMT520 series is a PC case with excellent cooling potential. Both models are equipped with 4 pre-installed 120mm RGB (Addressable RGB for CMT520 Plus) fans and LED controller. They include RGB Motherboard sync with ASUS and MSI Motherboards. The acrylic halo cover reflects the lights inside the case for a dynamic theme. Tempered glass panels on the front and side to showcase your build. The CMT520 series also offers ample space for your motherboard, expansion cards, and CPU cooler. A full-featured mid-tower case for your gaming PC build.
- Tempered glass in the front and side panel.
- 7 x 120mm Fans Mounting Locations, Top x 3, Front x 3, Rear x 1 / 4 x 120mm RGB LED Fans are pre-installed (Addressable RGB for CMT520 PLUS)
- Optional: 5 x 140mm Fans Mounting Locations, Top x 2, Front x 3
- RGB lighting mode controller on I/O Panel
- 8x PCI-E expansion slots, 2x HDD and 4x SSD bays for ultimate expandability.
- Supports high-end graphics cards up to 423mm in length, and CPU coolers to 163mm in height
- Supports up to two 360mm radiators
- Built-in 2x USB 3.0 and 2x USB 2.0 for high speed transfers

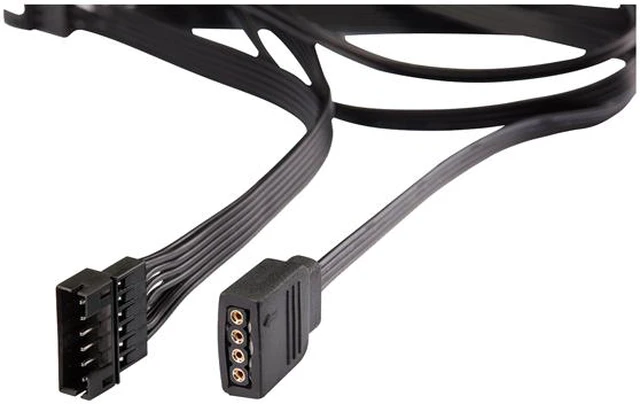

- Support Motherboard's RGB lighting sync
- *Press the RGB button on the I/O panel for three second to sync motherboard and controller mode
CMT520 Plus has improved the LED effects with 4 pre-installed 120mm addressable ARGB fans to gives you ultra-lighting performance.
Millions of gorgeous colors you can choose!

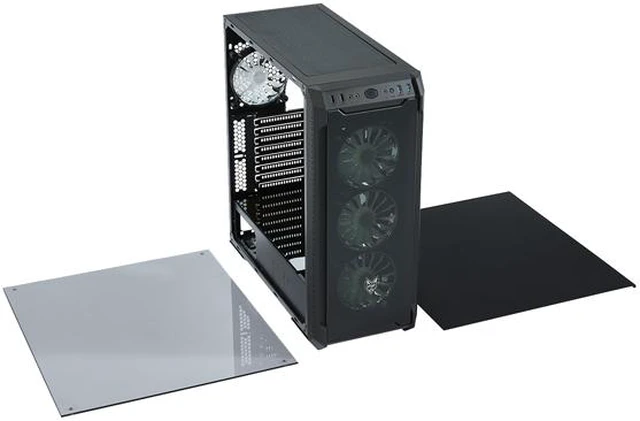

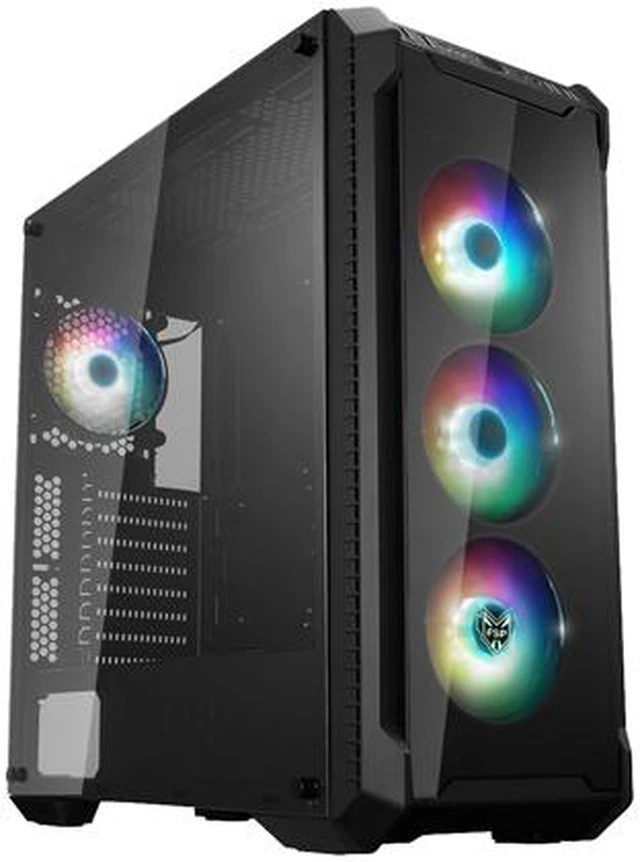

Front and Side Panel Window
With tempered glass window on the front and side panel, every powerful component in your system will be on display for all to enjoy.
Flexible Cooling Options
The CMT520 Plus is complete with four pre-installed 120mm ARGB LED fans. With support for up to three additional 120mm/140mm fans and compatibility for up to two 360mm radiators, this case ensures that your cooling performance will never suffer. With plenty of space, you could even modify the case with a professional water-cooling setup.
Ultimate Expandability

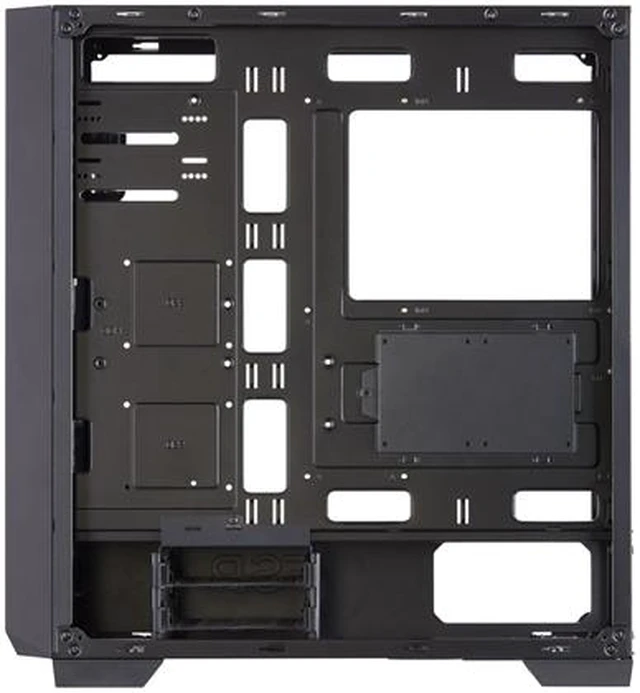

The CMT520 Plus supports most mainstream motherboard form factors such as E-ATX, ATX, Micro-ATX, and ITX, while the PSU is conveniently installed at the bottom of the case.

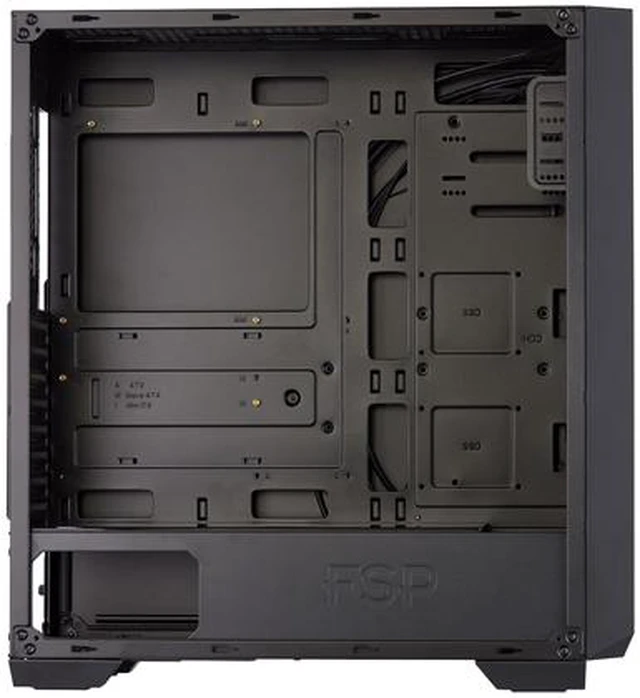

Smart, Simple Cable Management
Streamlined-Airflow

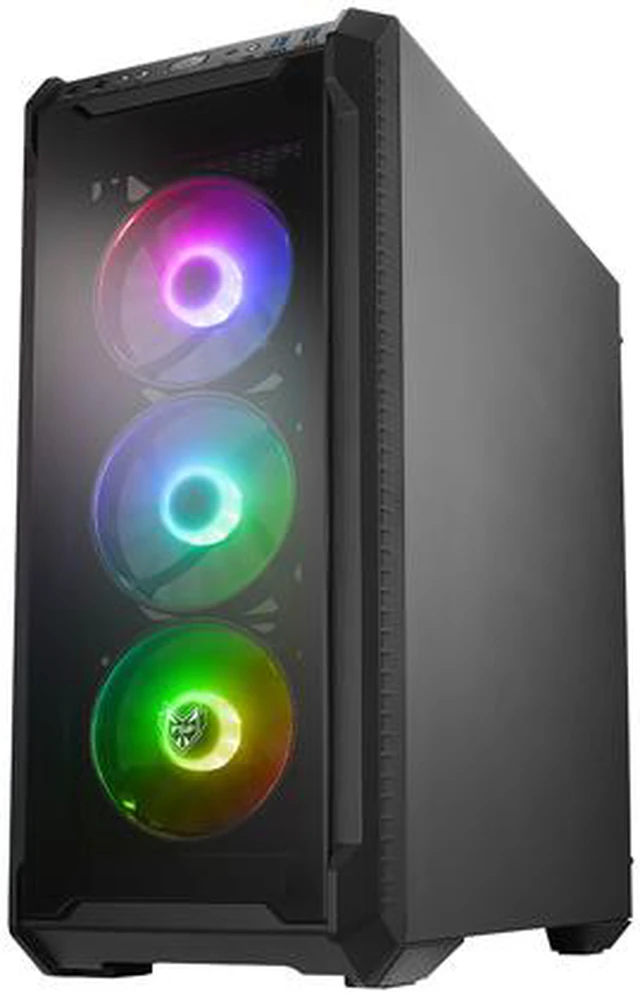

With three 120mm ARGB LED fans in the front and a 120mm ARGB LED fan pre-installed in the rear, you will always be off to a cool start.
Upgraded I/O Panel
Two USB 3.0 and two USB 2.0 ports promote high-speed data transfers and expansion potential.
Halo Cover with magnetic adhesion.
Clean Storage Tray 2 x 3.5"HDD and 4 x 2.5" SSD bays.
CMT520 Plus supports high-end graphics cards with a max length of 423mm.
Supporting 8 x PCI-E expansion slots.
*All pictures above are for reference purposes only and should be considered illustrative. Actual product colors may vary due to product enhancements or your monitor settings.
Specifications
| Product Name | CMT520 Plus |
| Type | ATX Mid Tower |
| Color | Black |
| Materials | SPCC, Tempered glass x 2 |
| Weight | 8.5KG | 18.73LB |
| Dimension LxDxH(mm) | 495 x 215 x 510mm 19.49 x 8.46 x 20.08inch |
| Maximum CPU Cooler Height | 163mm |
| VGA Card Length | 423mm |
| Expansion Slots | 8 |
| M/B Type | E-ATX, ATX, Micro ATX, ITX |
| I/O Panel | USB3.0 x 2, USB2.0 x 2,Audio |
| Power Supply Type | ATX |
| 3.5' Drive Bays | 2 |
| 2.5' Drive Bays | 4 |
| Cooling System | Front: 120mm ARGB Fan x 3 Rear: 120mm ARGB Fan x 1 |
| Fan & Water Cooler Supply | Front: 120mm/140mm x 3, or 360mm Radiator x 1 Top: 120mm x 3/140mm x 2 or 360mm Radiator x 1 Rear: 120mm x1 |
| Radiator Supply | 360mm x 2 |
