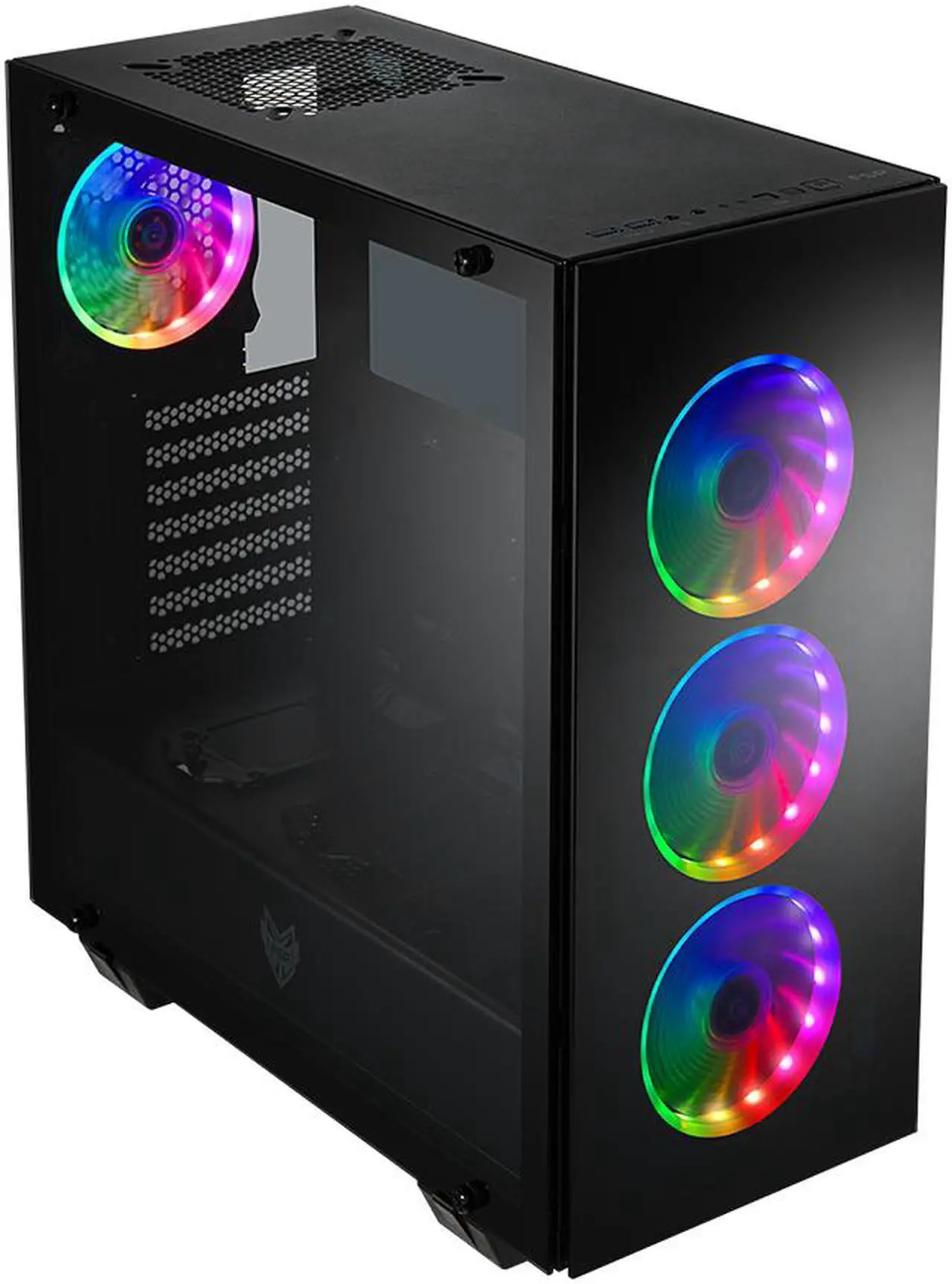

Upgrade from CMT510, CMT510 plus improved the LED effects and 4 pre-installed 120mm addressable RGB fans and handy interface gives you ultra-lighting performance.

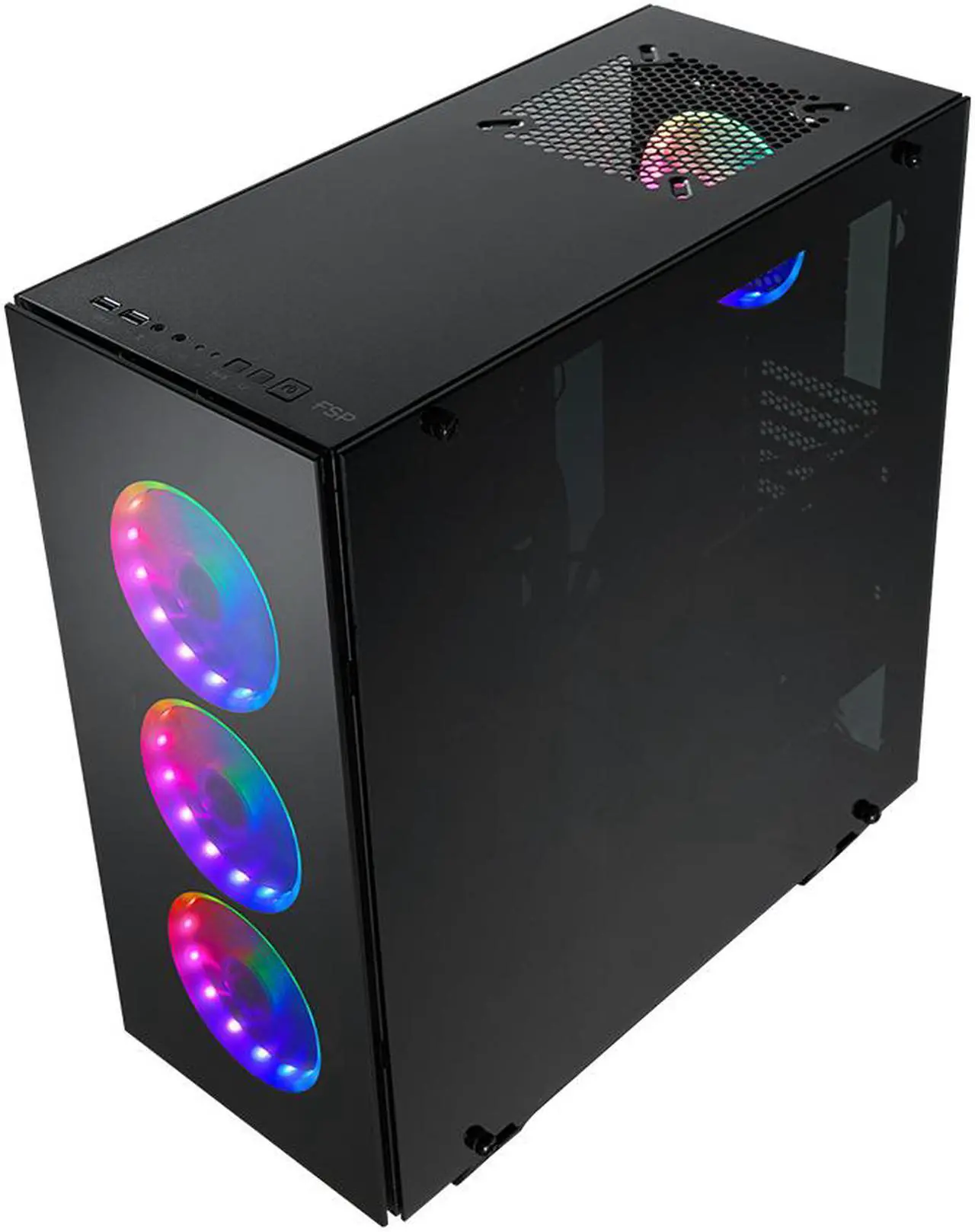

Dynamic RGB LED Light
CMT510 Plus supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software or with the included fan hub to provide 20 different lighting modes for vivid lighting.

Sophisticated Look

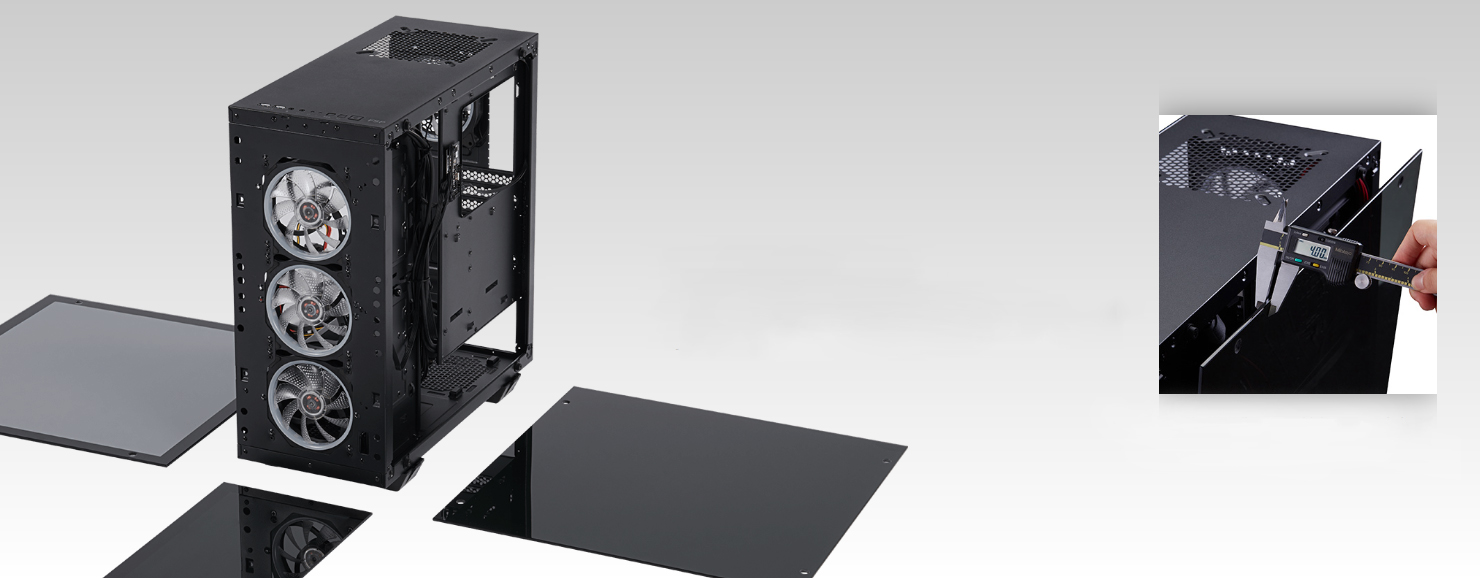

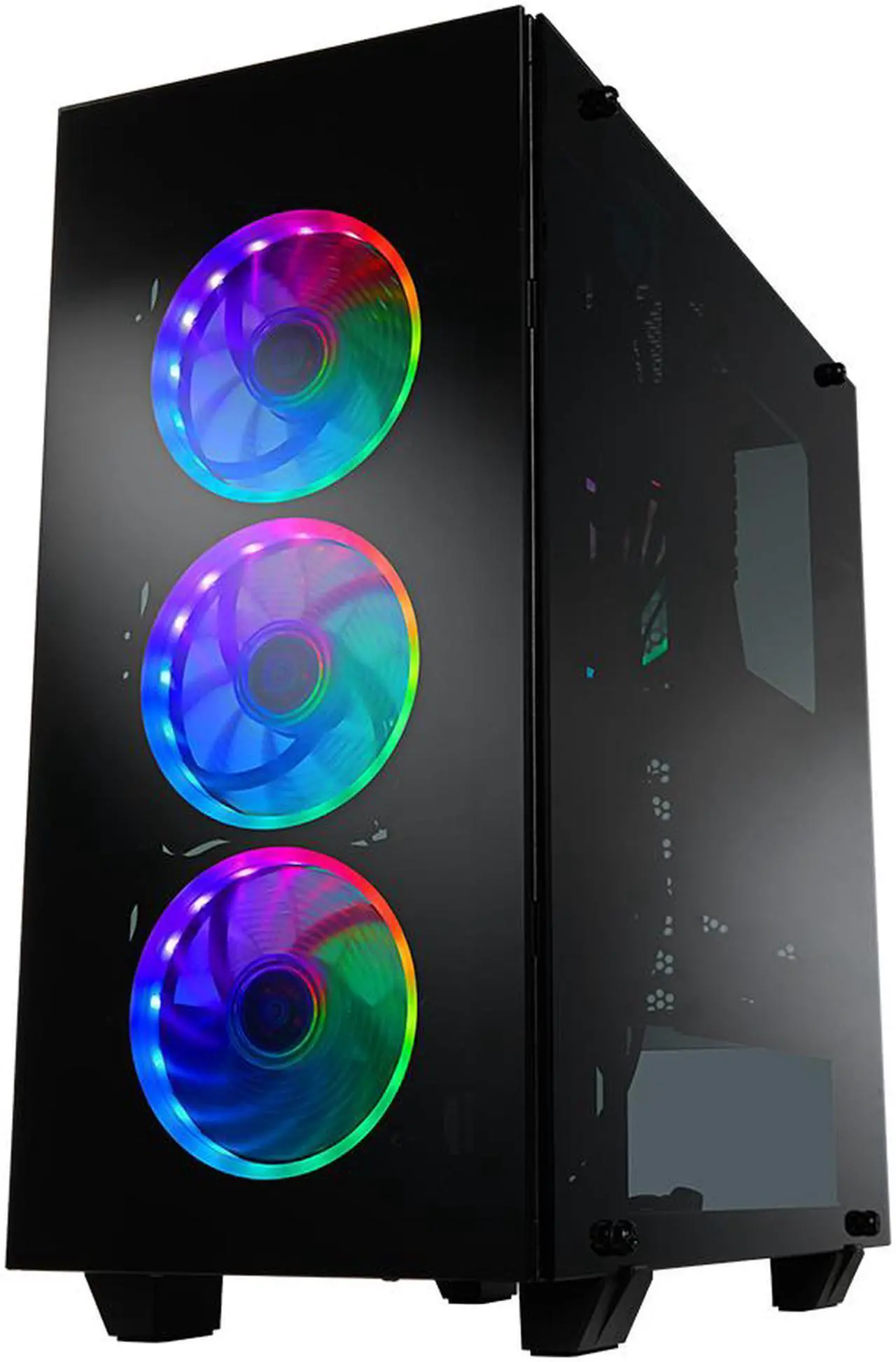

CMT510 Plus feature 3 transparent glass panels to show off your stunning build inside.
Premium quality 4mm thick tempered glass for supreme durability.

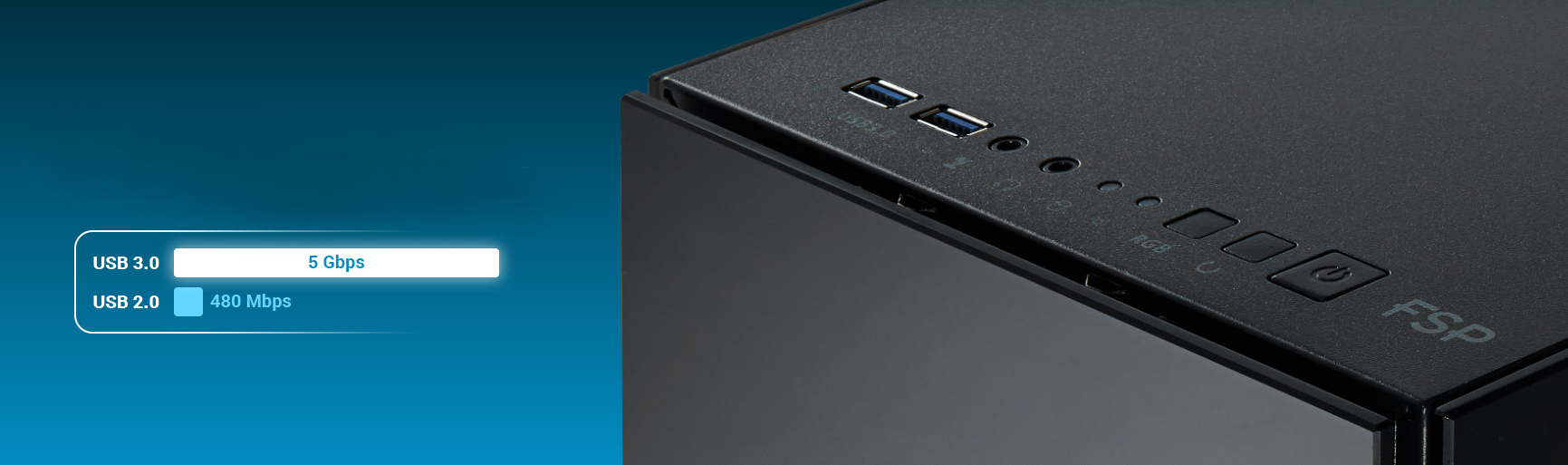

Convenient IO Port Location Design
Two dual 3.0 USB ports for high speedy data transmission.

Aerodynamic Design

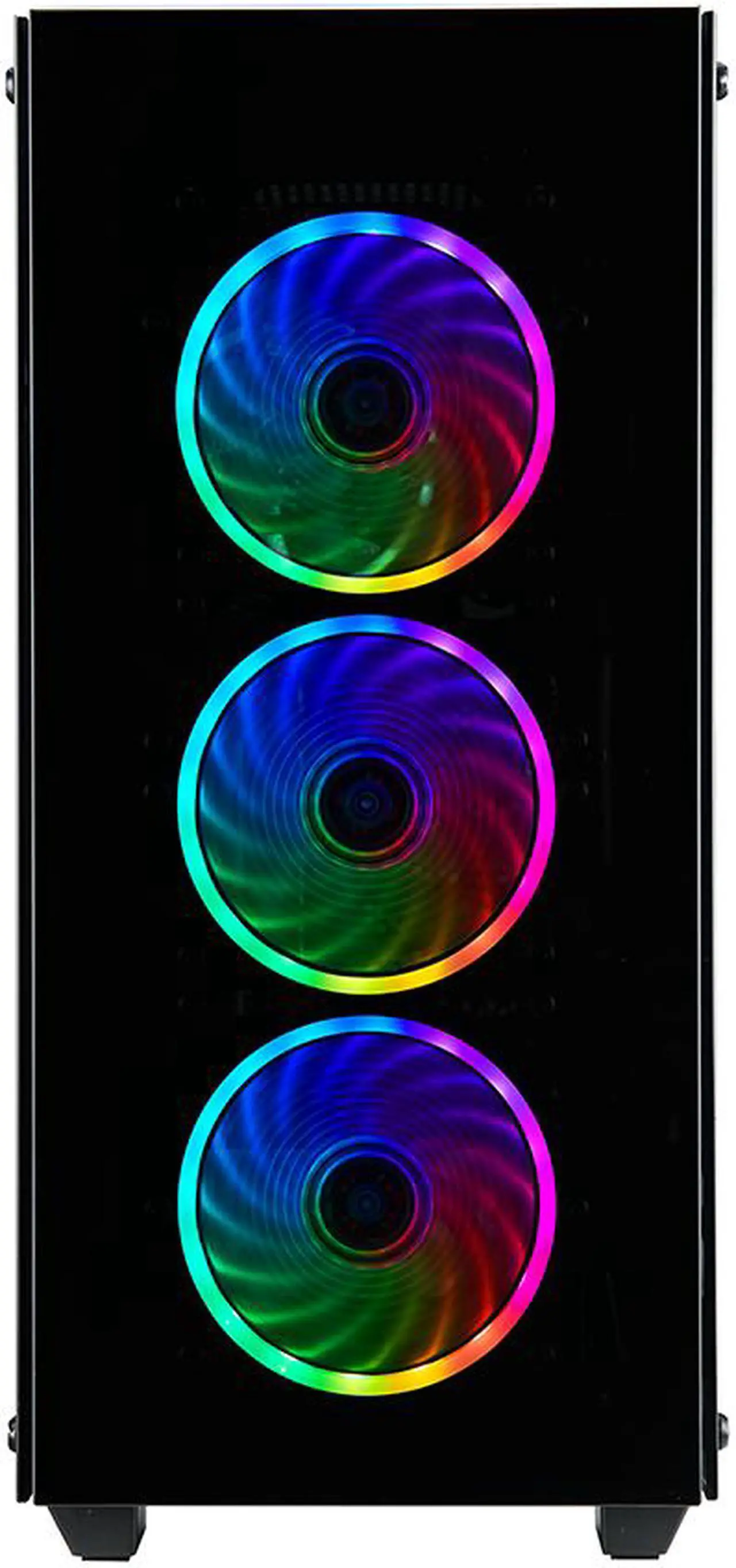

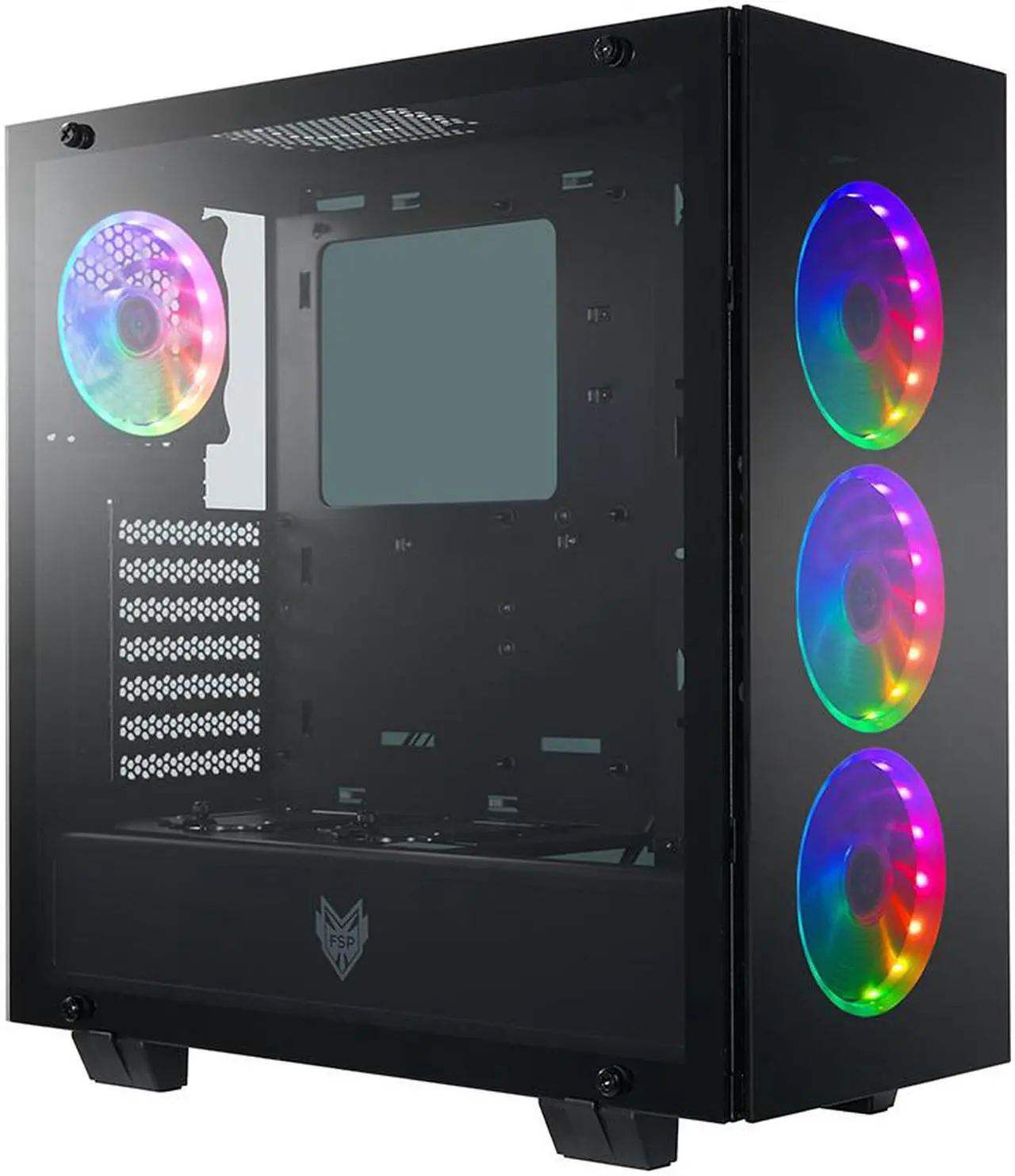

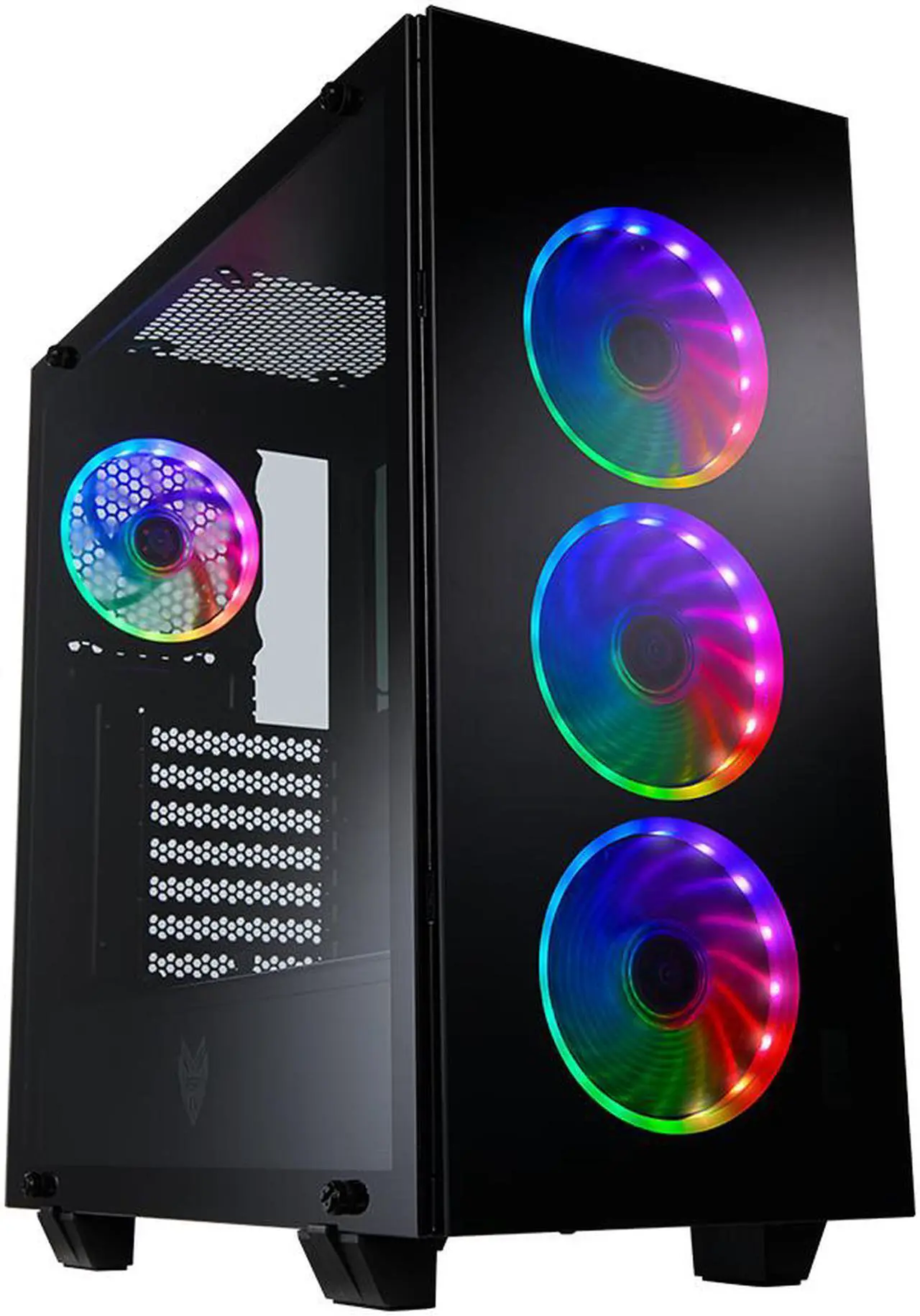

Pre-installed 3 x 120mm ARGB LED fans in the front and 1 x 120mm ARGB LED fan in the rear to give you a cool start.

Easy and Simple Installation

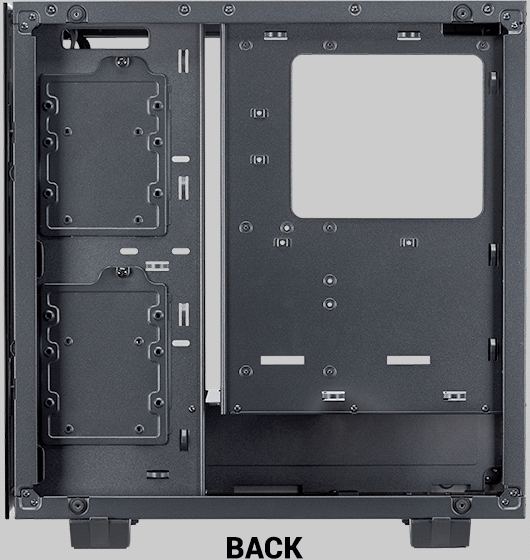

Large predrilled holes for easy cable access and management.

Designated location for PSU
Equipped with dust-free PSU cover to create an ideal environment for your PSU.

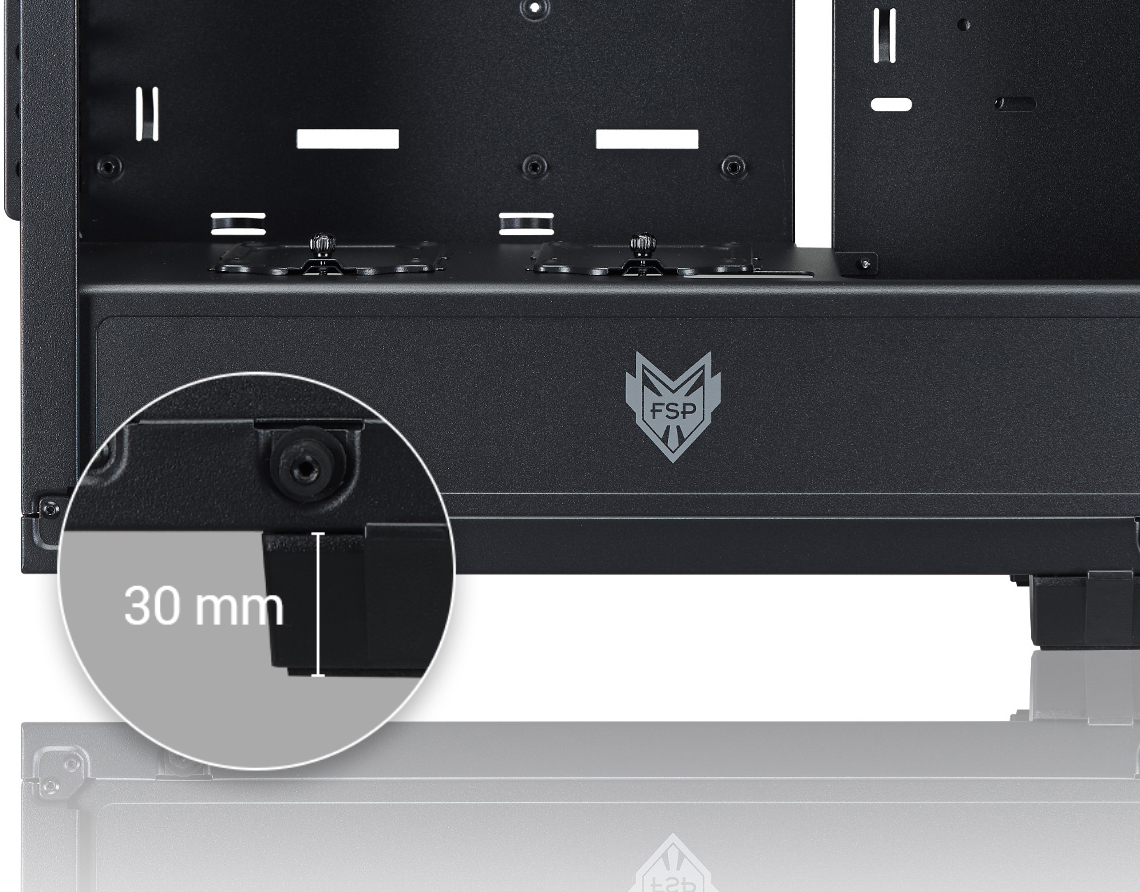

30 mm High Foot Stands
Not only it prevents the bottom surface from scratching, but it also enhances heat emission and cooling.
Superior Expandability

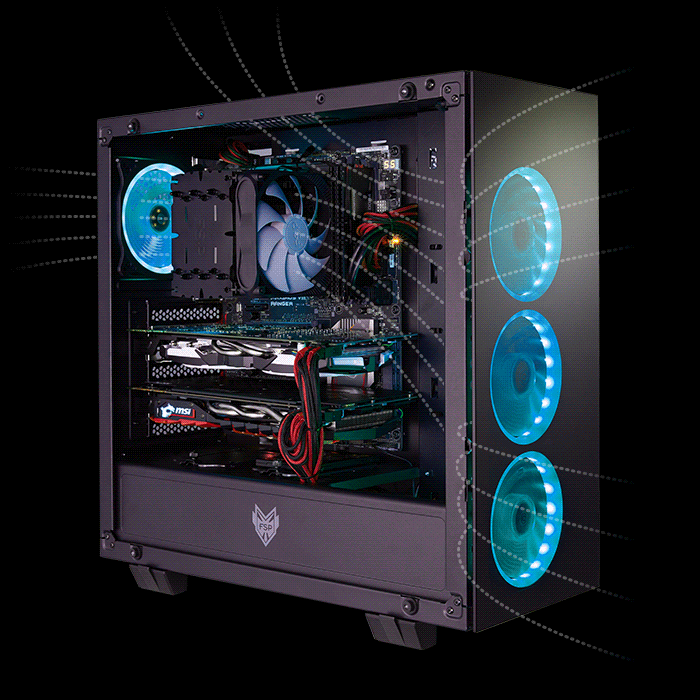

Superb Cooling
CMT510 plus reserved space for a max of 360mm long radiator and 5 fan mounts.
Built-in 4 x ARGB 120 mm LED fans located in the front and rear for optimal cooling performance.

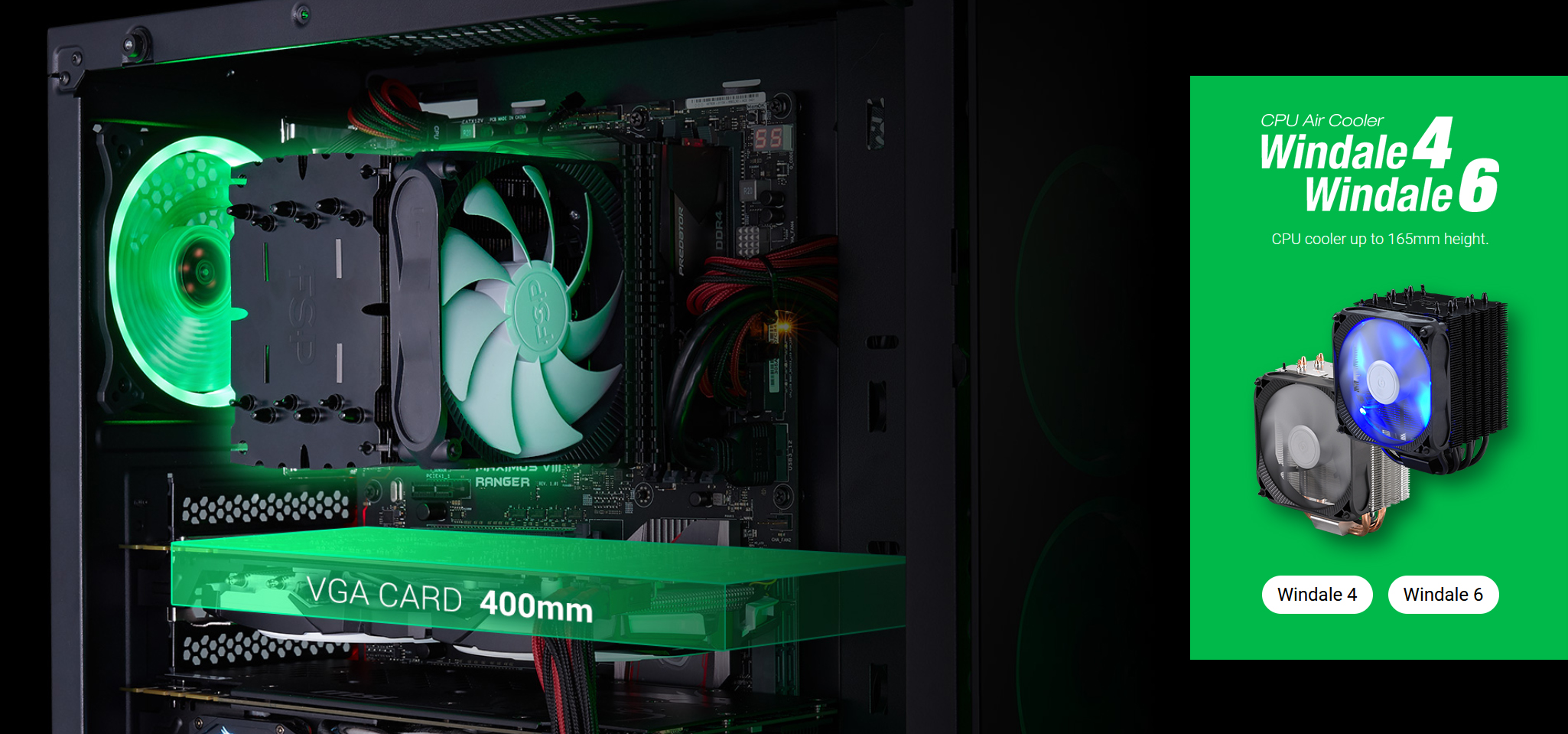

High Extensibility For Graphic Cards and CPU Cooler
It supports high-end graphics cards with a max length of 400mm.

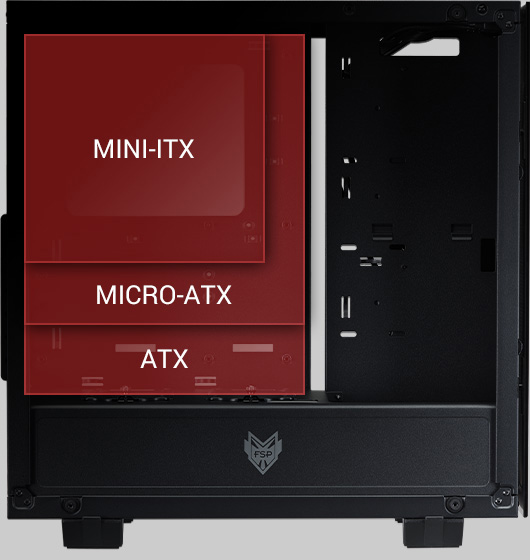

Plenty of Room Reserved for Your Motherboard
The spacious interior in CMT510 fits all standard motherboards (ATX, Micro ATX, Mini-ITX) for your gaming needs.
Highly Expandable

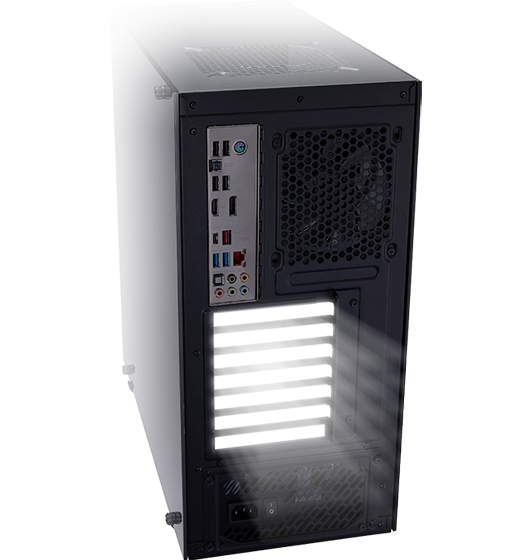

Supporting 7 x PCI-E expansion slots


Clean & Simple Storage Tray Design
2 x 3.5"HDD and 4 x 2.5" SSD bays.
Specifications
Product Name | CMT510 PLUS |
Type | ATX Mid Tower |
Color | Black |
Materials | SECC, Tempered glass |
Weight | 10.89 kg/ 24 lbs |
Dimension LxDxH(mm) | 491 x 208 x 448 mm / 19.15" x 8.11" x 17.47" |
Warranty | 2 Years |
Maximum CPU Cooler Height | 165 mm |
VGA Card Length | 400 mm / 15.75" |
Expansion Slots | 7 |
M/B Type | ATX, Micro ATX, Mini-ITX |
I/O Panel | USB 3.0 x2, Audio, Microphone |
Power Supply Type | ATX |
3.5" Drive Bays | 2 |
2.5" Drive Bays | 2 |
Cooling System | Front: 120 mm x3 ARGB Led Fan Rear: 120 mm ARGB Led Fan |
Fan&Water Cooler Supply | Front: 120 mm x3 or 140 mm x2, or 360 mm x1 Radiator Top: 120/140 mm x1 Rear: 120 mm x1 |
Radiator Supply | 360 mm x1 |
