Gefen Multiview Seamless Switcher EXT-HD-MVSL-441
- Input and Output resolutions up to 1080p Full HD and 1920x1200 (WUXGA)
- HDCP compliant
- Seamless switching ensures no switching delay and no picture loss during transitions
Overview
Specs
Reviews
Seamless switcher accepts four Hi-Def sources, scales and sizes each picture, and outputs them individually or as windows on a single HDTV display
Gefen 4x1 Multiview Seamless Switcher for HDMI is the perfect solution for displaying content from four Hi-Def sources on one HDTV display. Each of the windows can be individually scaled and positioned on the screen as desired. Seamless switching ensures no frame loss during window and picture transitions. This product is HDCP compliant, and input and output resolutions up to 1080p are supported.
Audio from any of the four HDMI sources can be selected for playback via IR, RS-232, or IP. Five default factory presets provide most commonly used arrangements of windows on a display, including single window output. Five additional preset buttons allow the user to store and recall custom-configured window arrangements. All ten presets, source selection, Power on, Lock, and menu navigation control buttons are accessible via front panel and the handheld IR remote control, as well as RS-232 and IP (web server interface, Telnet, and UDP). An intuitive on-screen Graphical User Interface simplifies system configuration. The Gefen Multiview Seamless Switcher is a great solution for small and large commercial venues that require content from multiple entertainment and signage sources simultaneously displayed on a single display.
Seamless switcher scales and sizes each of the four inputs, and outputs them one at a time or as windows on a single display
Input and output resolutions up to 1080p Full HD and 1920x1200 (WUXGA)
HDCP compliant- Seamless switching ensures no switching delay and no picture loss during transitions
- Default pre-configured Multiview window arrangements can be accessed via five front panel preset push-buttons
- Custom user-configurable Multiview window layouts can be accessed via five front panel preset push-buttons
- User-selectable playback of HDMI audio content from any of the four inputs
- Controllable via front panel controls, IR, IP (web server interface, Telnet, and UDP), and RS-232
- Easy to use on-screen Graphical User Interface (GUI) and web server interface
- Handheld IR remote control and IR Extender input on back panel
- Field-upgradable firmware via web server interface
- USB port (reserved for future product enhancements)
- Locking power supply connector
- 1U tall rack-mountable enclosure, rack ears included
With four HDMI inputs and one HDMI output, the Gefen EXT-HD-MVSL-441 Multiview Seamless Switcher takes four HD sources, scales and resizes each picture, and outputs them one at a time or as windows on a single display. In window mode, you can arrange them in the factory-preset layouts, or individually scale and position each window for a custom layout. You can also select any of the four sources to playback the audio. Seamless switching ensures no frame loss during window and picture transitions.
Five default factory presets provide most commonly used arrangements of windows on a display, including single window output. Five additional preset buttons allow the user to store and recall custom-configured window arrangements. All ten presets, source selection, Power on, Lock, and menu navigation control buttons are accessible via front panel and the handheld IR remote control, as well as RS-232 and IP (web server interface, Telnet, and UDP). An intuitive on-screen Graphical User Interface simplifies system configuration. An intuitive on-screen Graphical User Interface simplifies system configuration. And a compact, lightweight design allows this unit to easily fit into any setting.
How It Works

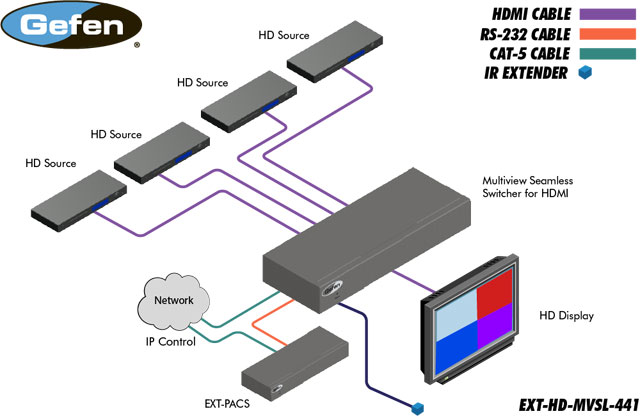

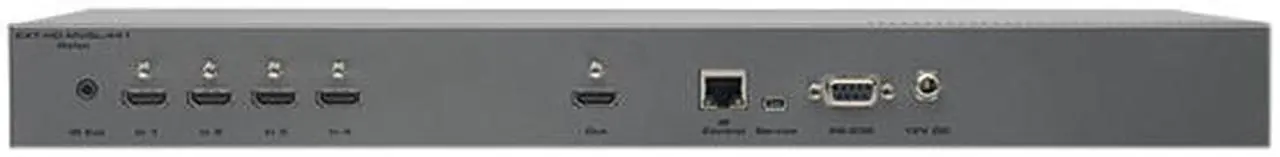

Using the included HDMI cables, connect up to four Hi-Def sources to the HDMI inputs on the switcher/scaler. Connect an HDTV display to the output of the unit using an HDMI cable. To use the built-in web server, Telnet, or UDP capability to configure windows, switch inputs, and control other features of the switcher/scaler, connect an Ethernet cable from your Local Area Network to the IP Control port. To control the unit via RS-232, connect the included DB-9 cable from an Automation Control device to the unit. If IR control is required and the unit is not installed in line of sight, connect the included EXT-RMT-EXTIRN IR Extender to the IR Ext port on the back of the unit. Connect the included locking power supply to the unit and to an available electrical outlet. Power up the switcher/scaler, the sources, and the display.
Single- or Multi-Window ViewSeamless switcher accepts four Hi-Def sources, scales and sizes each picture, and outputs them individually or as windows on a single HDTV display. It's an excellent way to improve the visual impact for digital signage, entertainment, retail establishments, and much more.
High Resolution SupportSupports input and output resolutions up to 1080p Full HD and 1920x1200 (WUXGA) for uncompromised picture quality after transition.

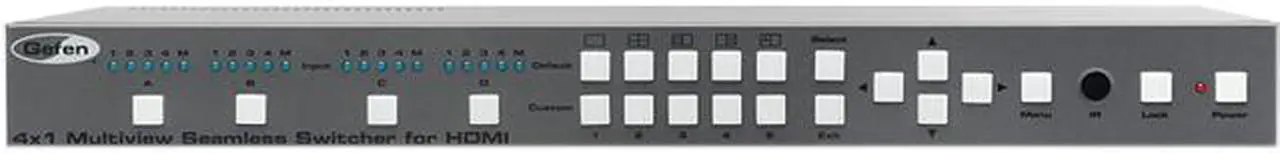

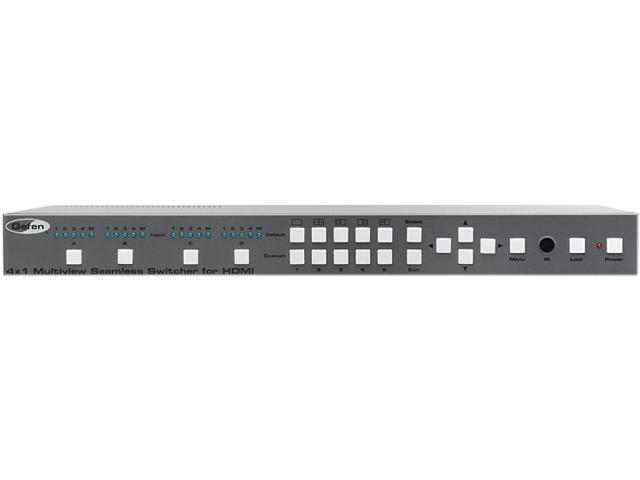

Factory Default and User Customizable LayoutFive factory pre-configured Multiview window arrangements (including single window output) and five custom user-configurable layouts can be accessed ten front panel push-buttons.
Selecable Audio PlaybackUser-selectable playback of HDMI audio content from any of the four inputs allows you to trump out the desired audio.
Easy, Flexible ControlAll the functions and settings can be controllable via front panel controls, IR, IP (web server interface, Telnet, and UDP), and RS-232. Easy to use on-screen Graphical User Interface (GUI) and web server interface make setting a breeze. Also includes a handheld IR remote control and IR Extender input on back panel.
Single- or Multi-Window ViewSeamless switcher accepts four Hi-Def sources, scales and sizes each picture, and outputs them individually or as windows on a single HDTV display. It's an excellent way to improve the visual impact for digital signage, entertainment, retail establishments, and much more.
High Resolution SupportSupports input and output resolutions up to 1080p Full HD and 1920x1200 (WUXGA) for uncompromised picture quality after transition.
Factory Default and User Customizable LayoutFive factory pre-configured Multiview window arrangements (including single window output) and five custom user-configurable layouts can be accessed ten front panel push-buttons.
Selecable Audio PlaybackUser-selectable playback of HDMI audio content from any of the four inputs allows you to trump out the desired audio.
Easy, Flexible ControlAll the functions and settings can be controllable via front panel controls, IR, IP (web server interface, Telnet, and UDP), and RS-232. Easy to use on-screen Graphical User Interface (GUI) and web server interface make setting a breeze. Also includes a handheld IR remote control and IR Extender input on back panel.Warranty & Returns
