Specification: OVERVIEW
Display Style: Extender
Model Type: VGA
Cable Types: CAT5/CAT5E
PHYSICAL
Included Mounting Accessories: Yes
ENVIRONMENTAL
Operating Temperature Range: 0 to 40 C (32 to 104 F)
Storage Temperature Range: -20 to 60 C (-4 to 140 F)
Relative Humidity: 20 to 90%
CONNECTIONS
Connector A: HDMI (FEMALE) (X4)
Connector B: RJ45 (FEMALE) (X4)
Feature: Tripp Lite's B126-4X4 HDMI over Cat5/6 Matrix Splitter Switch and Transmitter Unit allows you to share high-definition video and audio from four HDMI-enabled digital video components (e.g., DVR, Cable Box, Blu-Ray, HD gaming consoles, etc.) to four different monitors. When used with Tripp Lite Active HDMI receivers, it can extend
Video: Reference Output x 6
Analog Black Burst or Tri-Level Sync, on BNC connectors
Power Supply: 12VDC on an AC Power Adapter
Specification: Television System:
625/25 PAL
525/29.97 NTSC
1080PsF23.98
1080PsF24
1080i50
1080i59.94
720p50
720p59.94
Selectable
Control: Dip Switch Format Selection

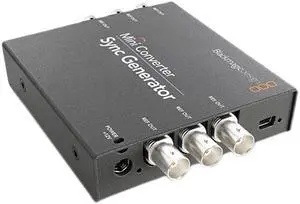

Feature: The Blackmagic Design CONVMSYNC is a sync generator. This generator will generate a reference signal in either high definition or standard definition parmeters. It is part of the Mini Converter series and offers six BNC outputs.
Space Saving
Broadcast Converter models are extremely compact, so you can install in the front or rear side of equipment racks, saving valuable equipment space.
Security
This device features a handy cable tie point to lock the power down tight and prevent your power being disconnected.
Formats...
Power Consumption: Sender: 10W maximum
Receiver: 20W maximum
Power Supply: Sender: 5V DC 2.6A, locking
Receiver: 5V DC 4A, locking
Specification: Maximum Pixel Clock: 165 MHz
Video Input Connector (Sender): (1) DVI 29-pin, female, digital only
Video Local Output Connector (Sender): (1) DVI 29-pin, female, digital only
Video Output Connector (Receiver): (1) DVI 29-pin, female, digital only
Line Input (Sender): (1) 3.5mm mini-stereo jack
Line Output (Receiver): (1) 3.5mm mini-stereo jack
USB Host Interface (Sender): (1) USB Type B, female
USB Device Connectors (Receiver): (4) USB Type A, female
RS-232 Connector (Sender): 1) DB-9, female
RS-232 Connector (Receiver): (1) DB-9, male
Ethernet connector (Sender): (1) RJ-45, female
Ethernet connectors (Receiver): (3) RJ-45, female
Mode button (Sender): (1) tact-type
+ / USB button (Receiver): (1) tact-type
-...
Format: SD Format Support: 625/25 PAL, 525/29.97 NTSC.
HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
2K Format Support: 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25.
4K Format Support: 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 4096 x 2160p24.
Audio: Audio Output: Digital 6 Mbps AC3 and DTS, Analog 48 KHz and 24-bit per sample
Frequency: 4.9 ~ 5.9 GHz (Includes non-DFS and DFS Frequency Bands)
Feature: Compact 6G-SDI router with built in re-synchronizers on all inputs allows clean switching between all video sources of the same video standard, and can be used as 12 re-synchronizers for automatic re-timing of SDI feeds. Smart Videohub CleanSwitch supports 12 inputs and 12 outputs in virtually all SD, HD and Ultra HD video formats. Supports multiple formats on the same router at the same time and will clean switch between multiple formats that match the reference frame rate when the switching is between the same video standard. Includes front panel button and spin knob routing, elegant machined metal front panel with LCD for routing display and video monitoring and remote Ethernet control.
Feature: The Blackmagic Design Universal Videohub 450W Power Card allows you to add up to three external 12V power supply bricks (not included) to the Univeral Videohub router frame, as needed. Three 12V/150W power supplies offer enough power for 72 x 72 BNC SDI or optical fiber routing.
