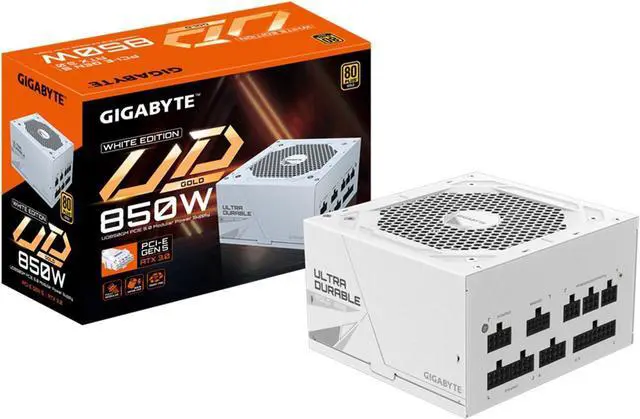

850W Capactiy with Single +12V Rail Supports PCIe Gen 5.0 graphics cards (12+4 Pin) & Intel ATX 3.0 Certified 80 Plus Gold Certified ATX Form Factor Fully Modular Design Japanese Capacitors 120mm Hydraulic Bearing Fan
Learn more about the GIGABYTE GP-UD850GM PG5W
General
Brand
GIGABYTE
Model
GP-UD850GM PG5W
Details
Type
ATX
Maximum Power
850 W
Fans
120mm Hydraulic Bearing(HYB)fan
PFC
Active
Main Connector
20+4Pin
PCI-Express Connector
1 x 16-Pin, 4 x 6+2-Pin
SATA Power Connector
8
Max PSU Length
150 mm
Modular
Full Modular
Efficiency
90% at typical load
Energy-Efficient
80 PLUS GOLD Certified
Protection
OVP/OPP/SCP/UVP/OCP/OTP
Input Voltage
100-240 Vac (full range)
Input Frequency Range
50/60 Hz
Input Current
12A-6A
MTBF
>100,000 Hours
Approvals
BSMI/CE/CCC/FCC/TUV/RCM/CB/EAC/KCC/UL/PSE
Connectors
ATX/MB 20+4 Pin x 1 EPS/ATX 12V 4+4pin x 2 PCI-e 6+2 pin x 4 PCI-e 16 pin x 1 SATA 5 pin x 8 Peripheral 4-pin x 3 Floppy 4-pin x 1
Cable Spec
Black Flat Cables
Features
Features
The GP-UD850GM PG5W introduces a variety of high-quality materials and top-notch design. Enjoy unrivaled performance with Japanese capacitors, and a +12V Single Rail which will provide exceptional power output and stability for your system. Also, this power supply is PCI Gen 5 compliant.
Dimension & Weight
Dimensions
140 x 150 x 86 mm
