$95.00
Ships from China.
Meet Your Seller

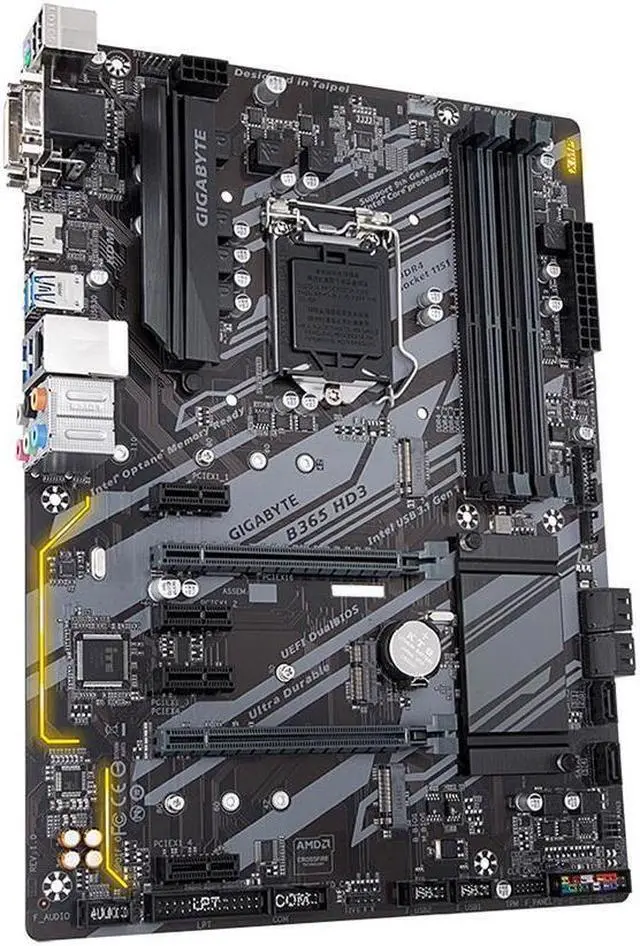

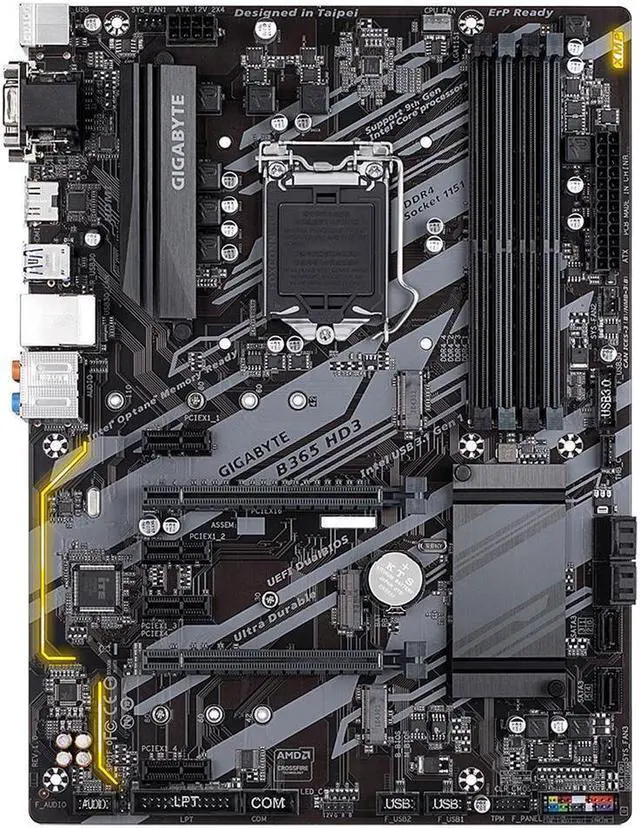

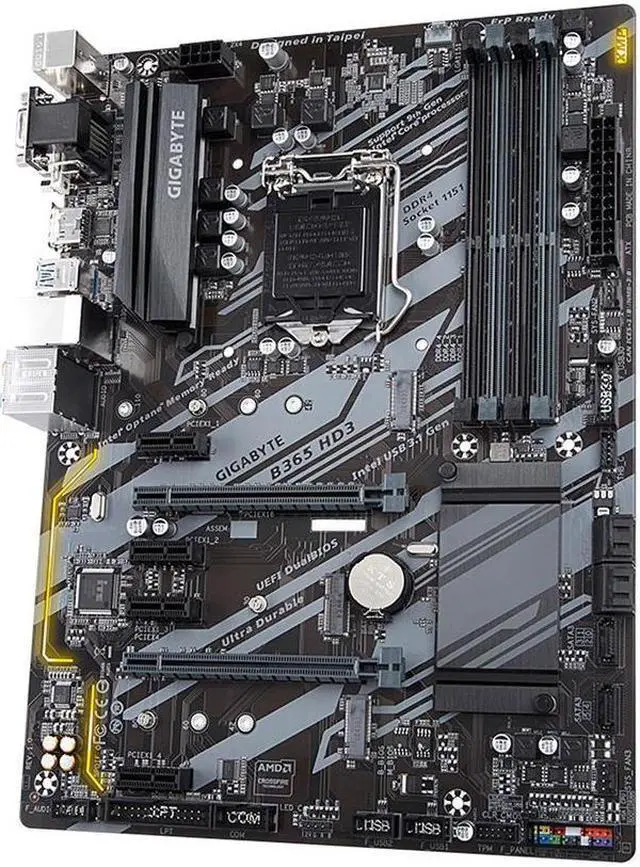

GIGABYTE B365 HD3 LGA 1151 Intel B365 SATA USB 3.1 ATX Motherboard
REFURBISHED Product Type
- Supports 9th and 8th Gen Intel Core Processors
- Dual Channel Non-ECC Unbuffered DDR4
- New Hybrid Digital PWM Design
- M.2 Socket 1 slot for WIFI upgradable
- High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
- Dual Ultra-Fast M.2 with PCIe Gen3 X4/X2 & SATA interface
- Supports RGB LED strips in 7 colors
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- CEC 2019 Ready, Save the Power as Easy as One Click
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- Anti-Sulfur Resistors Design
- Ultra Durable 25KV ESD and 15KV Surge LAN Protection
- Intel Optane Memory Ready
- Lightning-Fast Intel Thunderbolt 3 AIC Support
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Mfr Part Number: B365
HD3 CPU: Support for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package L3 cache varies with
CPU Chipset: Intel B365 Express
Chipset Memory: 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel Core i9/i7/i5 processor
Onboard Graphics: Integrated Graphics Processor-Intel HD

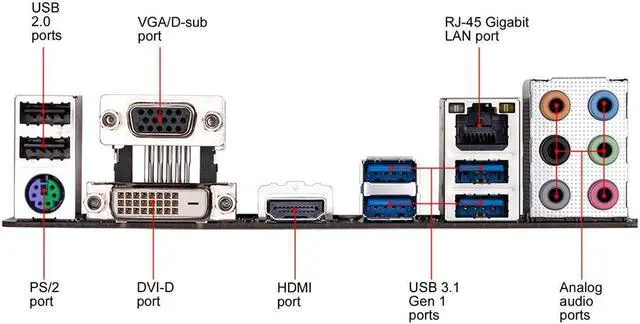

Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz *The DVI-D port does not support D-Sub connection by adapter. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. - Support for up to 3 displays at the same time Maximum shared memory of 1 GB Actual support may vary by
CPU Audio: Realtek ALC892 codec High Definition Audio 2/4/ 5.1 / 7.1 -channel Support for
S/PDIF Out LAN: Realtek GbE LAN chip (10/100/1000
Mbit) Expension Slots: 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot 1 x PCI Express x16 slot, running at x4 (PCIEX4) 4 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard. ) 1 x M. 2 Socket 1 connector for the wireless communication module (M2_WIFI)
Multi-Graphics Technology: Support for AMD Quad-GPU Cross
Fire and 2-Way AMD Cross
Fire technologies
Storage Interface:
Chipset: - 1 x M. 2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M) - 1 x M. 2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P) - 6 x SATA 6Gb/s connectors - Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "1-7 Internal Connectors, " for the installation notices for the M. 2 and SATA connectors Intel
Optane Memory USB:
Chipset: - 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 6 x USB 2.0 / 1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors: 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x RGB LED strip header 6 x SATA 6Gb/s connectors 2 x M. 2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0 / 1.1 headers 1 x Thunderbolt add-in card connector 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM 2.0 _S module onl
HD3 CPU: Support for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package L3 cache varies with
CPU Chipset: Intel B365 Express
Chipset Memory: 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel Core i9/i7/i5 processor
Onboard Graphics: Integrated Graphics Processor-Intel HD
Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz *The DVI-D port does not support D-Sub connection by adapter. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. - Support for up to 3 displays at the same time Maximum shared memory of 1 GB Actual support may vary by
CPU Audio: Realtek ALC892 codec High Definition Audio 2/4/ 5.1 / 7.1 -channel Support for
S/PDIF Out LAN: Realtek GbE LAN chip (10/100/1000
Mbit) Expension Slots: 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot 1 x PCI Express x16 slot, running at x4 (PCIEX4) 4 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard. ) 1 x M. 2 Socket 1 connector for the wireless communication module (M2_WIFI)
Multi-Graphics Technology: Support for AMD Quad-GPU Cross
Fire and 2-Way AMD Cross
Fire technologies
Storage Interface:
Chipset: - 1 x M. 2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M) - 1 x M. 2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P) - 6 x SATA 6Gb/s connectors - Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "1-7 Internal Connectors, " for the installation notices for the M. 2 and SATA connectors Intel
Optane Memory USB:
Chipset: - 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 6 x USB 2.0 / 1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors: 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x RGB LED strip header 6 x SATA 6Gb/s connectors 2 x M. 2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0 / 1.1 headers 1 x Thunderbolt add-in card connector 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM 2.0 _S module onl
