$149.99
Ships from China.
Meet Your Seller

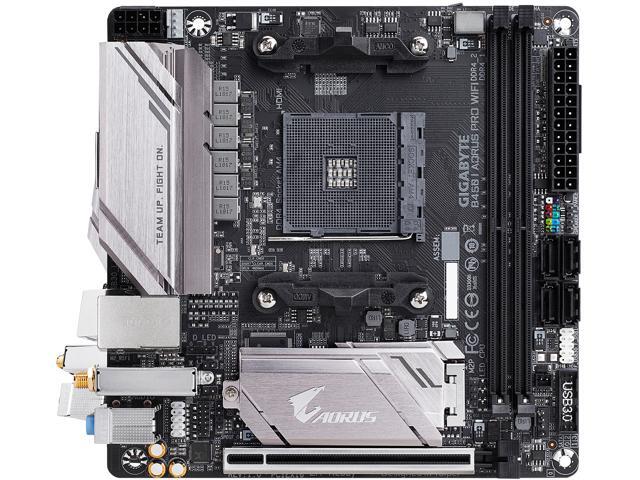

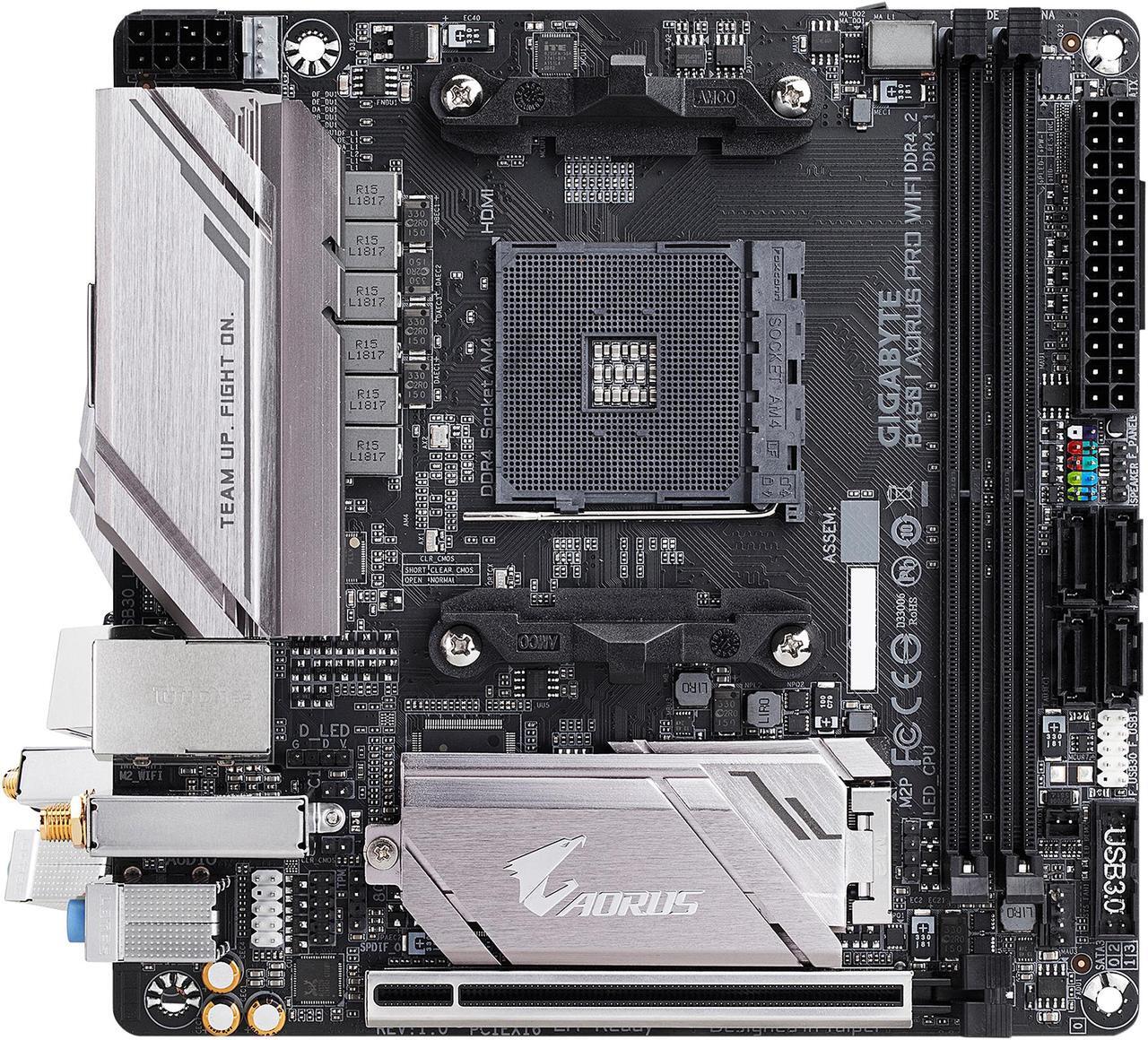

GIGABYTE B450 I AORUS PRO WIFI AM4 AMD B450 SATA 6Gb/s Mini ITX AMD Motherboard
REFURBISHED Product Type
- AMD B450
- Supports AMD Ryzen 5000 series / 3rd Gen Ryzen / 2nd Gen Ryzen / 1st Gen Ryzen Processors
- Supports AMD 2nd Gen Ryzen with Radeon Vega Graphics / 1st Gen Ryzen with Radeon Vega Graphics Processors
- Supports AMD Athlon with Radeon Vega Graphics Processors
- DDR4 3600(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133
+
+
Specs
Reviews
Learn more about the GIGABYTE B450 I AORUS PRO WIFI
| Brand | GIGABYTE |
|---|---|
| Model | B450 I AORUS PRO WIFI |
| CPU Socket Type | AM4 |
|---|---|
| CPU Type | Supports AMD Ryzen 5000 series / 3rd Gen Ryzen / 2nd Gen Ryzen / 1st Gen Ryzen Processors Supports AMD 2nd Gen Ryzen with Radeon Vega Graphics / 1st Gen Ryzen with Radeon Vega Graphics Processors Supports AMD Athlon with Radeon Vega Graphics Processors |
| Chipset | AMD B450 |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 3600(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| ECC Supported | ECC is only supported with AMD Ryzen and Athlon of PRO-series CPU. |
| Buffer Supported | Un-buffered |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 * Actual support may vary by CPU. |
|---|---|
| Other Slots | 1 x M.2 Socket 1 connector for the wireless communication module (M2_WI-FI) |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Audio Chipset | Realtek ALC1220-VB |
|---|---|
| Audio Channels | 7.1 Channels * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
| LAN Chipset | Intel GbE LAN chip |
|---|---|
| Max LAN Speed | 1Gbps |
| Wireless LAN | Wi-Fi802.11 a/b/g/n/ac |
| Bluetooth | Bluetooth 5 |
| Back I/O Ports | 1 x DisplayPort 2 x HDMI ports 2 x USB 3.1 Gen 2 Type-A ports (red) 4 x USB 3.1 Gen 1 ports 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 3 x audio jacks |
|---|
| Onboard USB | 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header |
|---|---|
| Other Connectors | 1 x CPU fan header 1 x system fan header 1 x digital LED strip header 1 x CPU cooler LED strip/RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x speaker header 1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 1 x chassis intrusion header |
| Form Factor | Mini ITX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Features | I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS: 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS 3D OSD AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD Smart Survey System Information Viewer USB Blocker V-Tuner Support for Q-Flash Support for Xpress Install Bundle Software: Norton Internet Security (OEM version) cFosSpeed Operating System: Support for Windows 10 64-bit Support for Windows 7 64-bit * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. * Intel WIFI driver only support for Win10-64bit. * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7. |
|---|
| Date First Available | November 26, 2024 |
|---|
