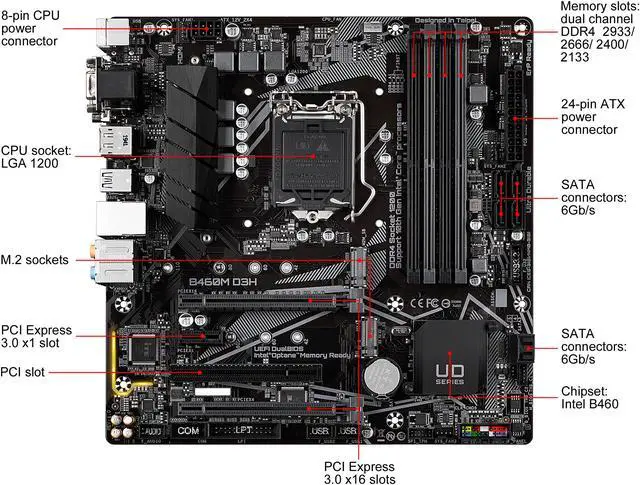

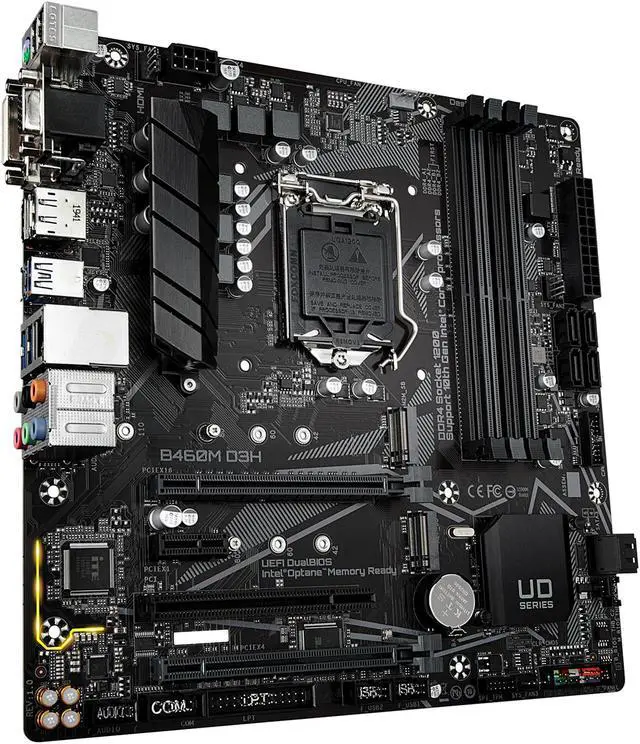

GIGABYTE B460M D3H LGA 1200 Intel B460 Micro-ATX Motherboard with Dual M.2, SATA 6Gb/s, USB 3.2 Gen 1
Used - Like New Product Type
- Supports 10th Gen Intel Core Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Dual NVMe PCIe Gen3 X4 M.2 Slots
- High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
- Smart Fan 5 Features Multiple Temperature Sensors
- Hybrid Fan Headers with FAN STOP
- Intel GbE LAN with cFosSpeed Internet Accelerator Software
- Intel USB 3.2 Gen1 Type-C Support
- 4 Display Interfaces Support
- GIGABYTE DualBIOS Design
- Intel Optane Memory Ready
+
+
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE B460M D3H
| Brand | GIGABYTE |
|---|---|
| Model | B460M D3H |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Support for 10th Generation Intel Core i9/i7/i5/i3 processors / Intel Pentium processors / Intel Celeron processors in the LGA1200 package |
| Chipset | Intel B460 |
|---|
| Onboard Video Chipset | Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. Support for up to 3 displays at the same time Maximum shared memory of 512MB |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | Intel Core i9/i7 processors: Support for DDR4 2933/ 2666/ 2400/ 2133 MHz Intel Core i5/i3/ Pentium/Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 slot (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
| PCI Slots | 1 x PCI Slot |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_SB) |
| Intel Optane Ready | Yes * System Acceleration with Intel Optane Memory enabled on the M2M_SB connector only. |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1200 |
|---|---|
| Audio Channels | 2/4/5.1/7.1-channel |
| LAN Chipset | Intel GbE LAN chip |
|---|---|
| Max LAN Speed | 1Gbps |

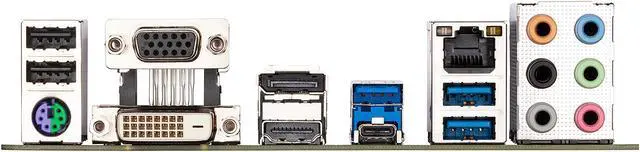

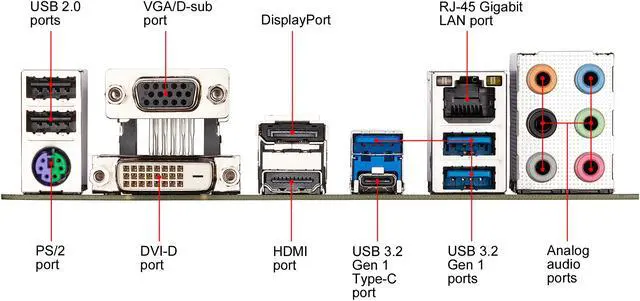

| Back I/O Ports | 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x DisplayPort 1 x HDMI port 1 x USB Type-C port, with USB 3.2 Gen 1 support 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks |
|---|
| Onboard USB | 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers |
|---|---|
| Other Connectors | 1 x CPU fan header 3 x system fan headers 1 x front panel header 1 x front panel audio header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper |
| Form Factor | Micro ATX |
|---|---|

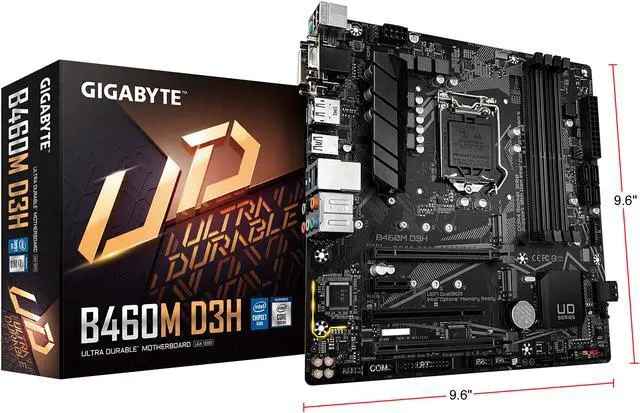

| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Features | Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS: 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install Bundled Software: Norton Internet Security (OEM version) Operating System: Support for Windows 10 64-bit |
|---|
| First Listed on Newegg | November 22, 2024 |
|---|
