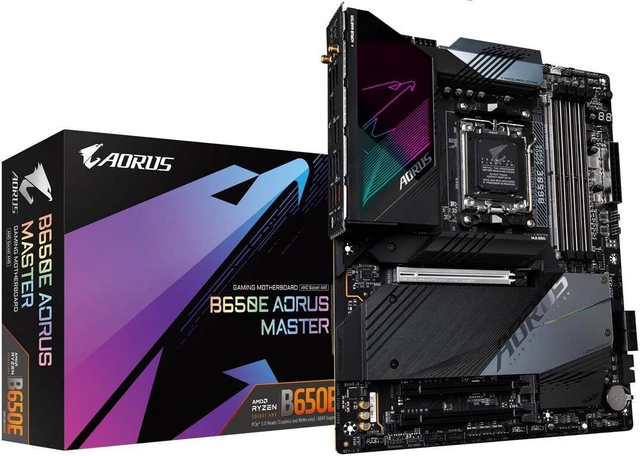

Main image of GIGABYTE B650E AORUS MASTER AM5 LGA 1718 AMD B650 ATX Motherboard DDR5, Quad M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, AMD WiFi 6E, Intel 2.5GbE LAN, Q-Flash Plus, EZ-Latch Plus

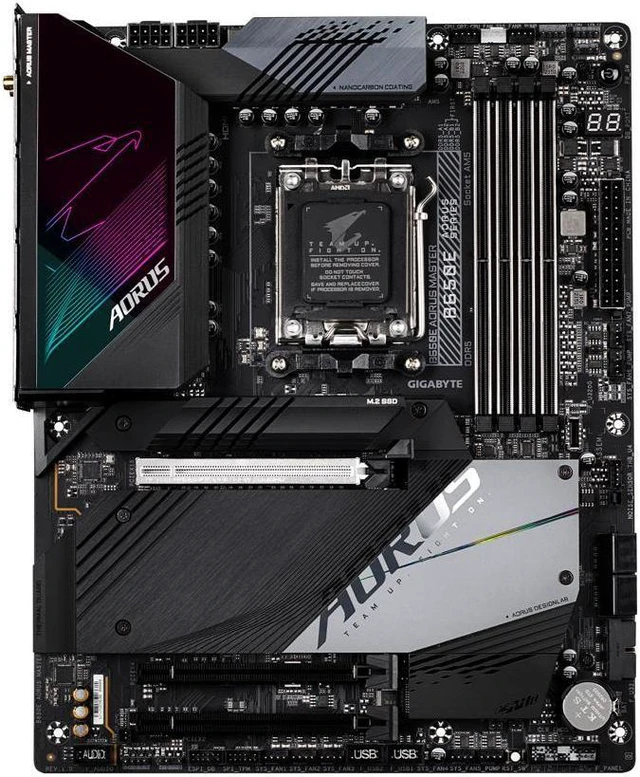

Alt view image 2 of 3 - GIGABYTE B650E AORUS MASTER AM5 LGA 1718 AMD B650 ATX Motherboard DDR5, Quad M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, AMD WiFi 6E, Intel 2.5GbE LAN, Q-Flash Plus, EZ-Latch Plus

Alt view image 3 of 3 - GIGABYTE B650E AORUS MASTER AM5 LGA 1718 AMD B650 ATX Motherboard DDR5, Quad M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, AMD WiFi 6E, Intel 2.5GbE LAN, Q-Flash Plus, EZ-Latch Plus

Shop All GIGABYTE Products | Visit UltraParts Renewed Store

GIGABYTE B650E AORUS MASTER AM5 LGA 1718 AMD B650 ATX Motherboard DDR5, Quad M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, AMD WiFi 6E, Intel 2.5GbE LAN, Q-Flash Plus, EZ-Latch Plus

REFURBISHED

Be the first to review this product...

AMD AM5 Socket: Supports AMD Ryzen 7000 Series Processors.
DDR5 Compatible: 4 DIMMs with AMD EXPO & Intel XMP Memory Module Support.
Commanding Power Design: Twin 16+2+2 Phases Digital VRM Solution, 8-Layer 2X Copper PCB.
Cutting-Edge Thermal Design: 8mm Mega-Heatpipe, M.2 Thermal Guard III, PCIe Ultra Durable Armor, NanoCarbon Aluminum Backplate.
Next Gen Connectivity: PCIe 5.0, Quad NVMe x4 M.2, Dual USB-C, BT 5.2.
EZ-Latch Plus: PCIe 5.0 & M.2 Connectors with a Quick Release & Screwless Design.
Fast Networking: Intel 2.5GbE LAN, AMD WiFi 6E 802.11ax.
Dynamic Audio: ALC1220 CODEC and ESS SABRE Hi-Fi 9118 DAC.
Fine Tuning Features: RGB FUSION, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Multi-key for Reset/RGB Switch/Direct to BIOS/Safe Mode, Q-Flash Plus - Update BIOS without installing CPU, Memory, and GPU".

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

AMD AM5 Socket: Supports AMD Ryzen 7000 Series Processors.
DDR5 Compatible: 4 DIM
Ms with AMD EXPO & Intel XMP Memory Module Support.
Commanding Power Design: Twin 16+2+2 Phases Digital VRM Solution, 8-Layer 2X Copper PCB.
Cutting-Edge Thermal Design: 8mm Mega-Heatpipe, M. 2 Thermal Guard III, PCIe Ultra Durable Armor, NanoCarbon Aluminum Backplate.
Next Gen Connectivity: PCIe 5.0, Quad NVMe x4 M. 2, Dual USB-C, BT 5.2.
EZ-Latch Plus: PCIe 5.0 & M. 2 Connectors with a Quick Release & Screwless Design.
Fast Networking: Intel 2.5G bE LAN, AMD WiFi 6E 802.11 ax.
Dynamic Audio: ALC1220 CODEC and ESS SABRE Hi-Fi 9118 DAC.
Fine Tuning Features: RGB FUSION, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Multi-key for Reset/RGB Switch/Direct to BIOS/Safe Mode, Q-Flash Plus - Update BIOS without installing CPU, Memory, and GPU".

Model
Brand	GIGABYTE
Series	B650E AORUS MASTER

Supported CPU
CPU Socket Type	AM5
CPU Type	Supports AMD Ryzen 7000 Series Processor

Chipsets
Chipset	AMD B650E

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Support for DDR5 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MHz memory modules
Maximum Memory Supported	32GB single DIMM, 128GB Total
Channel Supported	Dual Channel
ECC Supported	Non-ECC
Buffer Supported	Un-buffered
Memory Feature	Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

Expansion Slots
PCI Express 5.0 x16	1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16) * Actual support may vary by CPU. * The M2B_CPU and M2C_CPU slots share bandwidth with the PCIEX16 slot. When the M2B_CPU or M2C_CPU slot is populated, the PCIEX16 slot operates at up to x8 mode. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 4.0 x16	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x2 (PCIEX2) Support for AMD CrossFire technology (PCIEX16 and PCIEX4)

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU) * Actual support may vary by CPU. 3 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0* x4/x2 SSD support) (M2D_CPU, M2C_CPU, M2B_CPU) * Actual support may vary by CPU.
SATA RAID	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Onboard Audio
Audio Chipset	Realtek ALC1220-VB CODEC * The front panel line out jack supports DSD audio. ESS ES9118 DAC chip Support for DTS:X Ultra High Definition Audio
Audio Channels	2/4/5.1-channel * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out

Onboard LAN
LAN Chipset	Intel 2.5GbE LAN chip
Max LAN Speed	2.5Gbps
Wireless LAN	AMD Wi-Fi 6E RZ616 (MT7922A22M) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate may vary depending on environment and equipment.)
Bluetooth	Bluetooth 5.2

Rear Panel Ports

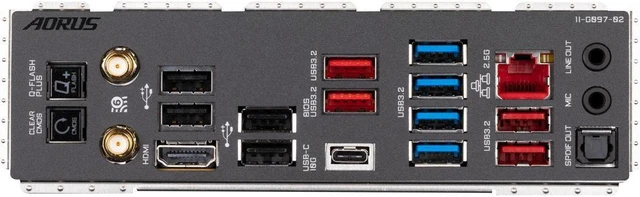

Back I/O Ports	1 x Q-Flash Plus button 1 x Clear CMOS button 1 x HDMI 2.1 port 2 x SMA antenna connectors (2T2R) 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks

Internal I/O Connectors
Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x noise detection header 1 x THB_U4 add-in card connector 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x power button 1 x reset button 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors

Software Feature
Windows 11	Support for Windows 11 64-bit Support for Windows 10 64-bit

Features
Features	AMD Socket AM5:Supports AMD Ryzen™ 7000 Series Processors Unparalleled Performance:Twin* 16+2+2 Phases Digital VRM Solution Dual Channel DDR5:4DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support Next Generation Storage:4PCIe 5.0 x4 M.2 Connectors Mega-Heatpipe & M.2 Thermal Guard III:To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance EZ-Latch Plus:M.2 Connectors with Quick Release & Screwless Design Hi-Fi Audio with DTS:X® Ultra:ALC1220 CODEC and Rear ESS SABRE Hi-Fi 9118 DAC Fast Networks:Intel® 2.5GbE LAN & Intel® Wi-Fi 6E 802.11ax Extended Connectivity:DP, HDMI, Front USB-C® 20Gbps and Upcoming GIGABYTE USB4 AIC Support Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card

Additional Information
First Listed on Newegg	September 22, 2023
