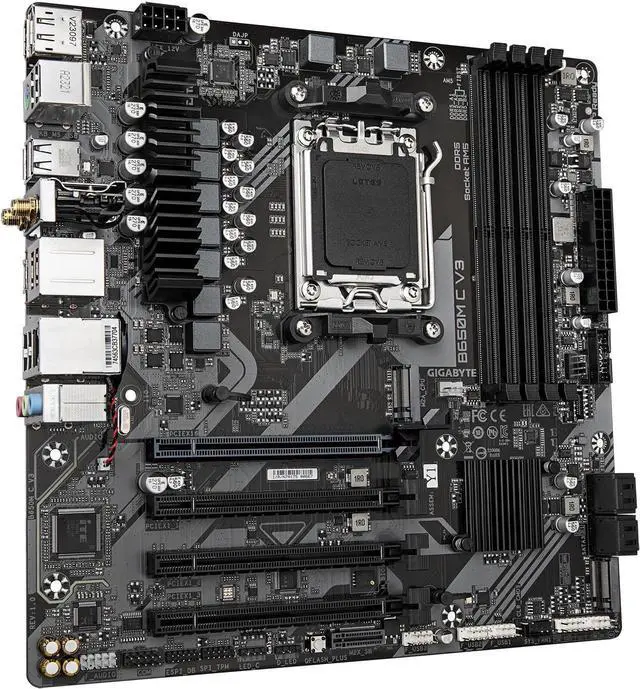

Main image of GIGABYTE B650M C V3 (rev. 1.0) AM5 LGA 1718 AMD B650 M-ATX Motherboard, DDR5, PCIe 4.0 M.2, PCIe 4.0, USB 3.2 Gen1 Type-C, 1GbE LAN, Q-Flash Plus, EZ-Latch

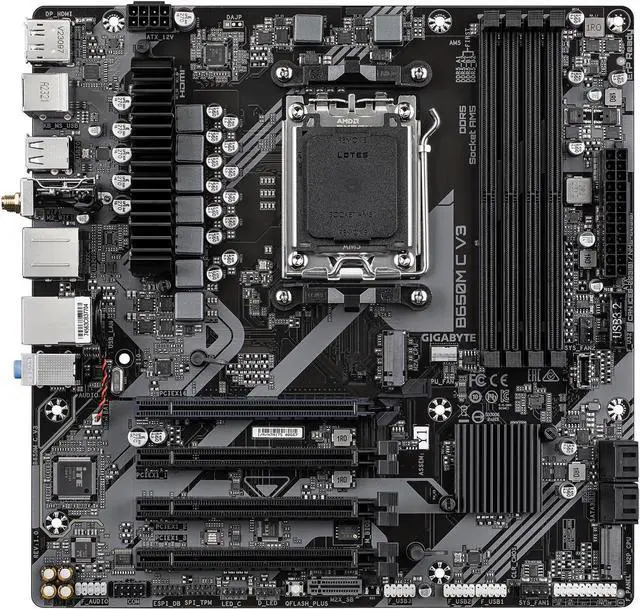

Alt view image 2 of 4 - GIGABYTE B650M C V3 (rev. 1.0) AM5 LGA 1718 AMD B650 M-ATX Motherboard, DDR5, PCIe 4.0 M.2, PCIe 4.0, USB 3.2 Gen1 Type-C, 1GbE LAN, Q-Flash Plus, EZ-Latch

Alt view image 3 of 4 - GIGABYTE B650M C V3 (rev. 1.0) AM5 LGA 1718 AMD B650 M-ATX Motherboard, DDR5, PCIe 4.0 M.2, PCIe 4.0, USB 3.2 Gen1 Type-C, 1GbE LAN, Q-Flash Plus, EZ-Latch

Alt view image 4 of 4 - GIGABYTE B650M C V3 (rev. 1.0) AM5 LGA 1718 AMD B650 M-ATX Motherboard, DDR5, PCIe 4.0 M.2, PCIe 4.0, USB 3.2 Gen1 Type-C, 1GbE LAN, Q-Flash Plus, EZ-Latch

Shop All GIGABYTE Products | Visit Polytopia Store

GIGABYTE B650M C V3 (rev. 1.0) AM5 LGA 1718 AMD B650 M-ATX Motherboard, DDR5, PCIe 4.0 M.2, PCIe 4.0, USB 3.2 Gen1 Type-C, 1GbE LAN, Q-Flash Plus, EZ-Latch

REFURBISHED

Be the first to review this product...

AMD Socket AM5: Supports AMD Ryzen 7000 / Ryzen 8000 Series Processors
Unparalleled Performance: 5+2+2 Phases Digital VRM Solution
Dual Channel DDR5: 4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
SuperSpeed Storage: 3*PCIe 4.0/3.0 M.2 Connectors
EZ-Latch: PCIe x16 Slot with Quick Release Design
Fast Networking: Wi-Fi 6 802.11ax & GbE LAN
Extended Connectivity: DP, HDMI
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory, and GPU

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

AMD Socket AM5: Supports AMD Ryzen 7000 / Ryzen 8000 Series Processors
Unparalleled Performance: 5+2+2 Phases Digital VRM Solution
Dual Channel DDR 5: 4 *SMD DIM
Ms with AMD EXPO & Intel XMP Memory Module Support
SuperSpeed Storage: 3*PCIe 4.0 / 3.0 M. 2 Connectors
EZ-Latch: PCIe x16 Slot with Quick Release Design
Fast Networking: Wi-Fi 6 802.11 ax & GbE LAN
Extended Connectivity: DP, HDMI
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory, and GPU

Model
Brand	GIGABYTE
Model	B650M C V3 (rev. 1.0)

Supported CPU
CPU Socket Type	AM5

Chipsets
Chipset	AMD B650

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 5200
Maximum Memory Supported	192GB
Channel Supported	Dual Channel
ECC Supported	Non-ECC
Memory Feature	Support for DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

Expansion Slots
PCI Express 4.0 x16	CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 3.0 x16	Chipset: - 3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	CPU: - 1 x M.2 connector (Socket 3, M key, type 2580/25110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x2 SSD support) (M2P_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2260 PCIe 3.0 x1 SSD support) (M2X_SB)
SATA RAID	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Onboard Audio
Audio Chipset	Realtek ALC897
Audio Channels	7.1 Channels

Onboard LAN
Max LAN Speed	1Gbps
Wireless LAN	Wi-Fi 802.11 ax

Rear Panel Ports

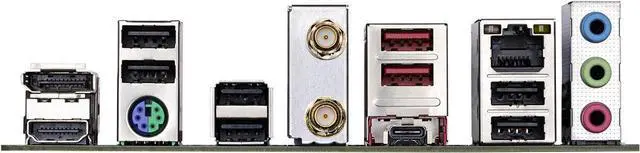

Back I/O Ports	1 x DisplayPort 1 x HDMI port 1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen 1 support 2 x USB 3.2 Gen 2 Type-A ports (red) 6 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks

Internal I/O Connectors
Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Q-Flash Plus button 1 x serial port header 1 x Clear CMOS jumper

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector

Software Feature
Windows 11	Support for Windows 11 64-bit Support for Windows 10 64-bit
