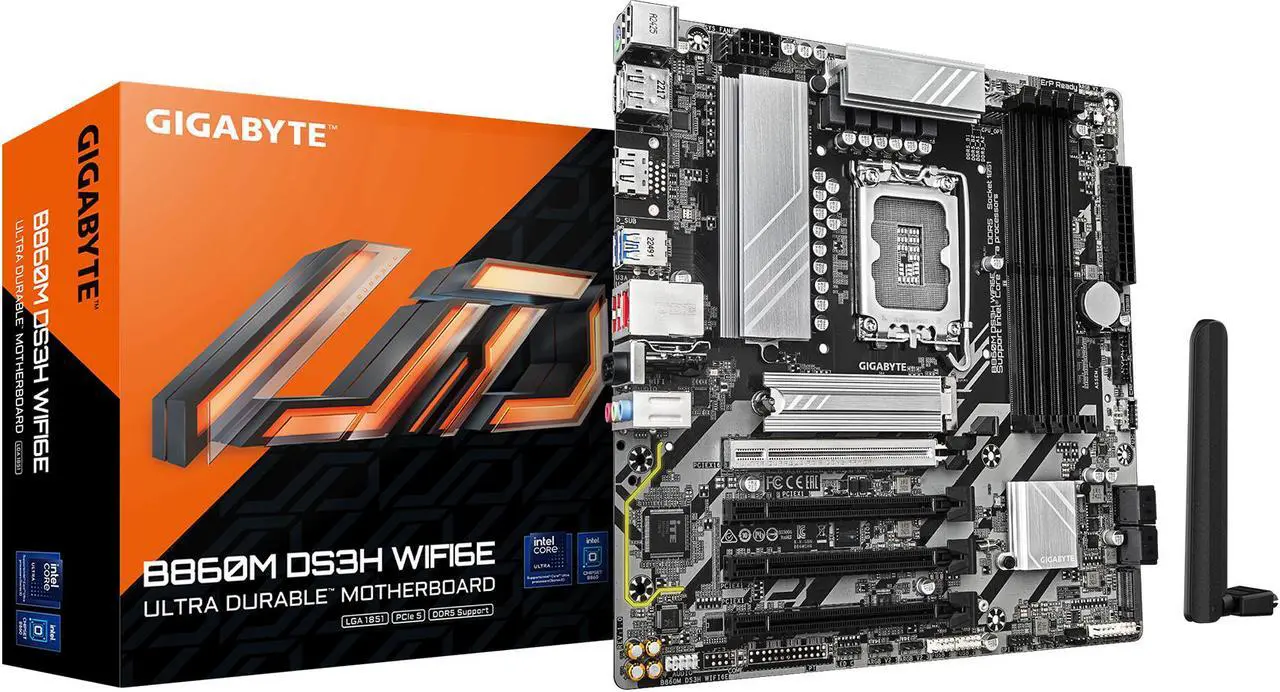

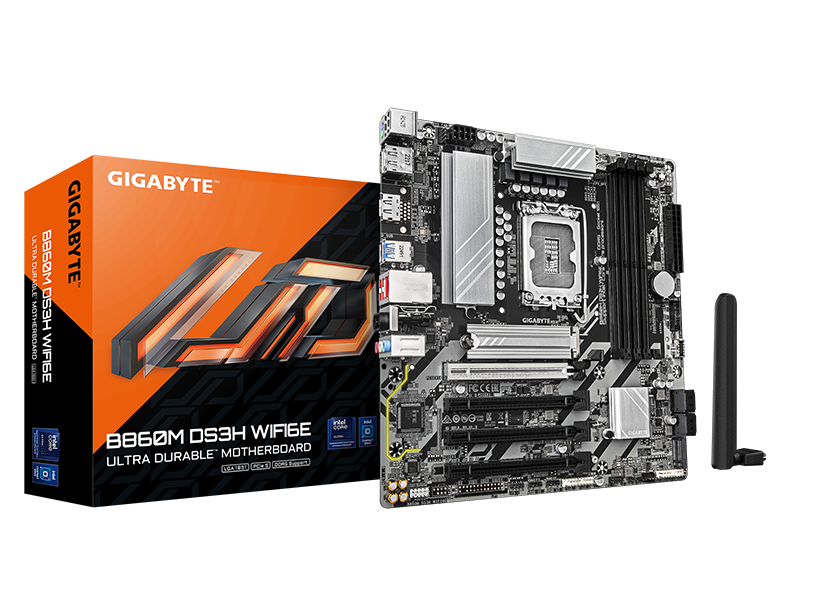

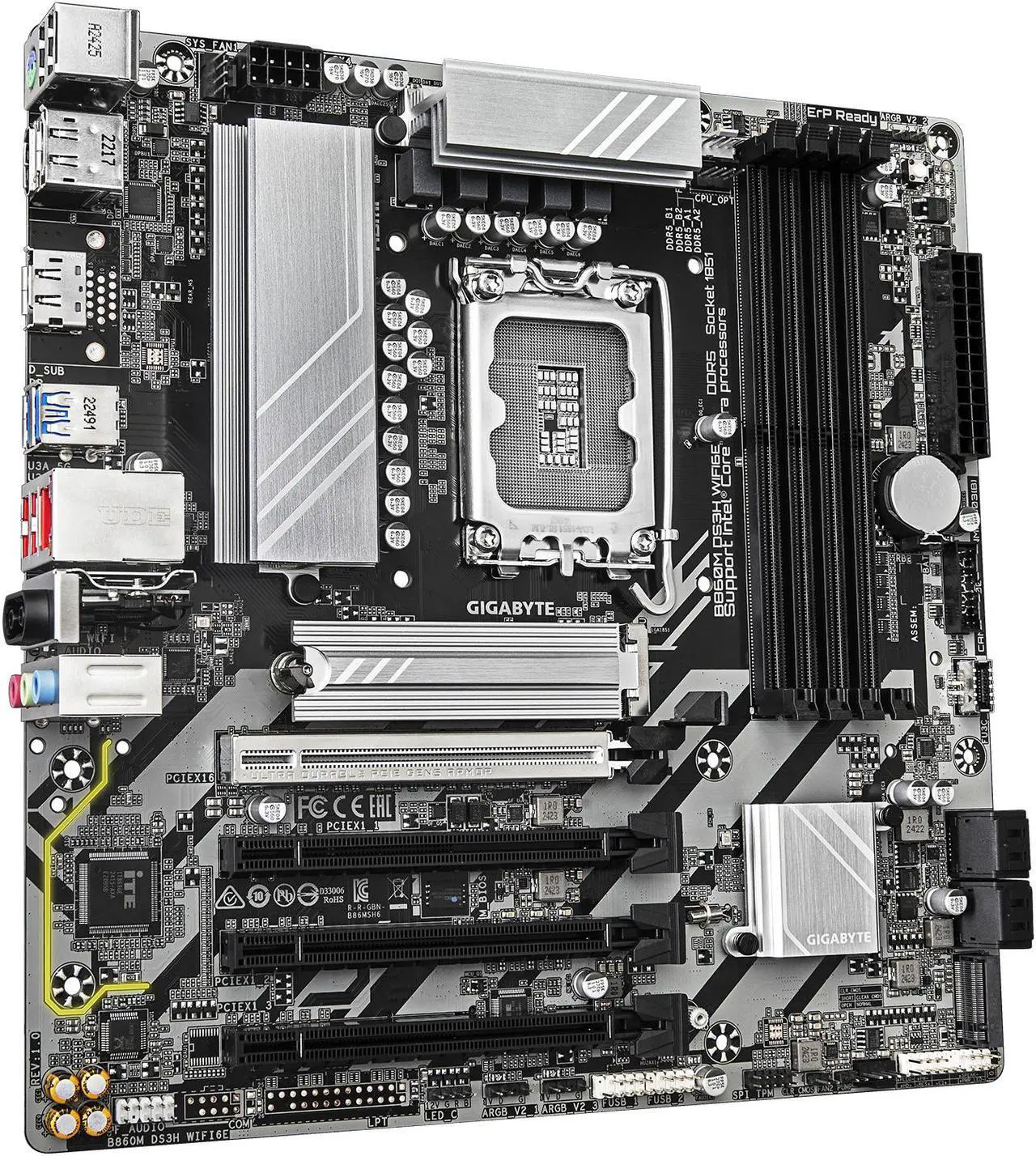

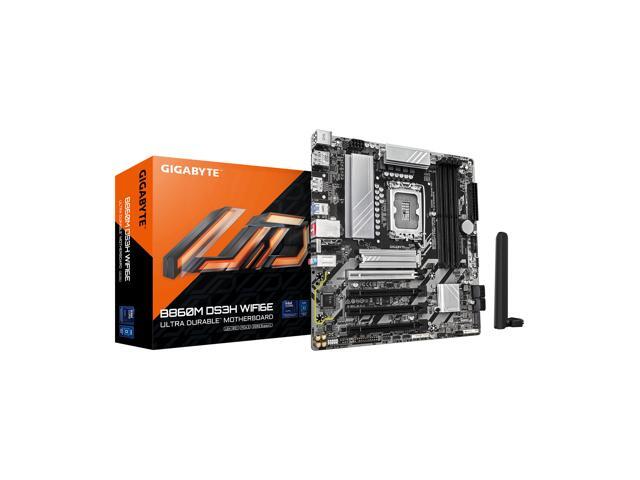

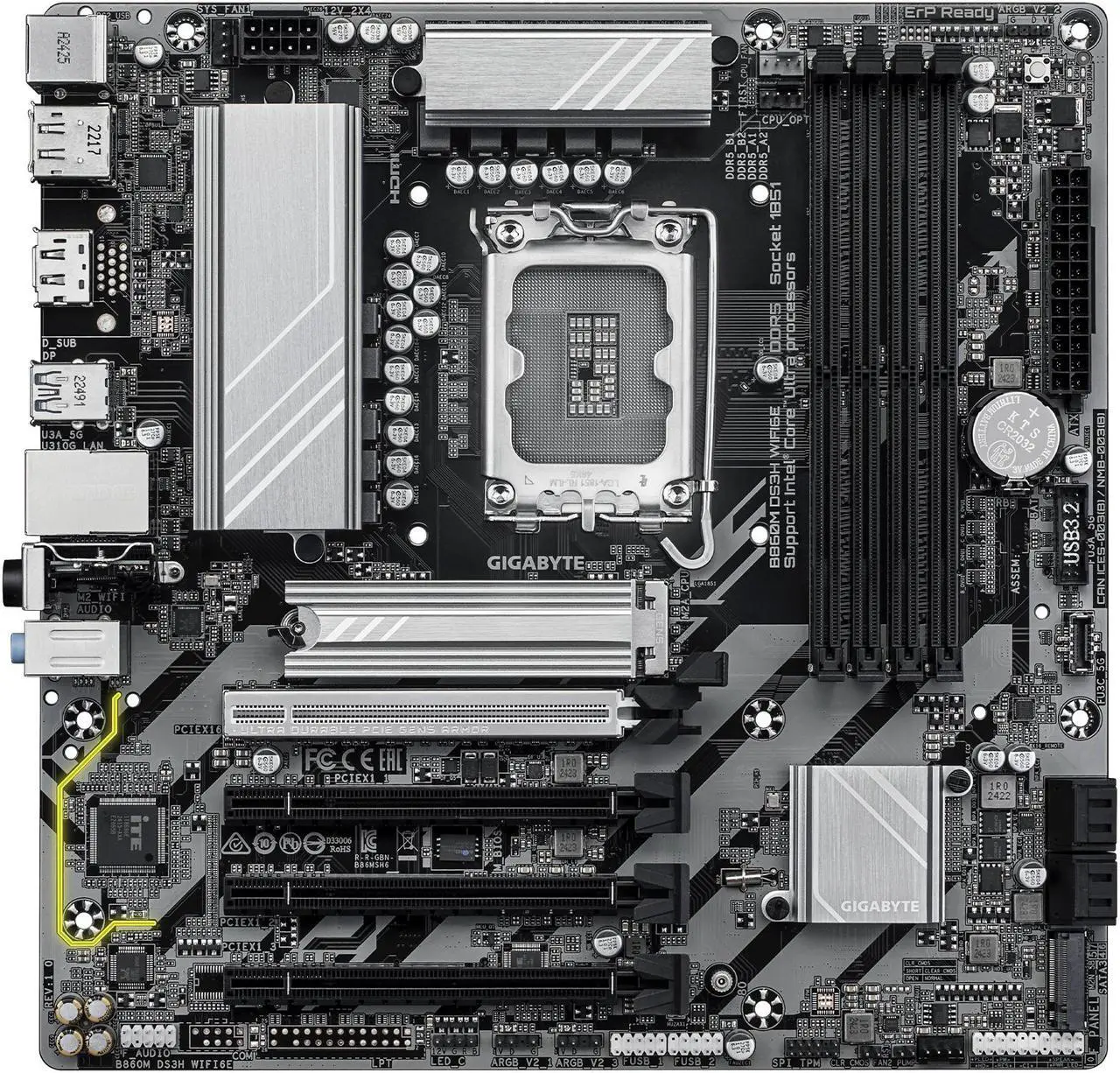

B860M DS3H WIFI6E
OVERVIEW
Performance
Thermal
Connectivity
DIY Friendly
Infinite Memory Performance
UD motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
* Memory overclocking and XMP support may vary. Please refer to the qualified vendor list (QVL) for details and note that product features may vary by model.
DDR5 Overclocking Up to
9066 MT/s
D5 Bionic Corsa
AI Overclocking For peak performance

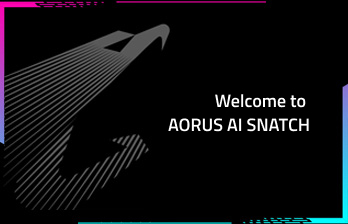

AORUS AI SNATCH
Auto-Overclocking Software by AI model
* Coming soon
AI SNATCH Engine
Advanced AI Overclocking Model
AI Design For MB signal enhancement

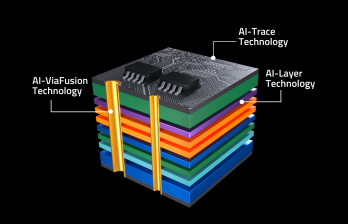

AI-Driven PCB Design
Redefining PCB Design with AI
HyperTune BIOS
AI-Driven Advanced BIOS Optimization Technology
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

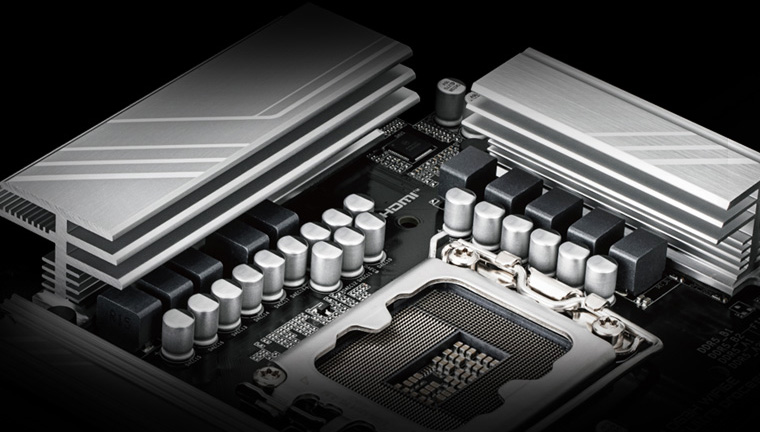

Hybrid VRM Design
The best VRM design ever built with the highest quality components. Delivers enhanced system performance with ultimate hardware scalability.
* Photo for reference only
Comprehensive Thermal
UD motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

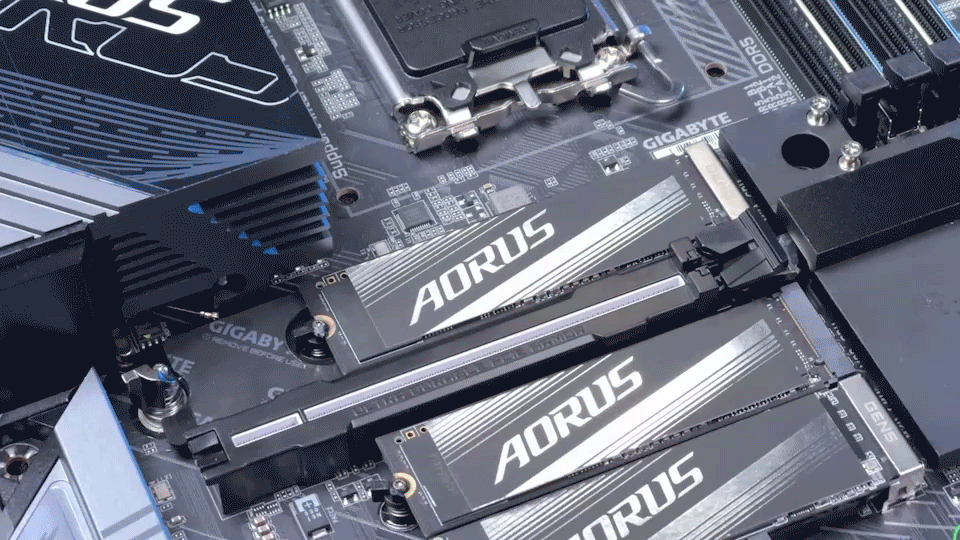

M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
* Photo for reference only

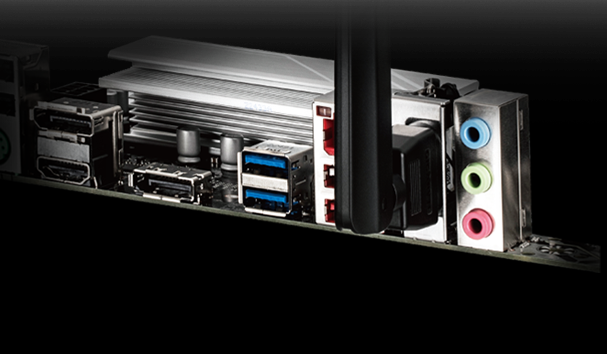

Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
802.11ax Wi-Fi 6E
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
* Photo for reference only.

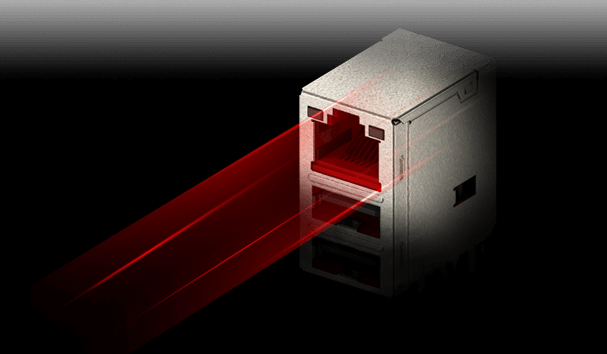

2.5GbE LAN
Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.

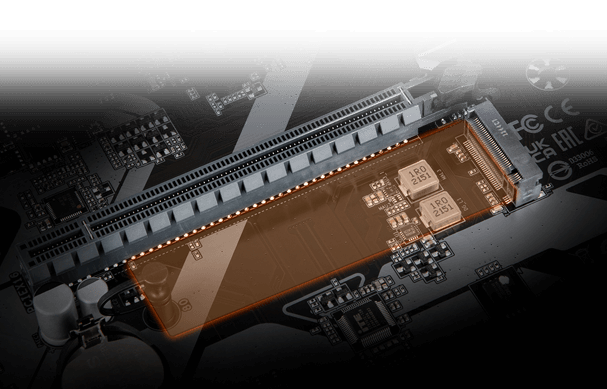

PCIe 5.0 / 4.0 Hardware Design
Featuring PCIe 5.0 x16 slot and PCIe 5.0 / 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 5.0 / 4.0 devices to provide the superior performance.
* Photo for reference only.

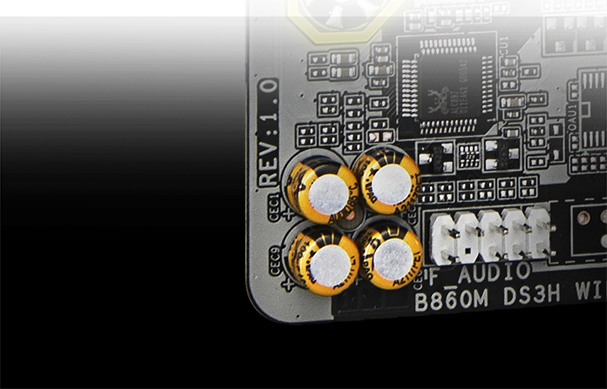

Hi-Fi Audio
High-End Audio Capacitors
Audio Noise Guard
* Photo for reference only.
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

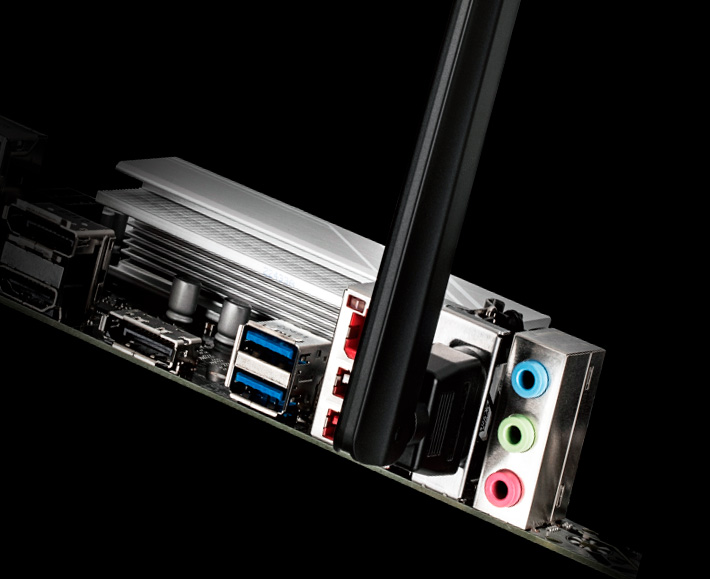

WIFI EZ-Plug
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.
* Photo for reference only.

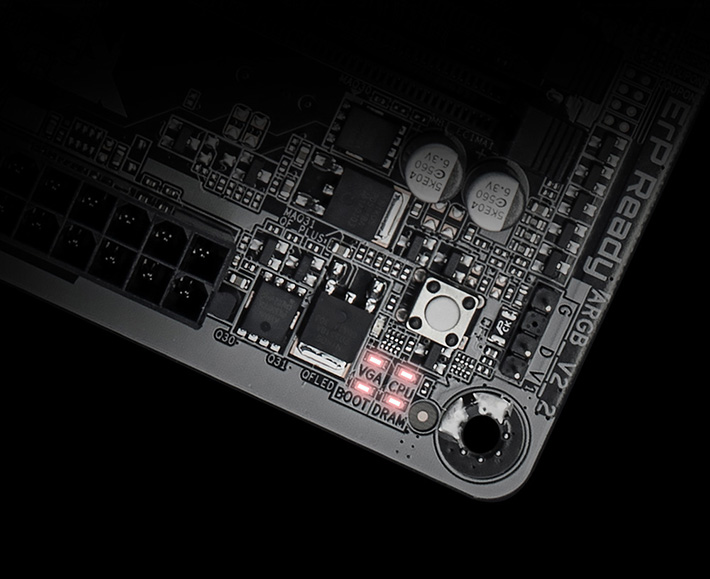

EZ Debug Zone
Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer.
* Photo for reference only.
EZ-Latch Designs
User-friendly designs simplifying the assembly process.
M.2 EZ-Latch Click
screwless installation for M.2 heatsink
M.2 EZ-Latch Plus
screwless installation for M.2 SSDs

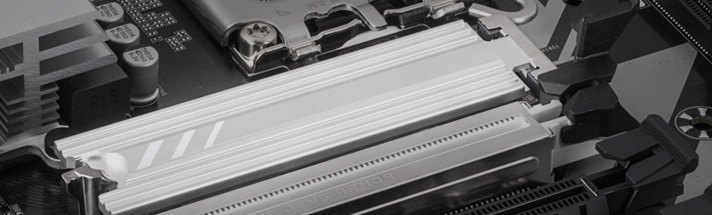

PCIe EZ-Latch
Easy ejection with single click for graphics cards

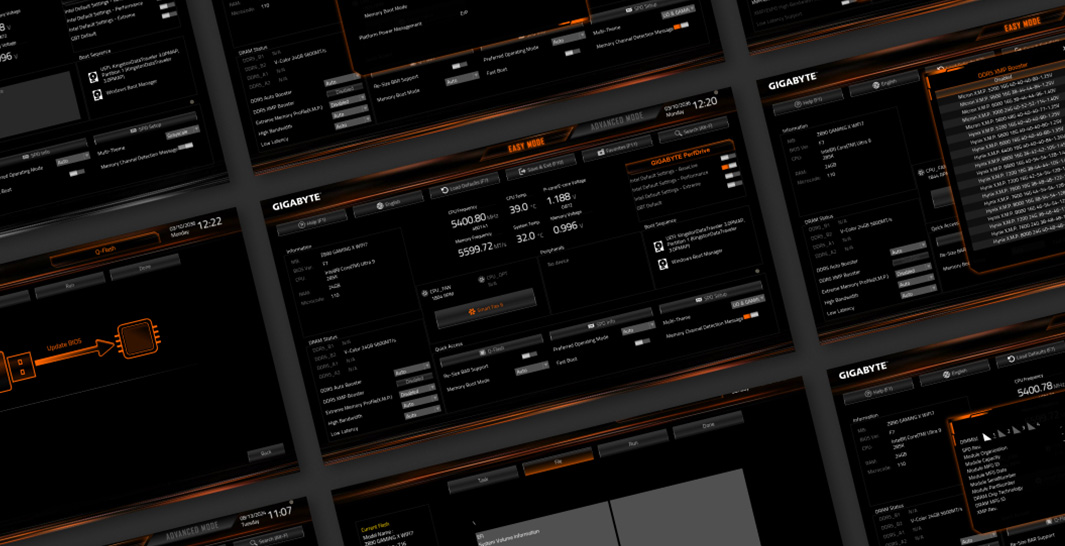

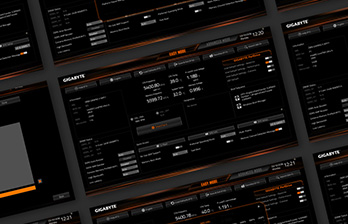

UC BIOS
Restructured with user-centered and intuitive performance adjustment mechanisms.

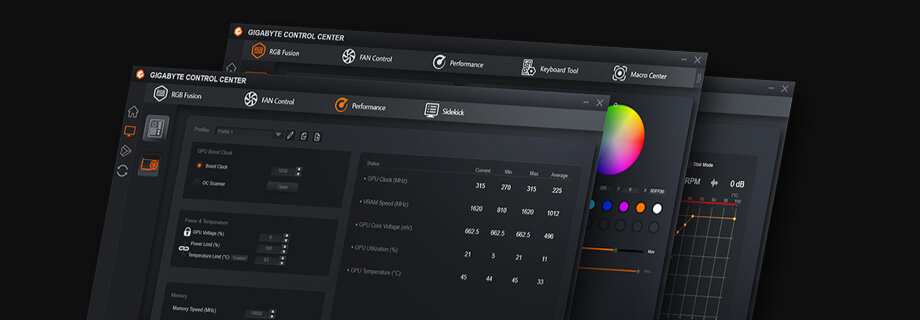

GIGABYTE Control Center
A unified software platform encompassing multiple GIGABYTE product.
RGB Fusion
Personalize the RGB illumination on your motherboard and connected peripherals.
Q-FLASH Auto Scan
The new Auto Scan function featues when using USB flashdrive during Q-Flash, the BIOS file will be auto scanned instead of searching manually.
Q-FLASH PLUS
HWiNFO
Exclusive Partnership
Power Monitor
AORUS & HWiNFO Co-branded OSD

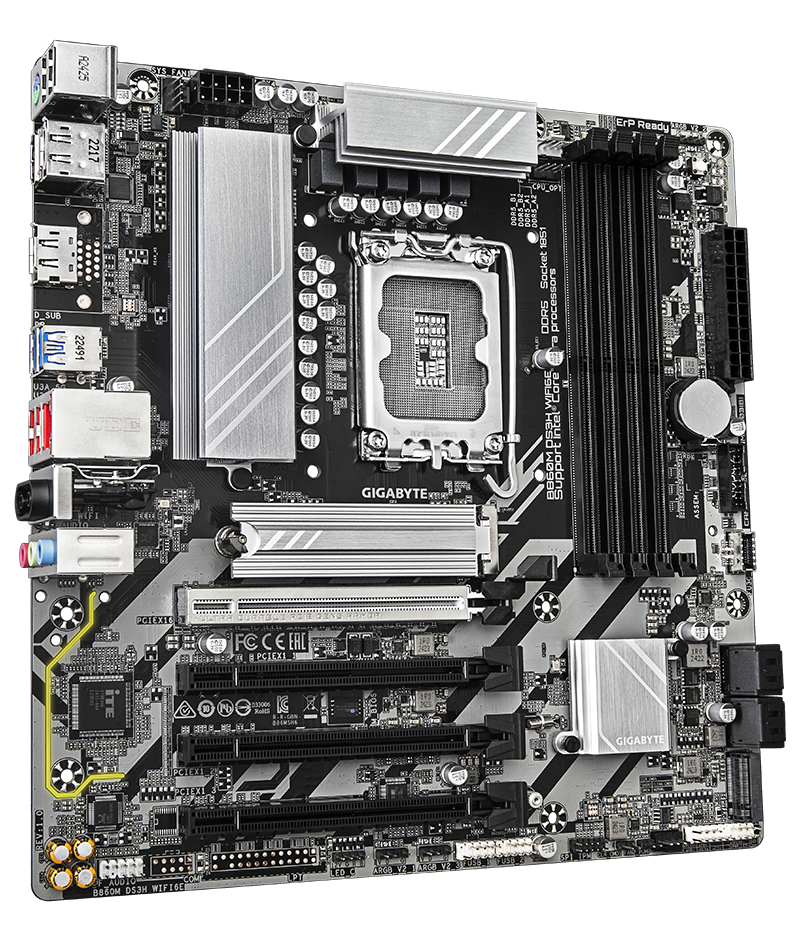

Key Features
- Supports Intel® Core™ Ultra processors (Series 2)
- Hybrid 5+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive: Provides optimal and customized BIOS preset profile for users
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch: PCIe x16 Slot with Quick Release Design
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- Ultra-Fast Storage: 2*M.2 slots, including 1* PCIe 5.0 x4
- M.2 Thermal Guard: To Ensure M.2 SSD Performance
- Fast Networking: 2.5GbE LAN & Wi-Fi 6E 802.11ax

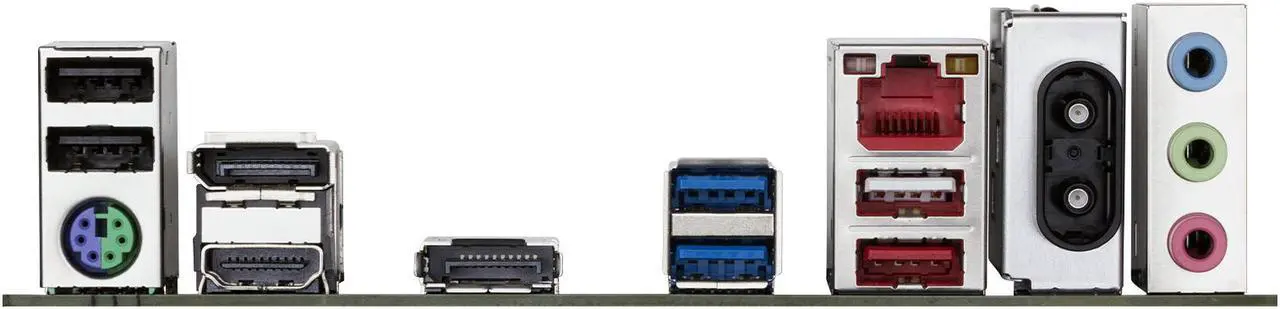

- Extended Connectivity: 2*DisplayPort, HDMI
