Question 1

Would this work with a EVGA GeForce GTX 960 4GB SSC GAMING ACX 2.0+? Please respond...

Accepted Answer

It will work, however the board only supports crossfire if you want to run multiple video cards, so you will be stuck with only the 1 video card. I'm running an Asus GeForce GTX 960 with no problems.

Question 2

I'm not to informed about intel cpu's, so does this motherboard support overclocking?

Accepted Answer

Not really. The B150 chip set doesn't natively support over clocking. Gigabyte did mod the chipset to add overclock, but it doesn't work well. If you're looking to overclock go for a x150 or x170 based motherboard. Don't forget that only Intel processors ending with a k (like the i5-6500k) can overclock a normal i5-6500 can't.

Question 3

Is this motherboard still worth buying? Even if I plan on puttign high end parts such as a GTX 1080 and i7-6700k? It's affordable and fits right in with my color scheme.

Accepted Answer

I would say yes, HOWEVER, please know that this *ONLY* supports DDR4 2133 Mhz ram, i didnt realize it when i bought it, but its not that big of a deal. It should have 0 issues with the GTX 1080. I'm super happy with mine, using it with the i7 6700k, GTX 970, Corsair H100, and Razer NZXT s340 case. Let me know if you have any other questions!

Question 4

Will a ryzen 1500x work with this motherboard?

Accepted Answer

No, this is an Intel moterboard. AMD CPU's will not work with it.

Question 5

I intend to use this board primarily for media.  I will be replacing a LGA 775 board principally, to obtain HDMI functionality.  Currently, I take audio off an onboard SPDIF header and direct it to a stand alone DAC and then, to my audio system.  I would want to do the same thing with this 1151 board.  At the same time I expect to connect my TV to the computer via the HDMI connector.  And here's my question.

If I take the the digital audio signal off the header, will the HDMI circuit continue to have audio?  Can I expect my TV to have sound?

Accepted Answer

Should if the drivers for it have been installed. Make sure HDMI is the default sound on it. i dont know why you would want to take off the DAS header.

Brand	GIGABYTE
Model	G1.Sniper B7 (rev. 1.0)

CPU Socket Type	LGA 1151
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 2133
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) (All of the PCI Express slots conform to PCI Express 3.0 standard.)
PCI Express x1	2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.)
PCI Slots	2 x PCI slots * Refer to "1-8 Internal Connectors," for the supported configurations with the M.2, SATA Express, SATA connectors, and PCI slots.
Other Slots	1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)

Serial ATA (SATA)	6 x SATA 6Gb/s connectors * Refer to "1-8 Internal Connectors," for the supported configurations with the M.2, SATA Express, SATA connectors and PCI slots.
SATA Express	1 x SATA Express connector
M.2	1 x M.2 Socket 3 connector (M2F_32G) (Socket 3, M key, type 2242/2260/2280/22110 SATA & PCIe x4/x2/x1 SSD support)

Meet Your Seller

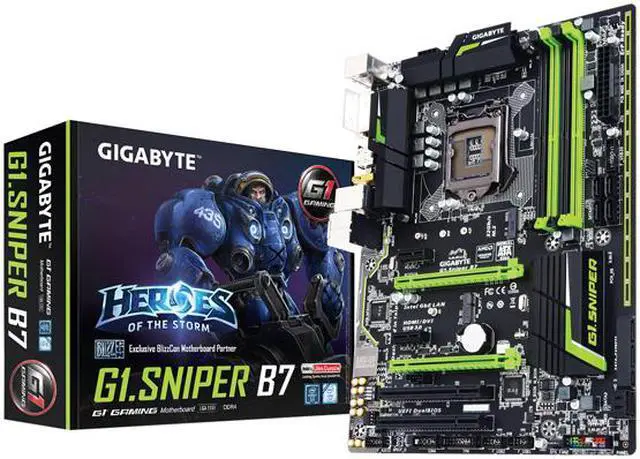

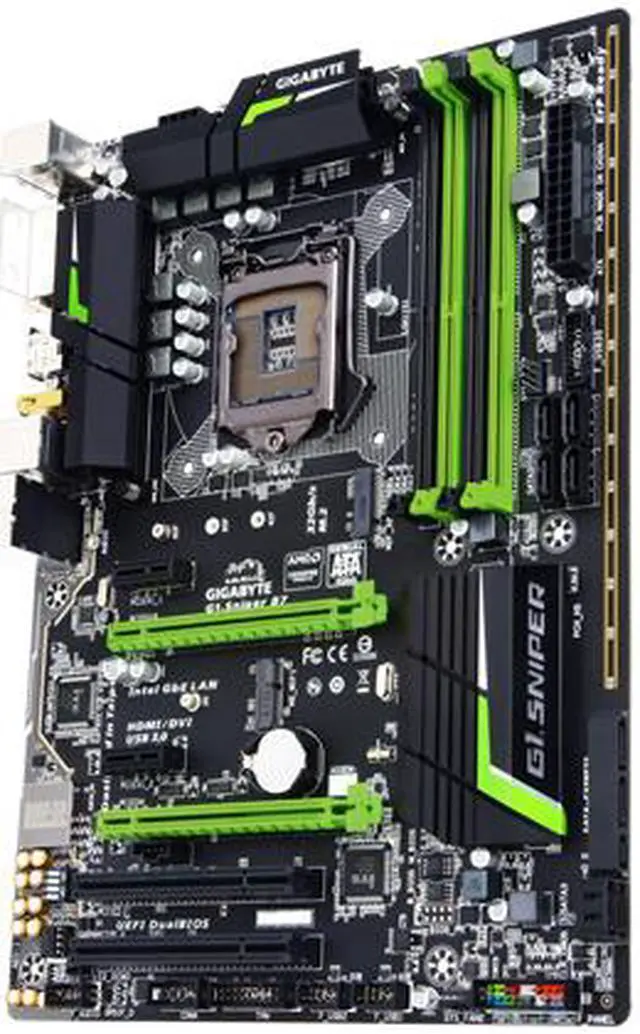

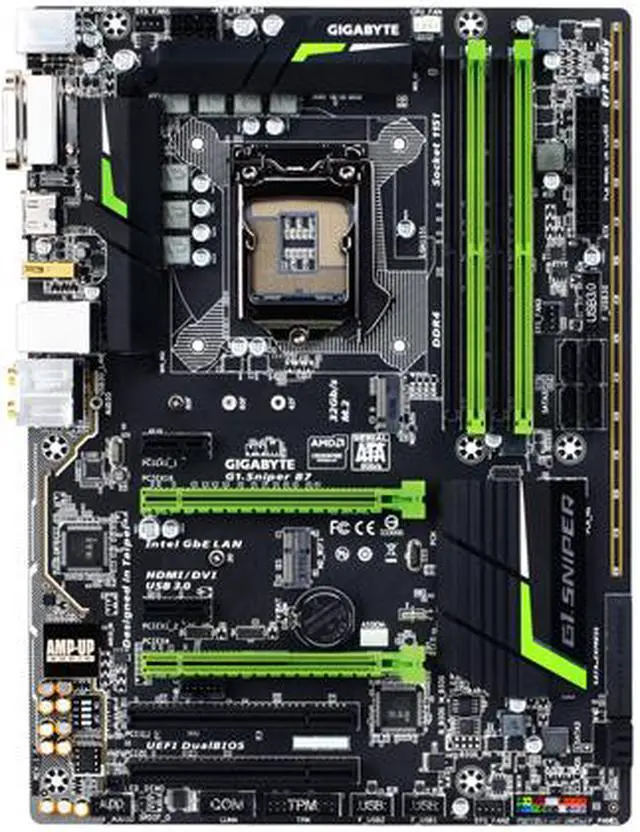

GIGABYTE G1.Sniper B7 (rev. 1.0) LGA 1151 Intel B150 HDMI USB 3.0 ATX Intel Motherboard

Used - Good

Learn more about the GIGABYTE G1.Sniper B7 (rev. 1.0)

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

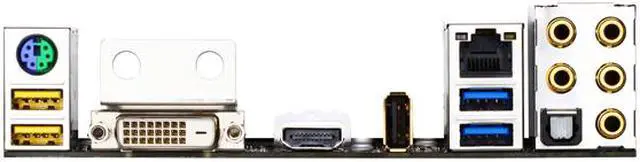

PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x DVI-D port
HDMI	1 x HDMI
RJ45	1 x RJ45
USB 3.0	4 x USB 3.0
USB 1.1/2.0	1 x USB 2.0
S/PDIF Out	1 x Optical
Audio Ports	5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

Onboard USB	1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Trusted Platform Module (TPM) header 1 x Thunderbolt add-in card connector 1 x serial port header 1 x Clear CMOS jumper 1 x audio gain control switch

Form Factor	ATX
Dimensions (W x L)	12.01" x 8.86"
Power Pin	24 Pin

Onboard Audio
Audio Chipset	Realtek ALC1150
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Intel GbE LAN chip
Max LAN Speed	1Gbps
