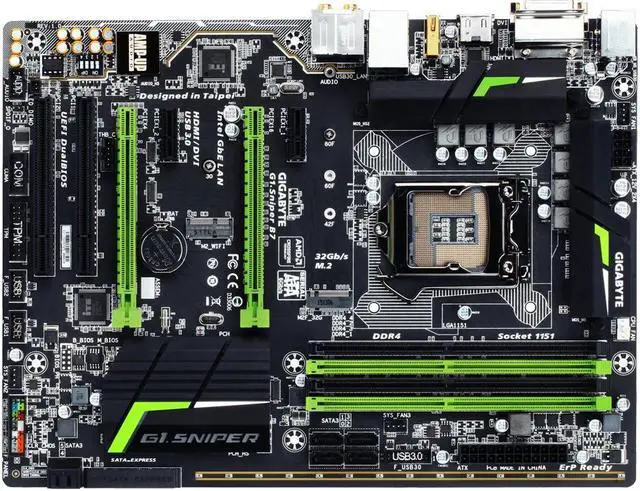

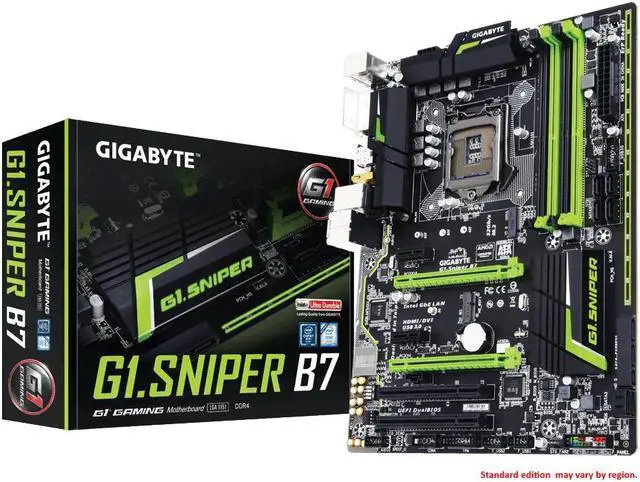

GIGABYTE G1.SNIPER B7 LGA 1151 Intel B150 HDMI SATA 6Gb/s USB 3.0 ATX Intel Motherboard
Used - Good Product Type
- Intel B150
- Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
- DDR4 2133
+
+
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE G1.SNIPER B7
| Brand | GIGABYTE |
|---|---|
| Model | G1.SNIPER B7 |
| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium |
| Chipset | Intel B150 |
|---|
| Onboard Video Chipset | Integrated Graphics |
|---|
| Number of Memory Slots | 4 x DIMM |
|---|---|
| Memory Standard | DDR4 2133 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 2 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x4 (PCIEX4) |
| PCI Slots | 2 x PCI Slots |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| SATA Express | 1 x SATA Express |
| M.2 | 1 x M.2 |
| Audio Chipset | Realtek ALC1150 |
|---|---|
| Audio Channels | 8 Channels |
| Max LAN Speed | 1Gbps |
|---|

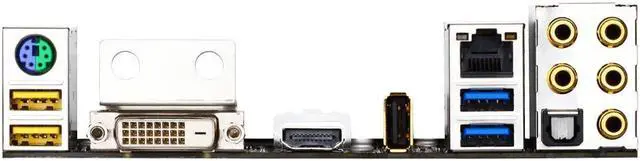

| PS/2 | 1 x PS/2 keyboard/mouse port |
|---|---|
| Video Ports | 1 x DVI-D |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| USB 3.0 | 4 x USB 3.0 / 2.0 |
| USB 1.1/2.0 | 1 x USB 2.0 / 1.1 |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In) |
| Onboard USB | 1 x USB 3.0 / 2.0 header + 2 x USB 2.0 / 1.1 headers |
|---|---|
| Other Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x M.2 Socket 3 connector 1 x SATA Express connector 6 x SATA 6Gb/s connectors 1 x CPU fan header 3 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Trusted Platform Module (TPM) header 1 x Thunderbolt add-in card connector 1 x serial port header 1 x Clear CMOS jumper 1 x audio gain control switch |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.01" x 8.86" |
| Power Pin | 24-pin ATX main power connector 8-pin ATX 12V power connector |
| Features | Supports 6th Generation Intel Core Processor Dual Channel DDR4, 4 DIMMs 2-Way Graphics with Premium PCIe Lane PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support) SATA Express Connector for up to 16Gb/s Data Transfer 115dB SNR HD Audio with Built-in Rear Audio Amplifier 8-channel HD Audio with High Quality Audio Capacitors Audio Noise Guard with Ambient LED Trace Path Lighting Intel GbE LAN with cFosSpeed Internet Accelerator Software Triple USB DAC-UP ports APP Center Including EasyTune and Cloud Station Utilities GIGABYTE UEFI DualBIOS Technology Support Intel Small Business Basics |
|---|
| First Listed on Newegg | November 29, 2024 |
|---|
