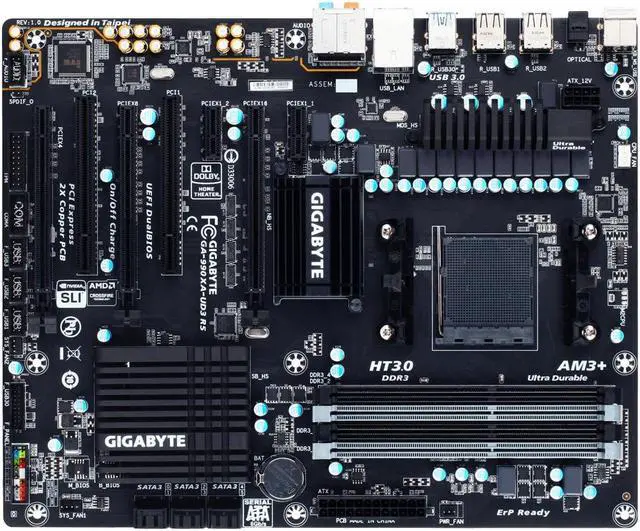

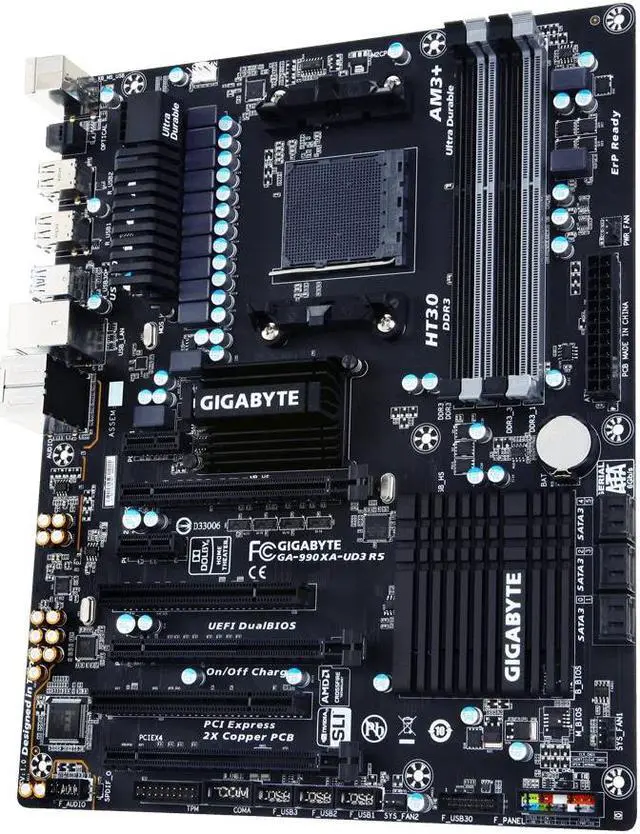

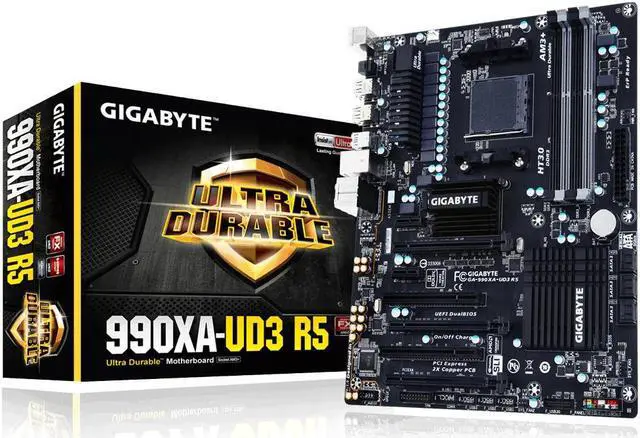

    GIGABYTE GA-990XA-UD3 R5 AM3+ AMD 990X SATA 6Gb/s USB 3.0 ATX AMD Motherboard

    Used - Good Product Type
    • AMD 990X
    • FX / Phenom II / Athlon II
    • DDR3 2000 / 1866 / 1600 / 1333 / 1066
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the GIGABYTE GA-990XA-UD3 R5

    Model
    Brand GIGABYTE
    Model GA-990XA-UD3 R5
    Supported CPU
    CPU Socket Type AM3+
    CPU Type FX / Phenom II / Athlon II
    Chipsets
    Chipset AMD 990X
    South Bridge AMD SB950
    Memory
    Number of Memory Slots 4 x DIMM
    Memory Standard DDR3 2000 / 1866 / 1600 / 1333 / 1066
    Maximum Memory Supported 32GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express x16 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    1 x PCI Express x16 slot, running at x8 (PCIEX8)
    1 x PCI Express x16 slot, running at x4 (PCIEX4)
    PCI Express x1 2 x PCI Express x1
    PCI Slots 2 x PCI Slots
    Storage Devices
    Serial ATA (SATA) 6 x SATA 6Gb/s
    SATA RAID 0/1/5/10/JBOD
    Onboard Audio
    Audio Chipset Realtek ALC1150
    Audio Channels 7.1 Channels
    Onboard LAN
    LAN Chipset Realtek
    Max LAN Speed 1Gbps
    Rear Panel Ports
    Back I/O Ports 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x PS/2 / 2 x USB 3.1 Gen 1 / 6 x Audio Jacks / 8 x USB 2.0/1.1
    PS/2 1 x PS/2 keyboard/mouse port
    RJ45 1 x RJ45
    USB 3.0 2 x USB 3.0/2.0
    USB 1.1/2.0 8 x USB 2.0/1.1
    S/PDIF Out 1 x Optical
    Audio Ports 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
    Internal I/O Connectors
    Onboard USB 1 x USB 3.0/2.0 header
    3 x USB 2.0/1.1 headers
    Other Connectors 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    6 x SATA 6Gb/s connectors
    1 x CPU fan header
    2 x system fan headers
    1 x power fan header
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    1 x serial port header
    1 x Clear CMOS jumper
    1 x Trusted Platform Module (TPM) header
    Physical Spec
    Form Factor ATX
    Dimensions (W x L) 12.0" x 9.6"
    Power Pin 24-pin ATX main power connector
    8-pin ATX 12V power connector
    Features
    Features Supports AMD AM3+/ AM3 series processors

    8+2 phase power design for AMD high-TDP CPU support

    2-way CrossFire/ 2-way SLI multi-graphics support

    GIGABYTE Ultra Durable Technology

    Audio Noise Guard with High Quality Audio Capacitors

    Supports Dolby Home Theater audio

    4 USB 3.0 ports with transfer rates of up to 5Gbps

    GIGABYTE On/Off Charge for USB devices

    GIGABYTE UEFI DualBIOS technology
