Nope AM4 socket for Ryzen products only! LGA1156 is for Intel Core 3rd Gen products

does this come with a cpu fan?

No, this motherboard does not come with a CPU fan. I have never ordered a motherboard that has included one. Usually CPUs include stock fans, but always be sure to check the listing.

Do I need an APU to use the onboard graphics? I am not getting any signal with my Ryzen 1400 cpu. thanks.

Yes, you need either an APU or a separate graphics card. Ryzen processors do not come with a graphics processor on them, which means there is no on board video.

$75^.00

Free 30-day Returns

Limit 99999 per customer.

Ships from China.

Price alert

Add to wish list

Sold by DoDo DIY

Top Rated

4 (752 seller ratings)

Shipped by DoDo DIY

Meet Your Seller

DoDo DIY

See Seller Store

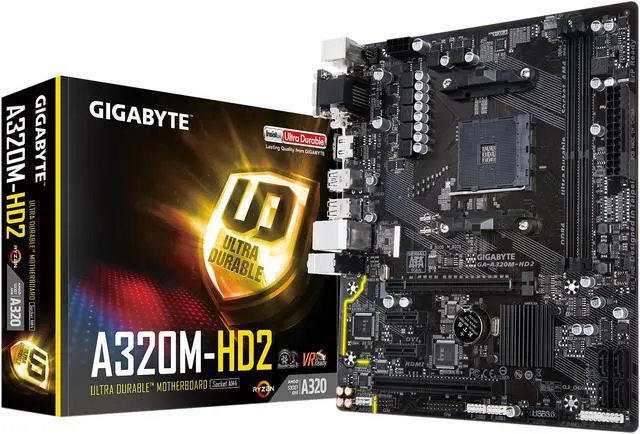

Main image of GIGABYTE GA-A320M-HD2 (rev. 1.0) AM4 AMD A320 USB 3.1 HDMI Micro ATX AMD Motherboard

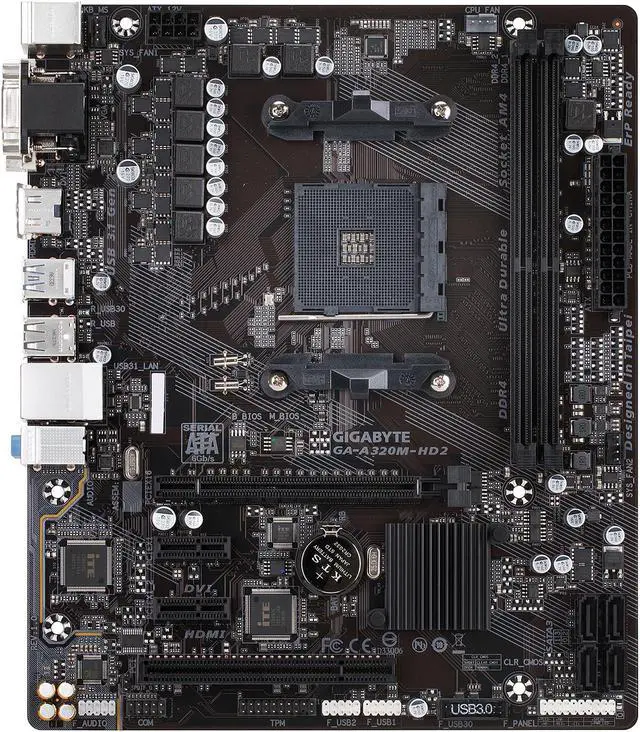

Alt view image 2 of 5 - GIGABYTE GA-A320M-HD2 (rev. 1.0) AM4 AMD A320 USB 3.1 HDMI Micro ATX AMD Motherboard

Alt view image 3 of 5 - GIGABYTE GA-A320M-HD2 (rev. 1.0) AM4 AMD A320 USB 3.1 HDMI Micro ATX AMD Motherboard

Alt view image 4 of 5 - GIGABYTE GA-A320M-HD2 (rev. 1.0) AM4 AMD A320 USB 3.1 HDMI Micro ATX AMD Motherboard

Alt view image 5 of 5 - GIGABYTE GA-A320M-HD2 (rev. 1.0) AM4 AMD A320 USB 3.1 HDMI Micro ATX AMD Motherboard

Shop All GIGABYTE Products | Visit DoDo DIY Store

GIGABYTE GA-A320M-HD2 (rev. 1.0) AM4 AMD A320 USB 3.1 HDMI Micro ATX AMD Motherboard

Used - Very Good

Option: GA-A320M-HD2

GA-A320M-HD2
GA-AB350-Gaming
GA-AB350-Gaming 3
GA-AB350M-Gaming 3
GA-AX370-Gaming 5
GA-AX370-Gaming K5

AMD A320
Athlon with Radeon Graphics / Ryzen 1000 Series / Ryzen 2000 Series / Ryzen 2000G Series / Ryzen 3000G Series / Ryzen 4000 Series / Ryzen 4000G Series / Ryzen 5000 Series / Ryzen 5000G Series
DDR4 3200(O.C.)/ 2933(O.C.)/ 2667*/ 2400/ 2133
* Support for higher than DDR4 2667 MHz may vary by CPU.

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	GIGABYTE
Model	GA-A320M-HD2 (rev. 1.0)

Supported CPU
CPU Socket Type	AM4
CPU Type	Athlon with Radeon Graphics / Ryzen 1000 Series / Ryzen 2000 Series / Ryzen 2000G Series / Ryzen 3000G Series / Ryzen 4000 Series / Ryzen 4000G Series / Ryzen 5000 Series / Ryzen 5000G Series

Chipsets
Chipset	AMD A320

Memory
Number of Memory Slots	2x288pin (DDR4)
Memory Standard	DDR4 3200(O.C.)/ 2933(O.C.)/ 2667/ 2400/ 2133 Support for higher than DDR4 2667 MHz may vary by CPU.
Maximum Memory Supported	32GB

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express x16 slot, running at x16 (PCIEX16) * Actual support may vary by CPU. (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
PCI Express x1	2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
PCI Slots	1 x PCI Slot

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
SATA RAID	0/1/10

Onboard Video
Onboard Video Chipset	Integrated Graphics Processor: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz * Support for HDMI 1.4 version. Support for up to 3 displays at the same time Maximum shared memory of 2GB * Actual support may vary by CPU.

Onboard Audio
Audio Chipset	Realtek ALC887
Audio Channels	2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Onboard LAN
LAN Chipset	Realtek GbE LAN chip
Max LAN Speed	1Gbps

Rear Panel Ports
PS/2	1 x PS/2 mouse port 1 x PS/2 Keyboard port
Video Ports	1 x D-Sub port 1 x DVI-D port
HDMI	1 x HDMI
RJ45	1 x RJ45
USB 3.1	1 x USB 3.1 Gen 2 Type-A port (red) 3 x USB 3.1 Gen 1 ports
USB 1.1/2.0	2 x USB 2.0
S/PDIF Out	1 x Optical
Audio Ports	3 x audio jacks (Line In, Line Out, Mic In)

Internal I/O Connectors
Onboard USB	1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 2 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x serial port header 1 x Trusted Platform Module (TPM) header 1 x Clear CMOS jumper

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 8.1"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector

Features
Features	I/O Controller - iTE I/O Controller Chip H/W Monitoring - Voltage detection - Temperature detection - Fan speed detection - Overheating warning - Fan fail warning - Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS - 1 x 128 Mbit flash - Use of licensed AMI UEFI BIOS - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features - Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS 3D OSD Ambient LED AutoGreen BIOS Setup Cloud Station Color Temperature EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup Smart Keyboard Smart TimeLock System Information Viewer USB Blocker V-Tuner - Support for Q-Flash - Support for Xpress Install Bundle Software - Norton Internet Security (OEM version) - cFosSpeed Operating System - Support for Windows 10 64-bit - Support for Windows 7 64-bit * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
