Question 1

Is this motherboard compatible with Windows 8?

Accepted Answer

I bought this in a DIY combo for someone and put it together for them and they are running windows vista right now.  I don't see why it wouldn't run windows 8 though, I'm sure it will.

Question 2

CAN I USE  A A6-5400K PROCESSOR WITH THIS MOTHERBOARD?

Accepted Answer

I don't think so. That processor is listed as having a FM2 processor but the board is listed as having a FM1 socket.

In addition the processor you listed is a CPU + GPU. This board has a built in graphics card so that might cause a problem but maybe not. I am using another graphics card with this board. I am using an AMD FX-6100 Zambezi 6-Core 3.3GHz Socket AM3+ 95W FD6100WMGUSBX Desktop Processor.

Question 3

i need to know the MAX wattage power supply i can use on this item?

Accepted Answer

Do you meant the minimum amount? I used a 530 watt with 1 disc drive, a hybrid hard drive, and add on video card.

It was a RAIDMAX HYBRID 2 RX-530ss 530W ATX 12V V2.2 EPS12V SLI Ready CrossFire Ready Modular Power Supply__ New Version with Built-in LED Fan On/Off Switch.

I bought it off Newegg dot com

Question 4

how much watts is it??

Accepted Answer

I don't believe the motherboard plays any significant role in wattage consumption, if that's what you're asking... That said, the components installed on these can probably be powered by a 350-500W depending primarily upon the Video Card. If you're building a rig with a power-demanding GFX card though, you shouldn't be looking at this motherboard.

Question 5

Do this board support hardware virtualization???

Accepted Answer

I'd check the Motherboard manual as I can't specifically remember and this was one built for my family member at their house. Most mfr's have the manuals with the specs online.

Question 6

Any chance this MOBO will work with Win2000?

Accepted Answer

I do not see a driver available. You will need to find an older motherboard with a chipset that is supported by 2000. It MIGHT work, but I dought it.

Brand	GIGABYTE
Model	GA-A55M-DS2

CPU Socket Type	FM1
CPU Type	A-Series / Athlon Series / E2-Series / Sempron

Number of Memory Slots	2x240pin
Memory Standard	DDR3 1866 / 1600 / 1333 / 1066
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

PCI Express 2.0 x16	1 x PCI Express 2.0 x16
PCI Express x1	1 x PCI Express x1
PCI Slots	1 x PCI Slot

Back I/O Ports	1 x D-Sub / 1 x DVI / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2	2
Video Ports	D-Sub + DVI
USB 1.1/2.0	4 x USB 2.0
Audio Ports	3 Ports

Best Sellers

Meet Your Seller

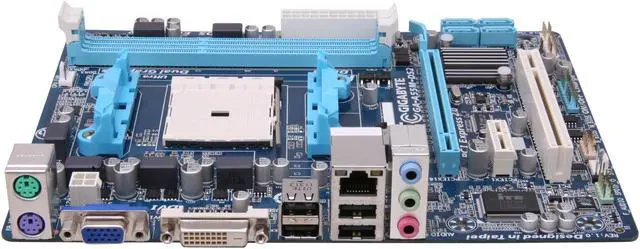

GIGABYTE GA-A55M-DS2 FM1 AMD A55 (Hudson D2) Micro ATX AMD Motherboard

Used - Very Good

Learn more about the GIGABYTE GA-A55M-DS2

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Onboard USB	4 x USB 2.0
Other Connectors	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x APU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x serial port header 1 x clearing CMOS jumper

Form Factor	Micro ATX
Dimensions (W x L)	8.86" x 6.85
Power Pin	24 Pin
