Question 1

Does this product support a Intel Core i5-4690K?

Accepted Answer

No.  This motherboard has the LGA1155 socket. Core i5-4690K requires LGA1150.  For this board, you could use a Core i3/i5/i7 2000 or 3000 series, but for 4000, you need LGA1150.

Question 2

Will the onboard USB 3.0 connector work with a Sandy Bridge Processor?

Thank you.

Accepted Answer

Check the boards device comparability sheet to see if your specific cpu is supported, but not sure what the USB connectors have to do with it.

Question 3

It says that 1600 MHz RAM is not supported for Sandy Bridge processors. Has anyone tested this?

Accepted Answer

Hello, I would think that if the product says that 1600 MHz RAM is not supported for Sandy Bridge processors, then it would not be worth testing. You would not want to have a chance at ruining any hardware. I would look for something that would meet your specification requirements. :)

Question 4

What wireless adapter fits this motherboard?

Accepted Answer

Any PCI style WIFI adapter Should Work IE: TP Link TL-DN4800, Asus PCI-AC68. You could also go the route of using a USB WIFI antenna such as the Trend net TEW-684 UB that will allow you to free up some space on the MOBO especially if you are going to run a discrete graphics card and some other PCI cards. You may also want to consider the size of the case you are putting the MOBO in as it may affect whether you need a full size or a short PCI slot bracket if you decide to go the internal card route.

Brand	GIGABYTE
Model	GA-B75M-HD3 (rev. 1.0)

CPU Socket Type	LGA 1155
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Pentium / Xeon (LGA1155)

Number of Memory Slots	2x240pin
Memory Standard	DDR3 1600/1333/1066 To support DDR3 1600 MHz, you must install an Intel 22nm (Ivy Bridge) CPU
Maximum Memory Supported	16GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	1 x PCI Express 3.0 x16
PCI Express x1	2 x PCI Express x1
PCI Slots	1 x PCI Slot

Audio Chipset	Realtek ALC887
Audio Channels	7.1 Channels

Meet Your Seller

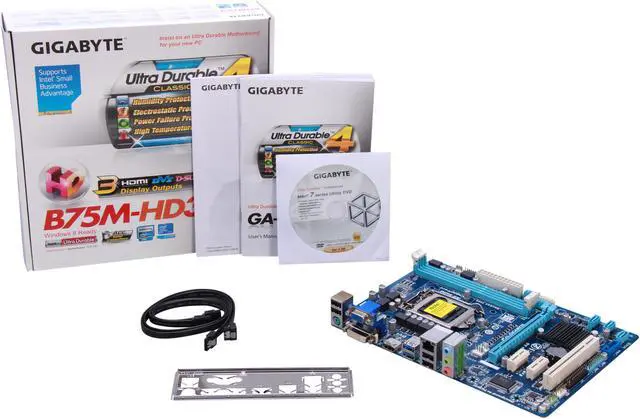

GIGABYTE GA-B75M-HD3 (rev. 1.0) LGA 1155 Intel B75 HDMI USB 3.0 Micro ATX Intel Motherboard

Used - Good

Learn more about the GIGABYTE GA-B75M-HD3 (rev. 1.0)

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Back I/O Ports	1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 3.0 / 4 x USB 2.0/1.1
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	D-Sub + DVI
HDMI	1 x HDMI
USB 3.0	2 x USB 3.0
USB 1.1/2.0	4 x USB 2.0
Audio Ports	3 Ports

Onboard USB	2 x USB 3.0 + 4 x USB 2.0
Other Connectors	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x serial port header 1 x parallel port 1 x Clear CMOS jumper

Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 6.8"
Power Pin	24 Pin
