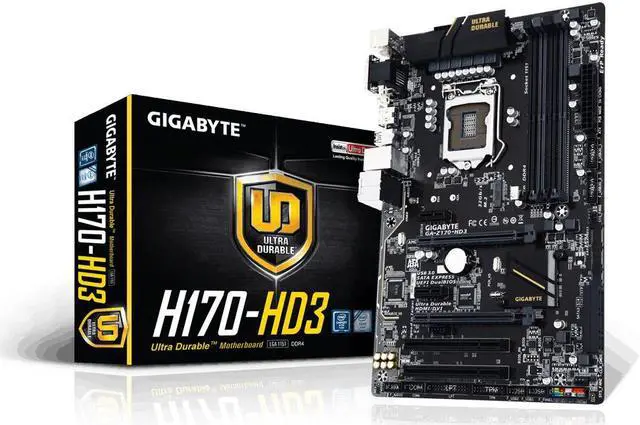

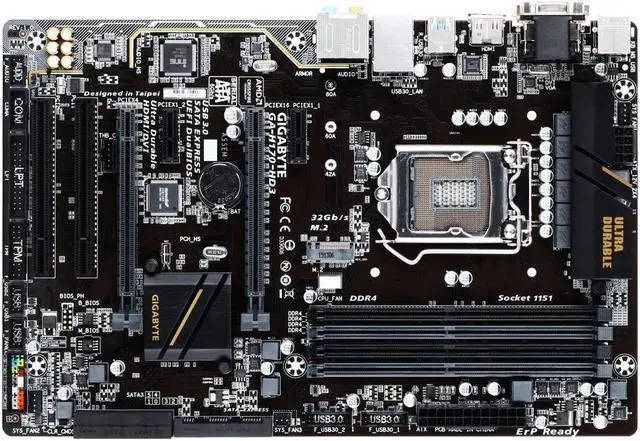

GIGABYTE GA-H170-HD3 LGA 1151 Intel H170 HDMI SATA 6Gb/s USB 3.0 ATX Intel Motherboard
Used - Like New Product Type
- Intel H170
- Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
- DDR4 2133
+
+
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE GA-H170-HD3
| Brand | GIGABYTE |
|---|---|
| Model | GA-H170-HD3 |
| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium |
| Chipset | Intel H170 |
|---|
| Onboard Video Chipset | Integrated Graphics |
|---|
| Number of Memory Slots | 4 x DIMM |
|---|---|
| Memory Standard | DDR4 2133 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x4 (PCIEX4) |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| SATA Express | 2 x SATA Express connectors |
| M.2 | 1 x M.2 |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC887 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek |
|---|---|
| Max LAN Speed | 1Gbps |

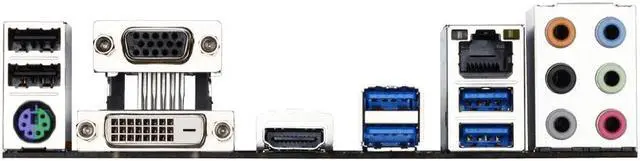

| Back I/O Ports | 1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 4 x USB 3.0 |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x D-Sub port 1 x DVI-D port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| USB 3.0 | 4 x USB 3.0 / 2.0 |
| USB 1.1/2.0 | 2 x USB 2.0 / 1.1 |
| Audio Ports | 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In) |
| Onboard USB | 2 x USB 3.0 / 2.0 header + 2 x USB 2.0 / 1.1 headers |
|---|---|
| Other Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x M.2 Socket 3 connector 2 x SATA Express connectors 6 x SATA 6Gb/s connectors 1 x CPU fan header 3 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Trusted Platform Module (TPM) header 1 x Thunderbolt add-in card connector 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.01" x 7.83" |
| Power Pin | 24-pin ATX main power connector 8-pin ATX 12V power connector |
| Features | Supports 6th Generation Intel Core Processor Dual Channel DDR4, 4 DIMMs 2-Way Graphics with Premium PCIe Lane PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support) 2 SATA Express Connectors for up to 16Gb/s Data Transfer 8-channel HD Audio with High Quality Audio Capacitors Audio Noise Guard with LED Trace Path Lighting Realtek Green GbE LAN with cFosSpeed Internet Accelerator Software APP Center Including EasyTune and Cloud Station Utilities GIGABYTE UEFI DualBIOS Technology Support Intel Small Business Basics |
|---|
| First Listed on Newegg | November 08, 2024 |
|---|
