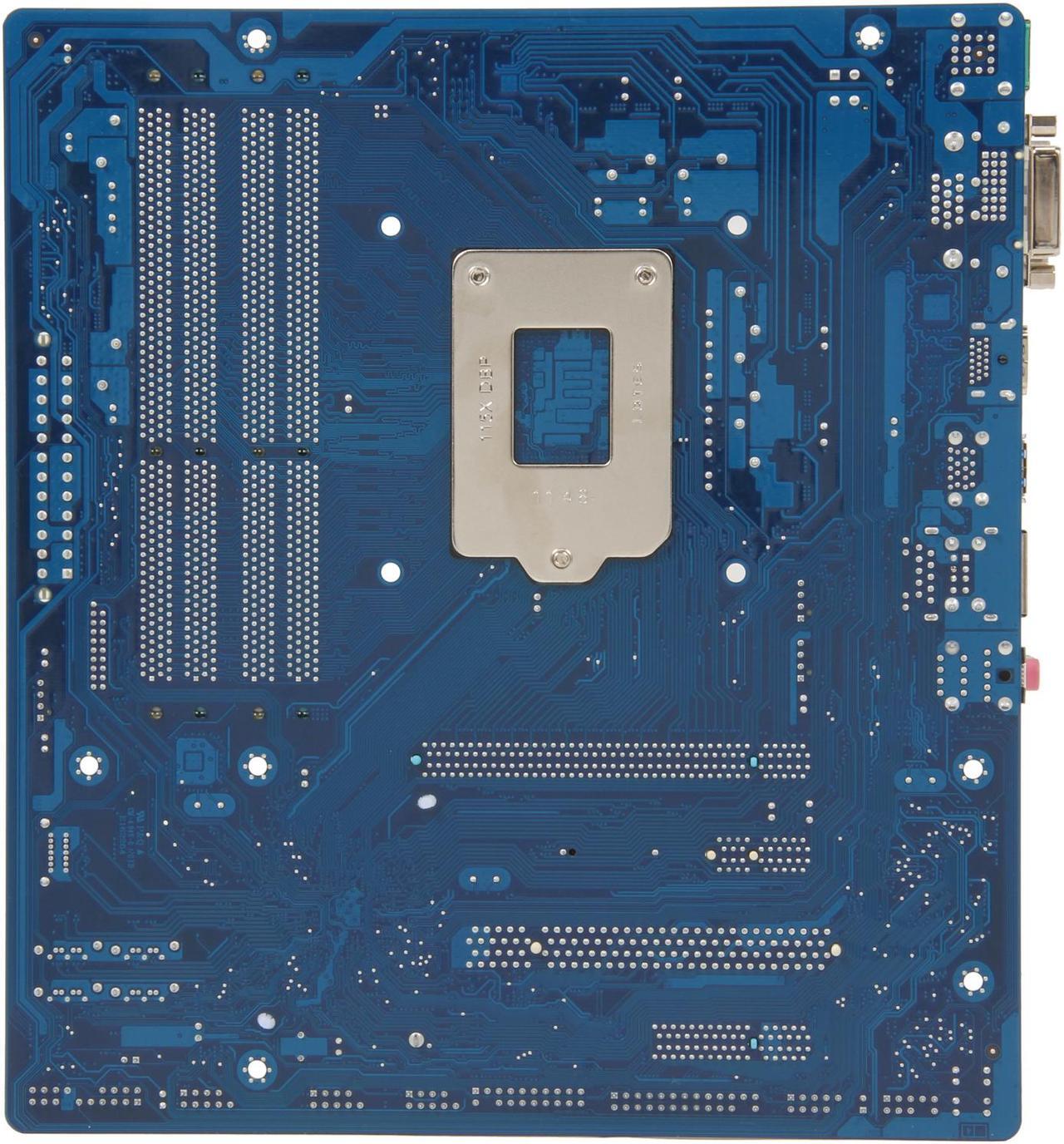

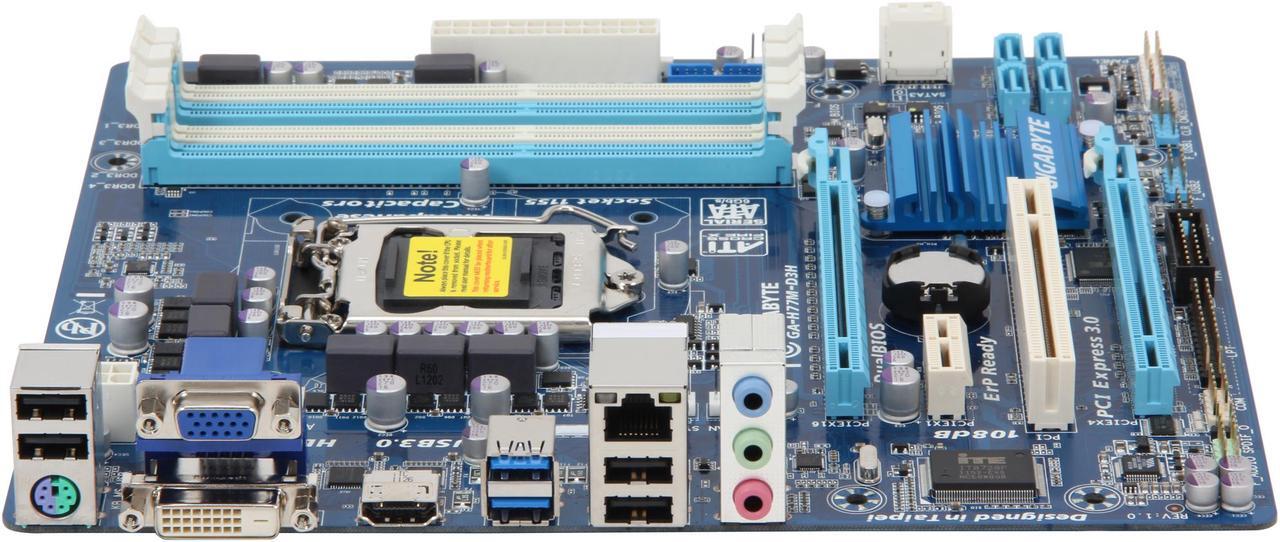

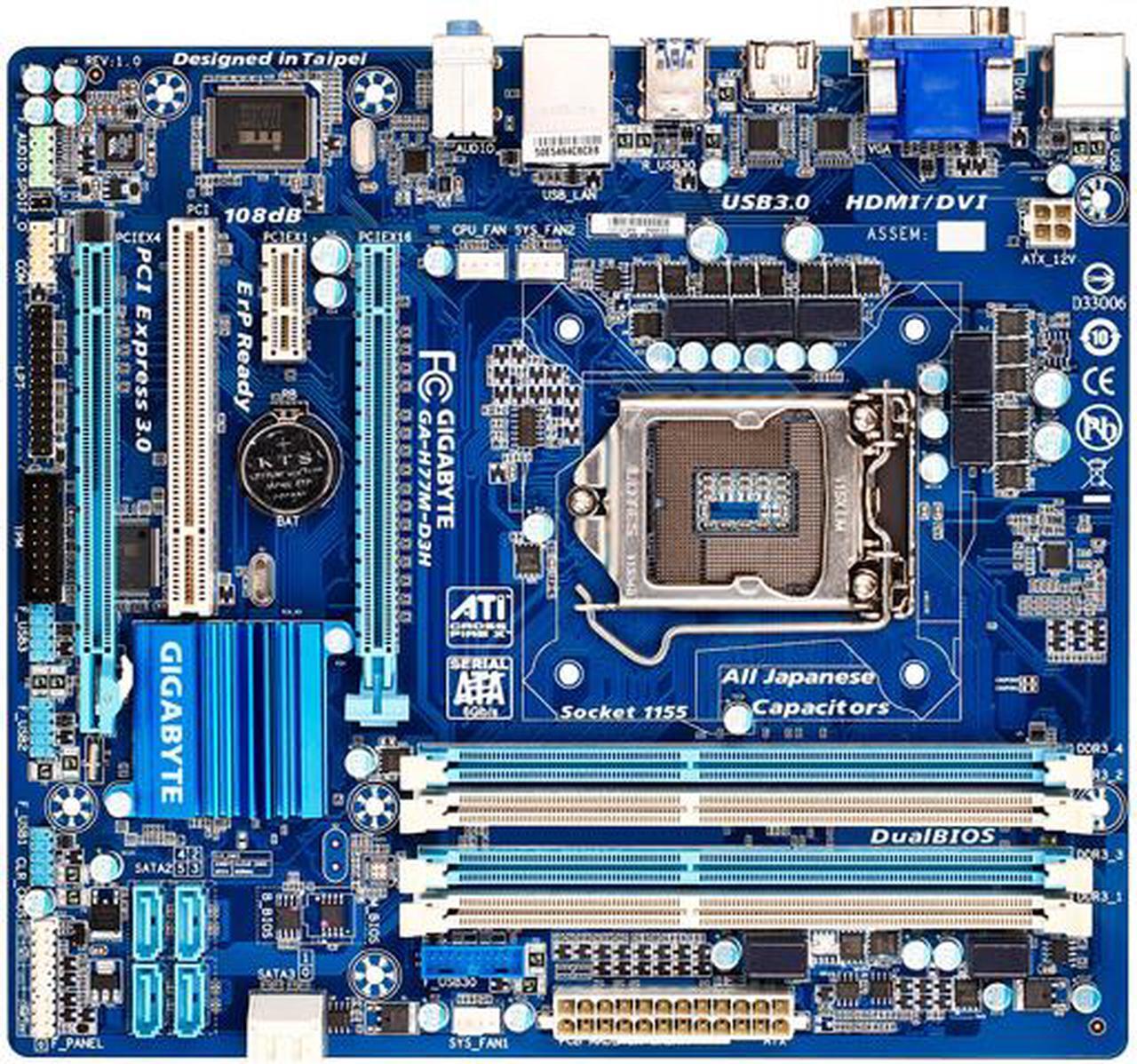

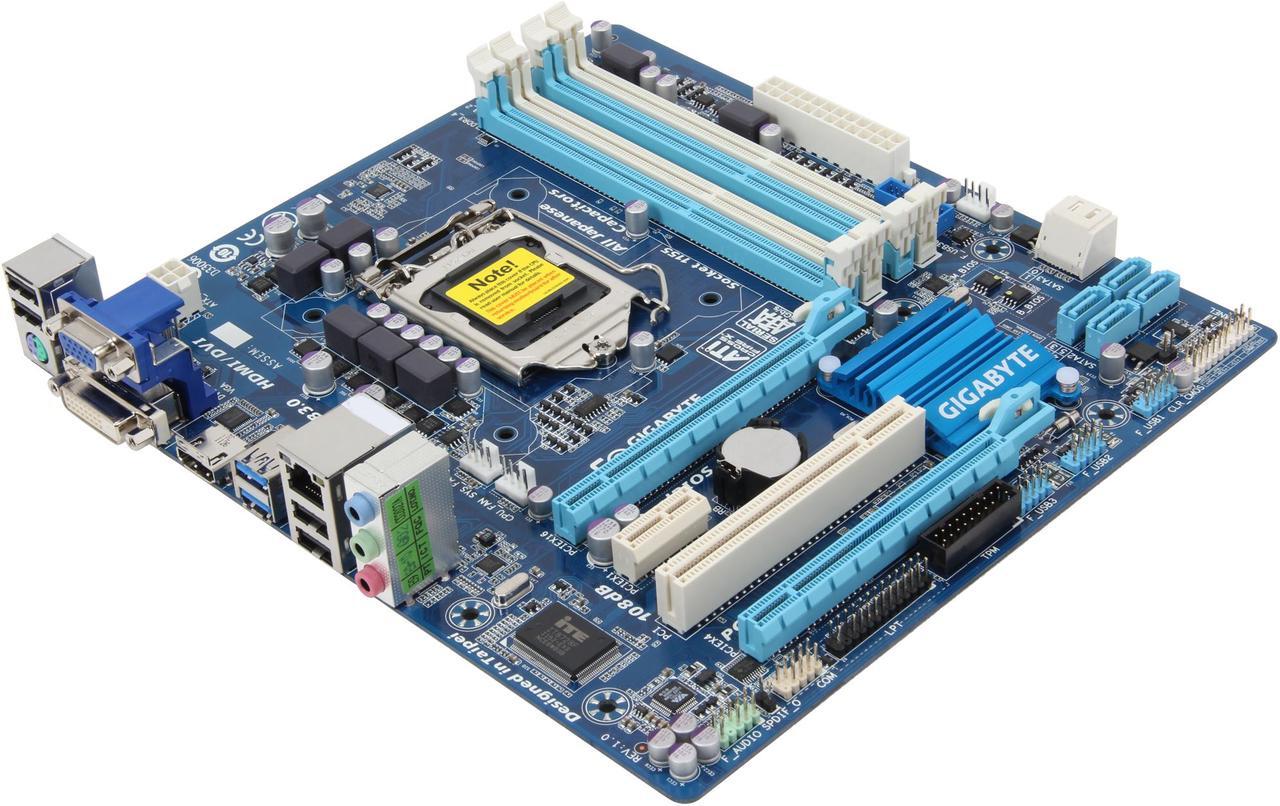

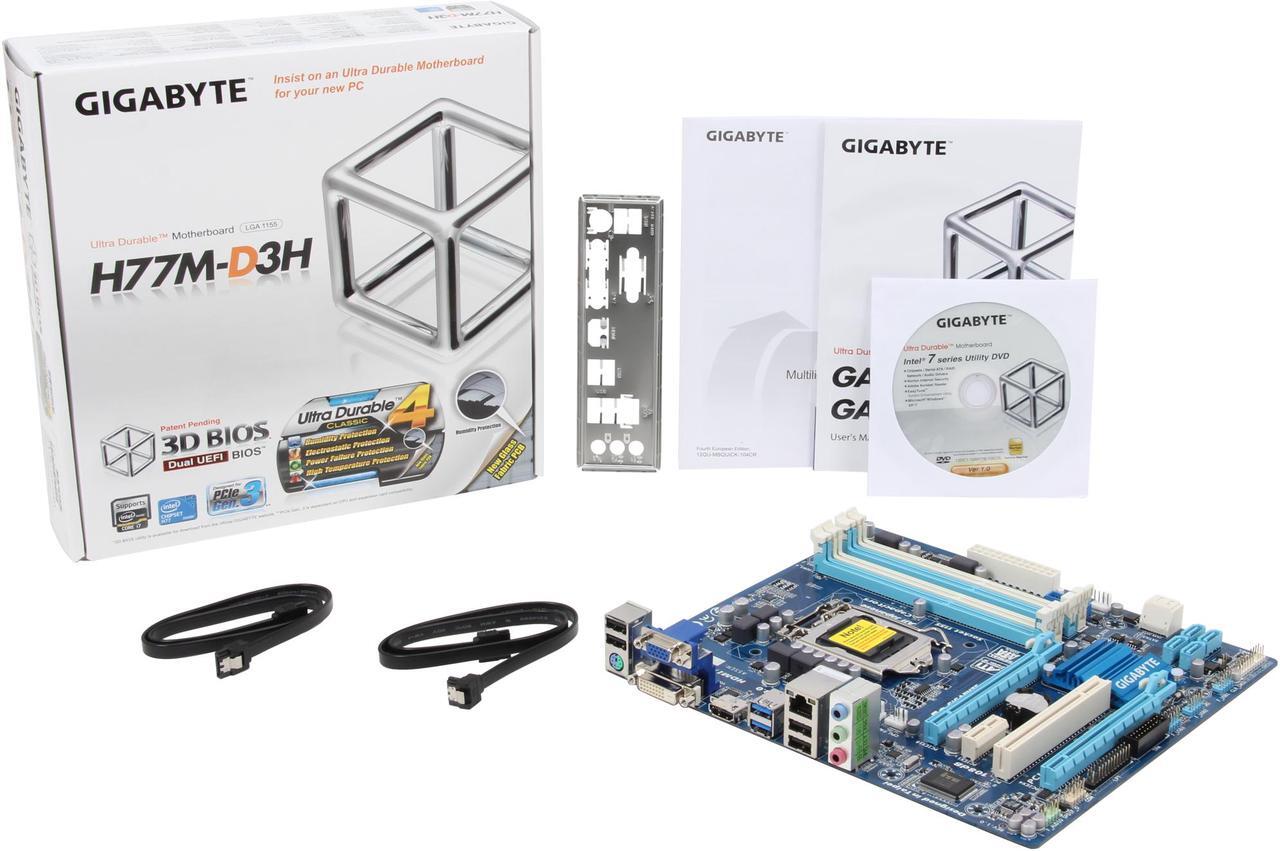

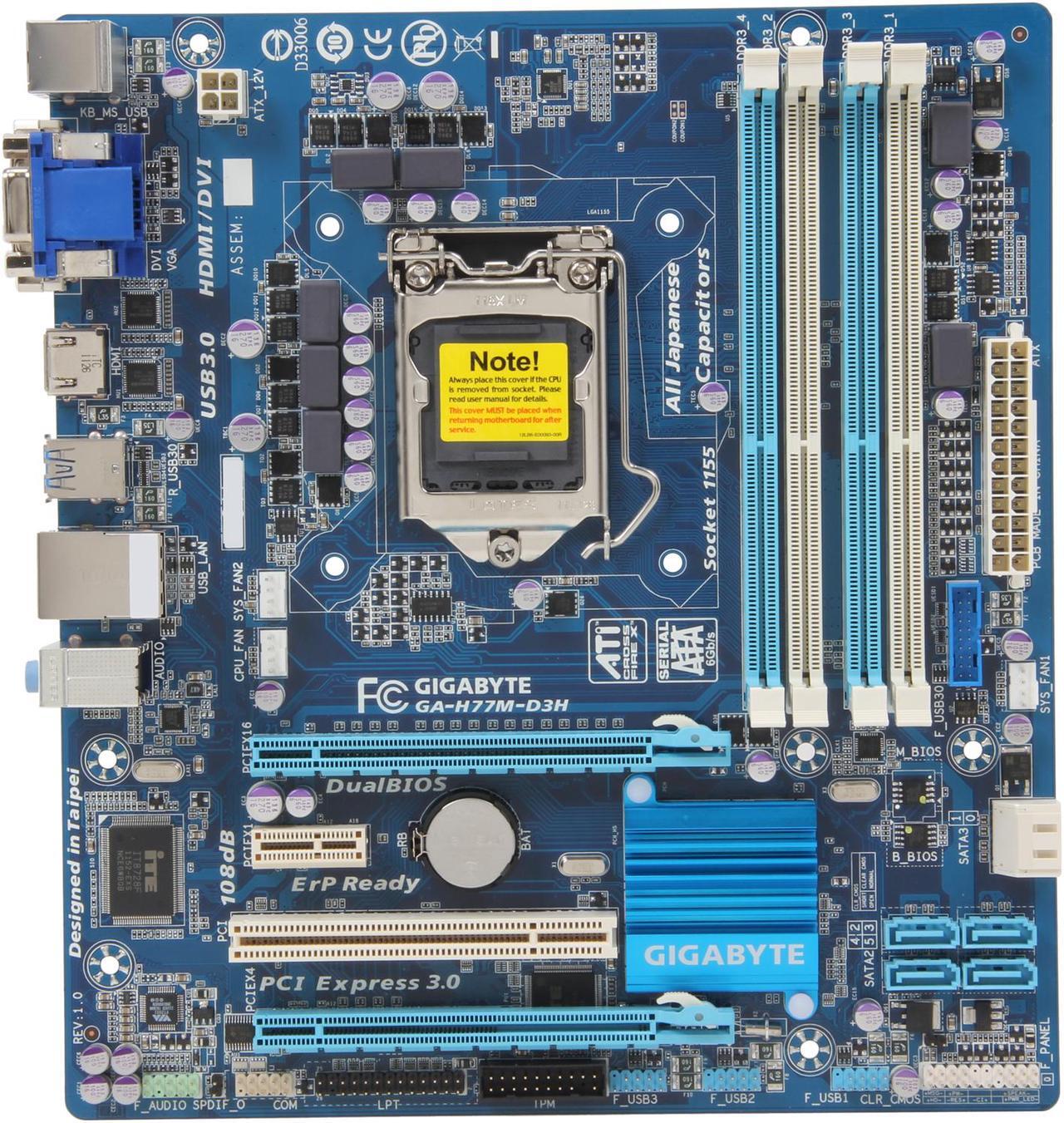

Main image of GIGABYTE GA-H77M-D3H LGA 1155 Intel H77 HDMI USB 3.0 Micro ATX Intel Motherboard

Alt view image 2 of 6 - GIGABYTE GA-H77M-D3H LGA 1155 Intel H77 HDMI USB 3.0 Micro ATX Intel Motherboard

Alt view image 3 of 6 - GIGABYTE GA-H77M-D3H LGA 1155 Intel H77 HDMI USB 3.0 Micro ATX Intel Motherboard

Alt view image 4 of 6 - GIGABYTE GA-H77M-D3H LGA 1155 Intel H77 HDMI USB 3.0 Micro ATX Intel Motherboard

Alt view image 5 of 6 - GIGABYTE GA-H77M-D3H LGA 1155 Intel H77 HDMI USB 3.0 Micro ATX Intel Motherboard

Alt view image 6 of 6 - GIGABYTE GA-H77M-D3H LGA 1155 Intel H77 HDMI USB 3.0 Micro ATX Intel Motherboard

Shop All GIGABYTE Products | Visit DoDo DIY Store

GIGABYTE GA-H77M-D3H LGA 1155 Intel H77 HDMI USB 3.0 Micro ATX Intel Motherboard

Used - Good

Intel H77
Core i7 / i5 / i3 (LGA1155)
DDR3 1600/1333

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by DoDo DIY Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

CPU Socket Type	LGA 1155
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Pentium

Number of Memory Slots	4x240pin
Memory Standard	DDR3 1600/1333/1066
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	1 x PCI Express 3.0 x16
PCI Express 2.0 x16	1 @x4
PCI Express x1	1 x PCI Express x1
PCI Slots	1 x PCI Slot

Serial ATA (SATA)	2 x SATA 6Gb/s
SATA RAID	0/1/5/10

Audio Chipset	VIA VT2021
Audio Channels	8 Channels

Back I/O Ports	1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 3.0 / 4 x USB 2.0/1.1
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	D-Sub + DVI
HDMI	1 x HDMI
USB 3.0	2 x USB 3.0
USB 1.1/2.0	4 x USB 2.0
Audio Ports	3 Ports

Onboard USB	2 x USB 3.0 + 6 x USB 2.0
Other Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x serial port header 1 x parallel port 1 x Trusted Platform Module (TPM) header 1 x Clear CMOS jumper

Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 8.66"
Power Pin	24 Pin

Model
Brand	GIGABYTE
Model	GA-H77M-D3H

Item#: 9SIA639KE79093
