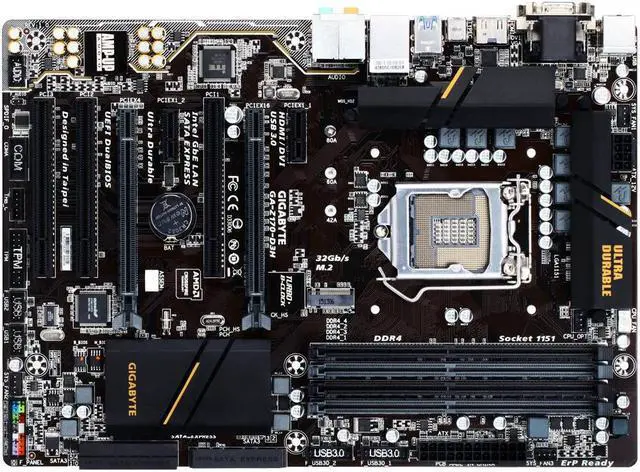

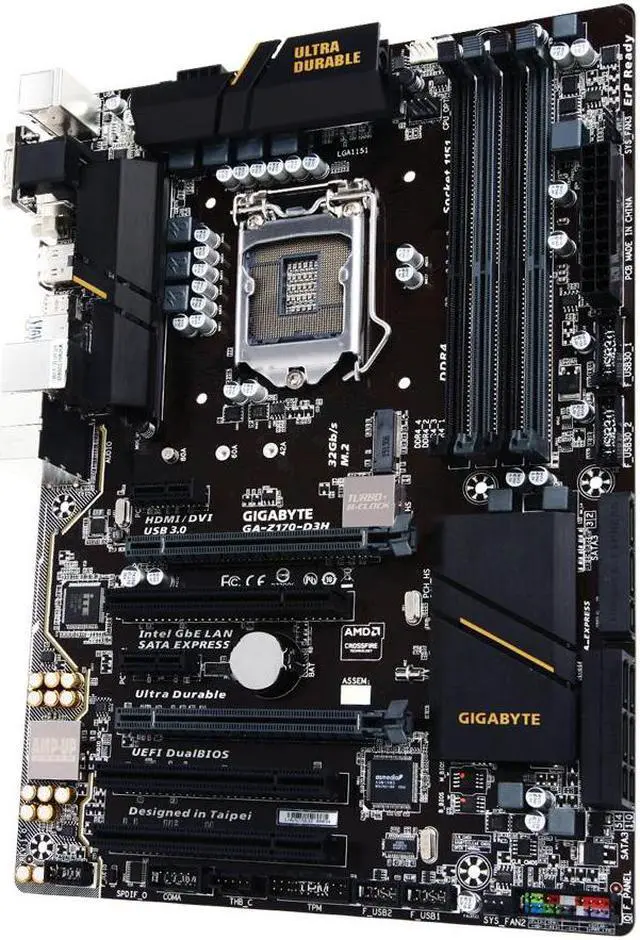

    GIGABYTE GA-Z170-D3H LGA 1151 Intel Z170 HDMI SATA 6Gb/s USB 3.0 ATX Intel Motherboard

    Used - Very Good Product Type
    • Intel Z170
    • Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
    • DDR4 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the GIGABYTE GA-Z170-D3H

    Model
    Brand GIGABYTE
    Model GA-Z170-D3H
    Supported CPU
    CPU Socket Type LGA 1151
    CPU Type Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
    Chipsets
    Chipset Intel Z170
    Onboard Video
    Onboard Video Chipset Integrated Graphics
    Memory
    Number of Memory Slots 4 x DIMM
    Memory Standard DDR4 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133
    Maximum Memory Supported 64GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express x16 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    1 x PCI Express x16 slot, running at x4 (PCIEX4)
    PCI Express x1 2 x PCI Express x1
    PCI Slots 3 x PCI Slots
    Storage Devices
    Serial ATA (SATA) 6 x SATA 6Gb/s
    SATA Express 3 x SATA Express
    M.2 1 x M.2
    SATA RAID 0/1/5/10
    Onboard Audio
    Audio Chipset Realtek ALC1150
    Audio Channels 7.1 Channels
    Onboard LAN
    LAN Chipset Intel
    Max LAN Speed 1Gbps

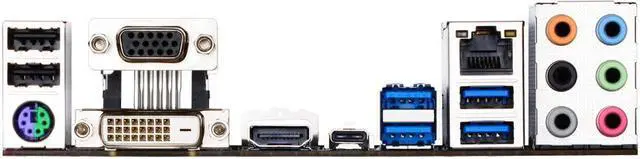

    Rear Panel Ports
    PS/2 1 x PS/2 keyboard/mouse port
    Video Ports 1 x D-Sub port
    1 x DVI-D port
    HDMI 1 x HDMI
    RJ45 1 x RJ45
    USB 3.0 4 x USB 3.0 / 2.0
    USB 1.1/2.0 2 x USB 2.0 / 1.1
    USB Type-C 1 x USB Type-C port, with USB 3.0 support
    Audio Ports 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
    Internal I/O Connectors
    Onboard USB 2 x USB 3.0 / 2.0 header + 2 x USB 2.0 / 1.1 headers
    Other Connectors 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x M.2 Socket 3 connector
    3 x SATA Express connectors
    6 x SATA 6Gb/s connectors
    1 x CPU fan header
    1 x water cooling fan header (CPU_OPT)
    3 x system fan headers
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    1 x Trusted Platform Module (TPM) header
    1 x Thunderbolt add-in card connector
    1 x serial port header
    1 x Clear CMOS jumper
    Physical Spec
    Form Factor ATX
    Dimensions (W x L) 12.01" x 8.43"
    Power Pin 24-pin ATX main power connector
    8-pin ATX 12V power connector
    Features
    Features Supports 6th Generation Intel Core Processor

    Dual Channel DDR4, 4 DIMMs

    Intel USB 3.0 with USB Type-C - the world's next Universal connector

    2-Way Graphics with Premium PCIe Lane

    PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support)

    3 SATA Express Connectors for up to 16Gb/s Data Transfer

    115dB SNR HD Audio with Built-in Rear Audio Amplifier

    High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting

    Intel GbE LAN with cFosSpeed Internet Accelerator Software

    APP Center Including EasyTune and Cloud Station Utilities

    GIGABYTE UEFI DualBIOS Technology
