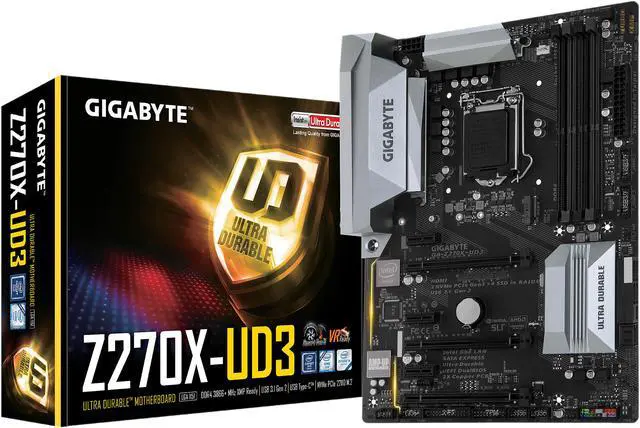

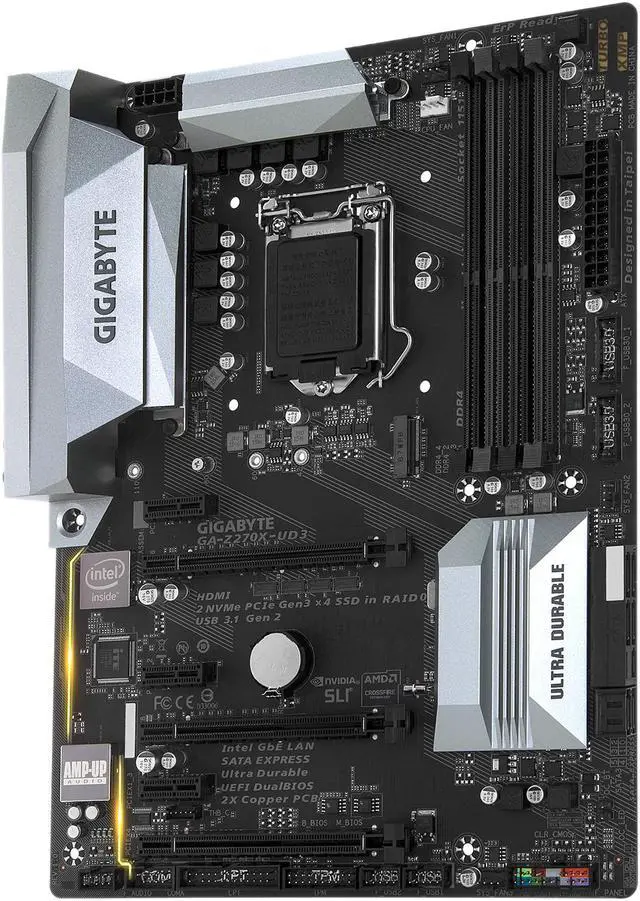

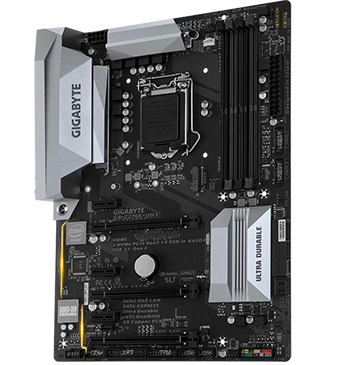

GIGABYTE GA-Z270X-UD3 (rev. 1.0) LGA 1151 Intel Z270 HDMI USB 3.1 ATX Motherboards - Intel

Build a devastatingly powerful gaming rig with the GA-Z270X-UD3 motherboard. Constructed of high-quality components, packed with exclusive gaming features and loaded with Smart Fan 5 for maximum cooling performance, it brings gamers and VR professionals the best possible gaming experience.

New Smart Fan 5 Software

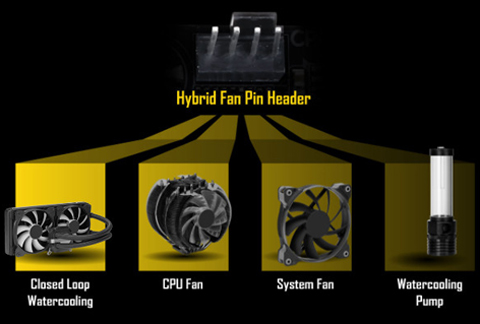

Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

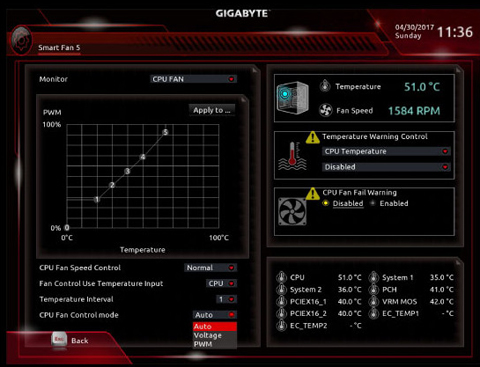

Enhanced BIOS Interface

The enhanced BIOS interface also has the advanced features seen in the Smart Fan 5 UI, such as: the ability to set triggers based on different temperature sensors on the board, fan curve definition and the temperature interval setting, which can prevent fan rotation noise caused by sudden temperature change - all without having to load Windows.

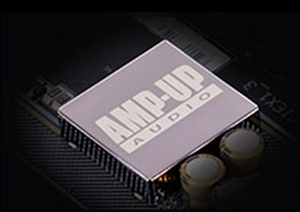

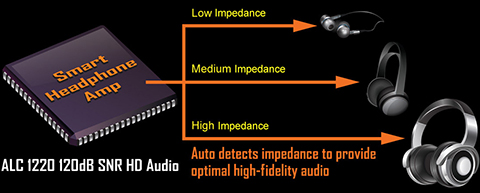

Smart Headphone Amp

Automatically detects impedance of your head-worn audio device, whether earbuds or high-end headphones to provide optimal audio dynamics—preventing issues such as low volume and distortion.

Intel GbE LAN with cFosSpeed Internet Accelerator Software

Intel Gigabit LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

cFosSpeed Internet Accelerator Software

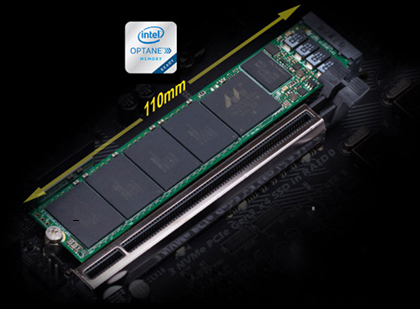

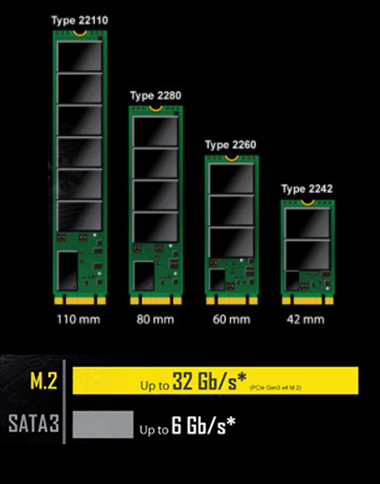

Fast Onboard Storage with NVMe PCIe Gen3 x4 110mm M.2 (Up to 32 Gbps)

GIGABYTE M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices.

Max. bandwidth allocated for the controller may vary by model

What is XMP?

DDR4 memory modules are available at a stock frequency of 2133MHz, but as frequency tweaking requires a considerable amount of effort and knowledge, memory vendors encode XMP profiles which can automatically modify the timings of the supported memory modules to work with your CPU and to achieve increased performance.

* XMP Profile support may vary depending on memory module. Product features may vary by model.

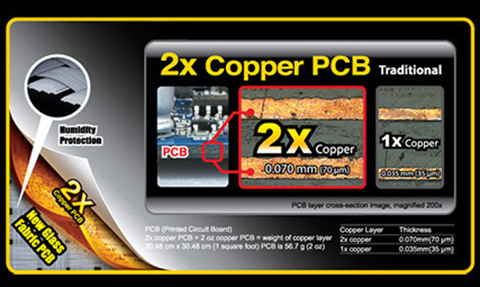

2x Copper PCB Design (2 oz Copper PCB)

GIGABYTE’s exclusive 2X Copper PCB design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.

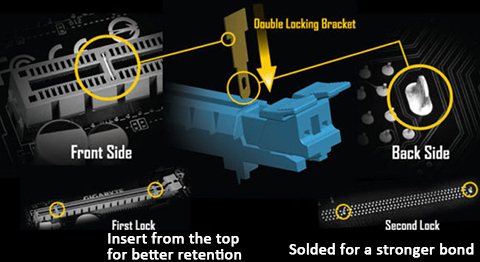

GIGABYTE Exclusive Double Locking Bracket

Refreshed BIOS Easy, Smart, and Friendly

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier-to-use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

(The below photos are for reference only.)

EasyTune

GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

Overclocking to Boost Your Frame Rates

Get the highest levels of performance from your PC with easy-to-use GIGABYTE overclocking features.

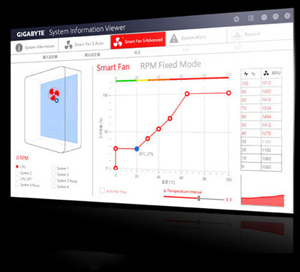

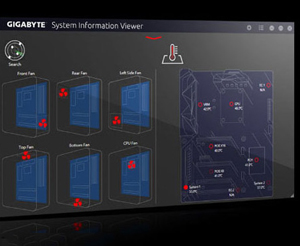

System Information Viewer

GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system’s behavior; these are the possibilities of the System Information Viewer.

@BIOS

The GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.

3D OSD

3D OSD automatically detects and displays your system information during games, allowing you to easily get a hold of your system information without switching between screens.

GIGABYTE Exclusive DualBIOS (UEFI) Design

GIGABYTE Ultra Durable motherboards feature GIGABYTE DualBIOS, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.

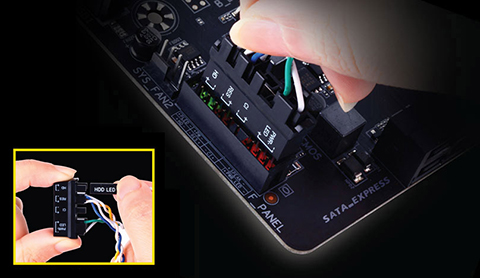

Easy-to-install "G-Connector" Design

The tiny cables of the front panel connectors can be hard to manipulate as space is restricted and indicators being tiny. With the G-Connector, you can connect all the FP cables at once, simplifying the process of building your next PC and saving you some frustrations.
