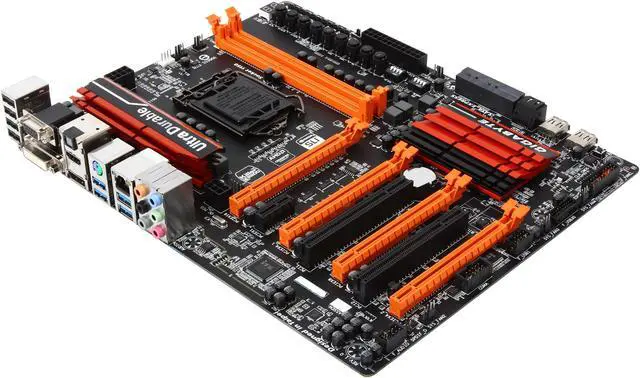

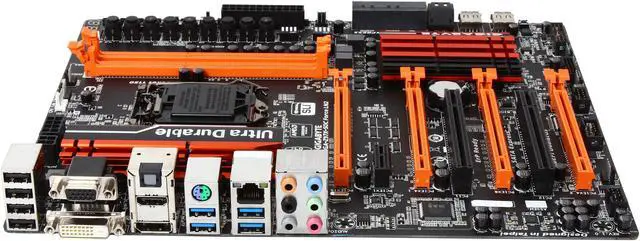

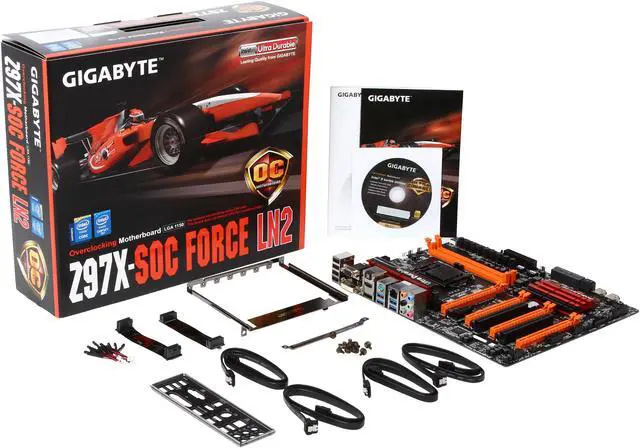

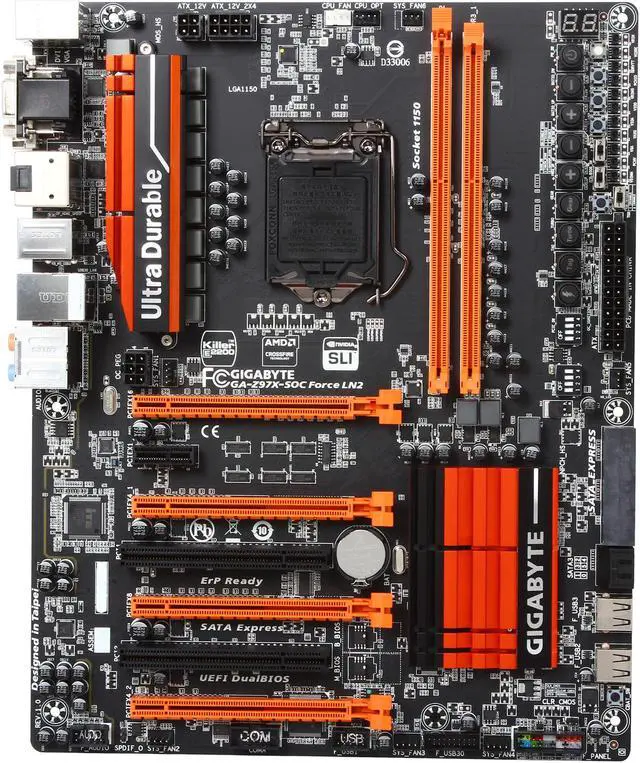

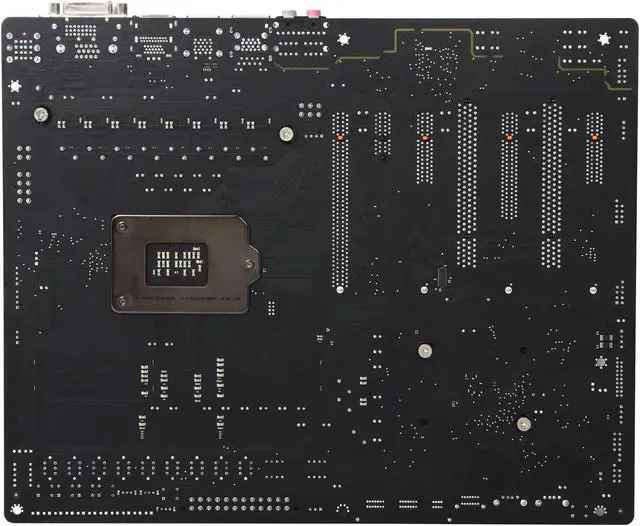

GIGABYTE GA-Z97X-SOC FORCE LN2 LGA 1150 Intel Z97 HDMI USB 3.0 ATX Intel Motherboard

Be the first to review this product...
  • Intel Z97
  • Core i7 / i5 / i3 / Pentium / Celeron (LGA1150)
  • DDR3 3600(OC)/3300(OC).../1600
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the GIGABYTE GA-Z97X-SOC FORCE LN2

Model
Brand GIGABYTE
Model GA-Z97X-SOC FORCE LN2
Supported CPU
CPU Socket Type LGA 1150
CPU Type Core i7 / i5 / i3 / Pentium / Celeron (LGA1150)
Chipsets
Chipset Intel Z97
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR3 3600(OC)/3300(OC).../1600
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 1 x PCI Express x16 slot, running at x16
1 x PCI Express x16 slot, running at x8
2 x PCI Express x16 slots, running at x4
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
Serial ATA (SATA) 6 x SATA 6Gb/s
SATA Express 1
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC1150
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Qualcomm Atheros Killer E2201
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x DisplayPort / 1 x HDMI / 1 x Optical S/PDIF Out / 4 x USB 2.0/1.1 / 4 x USB 3.0
Video Ports D-Sub + DVI
HDMI 1 x HDMI
RJ45 1 x RJ45
DisplayPort 1 x DisplayPort
USB 3.0 4 x USB 3.0
USB 1.1/2.0 4 x USB 2.0
S/PDIF Out 1 x Optical
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 1 x USB 3.0/2.0 header
1 x USB 2.0/1.1 header
2 x USB 2.0/1.1 ports
Other Connectors 1 x 24-pin ATX main power connector?
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x OC PEG power connector
1 x CPU fan header
1 x water cooling fan header (CPU_OPT)
6 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x serial port header
1 x Clear CMOS jumper
1 x power button
1 x reset button
1 x Clear CMOS button
1 x Gear button
1 x OC Turbo button?
1 x OC Tag button
1 x OC Trigger switch
1 x CPU BCLK Down button
1 x CPU BCLK Up button
1 x CPU Ratio Down button
1 x CPU Ratio Up button
1 x Memory Safe button
1 x Settings Lock button
1 x Direct to BIOS button
1 x OC DIMM switch
1 x OC PCIe switch
1 x OC Ignition button
1 x Clear Battery button
2 x BIOS switches
1 x onboard voltage measurement module
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.01" x 9.61"
Power Pin 24 Pin
Features
Features Unique board design without CPU fan mounting holes for faster memory communication

Supports 4th and 5th Generation Intel Core processors

Support for 4-Way/3-Way/2-Way AMD CrossFire/2-Way NVIDIA SLI technology

Precise digital CPU power design

SATA Express support for 10 Gb/s data transfer

Exclusive GIGABYTE OC Features

2x copper PCB design

APP Center including EasyTune and Cloud Station utilities

GIGABYTE UEFI DualBIOS

New Heatsink design with 8 onboard fan connectors
Additional Information
First Listed on Newegg July 18, 2014

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
