GeForce RTX 2070 GAMING OC 8G
GV-N2070GAMING OC-8GC
Features
Powered by GeForce RTX 2070
Integrated with 8GB GDDR6 256-bit memory interface
WINDFORCE 3X Cooling System with alternate spinning fans
RGB Fusion – 16.7M customizable color lighting
Metal Back Plate
Core Clock
1740 MHz in OC mode
1725 MHz in Gaming mode
(Reference Card: 1620 MHz)

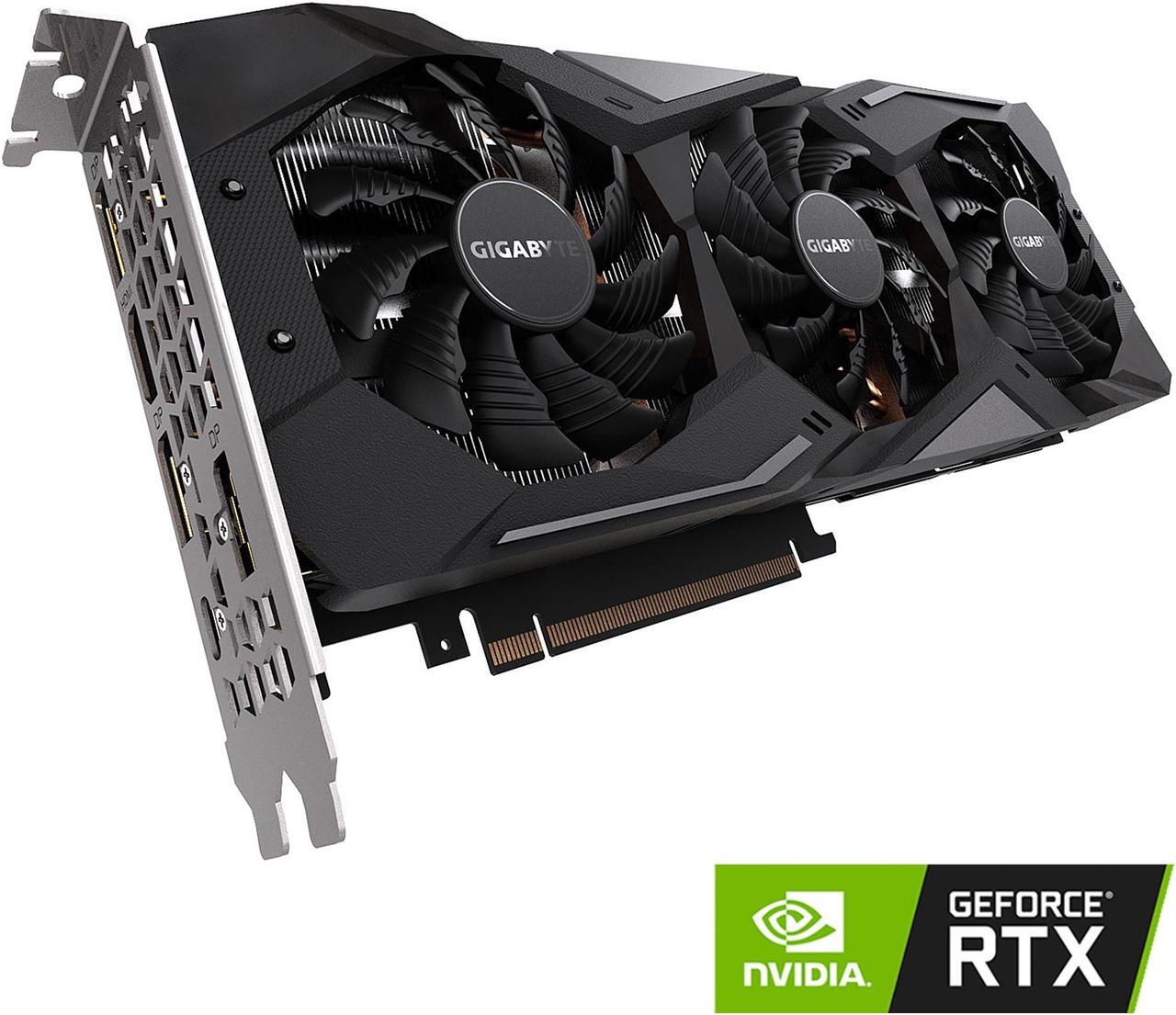

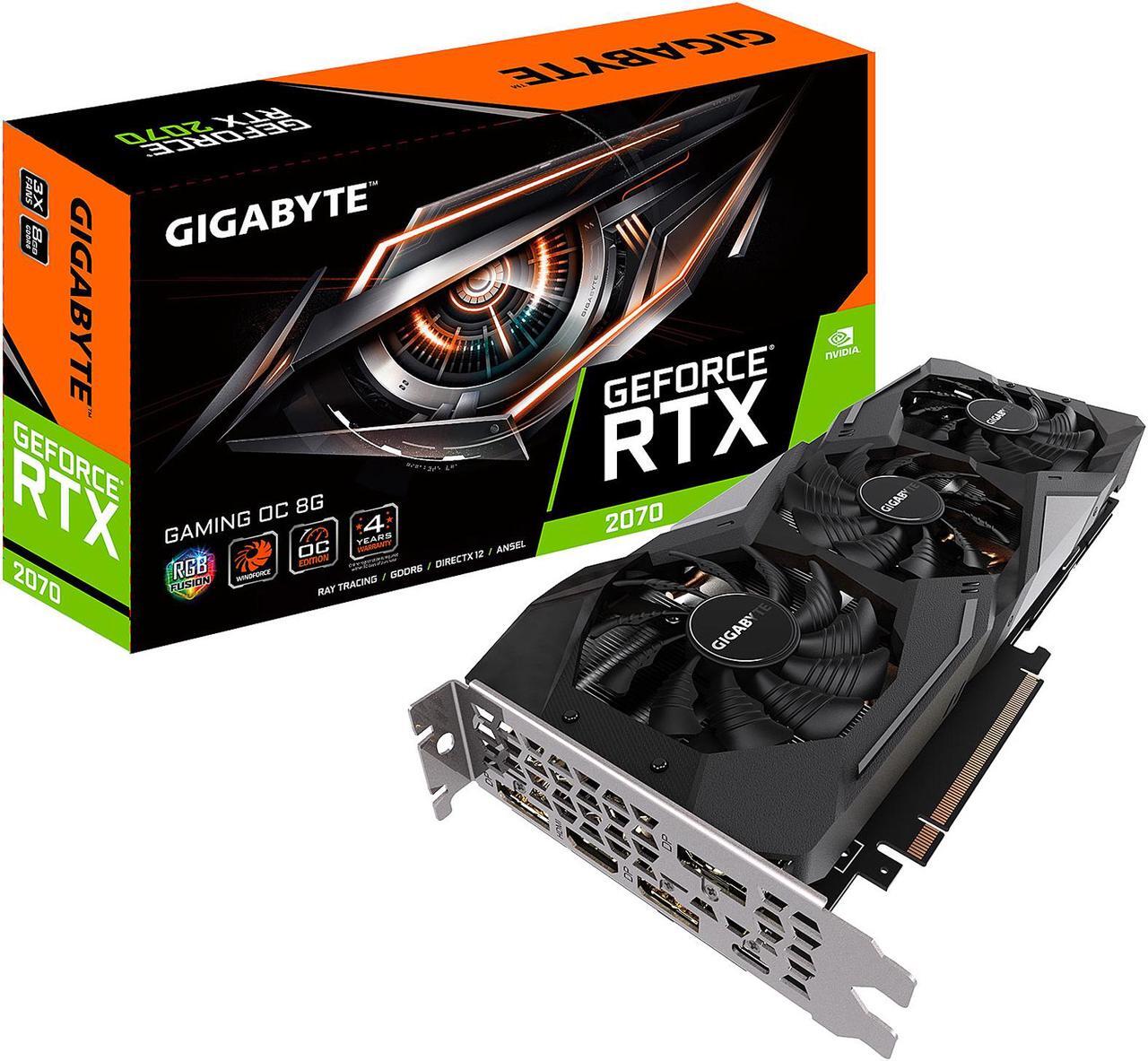

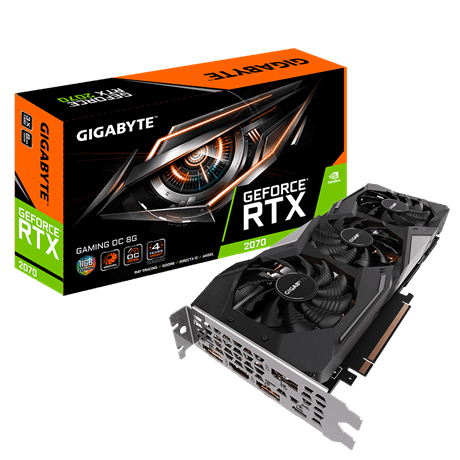

Gigabyte GeForce RTX 2070 GAMING OC 8G, Model # GV-N2070GAMING OC-8GC
The NVIDIA GeForce RTX 2070 GPU is based on the ground-breaking Turning architecture that was built using 12nm FinFET—a new generation of graphics chip engineered for a new level of realism. This graphics card series incorporates brand-new, industry-changing, real-time Ray Tracing, AI and shading technology to transform gaming visuals with lifelike reflections, refractions and shadows. Meanwhile, Deep Learning Super Sampling enables much smoother frame rates and less burden on the GPU than previous-generation anti-aliasing technology. The GeForce RTX 2070 card packs 2,304 CUDA Cores, and 8GB of GDDR6/256-bit memory running at 14Gbps (reference card frequency).
This Gigabyte GeForce RTX 2070 GAMING OC 8G is overclocked to 1,740 MHz Boost Frequency in OC Mode (1,620 MHz Boost for the reference card). The WINDFORCE 3X Cooling System, fitted with three 80mm fans and four composite copper heat pipes, keeps you card running cool at whisper-level noise. The three fans use exclusive "Alternate Spinning", in which two side fans rotate at the same direction and the middle one at the opposite direction to reduce turbulence between adjacent fans. The semi-passive technology allows the fans to stop completely at low load or idle statues. The brand logo on top lights up in full spectrum of RGB colors and multiple effects, and can be synced with other devices enabled with RGB Fusion. A metal backplate gives a professional look and helps enhance the structure rigidity. Power indicators show whether the power delivery is good or bad. On top of these all, this card is built using Ultra Durable components, guaranteeing unbeatable quality, reliability and durability you can count on in extreme gaming.
REAL-TIME RAY TRACING IN GAMES
Ray tracing is the definitive solution for lifelike lighting, reflections, and shadows, offering a level of realism far beyond what's possible using traditional rendering techniques. NVIDIA Turing™ is the first GPU capable of real-time ray tracing.

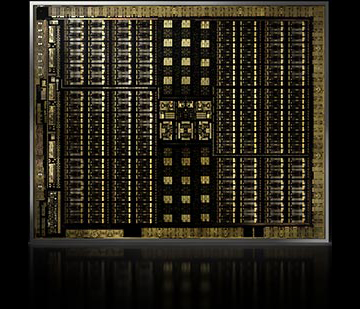

NVIDIA TURING ARCHITECTURE
This revolutionary architecture, combined with our all-new GeForce® RTX platform, fuses together real-time ray tracing, artificial intelligence, and programmable shading. You've never created and enjoyed games like this before.
Performance
GeForce RTX gaming GPUs come loaded with next-generation GDDR6 memory, support for DirectX 12 features, and more. This is graphics reinvented.
Game Ready Drivers
Get the highest levels of performance, and the smoothest experience possible, from the moment you start playing.
Breakthrough Gaming Technologies
Get the latest NVIDIA GameWorks™ technologies for smooth gameplay, cinematic experiences, and revolutionary 360-degree image capture-even in VR. Plus, get the performance to drive the latest displays, including VR, ultra-high-resolution, and multiple monitors.
VR Ready
Experience next-generation VR performance, the lowest latency, and plug-and-play compatibility with leading headsets-driven by NVIDIA VRWorks™ technologies. VR audio, physics, and haptics let you hear and feel every moment.

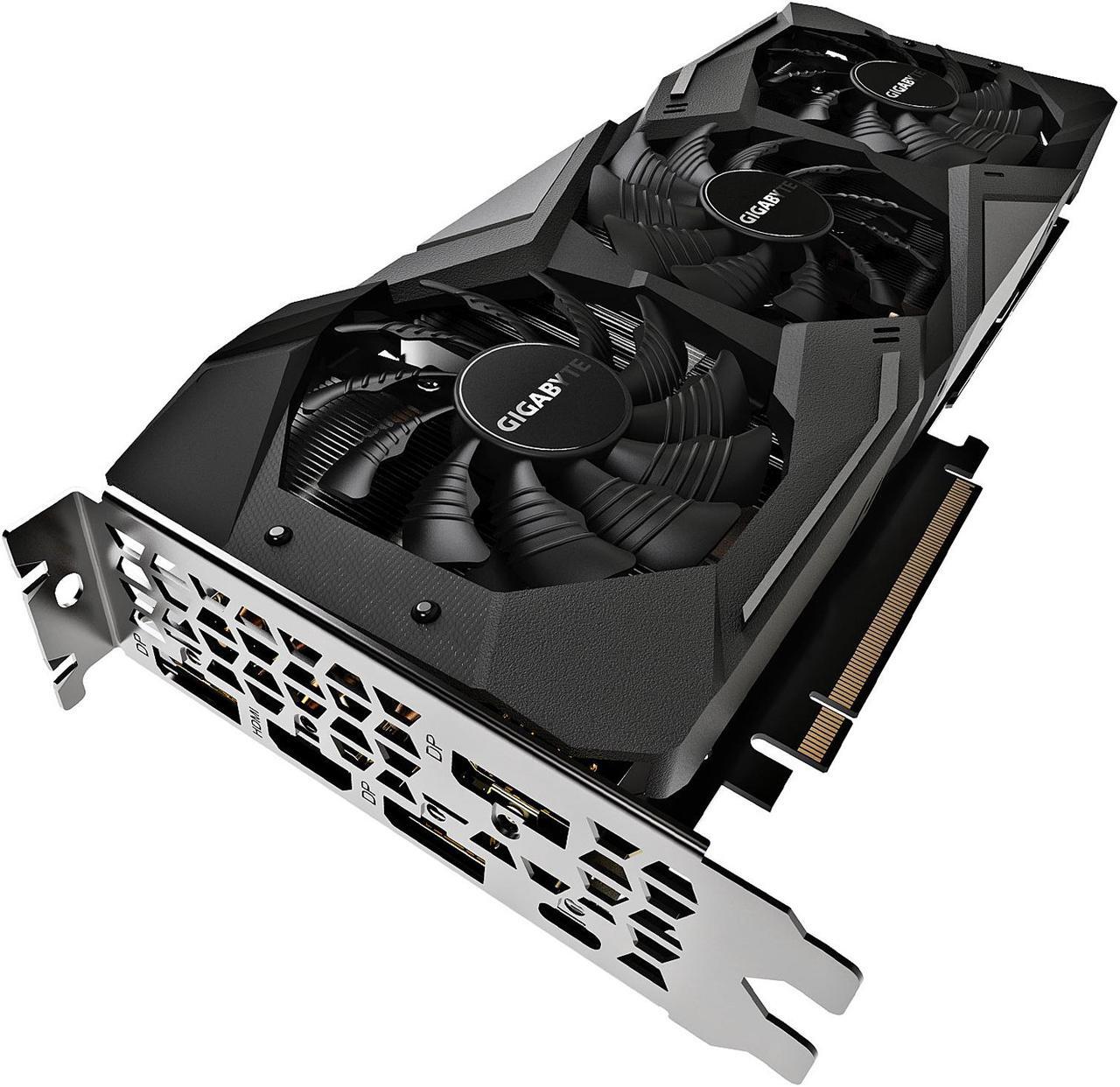

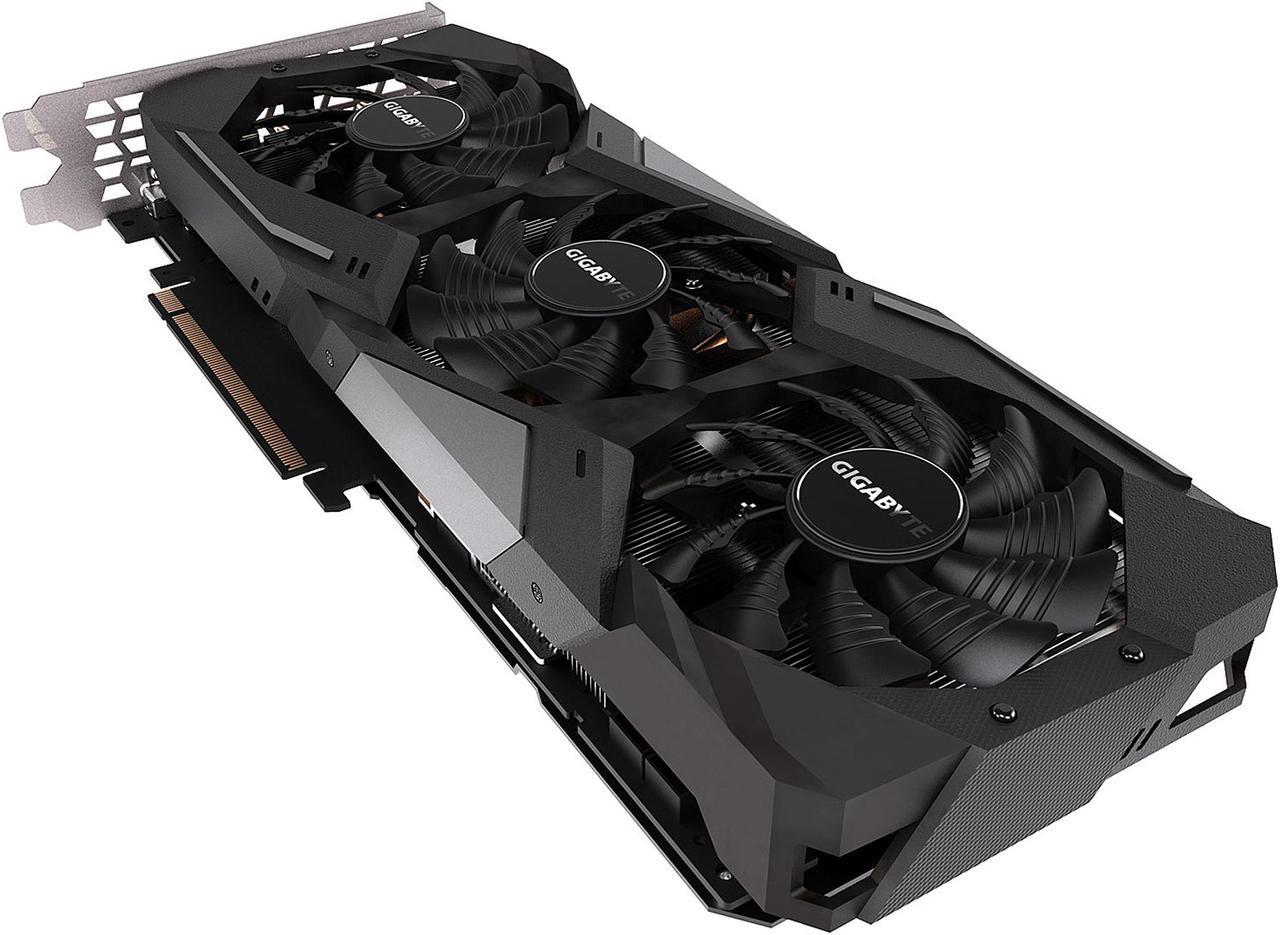

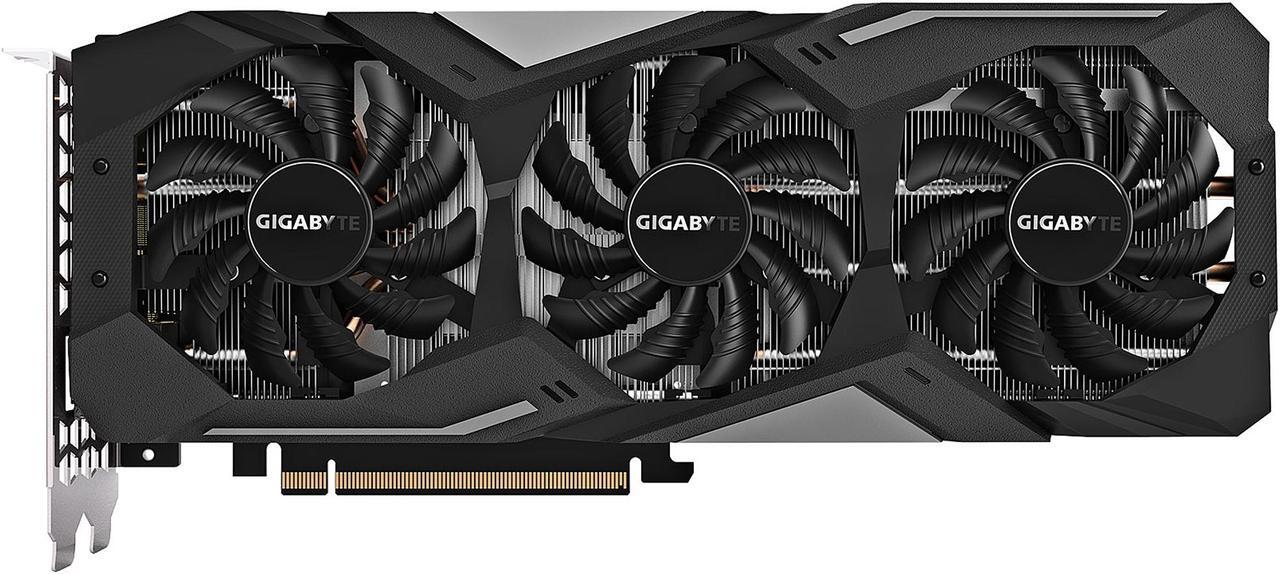

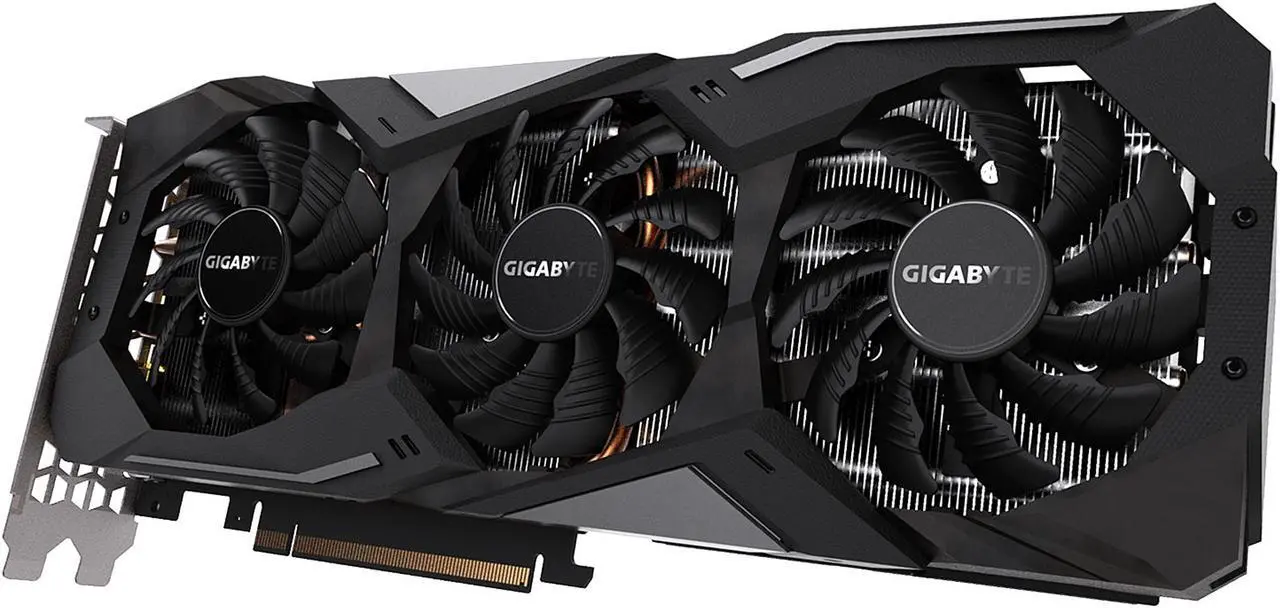

WINDFORCE 3X COOLING SYSTEM

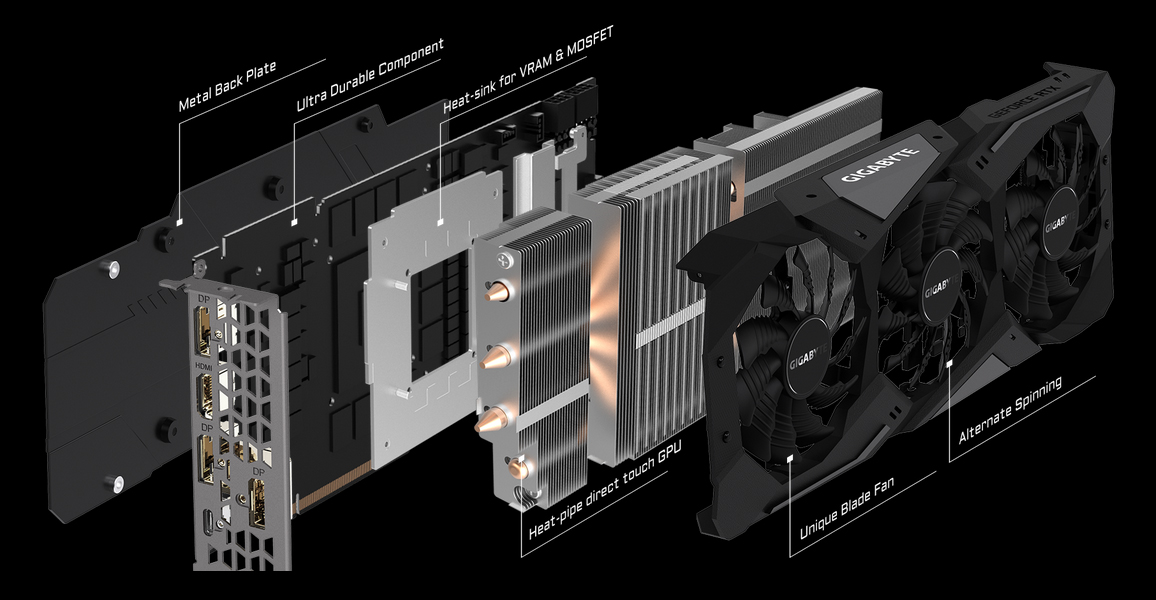

The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning fan, 4 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

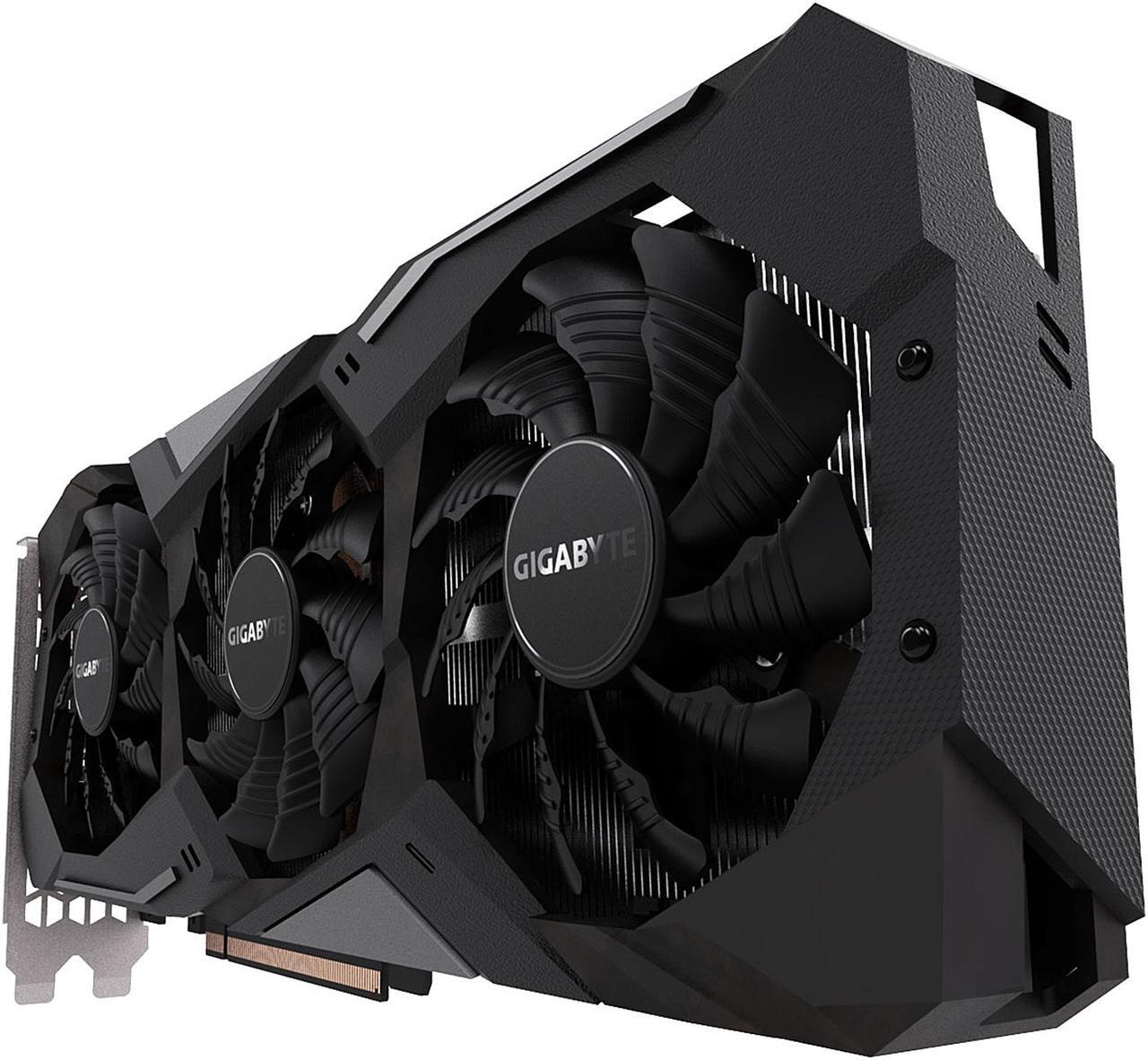

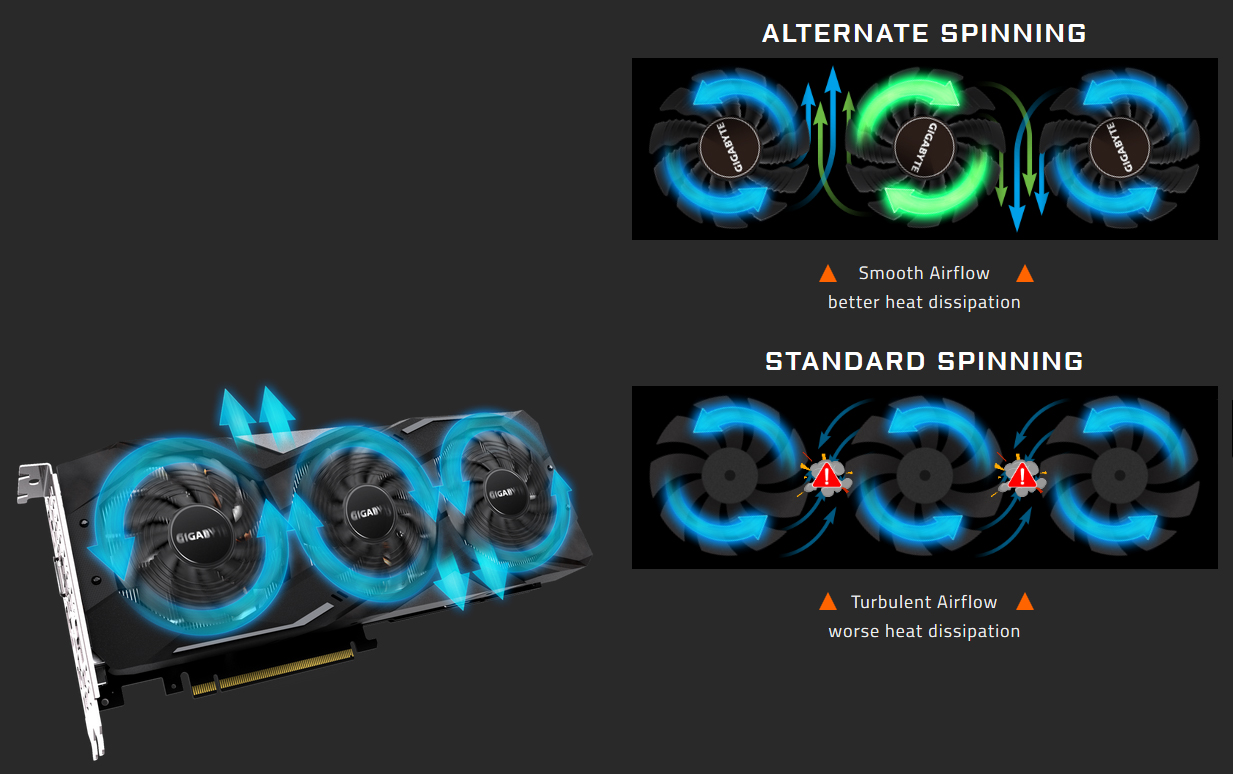

ALTERNATE SPINNING
The GIGABYTE patent “Alternate Spinning” is the only solution that can solve the turbulent airflow of three fans. The biggest problem with the three fans is turbulence. Since the fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the middle fan in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

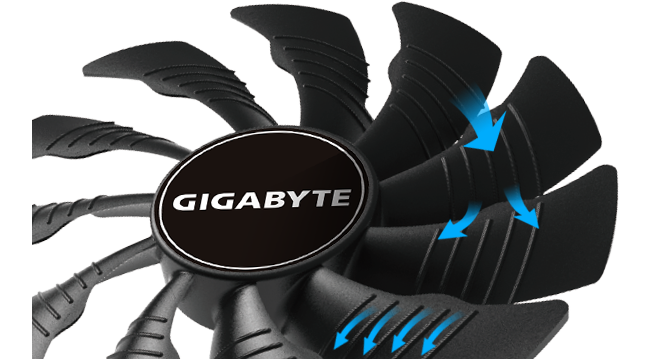

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

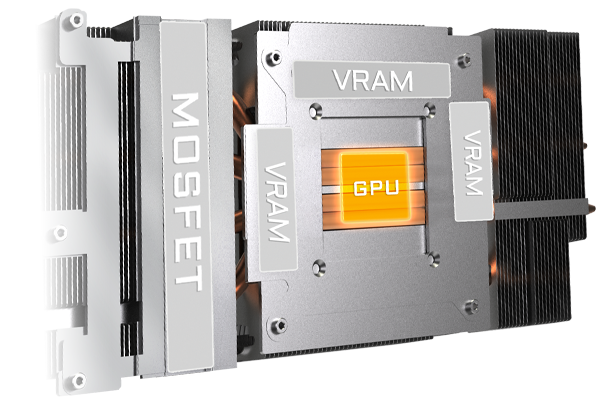

HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
COMPOSITE HEAT-PIPES
The composite heat-pipes combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.
Game in style

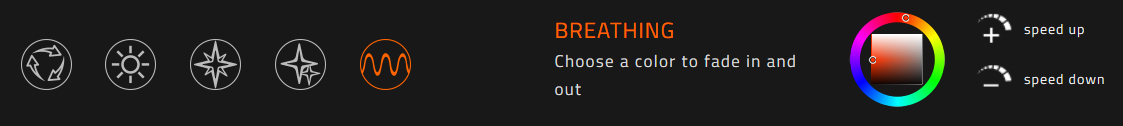

RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose the right scheme for your gaming rig with the AORUS engine.
BUILT STRONG
Extreme durability and overclocking

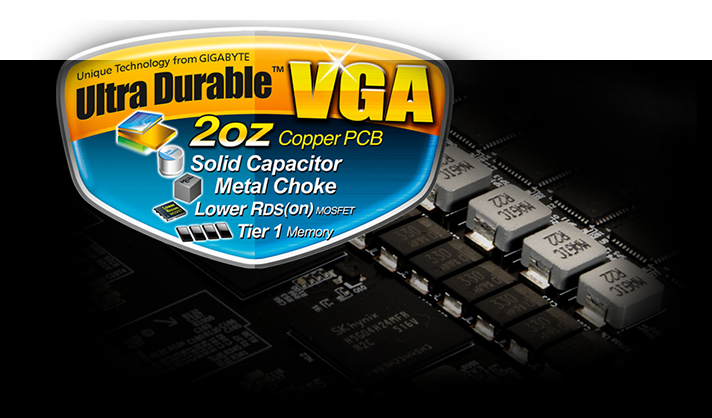

The graphics card uses the 8+2 power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.

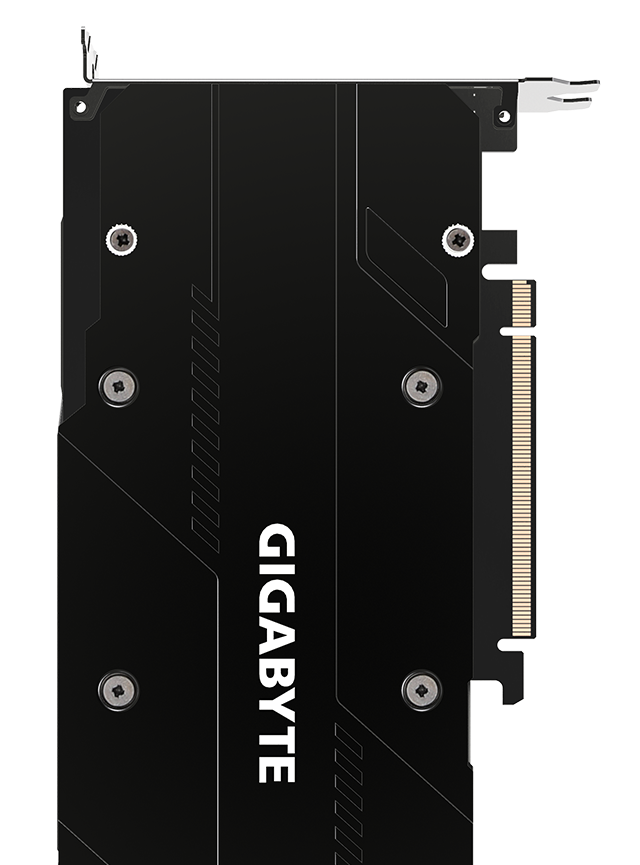

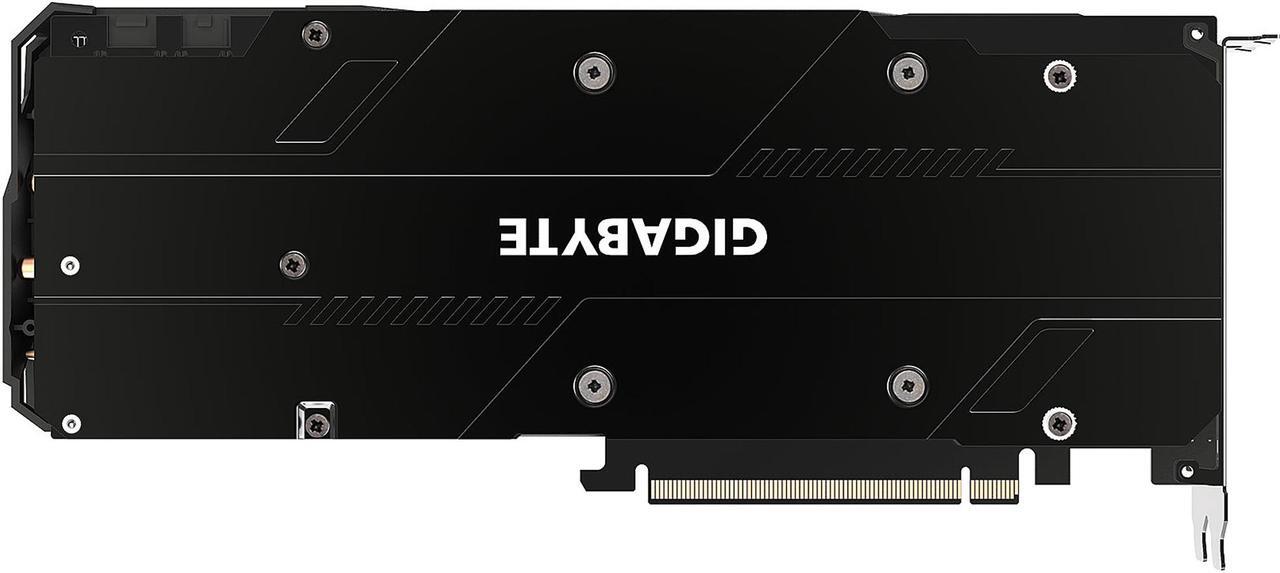

Protection Metal Back Plate
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

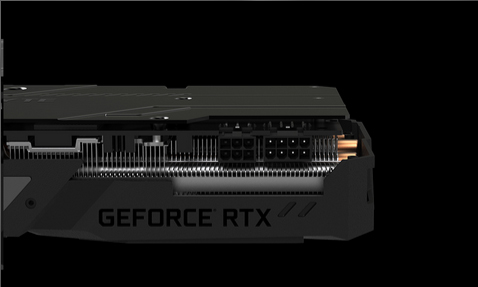

POWER INDICATORS
The smart power LED indicator alerts the player when any PCI-E power supply is abnormal.
Light on:
power cable disconnected
Light off:
stable power supply
Blinking:
abnormal power supply
IN TOTAL COMMAND
The interface and functionality of the software is subject to each model.

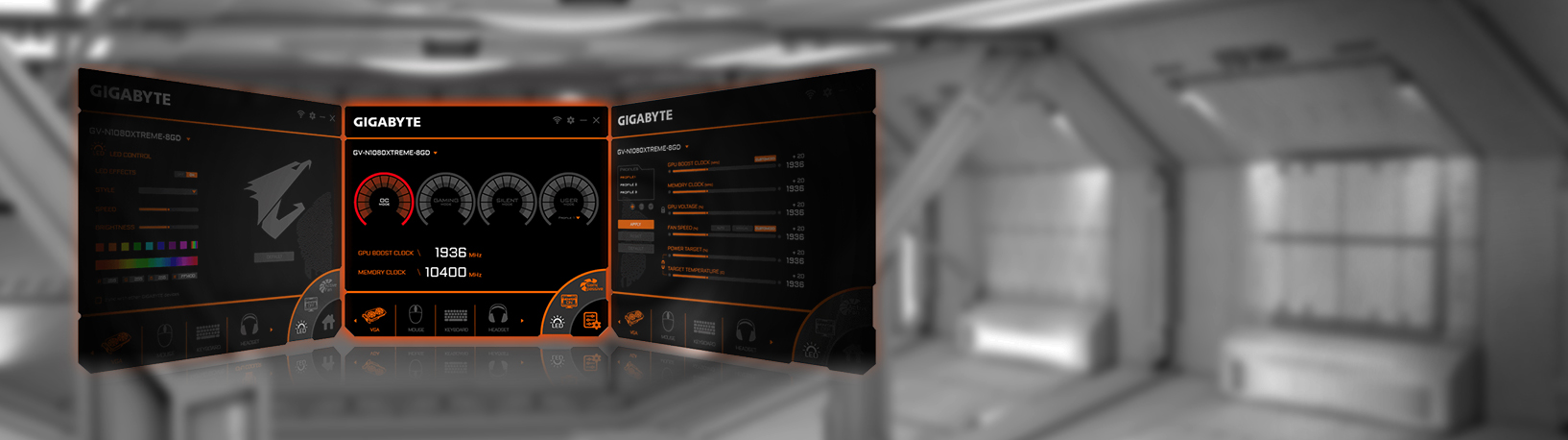

AORUS Engine
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.

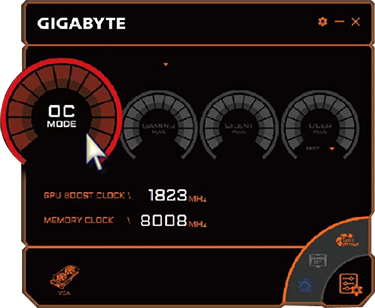

One-click Super Overclocking
Simply click on the AORUS engine and you can easily adjust the card to meet different requirements without any overclocking knowledge.
