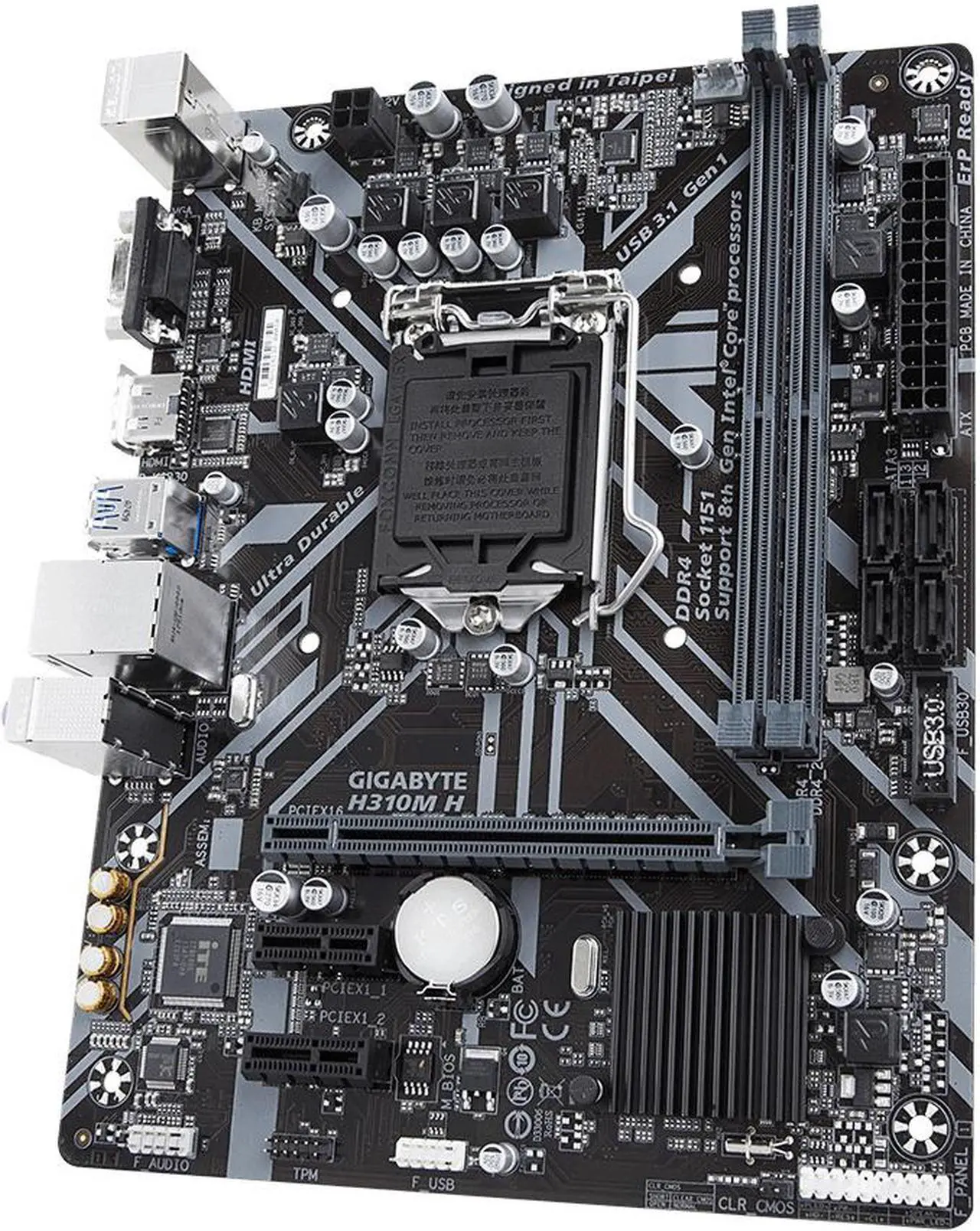

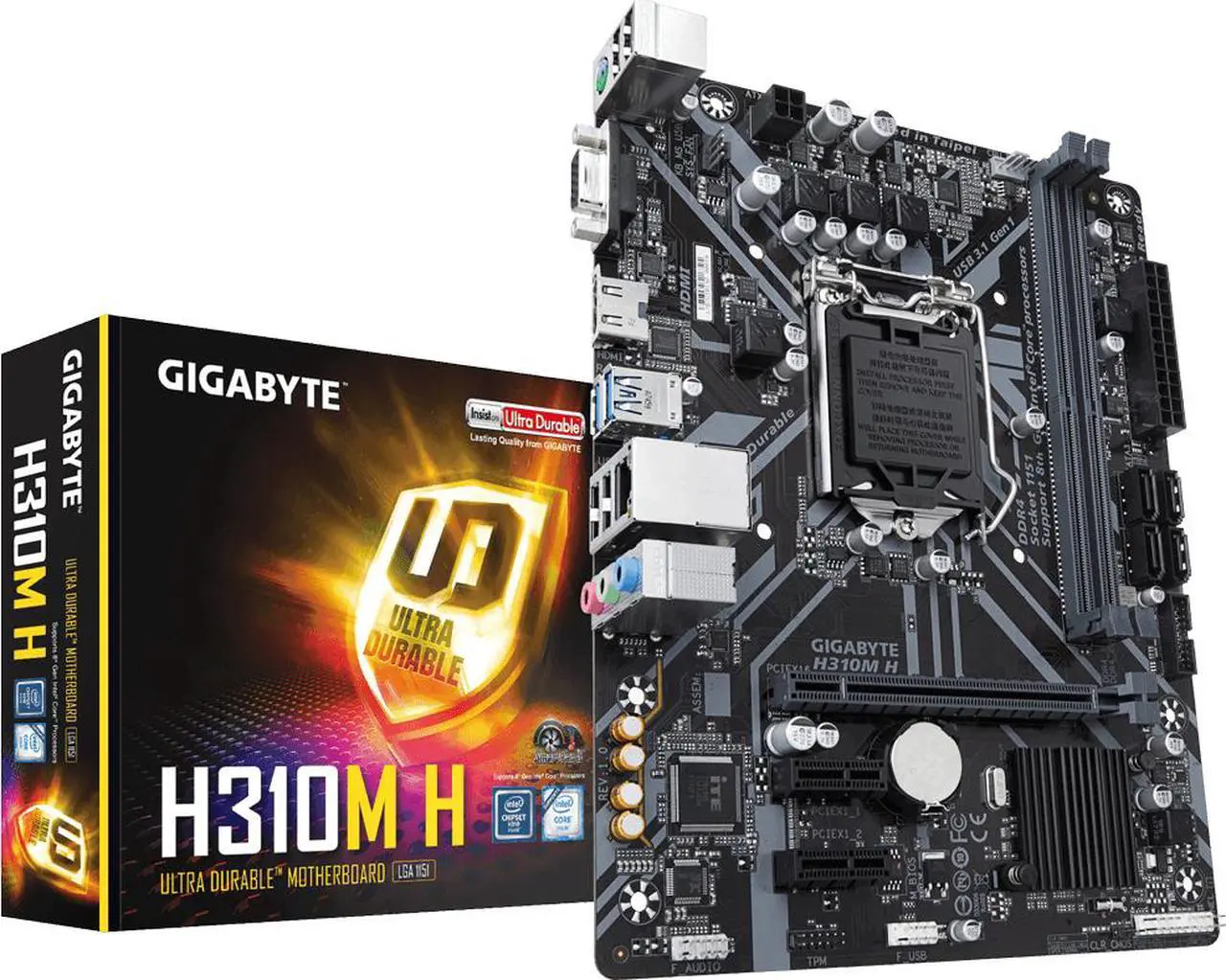

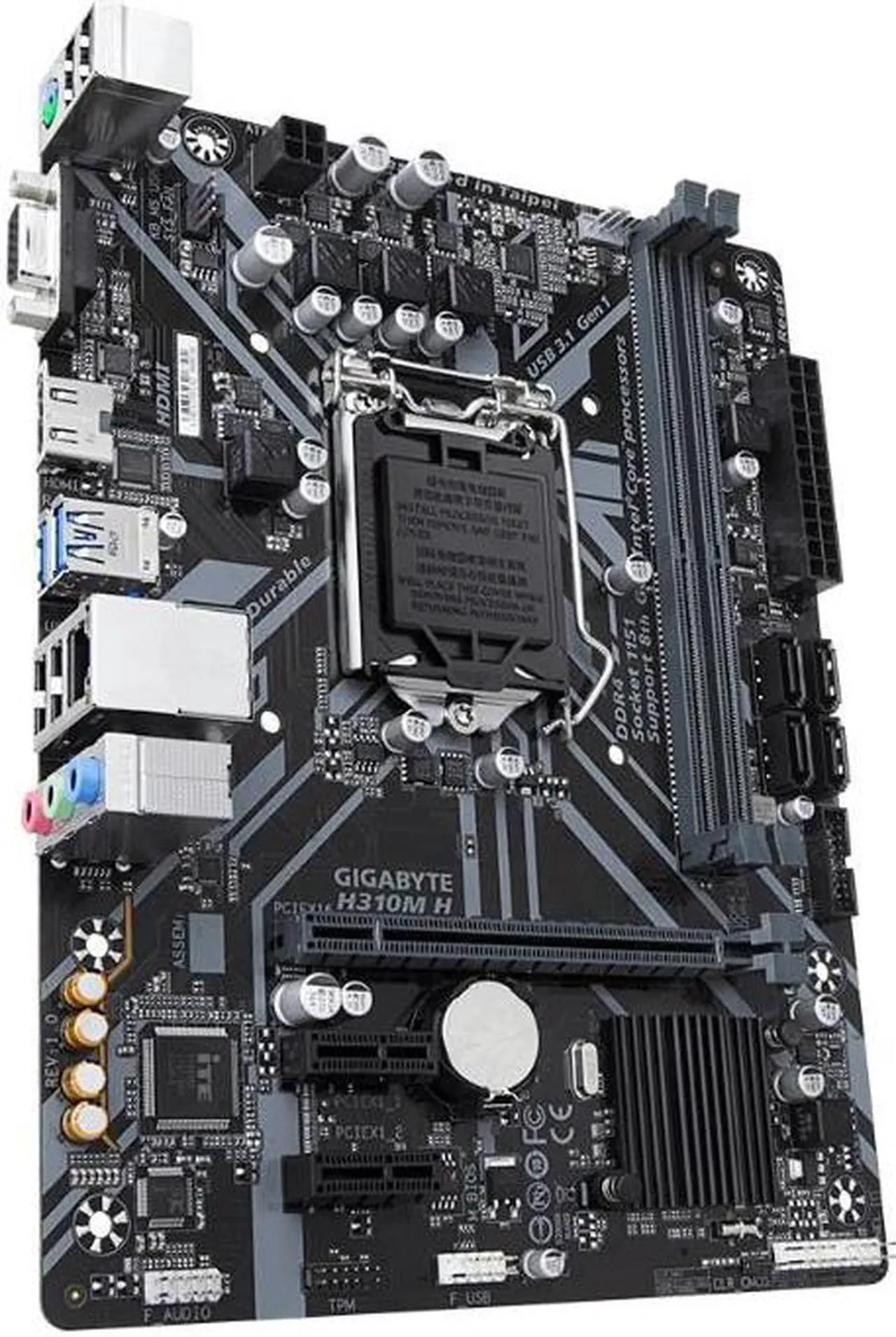

GIGABYTE H310M H LGA 1151 (300 Series) Intel H310 HDMI SATA 6Gb/s USB 3.1 Micro ATX Intel Motherboard
Used - Very Good Product Type
- Intel H310
- Support for 8th Generation Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors / Intel Pentium processors / Intel Celeron processors in the LGA1151 package
- * Not backward compatible with older generation of LGA 1151 CPUs
- DDR4 2666/ 2400/ 2133
- * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel Core i7/i5 processor.
+
+
Specs
Learn more about the GIGABYTE H310M H
| Brand | GIGABYTE |
|---|---|
| Model | H310M H |
| CPU Socket Type | LGA 1151 (300 Series) |
|---|---|
| CPU Type | Support for 8th Generation Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors / Intel Pentium processors / Intel Celeron processors in the LGA1151 package * Not backward compatible with older generation of LGA 1151 CPUs |
| Chipset | Intel H310 |
|---|
| Onboard Video Chipset | Integrated Graphics Processor - Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@30Hz * Support for HDMI 1.4 version and HDCP 2.2. Maximum shared memory of 1GB |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 2666/ 2400/ 2133 * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel Core i7/i5 processor. |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.) |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|
| Audio Chipset | Realtek ALC887 |
|---|---|
| Audio Channels | 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
| LAN Chipset | Realtek GbE LAN chip |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 3.1 Gen 2 Type-A / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | D-Sub |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| USB 3.1 | 2 x USB 3.1 Gen 1 ports |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 headers |
|---|---|
| Other Connectors | 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 8.9" x 6.9" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector |
| Features | I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS: 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge Platform Power Management Smart Backup Smart Keyboard Smart TimeLock Smart HUD System Information Viewer USB Blocker V-Tuner Support for Q-Flash Support for Xpress Install Bundle Software: Norton Internet Security (OEM version) Operating System: Support for Windows 10 64-bit |
|---|
| Date First Available | November 28, 2024 |
|---|
