    GIGABYTE H310N 2.0 LGA 1151 (300 Series) Intel H310 Mini ITX Intel Motherboard

    Used - Very Good Product Type
    • H310M H
    • H310M S2P
    • H310M S2P 2.0
    • H310N 2.0
    • Supports 9th and 8th Gen Intel Core Processors
    • Dual Channel Non-ECC Unbuffered DDR4
    • Ultra-Fast M.2 with PCIe Gen2 X4 & SATA interface
    • 8-Channel HD Audio with High Quality Audio Capacitors and Audio Noise Guard
    • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
    • CEC 2019 Ready, Save Power With a Simple Click
    • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
    • All new GIGABYTE APP Center, simple and easy use
    • Anti-Sulfur Resistors Design
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs

    Learn more about the GIGABYTE H310N 2.0

    Model
    Brand GIGABYTE
    Model H310N 2.0
    Supported CPU
    CPU Socket Type LGA 1151 (300 Series)
    CPU Type Support for 9th and 8th Generation Intel Core i9/i7/i5/i3 processors / Intel Pentium processors / Intel Celeron processors in the LGA1151 package
    * Not backward compatible with older generation of LGA 1151 CPUs
    Chipsets
    Chipset Intel H310
    Onboard Video
    Onboard Video Chipset Integrated Graphics Processor - Intel HD Graphics support:

    1 x D-Sub port, supporting a maximum resolution of 1920x1200@60Hz
    1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz
    * The DVI-D port does not support D-Sub connection by adapter.
    1 x HDMI port, supporting a maximum resolution of 4096x2160@30Hz
    * Support for HDMI 1.4 version and HDCP 2.2.

    Support for up to dual displays at the same time
    Maximum shared memory of 1GB
    Memory
    Number of Memory Slots 2x288pin (DDR4)
    Memory Standard DDR4 2666/ 2400/ 2133 MHz memory modules
    * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel Core i9/i7/i5 processor.
    Maximum Memory Supported 32GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 3.0 x16 1 x PCI Express x16 slot, running at x16
    (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
    Other Slots 1 x M.2 Socket 1 connector for the PCIe wireless communication module (M2_WIFI)
    Storage Devices
    Serial ATA (SATA) 4 x SATA 6Gb/s
    M.2 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support)
    Onboard Audio
    Audio Chipset Realtek ALC887
    Audio Channels 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    Onboard LAN
    LAN Chipset Realtek GbE LAN chip
    Max LAN Speed 1Gbps
    Rear Panel Ports
    Back I/O Ports 1 x PS/2 mouse port
    1 x PS/2 Keyboard port
    1 x D-Sub port
    1 x DVI-D port
    1 x HDMI port
    2 x USB 3.1 Gen 1 ports
    2 x USB 2.0/1.1 ports
    1 x RJ-45 port
    3 x audio jacks
    Internal I/O Connectors
    Onboard USB 1 x USB 3.1 Gen 1 header
    1 x USB 2.0/1.1 header
    Other Connectors 1 x CPU fan header
    1 x system fan header
    1 x front panel header
    1 x front panel audio header
    1 x speaker header
    1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)
    1 x serial port header
    1 x Clear CMOS jumper
    Physical Spec
    Form Factor Mini ITX

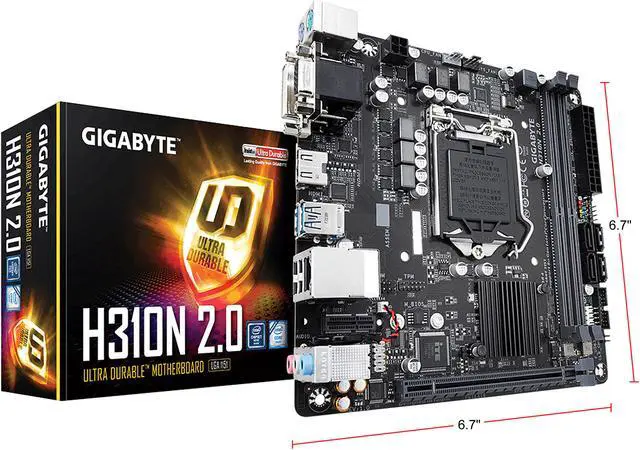

    Dimensions (W x L) 6.7" x 6.7"
    Power Pin 1 x 24-pin ATX main power connector
    1 x 4-pin ATX 12V power connector
    Features
    Features I/O Controller:
    iTE I/O Controller Chip

    H/W Monitoring:
    Voltage detection
    Temperature detection
    Fan speed detection
    Overheating warning
    Fan fail warning
    Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.

    BIOS:
    1 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Unique Features:
    Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    3D OSD
    @BIOS
    AutoGreen
    Cloud Station
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    Platform Power Management
    Smart Backup
    Smart Keyboard
    Smart TimeLock
    Smart HUD
    Smart Survey
    System Information Viewer
    USB Blocker
    Support for Q-Flash
    Support for Xpress Install

    Bundled Software:
    Norton Internet Security (OEM version)
    Realtek 8118 Gaming LAN Bandwidth Control Utility

    Operating System:
    Support for Windows 10 64-bit
    Additional Information
