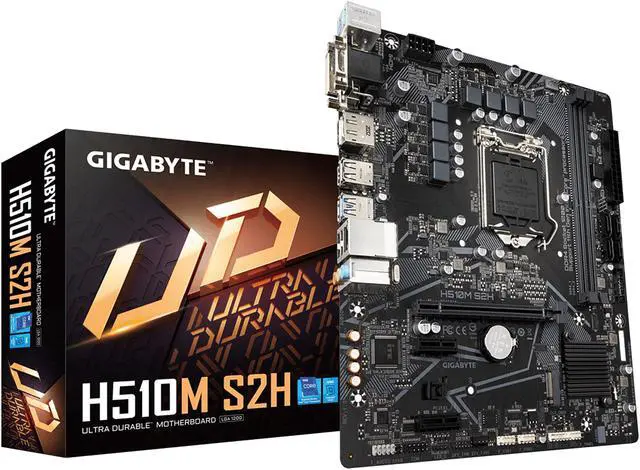

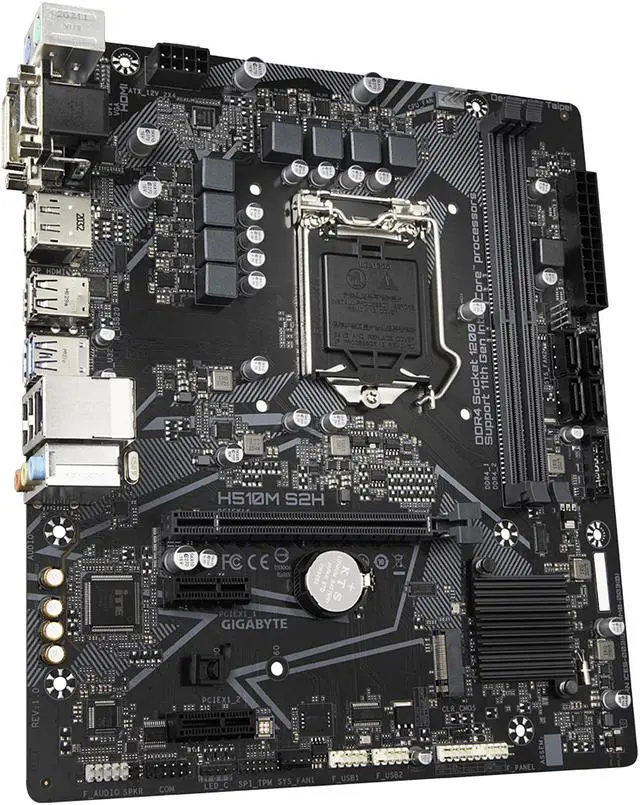

GIGABYTE H510M S2H (rev. 1.0) LGA 1200 Intel H510 Micro-ATX Motherboard with PCIe 4.0, USB 3.2 Gen1, Gaming GbE LAN
Used - Like New Product Type
- Intel H510
- Supports 11th / 10th Gen Intel Core processors
- Supports Intel Pentium / Celeron processors*
- * Limited to with 4MB Intel Smart Cache, Intel Celeron G5xx5 family.
- DDR4 3200 / 3000 / 2933 / 2666 / 2400 / 2133 (11th Generation Intel Core i9 / i7 / i5 processors)
- DDR4 2933 / 2666 / 2400 / 2133 (10th Generation Intel Core i9 / i7 processors)
- DDR4 2666 / 2400 / 2133 (10th Generation Intel Core i5 / i3 / Pentium / Celeron processors)
+
+
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE H510M S2H (rev. 1.0)
| Brand | GIGABYTE |
|---|---|
| Model | H510M S2H (rev. 1.0) |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports 11th / 10th Gen Intel Core processors Supports Intel Pentium / Celeron processors* * Limited to with 4MB Intel Smart Cache, Intel Celeron G5xx5 family. |
| Chipset | Intel H510 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 3200 / 3000 / 2933 / 2666 / 2400 / 2133 (11th Generation Intel Core i9 / i7 / i5 processors) DDR4 2933 / 2666 / 2400 / 2133 (10th Generation Intel Core i9 / i7 processors) DDR4 2666 / 2400 / 2133 (10th Generation Intel Core i5 / i3 / Pentium / Celeron processors) |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16* * Actual support may vary by CPU. |
|---|---|
| PCI Express x1 | 2 x PCI Express 3.0 x1 |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) * The PCIEX1_1 slot shares bandwidth with the M.2 connector. When the PCIEX1_1 slot is populated, the M.2 connector supports up to PCIe 3.0 x2 SSD only. |
| Audio Chipset | Realtek Audio CODEC |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek GbE LAN chip |
|---|---|
| Max LAN Speed | 1Gbps |

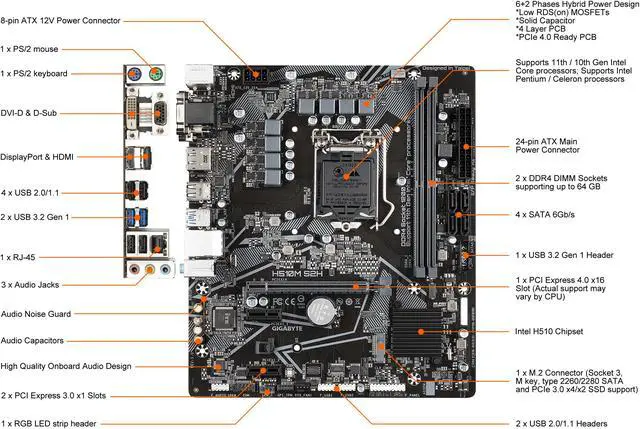

| Back I/O Ports | 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 1 x DisplayPorts 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
|---|
| Onboard USB | 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers |
|---|---|
| Other Connectors | 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper * All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. |
| Windows 11 | Supported |
|---|
| Form Factor | Micro ATX |
|---|---|
| LED Lighting | RGB |

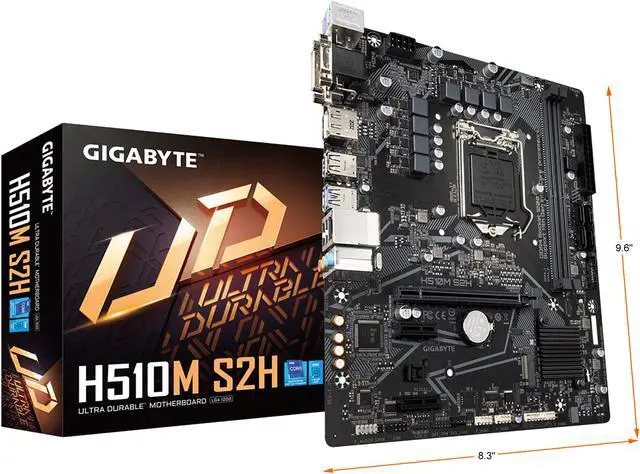

| Dimensions (W x L) | 9.6" x 8.3" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Features | I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install Bundled Software: Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility Operating System: Support for Windows 10 64-bit |
|---|
| First Listed on Newegg | April 28, 2025 |
|---|
