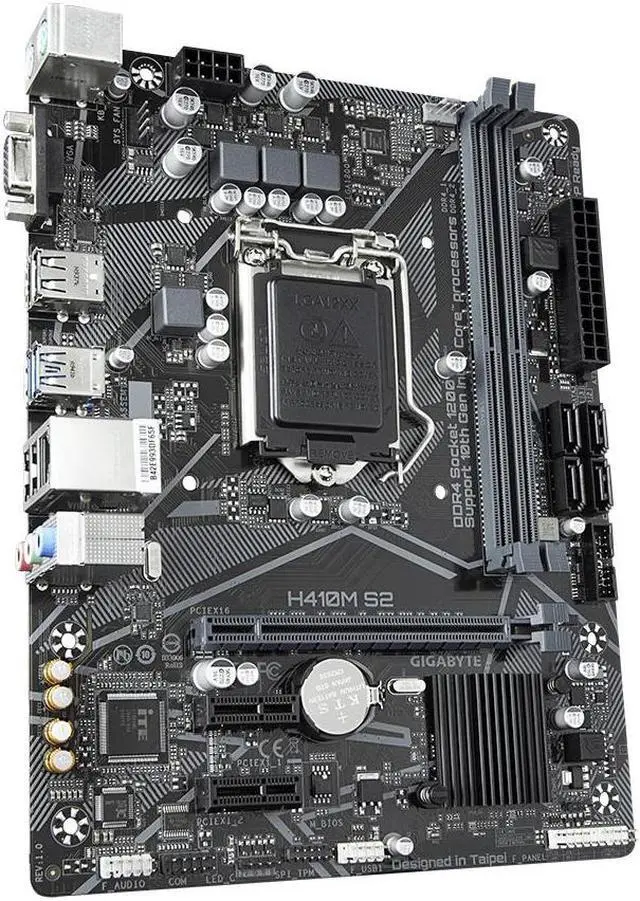

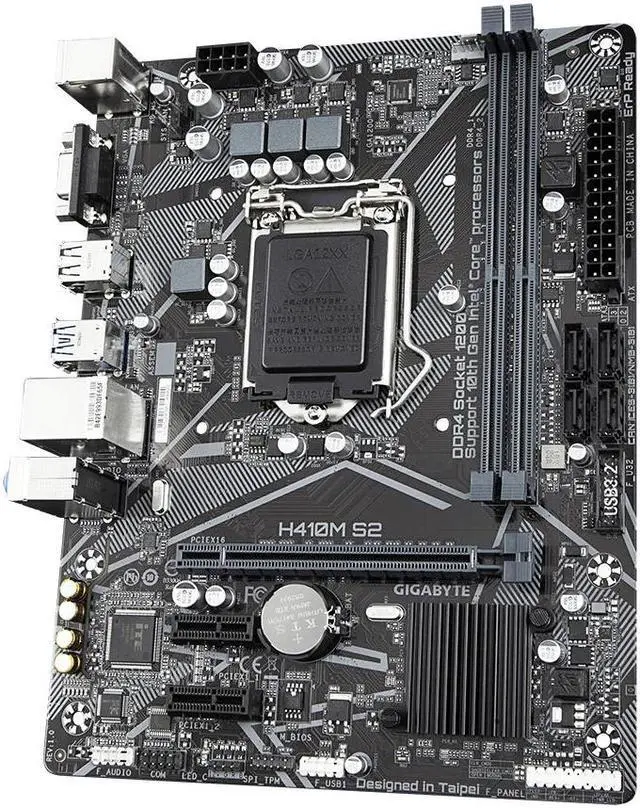

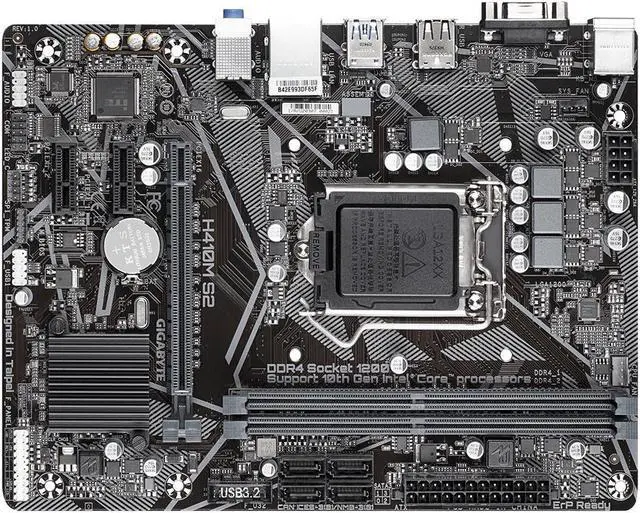

    GIGABYTE H410M S2 Durable Motherboard with GIGABYTE 8118 Gaming LAN, Anti-Sulfur Resistor, Smart Fan5

    REFURBISHED Product Type
    • Supports 10th Gen Intel® Core Processors
    • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
    • 8-Channel HD Audio with High Quality Audio Capacitors
    • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
    • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
    • All New GIGABYTE APP Center, Simple and Easy Use
    • Anti-Sulfur Resistors Design
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Support for 10th Generation Intel® Core i9 processors/Intel® Core i7 processors/Intel® Core i5 processors/Intel® Core i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
    L3 cache varies with CPU
    (Please refer "CPU Support List" for more information. )
    Chipset
    Intel® H410 Express Chipset
    Memory
    Intel® Core i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MHz memory modules
    Intel® Core i5/i3/Pentium®/Celeron® processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
    2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information. )
    Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
    1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    Maximum shared memory of 512 MB
    Audio
    Realtek® audio codec
    High Definition Audio
    2/4/ 5.1 / 7.1 -channel
    * To configure 7.1 -channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
    LAN
    Realtek® GbE LAN chip (1000/100 Mbit)
    Expansion Slots
    1 x PCI Express x16 slot, running at x16
    2 x PCI Express x1 slots
    (The PCI Express slots conform to PCI Express 3.0 standard. )
    Supports up to ASPM L 1.2 power management protocols.
    Storage Interface
    Chipset:
    4 x SATA 6Gb/s connectors
    M. 2 connectors support up to ASPM L 1.2 PCIe power management protocols.
    USB
    Chipset:
    4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    6 x USB 2.0 / 1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    Internal I/O Connectors
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    4 x SATA 6Gb/s connectors
    1 x CPU fan header
    1 x system fan header
    1 x RGB LED strip header
    1 x front panel header
    1 x front panel audio header
    1 x USB 3.2 Gen 1 header
    1 x USB 2.0 / 1.1 header
    1 x Trusted Platform Module header (For the GC-TPM 2.0 SPI/GC-TPM 2.0 SPI 2.0 module only)
    1 x serial port header
    1 x Clear CMOS jumper
