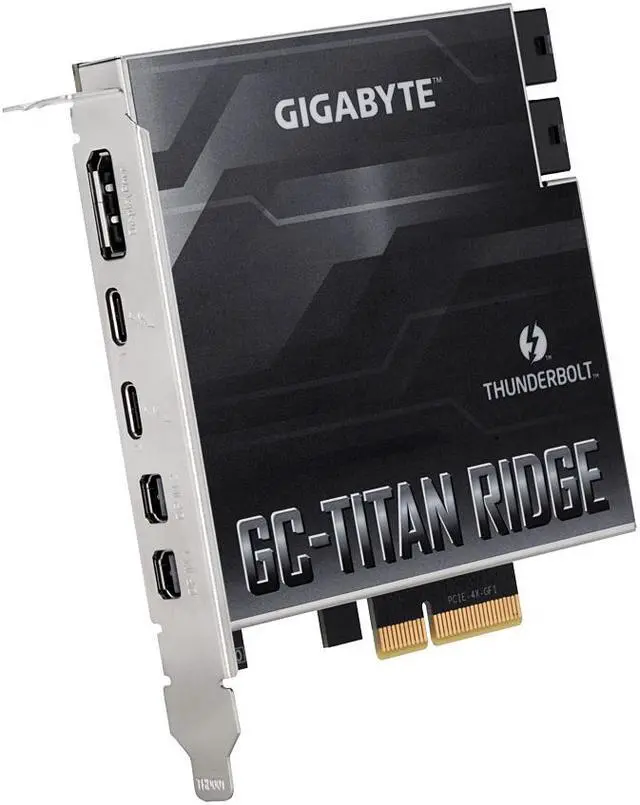

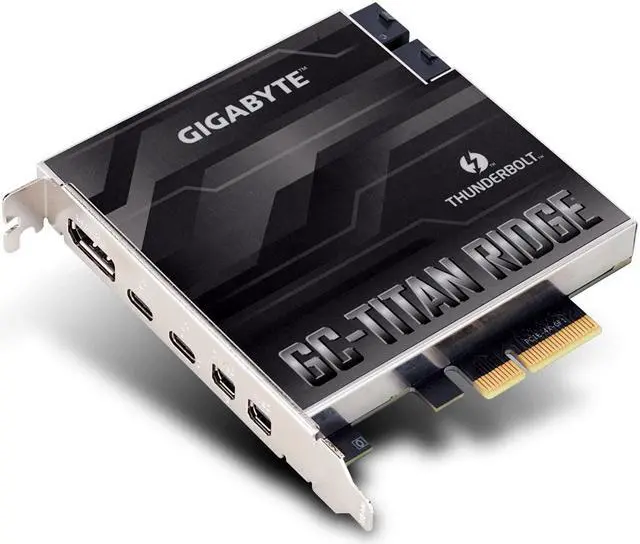

Gigabyte GC-TITAN RIDGE (rev. 1.0) Thunderbolt 3 PCIe Expansion Card USB Type-C Fit Z390/H370/B360-series
See more "thunderbolt 3 card"
In stock.
Ships from China.
Most customers receive within 5-32 days.
Overview
Specs
Reviews

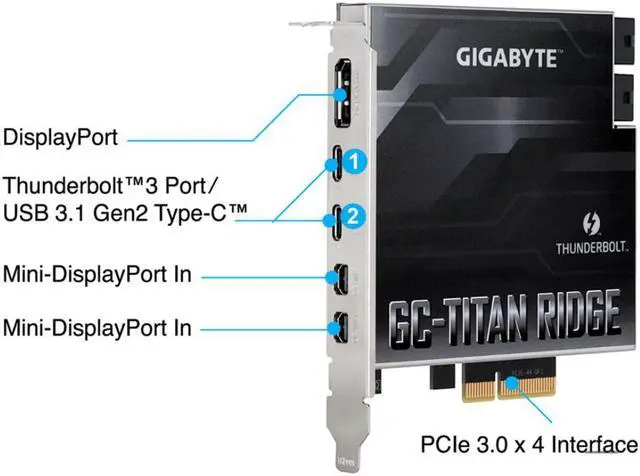

Intel® Thunderbolt™ 3 Certified add-in card Intel® DSL7540 Thunderbolt™ 3 controller Dual Thunderbolt™ 3 Ports (USB Type-C™) Max Bandwidth 40 Gb/s DisplayPort 1.4 Capable with 8K Video Throughout Daisy-chain up to 12 Devices (6 devices per port) Support PD 3.0 standard (up to 100W) 40 Gb/s Intel® Thunderbolt™ 3 Certified Add-in Card The GC-TITAN RIDGE offers an easy way to upgrade GIGABYTE Thunderbolt™ ready motherboards with the new and faster Thunderbolt™ 3 connectivity without having to upgrade to a whole new system.
Port 1: Support 5V/3A 9V/3A 15V/3A 20V/5A

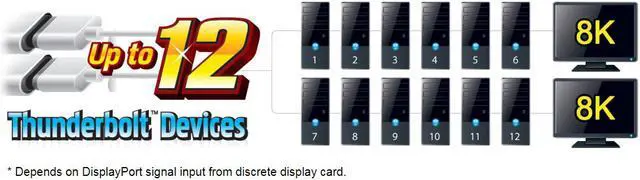

Power Delivery Spec Port 2: Support 5V/3A 9V/3A Power Delivery Spec Dual Thunderbolt™ 3 – The fastest 40Gb/s single-wire connection Delivers speeds of up to 40Gb/s-- that's 2 times faster than Thunderbolt™ 2 and 8 times faster than USB3. Thunderbolt™ 3 provides the fastest connection to any dock, display and device. A single port can daisy-chain up to 6 Thunderbolt devices without an additional hub or switch. Daisy-chain Multiple Devices Support for DisplayPort 1.4 makes Thunderbolt™ 3 a must have for any enthusiast. GIGABYTE GC-TITAN RIDGE support two displays in 8K* resolution at 60 FPS. In addition, Thunderbolt™ 3 over USB Type-C™ has revolutionary industry-first features such as Power Delivery 3.0, and the ability to daisy-chain up to 12 devices thanks to the dual USB Type-C™ ports. Motherboards with GC-TITAN RIDGE support The GC-TITAN RIDGE is compatible with GIGABYTE motherboards of that include a
Thunderbolt™ header on below: Intel
platform: Z390/H370/B360-series * Supported status may vary depending on motherboard specifications. * Support for Windows 10 64-bit with RS3 or later.
Port 1: Support 5V/3A 9V/3A 15V/3A 20V/5A
Power Delivery Spec Port 2: Support 5V/3A 9V/3A Power Delivery Spec Dual Thunderbolt™ 3 – The fastest 40Gb/s single-wire connection Delivers speeds of up to 40Gb/s-- that's 2 times faster than Thunderbolt™ 2 and 8 times faster than USB3. Thunderbolt™ 3 provides the fastest connection to any dock, display and device. A single port can daisy-chain up to 6 Thunderbolt devices without an additional hub or switch. Daisy-chain Multiple Devices Support for DisplayPort 1.4 makes Thunderbolt™ 3 a must have for any enthusiast. GIGABYTE GC-TITAN RIDGE support two displays in 8K* resolution at 60 FPS. In addition, Thunderbolt™ 3 over USB Type-C™ has revolutionary industry-first features such as Power Delivery 3.0, and the ability to daisy-chain up to 12 devices thanks to the dual USB Type-C™ ports. Motherboards with GC-TITAN RIDGE support The GC-TITAN RIDGE is compatible with GIGABYTE motherboards of that include a
Thunderbolt™ header on below: Intel
platform: Z390/H370/B360-series * Supported status may vary depending on motherboard specifications. * Support for Windows 10 64-bit with RS3 or later.
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by FLY Return Policy
Manufacturer Contact Info
- Manufacturer Website
- Support Phone: 1-626-854-9338
- Support Website
- View other products from GIGABYTE
LOADING...
LOADING...
Pros: Thunderbolt 3 Device works - Using Atech Flash BlackJet Cinema Dock. Card uses latest Intel DSL7540 Thunderbolt 3 controller with latest Firmware. Driver on Gigabyte website, same as driver on CD. Using on Gigabyte X399 AORUS Xtreme & Gigabyte X399 Designare Ex. Those are the only (2) X399 Motherboards with THB_C Header aka GPIO 5 Pin Header.
Cons: The current Thunderbolt Enumeration Mode - Firmware only supports native mode and not legacy mode. No Bios support; The GPIO 5 Pin Header seems to be useless without Bios support. Although Intel says, backwards compatible, Gigabyte has yet to get that part right in a Firmware Update for legacy Thunderbolt 1 & 2 support. Even the TI Forums regarding the TI Power Delivery controller has lots of questions where Vendors are asking how and TI says contact Intel about how to make the Intel technology part work. We tried using a Startech adapter for Thunderbolt 2 so we could access our Blackmagic HyperDeck Studio Pro 2 SSD Recorder. We can see the Device but we cannot access the SSD within the Device. Bummer.
Overall Review: Recommend? Yes. Bleeding Edge Technology! However, since USB4 is announced, this will all soon be a mute point. USB-IF claims USB4 will incorporate Thunderbolt 3 support with backward compatibility for Thunderbolt 1 & 2 and all prior USB devices. A lofty goal. We will see how that plays out. On an X399 Threadripper - Yes! X370 Ryzen - No go. We tried a Titan Ridge on a MSI X370 XPOWER Gaming Titanium Motherboard + Ryzen 1800X CPU - No Boot in x8 Slot 2 to CPU. Tried in x4 Slot to chipset, erratic behavior. System Booted into Windows but screen flickered and resolution was jumping. Messy. x16 Video card (AMD WX7100) did not like running at x8. That's hopefully, all going to change with USB4. USB4 will still require 4 PCIe 3.0 Lanes. Which translates to a x4 PCIe USB4 I/O card. In the mean time... For anyone wanting to try this card, some Users have been able to Jump GPIO Pins 3 to 5. We tried that with the X370 to no avail. Not brave enough (success), or dumb enough (fail), to try it on anything else yet. Your results may vary.
