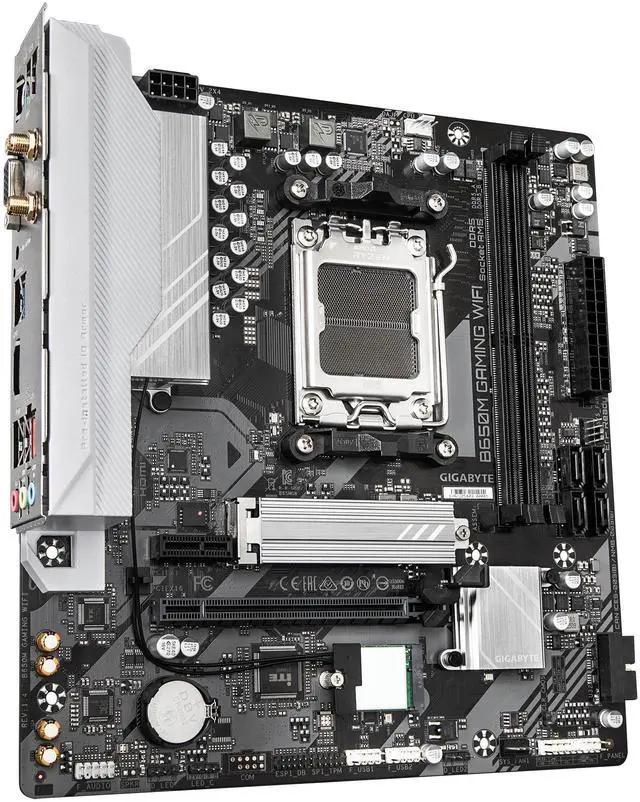

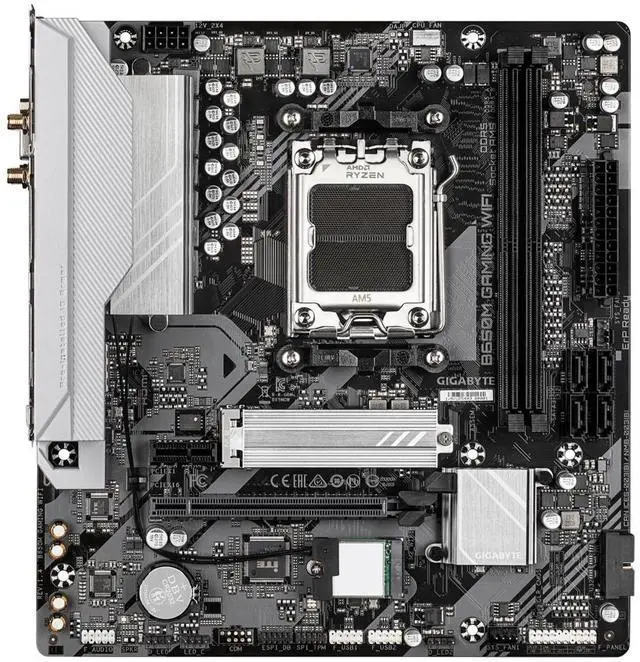

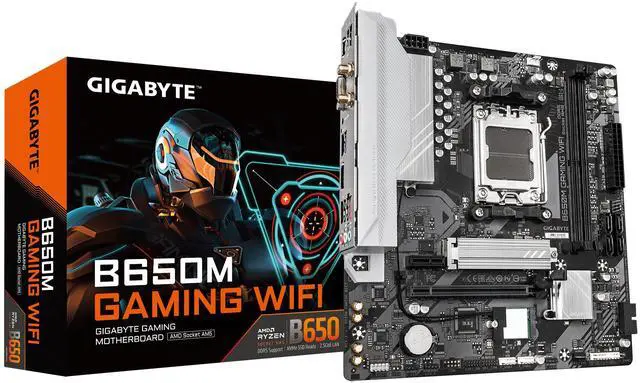

GIGABYTE B650M GAMING WIFI AM5 LGA 1718 AMD B650 M-ATX Motherboard DDR5, PCIe 4.0 M.2, PCIe 4.0, 2.5GbE LAN

Central Processing Unit (CPU)

AMD AM5 socket, supports:

AMD Ryzen 7000 series processors / AMD Ryzen 8000 / Ryzen 9000 series processors

(Please refer to the Gigabyte website for a list of supported processors)

Chipset

AMD B650

Memory

Supports DDR5 7600(OC) / 7200(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s

Two DDR5 DIMM slots, supporting up to 96 GB (48 GB capacity per slot)

Supports dual-channel memory technology

Supports non-ECC un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 memory

Supports AMD Extended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) Memory

(CPU and memory configuration may affect supported memory types, speeds, and the number of DRAM modules. Please check the Gigabyte website for a list of supported memory modules.)

Display Features

Based on processors supporting AMD Radeon graphics chips:

- One VGA port, supporting resolutions up to 1920x1200@60 Hz

- One HDMI port, supporting resolutions up to 4096x2160@60 Hz

*Supports HDMI 2.1 and HDCP 2.3.

**Supports interfaces compatible with the native HDMI 2.1 TMDS specification.

(Supported display specifications will vary depending on the CPU used.)

Audio

Integrated Realtek® audio chip

Supports High Definition Audio

Supports 2/4/5.1/7.1-channel

*Audio jack functionality can be redefined via audio software. To enable 7.1-channel audio output, please access the audio software settings.

Networking

Integrated Realtek® 2.5GbE network chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication Module

Realtek® Wi-Fi RTL8821CE

- WIFI 802.11a, b, g, n, ac, supports 2.4/5 GHz dual-band wireless

- BLUETOOTH 5.0

- Supports 11ac wireless communication standard

(Actual transmission speed will vary depending on the usage environment and equipment.)

Expansion Slots

One PCI-E x16 slot (PCIe x16), based on CPU:

- AMD Ryzen 7000 series / Ryzen 9000 series processors support PCIe 4.0 x16 operating specifications

- AMD Ryzen 8000 series - Phoenix 1 processors support PCIe 4.0 x8 operating specifications

- AMD Ryzen 8000 Phoenix 2 series processors support PCIe 4.0 x4 operating specifications

* To achieve optimal graphics card performance, if installing only one PCI-E graphics card, ensure it is installed in a PCIe x16 slot.

Chipset-based:

- 1 PCI-E x1 slot, supporting PCIe 3.0 and x1 specifications

Storage Device Interfaces

1 M.2 slot, CPU-based, supporting Socket 3, M-key, type 2580/2280 SSDs:

- AMD Ryzen 7000 Series/Ryzen 9000 Series processors support PCIe 4.0 x4/x2 SSDs

- AMD Ryzen 8000 Series - Phoenix 1 processors support PCIe 4.0 x4/x2 SSDs

- AMD Ryzen 8000 Series - Phoenix 2 processors support PCIe 4.0 x4/x2 SSDs

4 SATA 3.0 ports

NVMe SSDs support RAID 0, RAID 1, and RAID 10 configurations

SATA hard drives support RAID 0, RAID 1, and RAID 10 configurations

USB

CPU-based:

-- 2 USB 3.2 Gen 1 ports in the rear I/O panel

- 1 USB 2.0/1.1 port in the rear I/O panel

Based on chipset:

- 2 USB 3.2 Gen 1 ports, requiring connection via ribbon cable from the internal USB socket on the motherboard

- 5 USB 2.0/1.1 ports (3 in the rear I/O panel, 2 requiring connection via ribbon cable from the internal USB socket on the motherboard)

Based on chipset + USB 2.0 Hub:

- 2 USB 2.0/1.1 ports, requiring connection via ribbon cable from the internal USB socket on the motherboard

Internal Sockets

1 24-pin motherboard power connector

1 8-pin CPU power connector

1 CPU fan connector

2 system fan connectors

2 programmable LED strip power connectors

1 RGB LED strip power connector

1 M.2 SSD slot

4 SATA 3.0 ports

1 motherboard jumper connector

1 front audio connector

1 USB 3.2 Gen 1 connector

2 USB 2.0/1.1 Socket

1 Security Encryption Module Socket (for use with GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 only)

1 Clear CMOS Data Pin

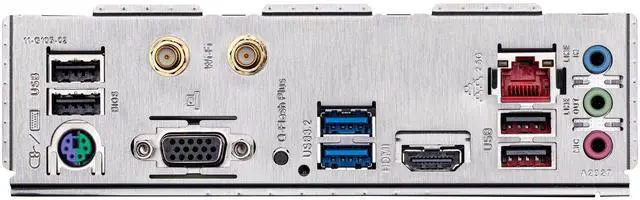

Rear Panel Device Connection Socket

4 USB 2.0/1.1 Ports

1 PS/2 Keyboard/Mouse Port

1 VGA Port (Note)

1 Q-Flash Plus Button

2 USB 3.2 Gen 1 Ports

1 HDMI Port

1 RJ-45 Ethernet Port

3 Audio Ports

(Note) Actual support depends on the CPU.

I/O Controller

Integrated iTE® I/O Control Chip

Hardware Monitoring

Voltage Detection

Temperature Detection

Fan Speed Detection

Water Cooling System Flow Rate Detection

Fan Failure Warning

Intelligent Fan Control

* Intelligent fan control functionality may vary depending on the cooling fan.
