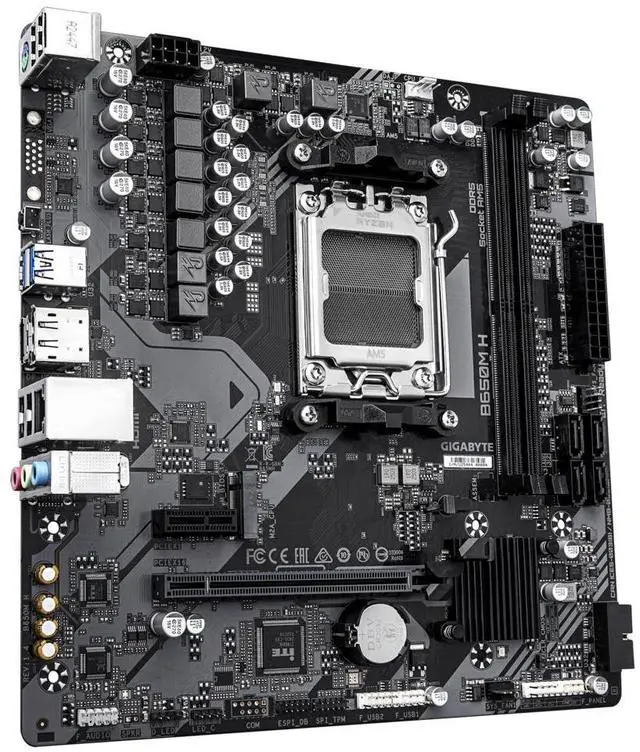

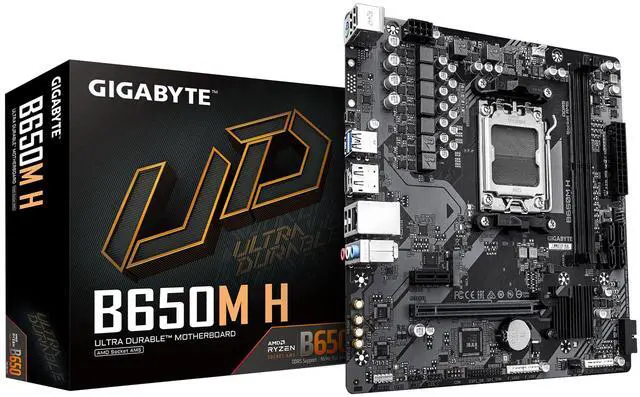

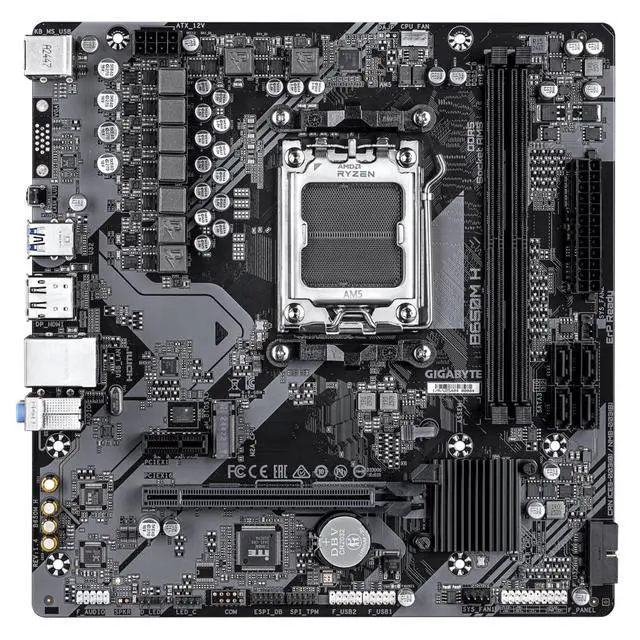

GIGABYTE B650M H AM5 LGA 1718 AMD B650 M-ATX Motherboard DDR5, PCIe 4.0 M.2, Q-Flash Plus

Central processing unit (CPU)

AMD AM5 socket, supports:

AMD Ryzen 7000/Ryzen 8000/Ryzen 9000 series processors

(Please go to GIGABYTE's website for the list of supported processors)

chipset

AMD B650

memory

Support DDR5 7200(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s

2 DDR5 DIMM slots, supporting up to 96 GB (single slot supports 48 GB capacity)

Support dual channel memory technology

Support non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory

Supports AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme MemoryProfile (XMP) memory

(CPU and memory configurations may affect the supported memory type, speed, and number of DRAM modules. Please go to the GIGABYTE website to check the memory module support list.)

Display function

Based on processors supporting AMD Radeon graphics chips:

- 1 DP interface, supporting resolutions up to 3840x2160@144 Hz

* Support DP version 1.4.

- 1 HDMI port, supporting resolutions up to 4096x2160@60 Hz

* Supports HDMI version 2.1 and HDCP 2.3.

** Supports interfaces compatible with native HDMI 2.1 TMDS specification.

(The specifications supported by the display function will vary depending on the CPU used.)

Sound effects

Integrated Realtek® audio chip

Support High Definition Audio

Support 2/4/5.1/7.1-channel

* The audio socket function can be redefined through the audio software. To enable 7.1-channel audio output, please enter the audio software settings.

network

Integrated Realtek® GbE network chip (1 Gbps/100 Mbps/10 Mbps)

Expansion slot

1 x PCI-E x16 slot (PCIEX16), based on CPU:

- AMD Ryzen 7000 series processors support PCIe 4.0 x16 operating specifications

- AMD Ryzen 8000 Series-Phoenix 1 processor supports PCIe 4.0 x8 operating specifications

- AMD Ryzen 8000 Series-Phoenix 2 processors support PCIe 4.0 x4 operating specifications

*PCIEX16 slot can only support graphics cards or NVMe SSD. If you are only installing one graphics card, make sure it is installed in the PCIEX16 slot.

Based on chipset:

- 1 PCI-E x1 slot, supports PCIe 3.0 and x1 operating specifications (PCIEX1)

storage device interface

1 x M.2 connector (M2A_CPU), based on CPU, supports Socket 3, M key, type 2580/2280 SSDs:

- AMD Ryzen 7000 series processors support PCIe 4.0 x4/x2 SSDs

- AMD Ryzen 8000 Series-Phoenix 1 processor supports PCIe 4.0 x4/x2 SSDs

- AMD Ryzen 8000 Series-Phoenix 2 processors support PCIe 4.0 x4/x2 SSDs

4 x SATA 6Gb/s interface

NVMe SSD supports building RAID 0, RAID 1 and RAID 10

SATA hard drives support building RAID 0, RAID 1 and RAID 10

USB

Based on CPU:

- 2 USB 3.2 Gen 1 ports in rear window IO

- 1 USB 2.0/1.1 port in rear window IO

Based on chipset:

- 2 USB 3.2 Gen 1 interfaces, which need to be connected from the USB socket on the motherboard via a flat cable

- 7 USB 2.0/1.1 interfaces (3 in the rear window IO, 4 need to be connected from the USB socket in the motherboard via a cable)

internal socket

1 x 24 PIN motherboard power socket

1 x 8 PIN CPU power socket

1 CPU fan socket

2 system fan headers

1 programmable LED light with power socket

1 RGB LED light with power socket

1 x M.2 SSD slot

4 SATA 3.0 interfaces

1 motherboard jumper socket

1 front audio jack

1 USB 3.2 Gen 1 socket

2 USB 2.0/1.1 sockets

1 security encryption module socket (only for use with GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2)

1 clear CMOS data pin

Rear panel device connection socket

4 USB 2.0/1.1 interfaces

1 PS/2 keyboard/mouse interface

1 Q-Flash Plus button

2 USB 3.2 Gen 1 ports

1 DP interface

1 HDMI interface

1 RJ-45 network cable interface

3 audio interfaces

I/O controller

Integrated iTE® I/O control chip
