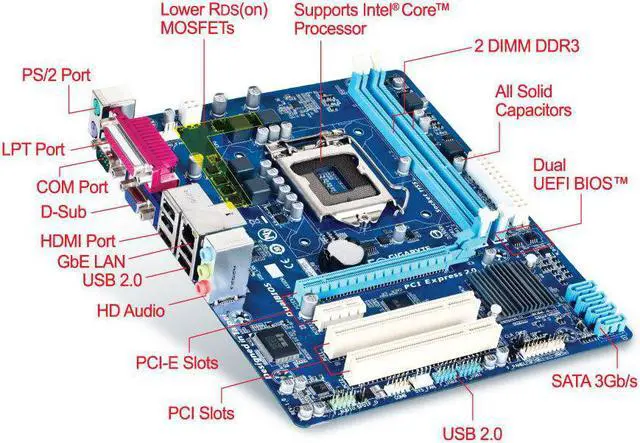

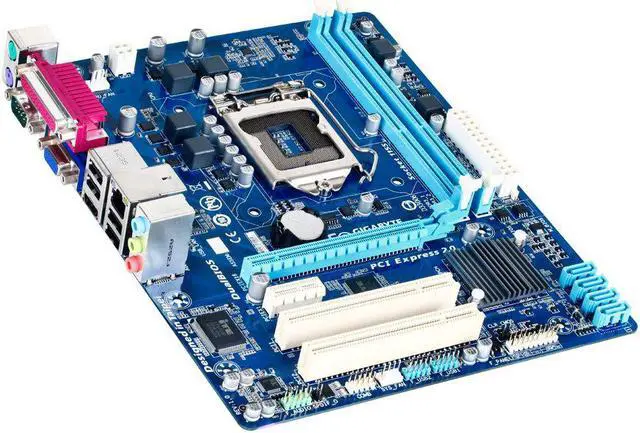

GIGABYTE GA-H61M-S2PH Supports 3rd Gen. Intel 22nm CPUs and 2nd Gen. Intel Core CPUs (LGA1155 socket)

Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package L3 cache varies with CPU (Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information. ) Chipset Intel® H61 Express Chipset Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

Dual channel memory architecture Support for DDR3 1333/1066/800 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules * To support XMP memory, you must install an Intel 22nm (Ivy Bridge) CPU. (Please refer "Memory Support List" for more information. ) Onboard
Graphics Integrated Graphics Processor: 1 x D-Sub port 1 x HDMI port, supporting a maximum resolution of 1920x1200 * Support for HDMI 1.4 version. Maximum shared memory of 1 GB Audio Realtek® ALC887 codec High Definition Audio 2/4/ 5.1 / 7.1 -channel * To configure 7.1 -channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out LAN Realtek® GbE LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard. ) * Whether PCI Express 3.0 is supported depends on CPU and graphics card compatibility. 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard. ) 2 x PCI slots
Storage Interface Chipset: 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

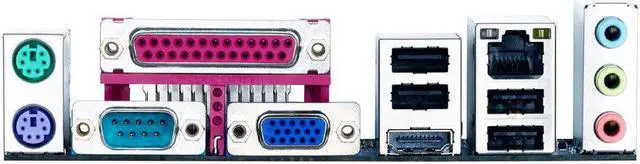

USB Chipset: Up to 8 USB 2.0 / 1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0 / 1.1 headers 1 x serial port header 1 x S/PDIF Out header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x parallel port 1 x serial port 1 x D-Sub port 1 x HDMI port 4 x USB 2.0 / 1.1 headers 1 x RJ-45 port 3 x audio jacks (Line In/Line Out/Microphone) I/O Controller iTE I/O Controller Chip
