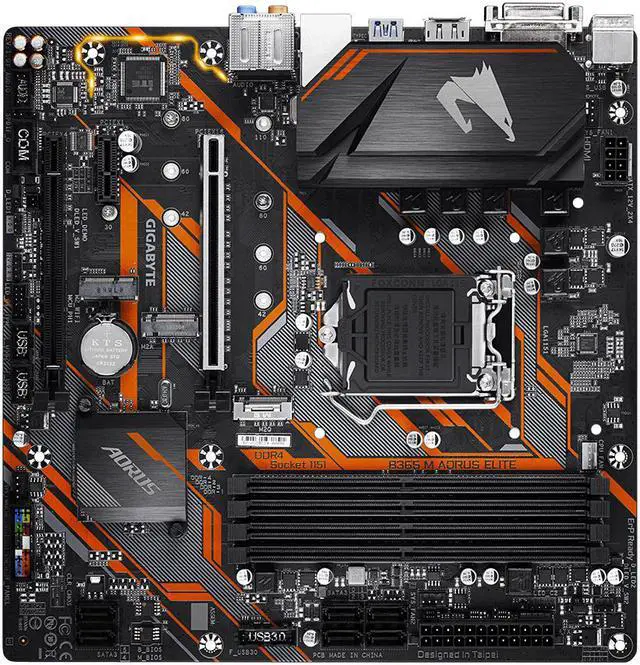

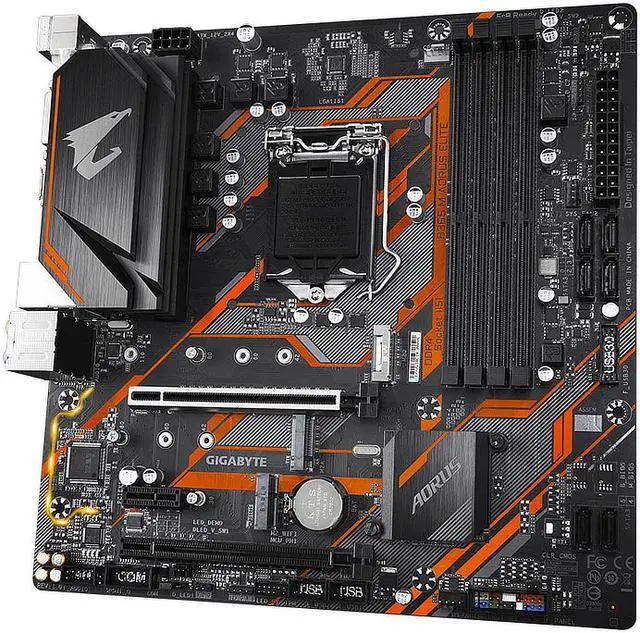

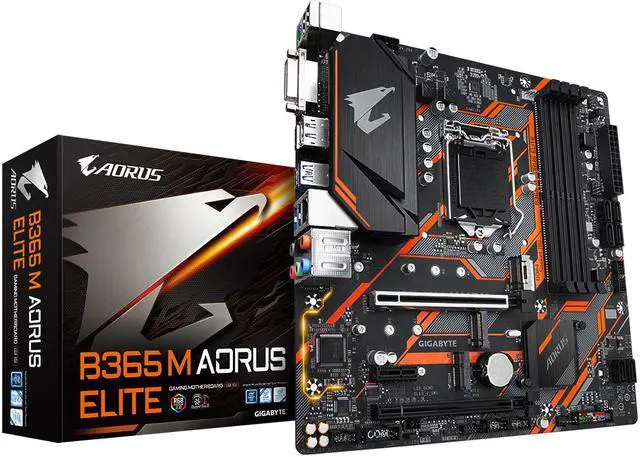

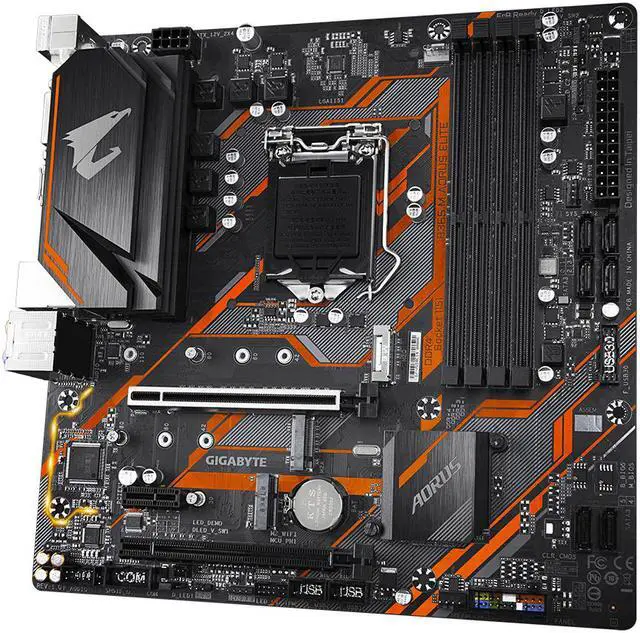

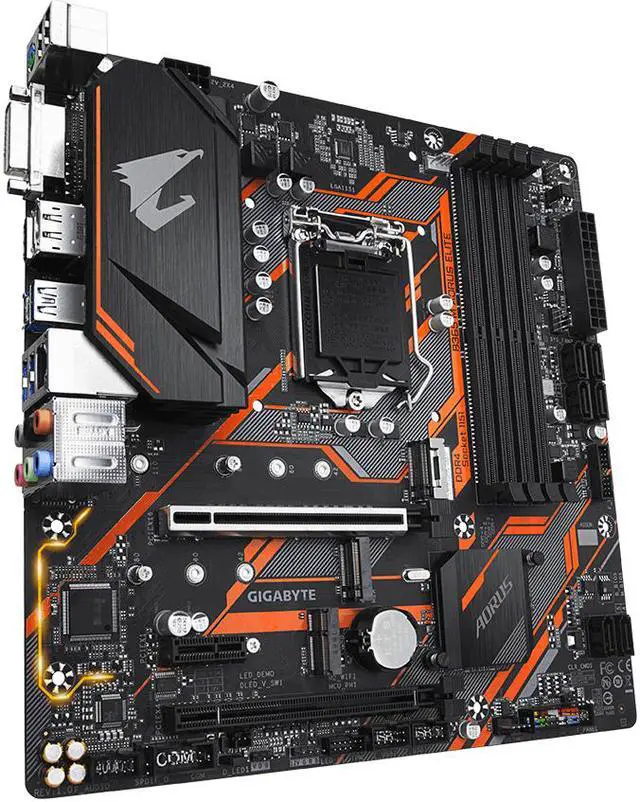

B365 M AORUS ELITE LGA 1151 Intel B365 DDR4 Micro ATX Motherboard (B365 M AORUS ELITE)
Used - Very Good Product Type
- Micro ATX,
- DDR4
- 64 GB
- LGA 1151
- Intel B365
+
+
Overview
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Internal IO
- Number of
M. 2 (M) slots: 2
Front panel connector: Yes
- 12V power connector: Yes
Supported storage drive interfaces: PCI Express 3.0, Serial ATA III
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 ( 3.1
Gen 1) connectors: 1
- TPM connector: Yes
Serial port via internal header: Yes
Serial port headers: 1
- SPDIF out connector: Yes
Number of SATA III connectors: 6
Number of chassis fan connectors: 3
Front panel audio connector: Yes
- CPU fan connector: Yes
- ATX
Power connector (24-pin): Yes
- RGB LED pin header: Yes
Motherboard chipset family: Intel
Motherboard chipset: Intel B365
Serial port via internal header: Yes
Serial port headers: 1
Parallel processing technology support: 2-Way CrossFireX, Quad-GPU CrossFireX
Motherboard form factor: Micro ATX
Component for: PC
Audio output channels: 7.1 channels
Supported storage drive types: HDD, SSD
Windows operating systems supported: Windows 10
Motherboard chipset family: Intel
Motherboard chipset: Intel B365
- RAID levels: 0, 1, 5, 10
Audio output channels: 7.1 channels
Motherboard form factor: Micro ATX
Component for: PC
Processor manufacturer: Intel
Compatible processor series: Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
Processor socket: LGA 1151 (Socket H4)
Number of memory slots: 4
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
Memory channels: Dual
- ECC: No
Non-ECC: Yes
Supported memory clock speeds: 2133, 2400, 2666 MHz
Supported memory module capacities: 4GB, 8GB, 16GB
Maximum internal memory: 64 GB
Unbuffered memory: Yes
Supported storage drive types: HDD, SSD
Supported storage drive interfaces: PCI Express 3.0, Serial ATA III
- RAID levels: 0, 1, 5, 10
Parallel processing technology support: 2-Way CrossFireX, Quad-GPU CrossFireX

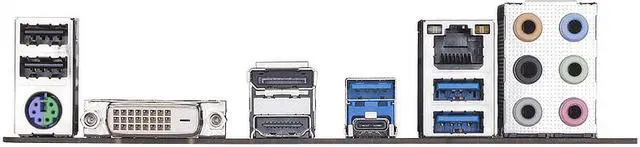

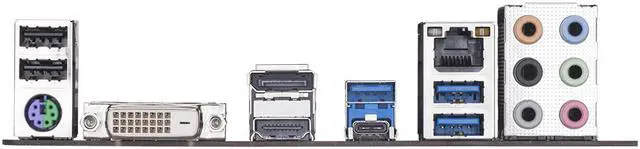

- USB 3.2 Gen 1 ( 3.1 Gen 1)
Type-A ports quantity: 3
- USB 3.2 Gen 1 ( 3.1 Gen 1)
Type-C ports quantity: 1
- USB 2.0 ports quantity: 2
- PS2 ports quantity: 1
Microphone in: Yes
Headphone outputs: 1
- HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
- DVI-D ports quantity: 1
DisplayPorts quantity: 1
Ethernet LAN: Yes
Wi-Fi: No
Ethernet interface type: Gigabit Ethernet
Power source type: ATX
Windows operating systems supported: Windows 10
Motherboard chipset family: Intel
Motherboard chipset: Intel B365
Audio output channels: 7.1 channels
Motherboard form factor: Micro ATX
Component for: PC
Audio chip: Realtek ALC892
- Number of
M. 2 (M) slots: 2
- PCI
Express x16 slots: 2
- PCI
Express x1 slots: 1
- BIOS type: UEFI AMI
Clear CMOS jumper: Yes
- BIOS memory size: 128
Mbit
- ACPI version: 5.0
System management BIOS (SMBIOS) version: 2.7
Desktop Management Interface (DMI) version: 2.7
DualBIOS: Yes
Power source type: ATX
Windows operating systems supported: Windows 10
Width: 244 mm
Depth: 244 mm
