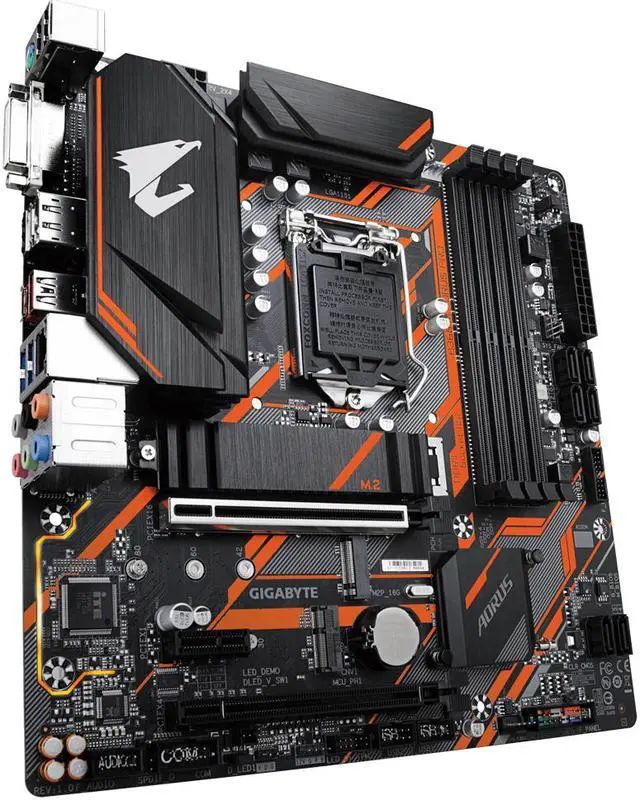

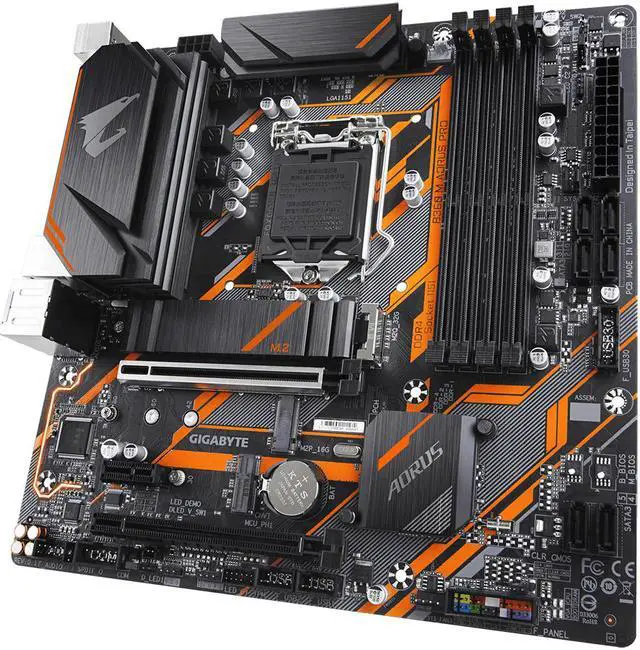

GIGABYTE B360 M AORUS PRO motherboard with RGB Fusion 2.0 with Digital LEDs, Intel GbE LAN with cFosSpeed, Dual M.2 slots, Ultra Durable PCIe Armor, Native Intel USB 3.1 Gen2 Type-A

Support for 9th and 8th Generation Intel® Core i9 processors/Intel® Core i7 processors/Intel® Core i5 processors/Intel® Core i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information. ) Chipset Intel® B360 Express Chipset Memory 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel® Core i9/i7/i5 processor.

(Please refer "Memory Support List" for more information. ) Onboard Graphics Integrated Graphics Processor-Intel® HD
Graphics support: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. Maximum shared memory of 1 GB Actual support may vary by CPU Audio Realtek® ALC892 codec High Definition Audio 2/4/ 5.1 / 7.1 -channel Support for S/PDIF Out LAN Intel® GbE LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (All of the PCI Express slots conform to PCI Express 3.0 standard. ) 1 x M. 2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI) Multi-Graphics Technology Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Storage Interface Chipset: 1 x M. 2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_32G) 1 x M. 2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P_16G) 6 x SATA 6Gb/s connectors * Refer to "1-7 Internal Connectors, " for the installation notices for the M. 2 and SATA connectors. Intel® Optane Memory Ready * System Acceleration with Intel® Optane Memory enabled on the M2Q_32G connector only.

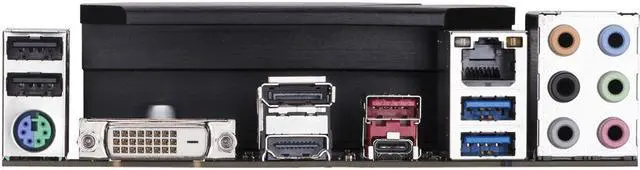

USB Chipset: 1 x USB Type-C port on the back panel, with USB 3.1 Gen 1 support 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0 / 1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) * The CNVi connector shares bandwidth with the F_USB2 header. When a Wi-Fi module is populated in the CNVi connector, one of the USB 2.0 / 1.1 ports routed to the F_USB2 header becomes unavailable. Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan he
