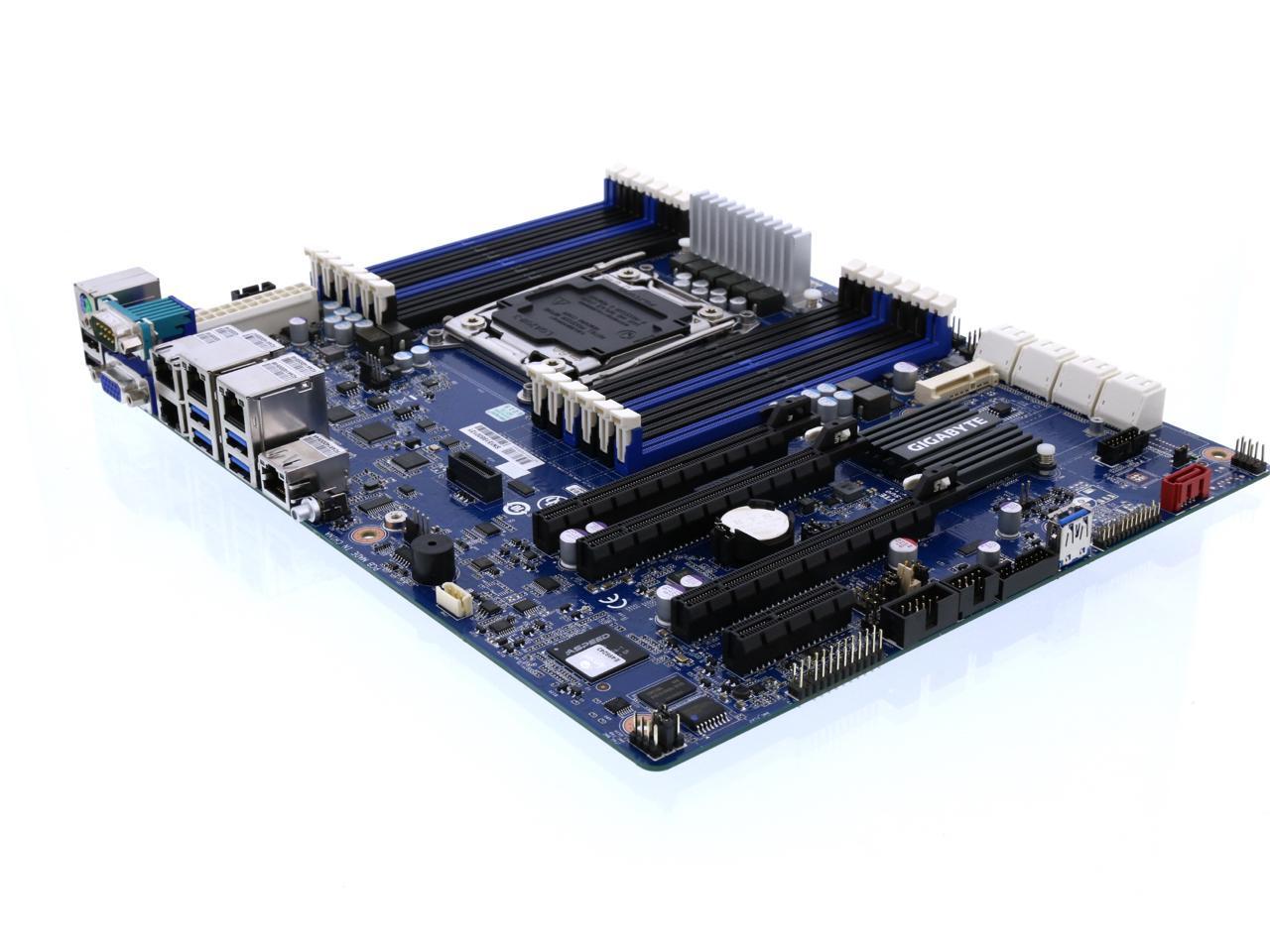

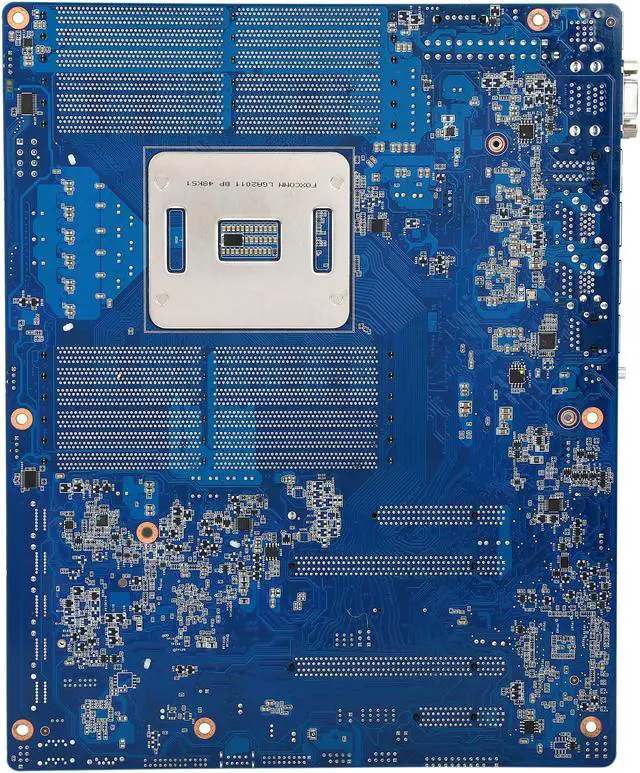

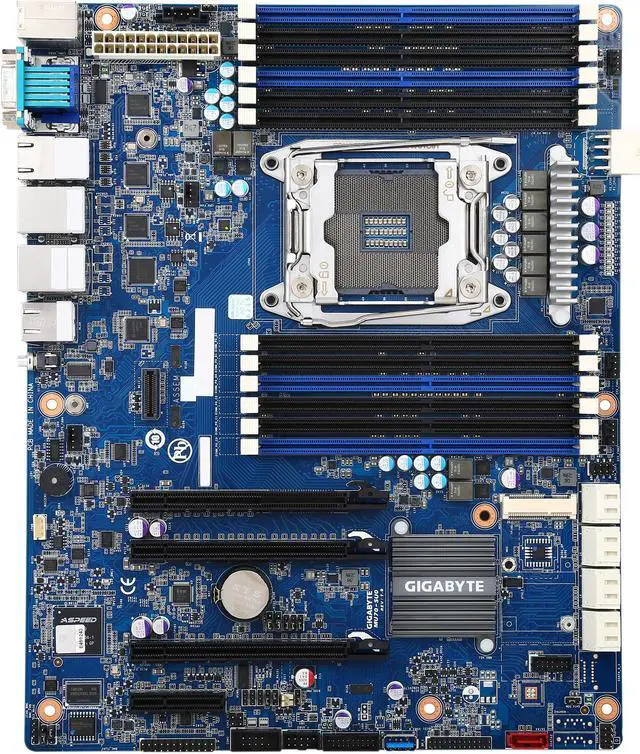

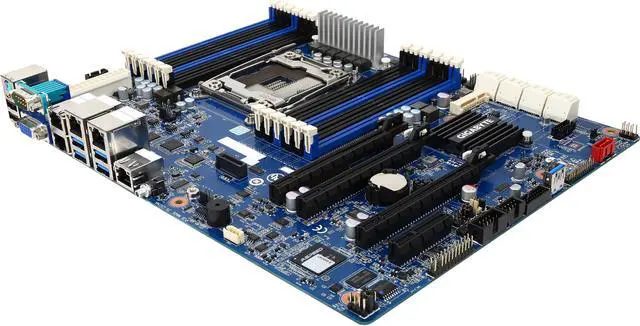

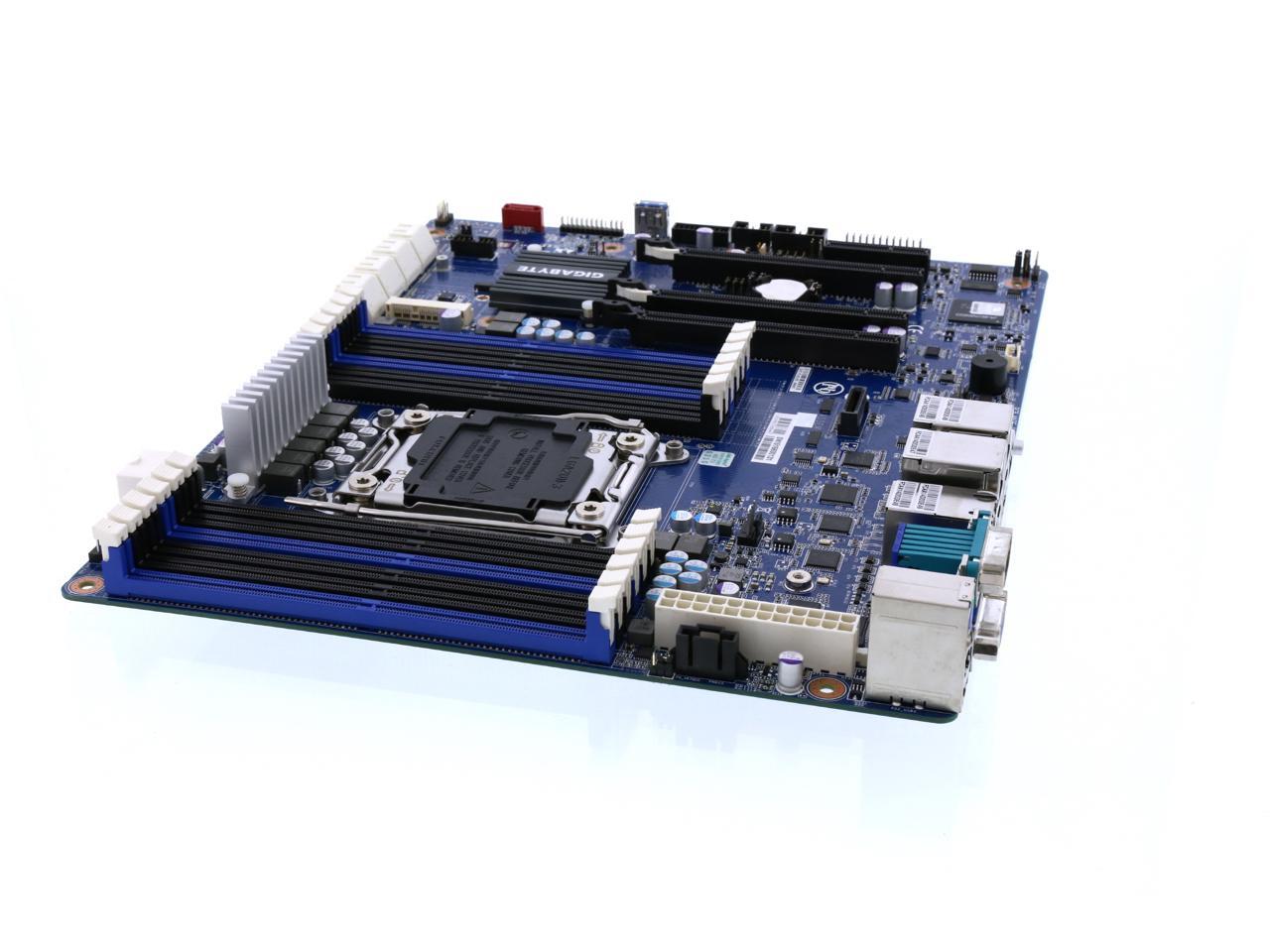

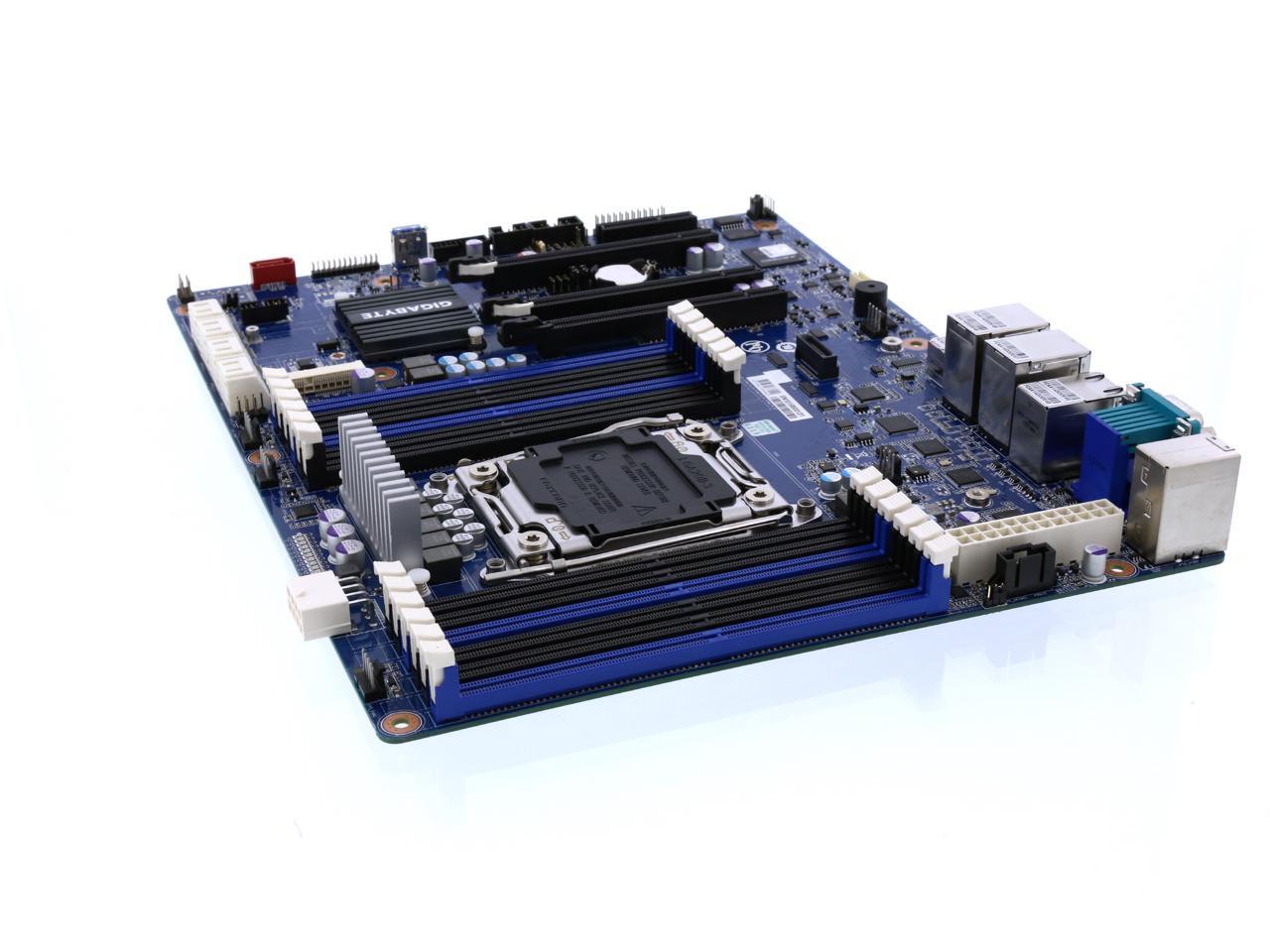

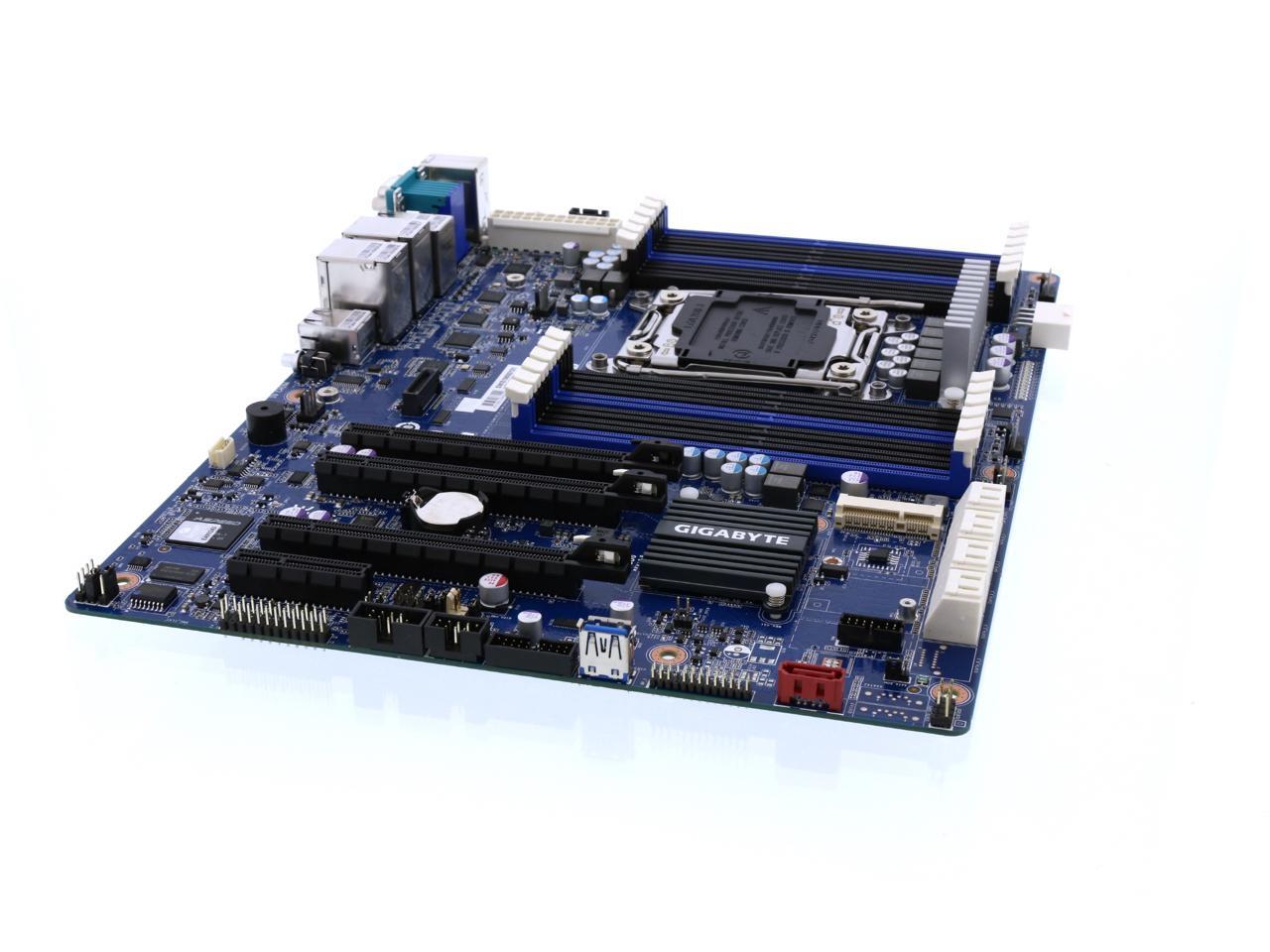

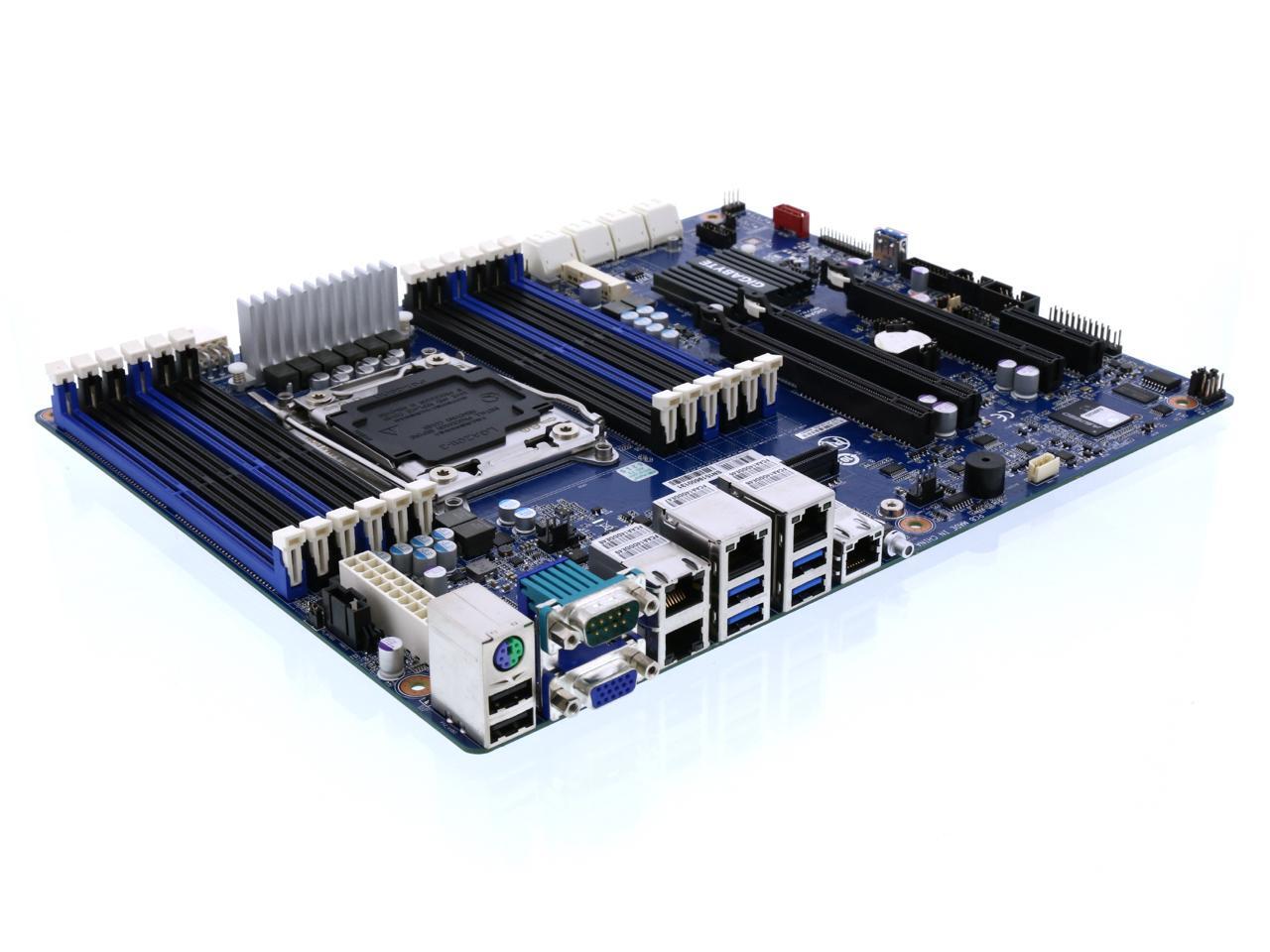

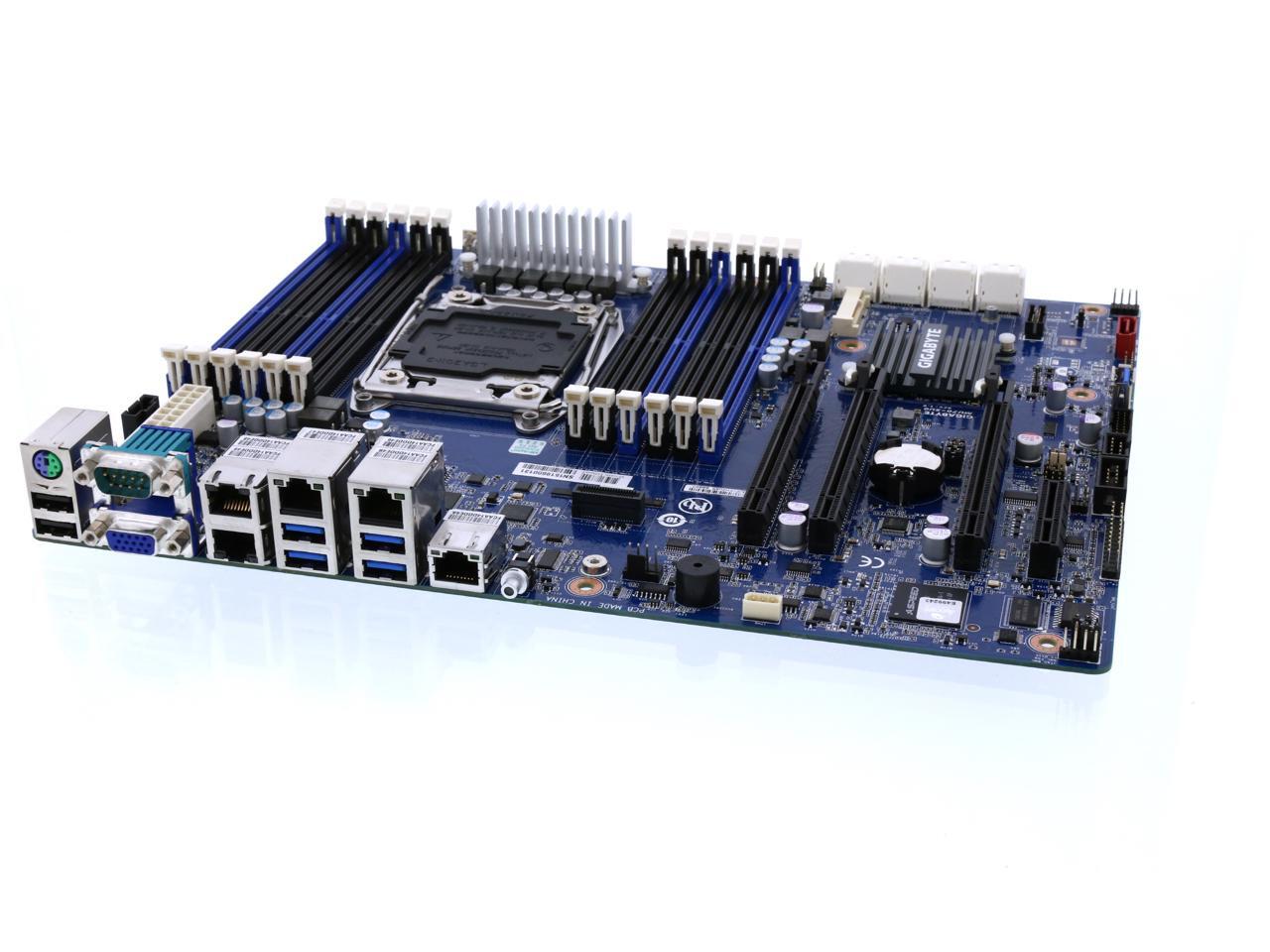

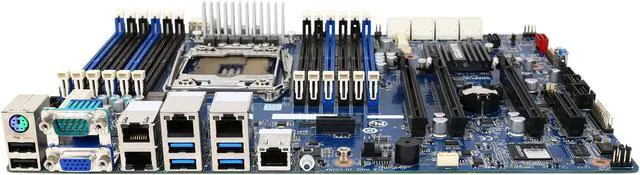

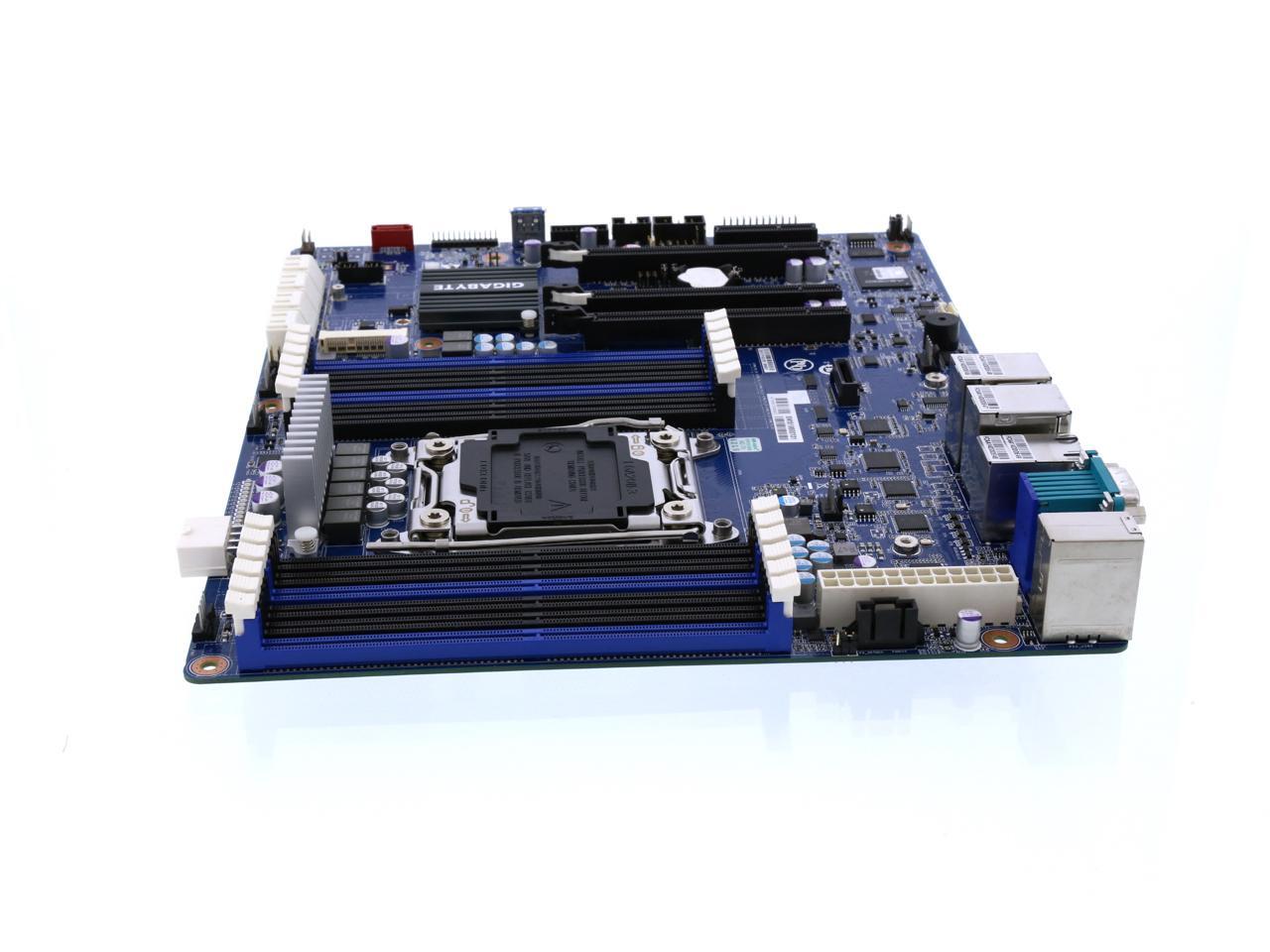

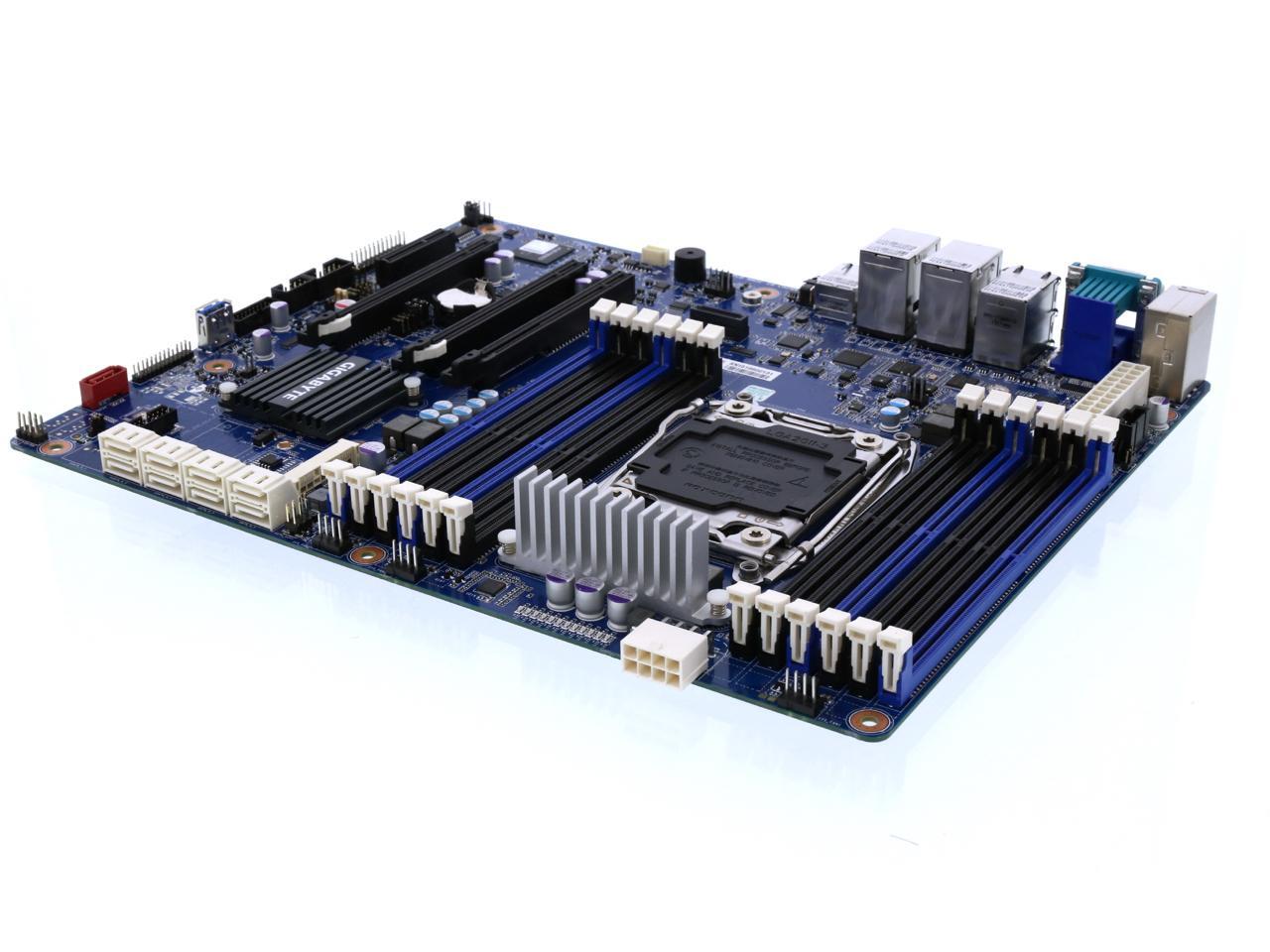

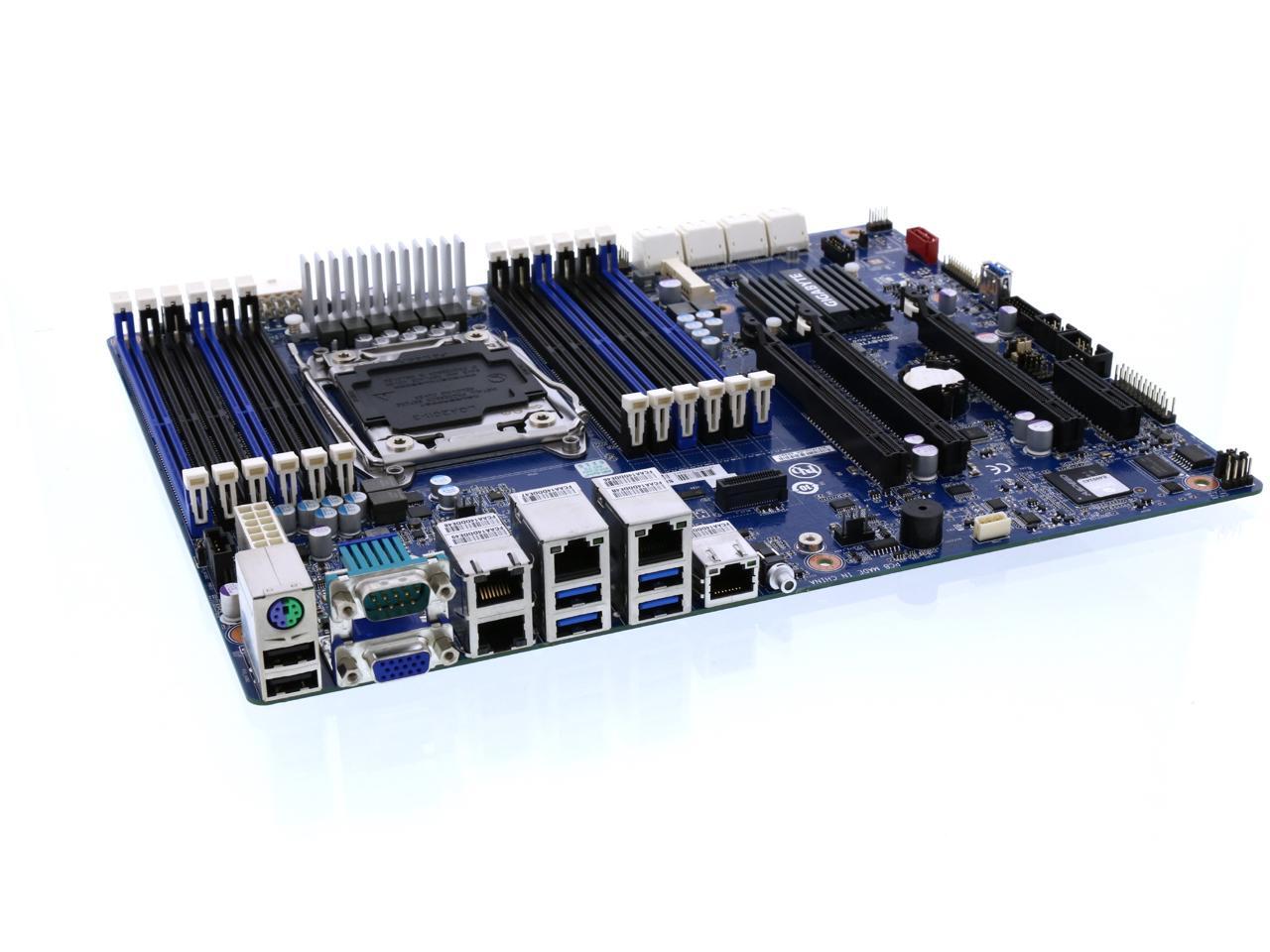

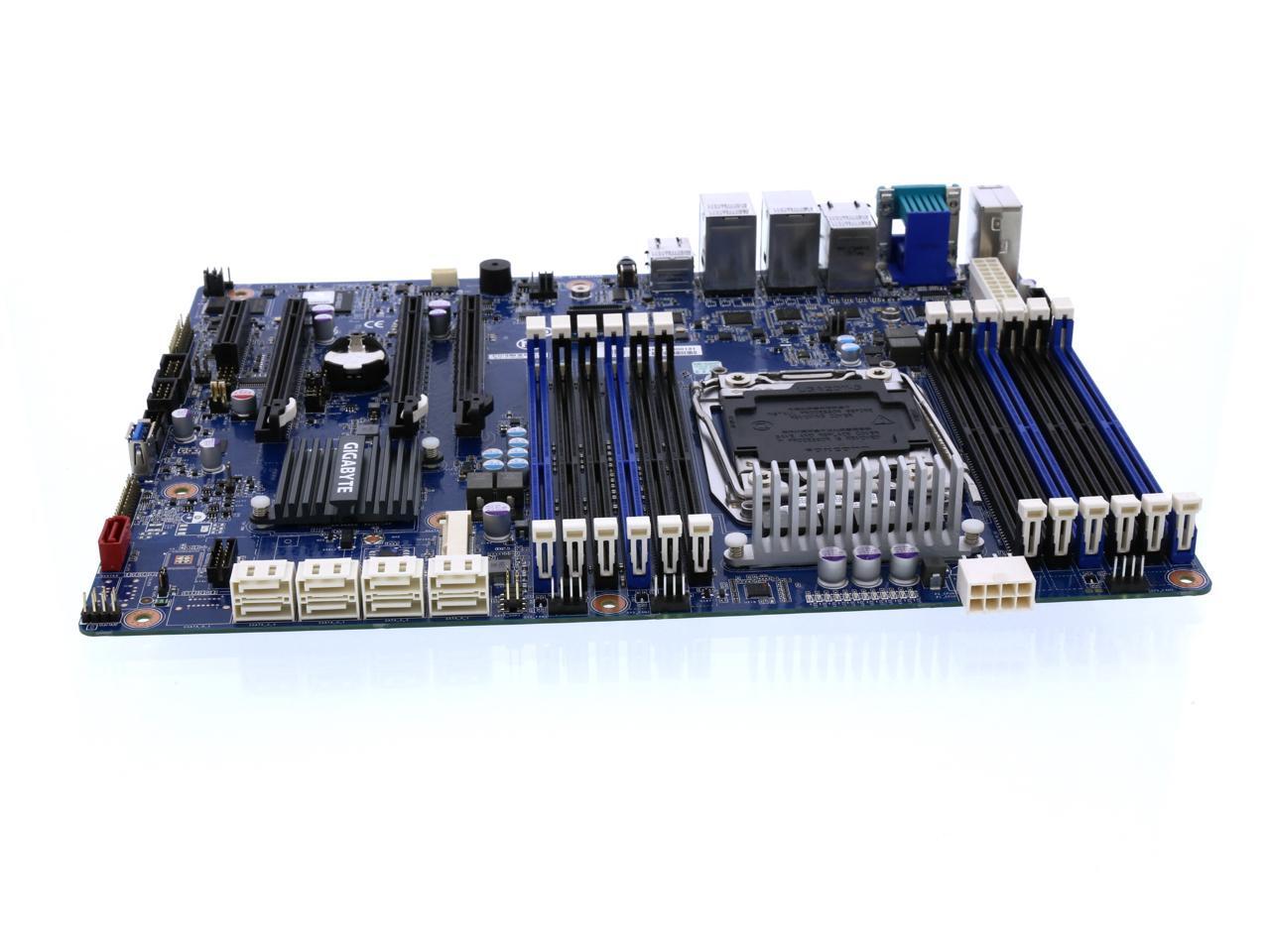

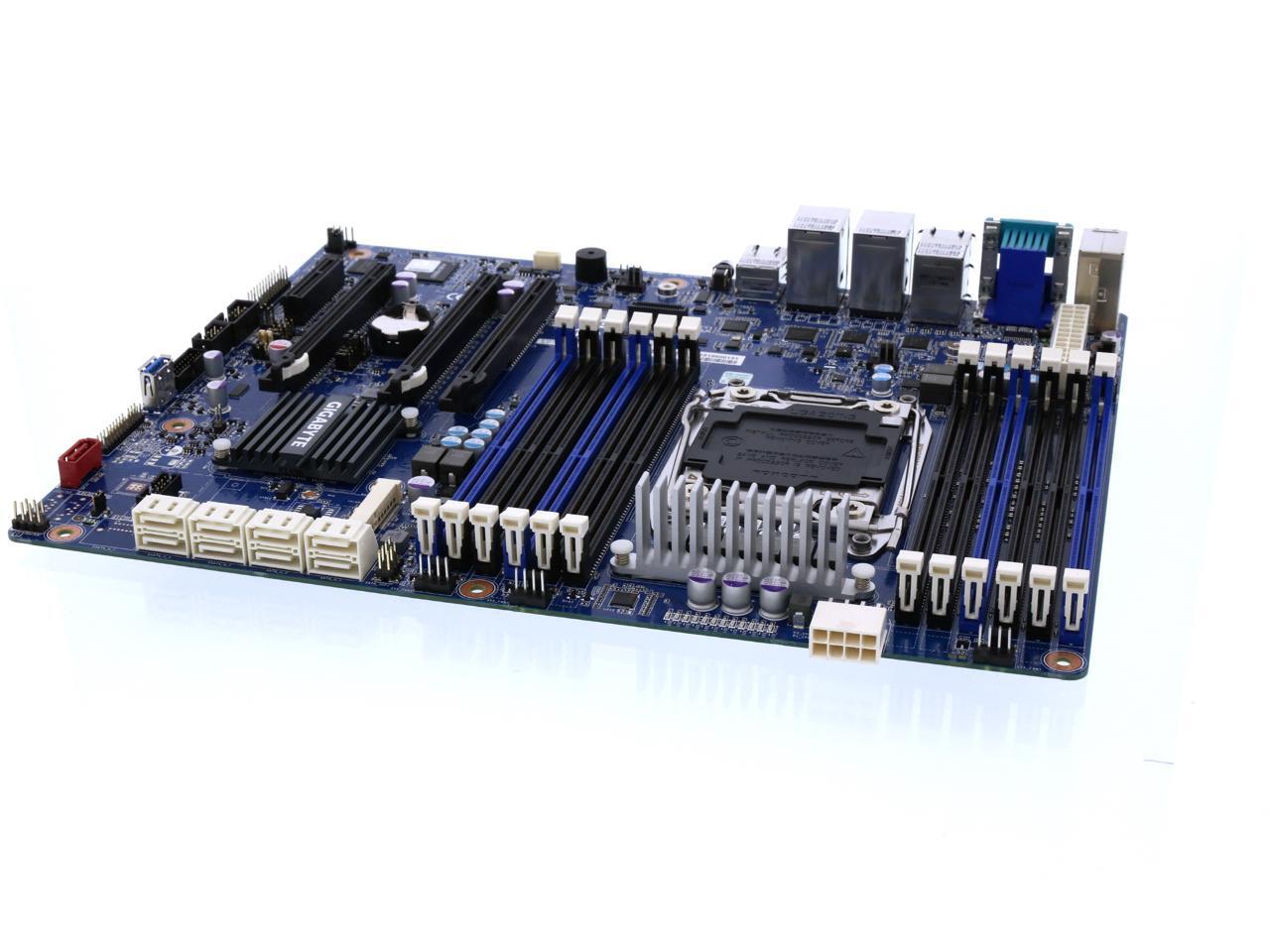

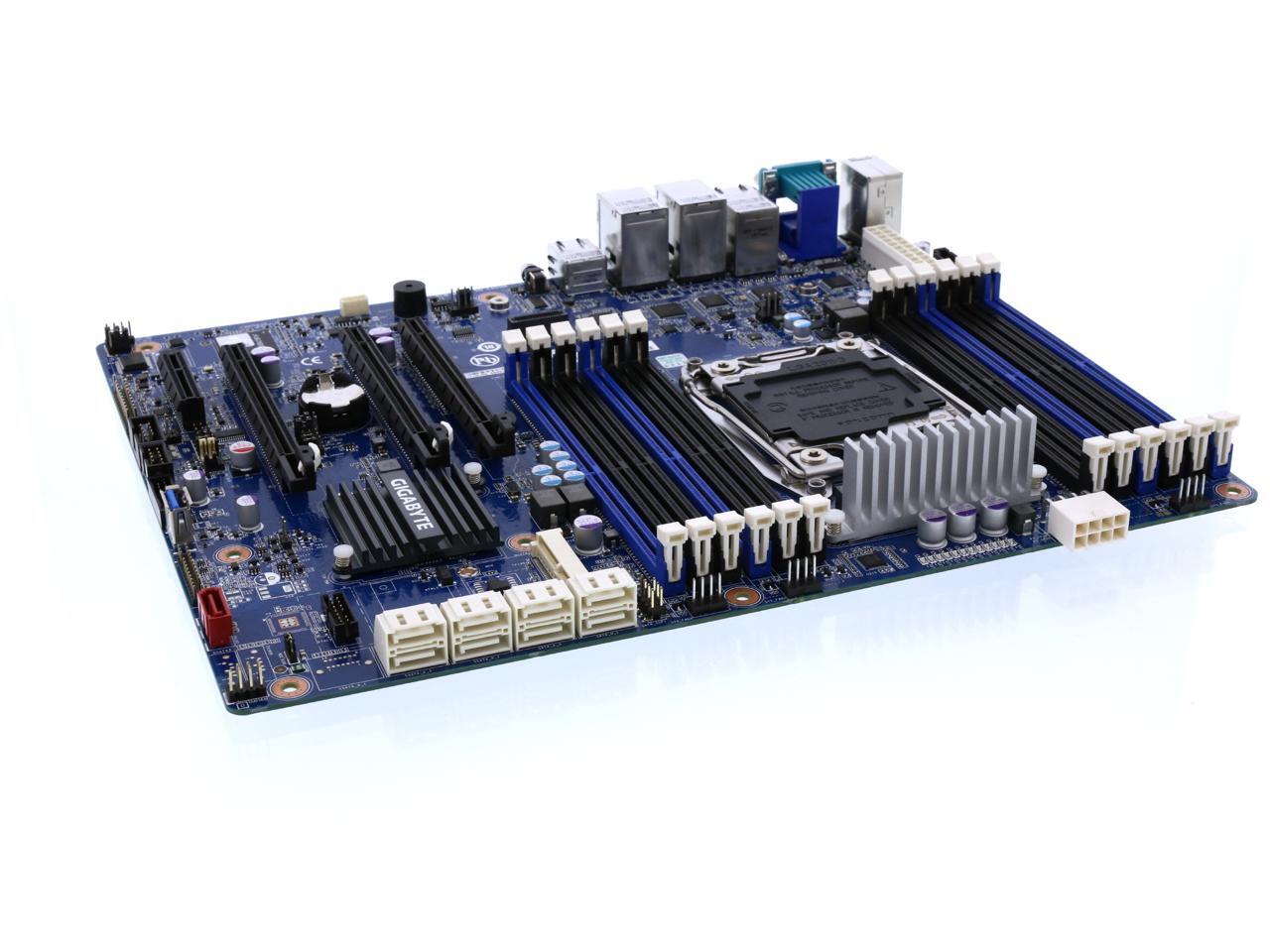

    GIGABYTE MU70-SU0 ATX Server Motherboard Mounting pitch: narrow ILM (56 x 94 mm) Recommended cooling device dimension: 70 x 106 mm Max. length of M4 screw threads: 3.7 mm Screws longer than 3.7 mm might damage the motherboard Intel C612

    Used - Very Good Product Type
    • Intel Xeon processor E5-1600 V3 & E5-2600 V3 product families
    • 12 x RDIMM/LRDIMM ECC DDR4 DIMM slots
    • 4 x GbE LAN port (Intel I210)
    • 9 x SATA III 6Gb/s
    • 1 x mSATA slot
    +
    +
    Overview
    Specs
    avatar

    Any questions? Our AI beta will help you find out quickly.

    MU70-SU0

    MU70-SU0
    Intel® C612 chipset

    MU70-SU0
    • Intel® Xeon® processor E5-1600 V3 & E5-2600 V3 product families
    • 12 x RDIMM/LRDIMM ECC DDR4 DIMM slots
    • 4 x GbE LAN port (Intel® I210)
    • 9 x SATA III 6Gb/s
    • 1 x mSATA slot
    • 1 x USB 3.0 + 1 x USB 2.0 headers
    • 1 x internal USB 3.0 port
    • Aspeed® AST2400 remote management controller
    MU70-SU0
    MU70-SU0

    INTEL XEON E5-1600/2600 V3
    PROCESSOR FAMILIES

    Based on the Haswell microarchitecture, these new Intel processor families bring a whole new set of performance boosting features. In addition to the usual boost in frequencies and core numbers, the Intel Xeon E5-1600/2600 V3 families are the first in the industry to support the brand new DDR4 memory technology.

    Moreover, these new processors include encryption performance overhead reduction features, and technologies improving run time and migration VM integrity.

    MU70-SU0

    DDR4 SUPPORT
    NEXT GEN MEMORY

    The Intel Xeon E5-1600/2600 V3 families are the first generation of processors to support exclusively the new DDR4 technology on the market, which brings:

    +50% Bandwidth Performance
    -35% Power Consumption @ 2DPC
    -50% Power Consumption @ 3DPC

    MEMORY FREQUENCY
    GET THE PERFORMANCE EDGE

    On the previous server platforms from Intel, the maximum supported memory frequency has always been automatically downgraded by design when more DIMMs were being added on a server motherboard. As this trade-off between performance and capacity represents a dilemma to many memory-hungry server applications, GIGABYTE offers a unique solution. All our motherboards based on the LGA 2011-3 socket support by default a maximum frequency of 2133 MHz in any memory configuration:

    MU70-SU0

    DEDICATED LAN CARD SLOT
    NETWORK FLEXIBILITY

    This motherboard uses a mezzanine card slot with four PCI-Express lanes with custom mounting sockets to receive one of our proprietary LAN controller cards. Positioned right between the board's socket and I/O, it can add more LAN ports to the standard interface and fit into a larger range of possible network scenarios.

    MU70-SU0
    MU70-SU0

    MSATA 6GB/S
    ONBOARD STORAGE

    Thanks to the Mini-PCIe slot shown on the right, users have the flexibility to install an SSD directly on the motherboard, which can enhance a server's performance with better overall responsiveness, faster boot times and faster system resume times.

    EASY BIOS UPDATE

    Because updating the version of a BIOS can be a troublesome experience, GIGABYTE has developed this integrated function (no utility to install) that lets you update the BIOS of your motherboard(s):

    Without having to install CPUs, memory, drives, operating system, etc.
    Without having to power on the system (but a power supply must be connected)
    One board at a time via our IPMI 2.0 web interface
    Multiple boards simultaneously via command line

    IPMI 2.0 WEB INTERFACE
    REMOTE BOARD MANAGEMENT

    This motherboard has an onboard controller providing comprehensive remote board monitoring and management features, such as:

    Remote Boot & Reset
    Remote Image Mounting
    Full Control Over Network, Users, Services, Etc.
    Complete System Monitoring & Diagnostics

    MU70-SU0
    MU70-SU0

    ALL IR POWER DESIGN

    Our board's CPU and memory power delivery is ensured by industry-leading IR Digital PWM and IR PowIRstage IC controllers. These components guarantee a super stable operating environment and allow the processors and the memory to deliver their maximum performance.

    OS-CON CAP ACITORS

    With a service life of a minimum of 50'000 hours, our boards are built with ultra long lasting components for the highest reliability possible.

    HIGH END FERRITE CORE CHOKES

    The top quality chokes we install on our boards also contribute to an ultra stable power delivery to the CPU and the memory.

    • * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
    • * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
    • * All trademarks and logos are the properties of their respective holders.
    • * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
