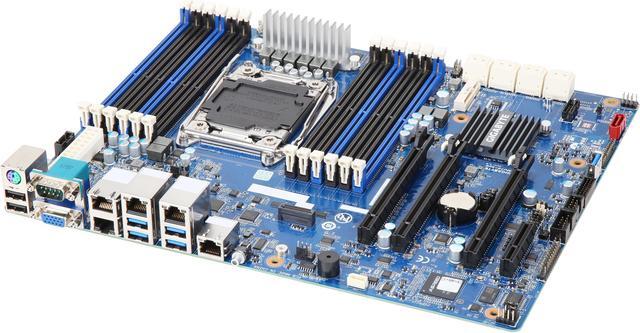

GIGABYTE MU70-SU0 ATX Server Motherboard 1 x LGA 2011-3 Mounting pitch: narrow ILM (56 x 94 mm) Recommended cooling device dimension: 70 x 106 mm Max. length of M4 screw threads: 3.7 mm Screws longer than 3.7 mm might damage the motherb
REFURBISHED Product Type
- 1 x LGA 2011-3
- Mounting pitch: narrow ILM (56 x 94 mm)
- Recommended cooling device dimension: 70 x 106 mm
- Max. length of M4 screw threads: 3.7 mm
- Screws longer than 3.7 mm might damage the motherboard
- Intel C612
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE MU70-SU0
| Best Seller Ranking | #100 in Server Motherboards |
|---|
| Brand | GIGABYTE |
|---|---|
| Model | MU70-SU0 |

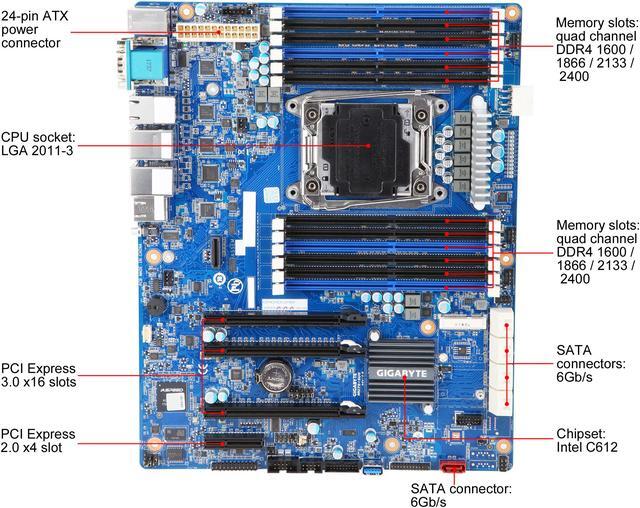

| CPU Socket Type | 1 x LGA 2011-3 Mounting pitch: narrow ILM (56 x 94 mm) Recommended cooling device dimension: 70 x 106 mm Max. length of M4 screw threads: 3.7 mm Screws longer than 3.7 mm might damage the motherboard |
|---|---|
| CPU Type | Intel Xeon E5-2600 V3 processors Intel Xeon E5-1600 V3 processors Intel Xeon E5-2600 V4 processors Intel Xeon E5-1600 V4 processors |
| North Bridge | Intel C612 |
|---|
| Number of DDR4 Slots | 12 x DIMM slots |
|---|---|
| DDR4 Standard | DDR4 1600 / 1866 / 2133 / 2400 MHz |
| Maximum Memory Supported | RDIMM modules up to 32GB supported LRDIMM modules up to 64GB supported 3DS LRDIMM modules up to 128GB supported |
| Channel Supported | Quad Channel |
| ECC Supported | Yes |
| PCI Express x16 | 2 x PCIe x16 (Gen3 x16 bus) slots 1 x PCIe x16 (Gen3 x8 bus) slot (Gen3 x4 bus if the mezzanine slot is used) |
|---|---|
| PCI Express x4 | 1 x PCIe x4 (Gen2 x2 bus) slot 1 x PCIe x4 mezzanine card slot |
| SATA | 8 x SATA III 6Gb/s ports 1 x SATA III 6Gb/s port supporting SATA DOM 1 x mSATA 6Gb/s slot |
|---|---|
| SATA RAID | 0/1/10/5 |
| Onboard Video Chipset | Aspeed AST2400 |
|---|

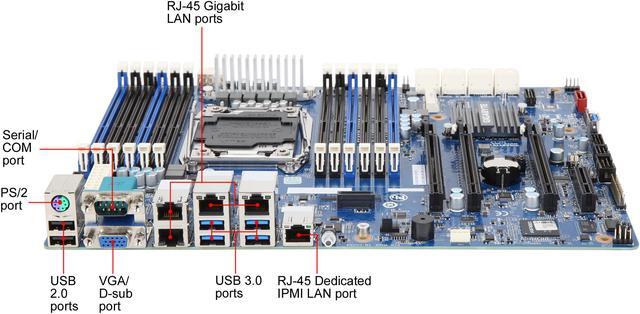

| Number of LAN | 4 x GbE LAN ports (Intel I210) 1 x 10/100/1000 management LAN |
|---|---|
| LAN Chipset | Intel I210 |
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 4 x 1Gbps |
| PS/2 | 1 |
|---|---|
| Video Ports | 1 x VGA |
| RJ45 | 5 x RJ45 |
| USB 1.1/2.0 | 2 x USB 2.0 |
| USB 3.0 | 4 x USB 3.0 |
| Features | Intel Xeon processor E5-1600 & E5-2600 V3 / V4 product families 12 x RDIMM / LRDIMM ECC DDR4 DIMM slots 4 x GbE LAN port (Intel I210) 9 x SATA III 6Gb/s 1 x mSATA slot 1 x USB 3.0 + 1 x USB 2.0 headers 1 x internal USB 3.0 port Aspeed AST2400 remote management controller |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| First Listed on Newegg | November 22, 2024 |
|---|
